Art.-Nr. WPVTO S

Wide-span coupler WPV 100F

Wide-span cable track connector, T-joint, top

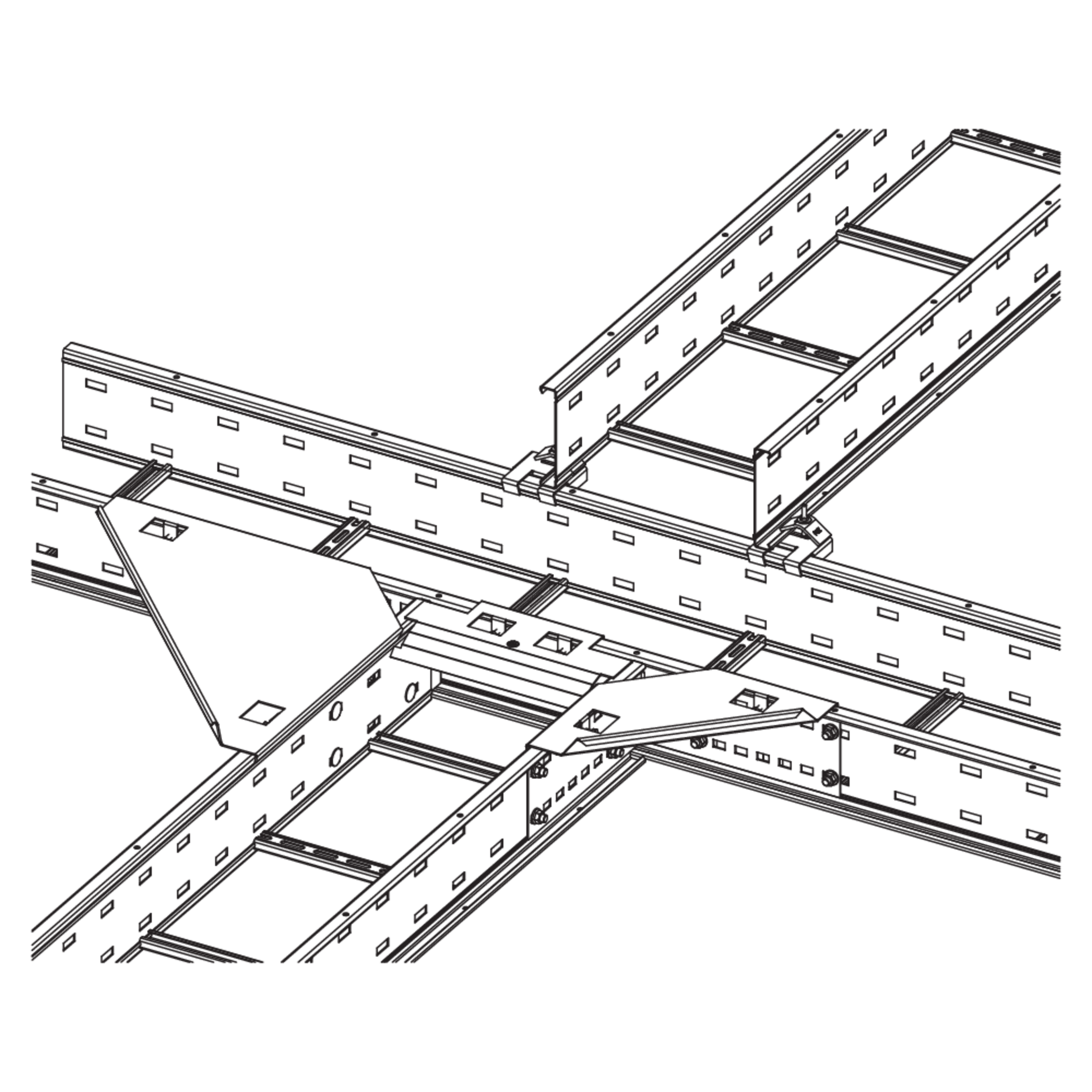

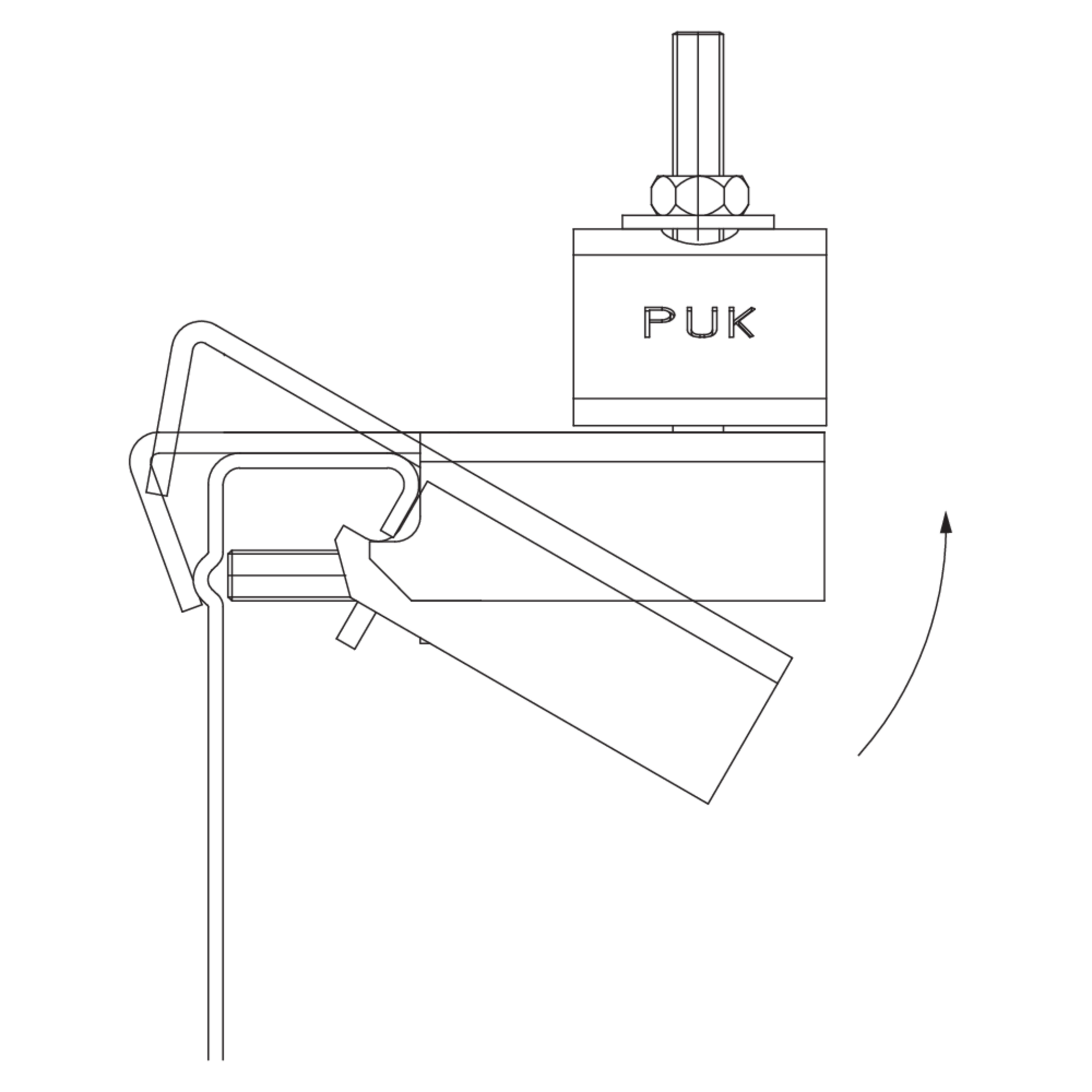

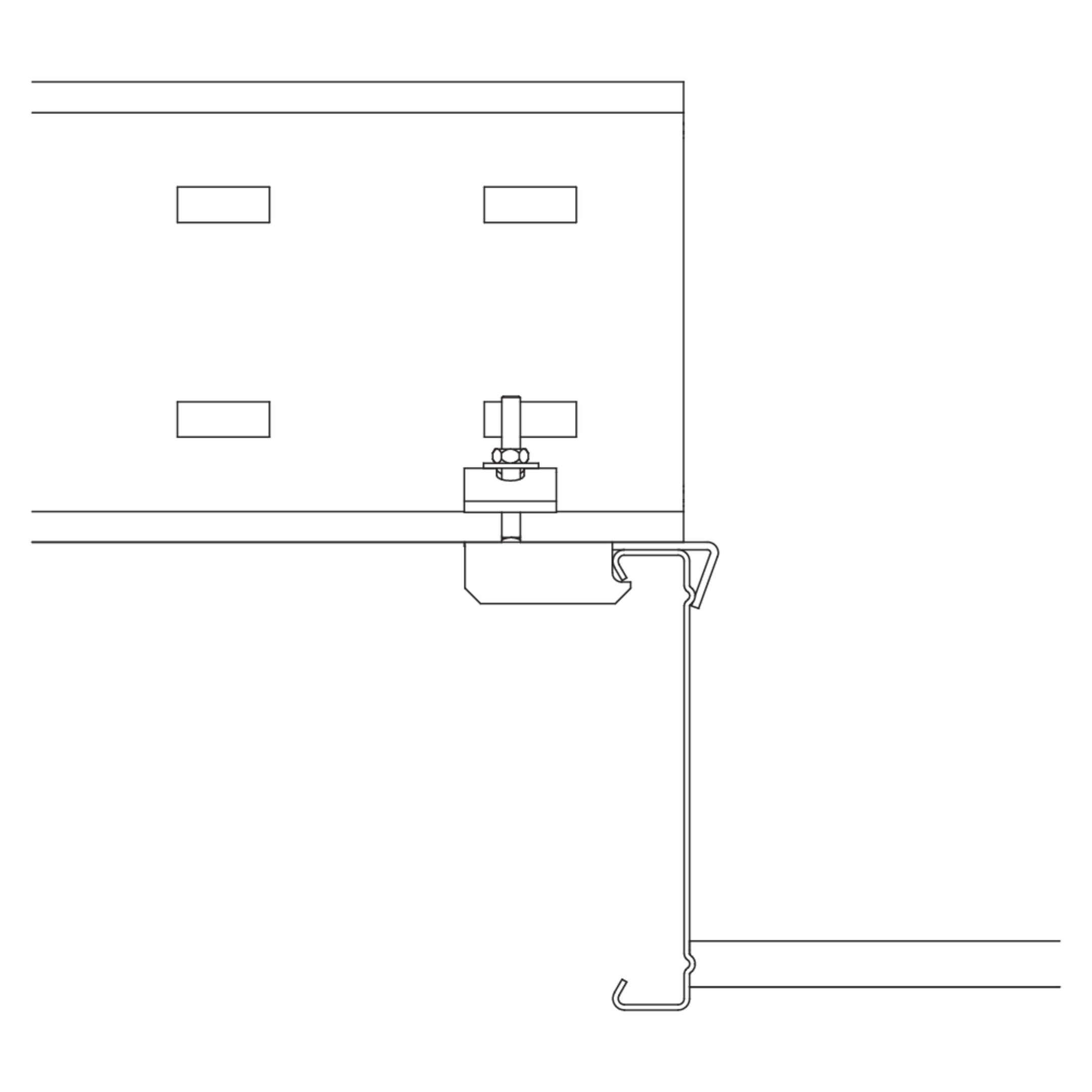

Wide-span cable ladder connector T-joint top WPVTO is used to create a junction for vertically offset wide-span cable ladders WPL. The connector is inserted at a 45° angle onto the rail profile of the wide span cable ladder WPL and folded down. The WPL wide-span cable ladder is fastened using the SKLL clamp fasteners supplied. Various materials and surfaces ensure that the corrosion requirements of a wide range of applications are met.

Art.-Nr.
WPVTO S
height
20 mm
width
85 mm
length
83 mm
material thickness
2.5 mm
Weight per storage unit
0.244 kg
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

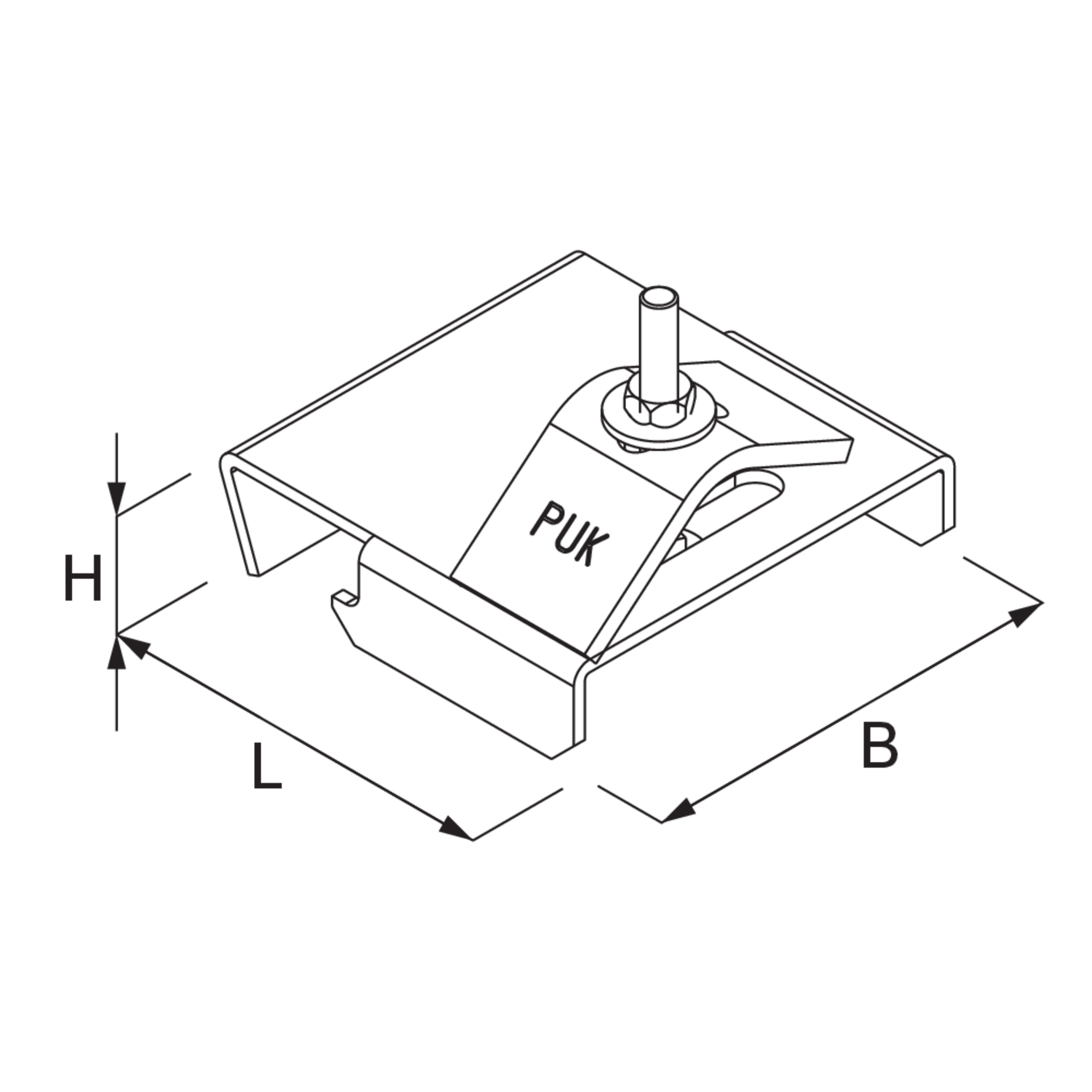

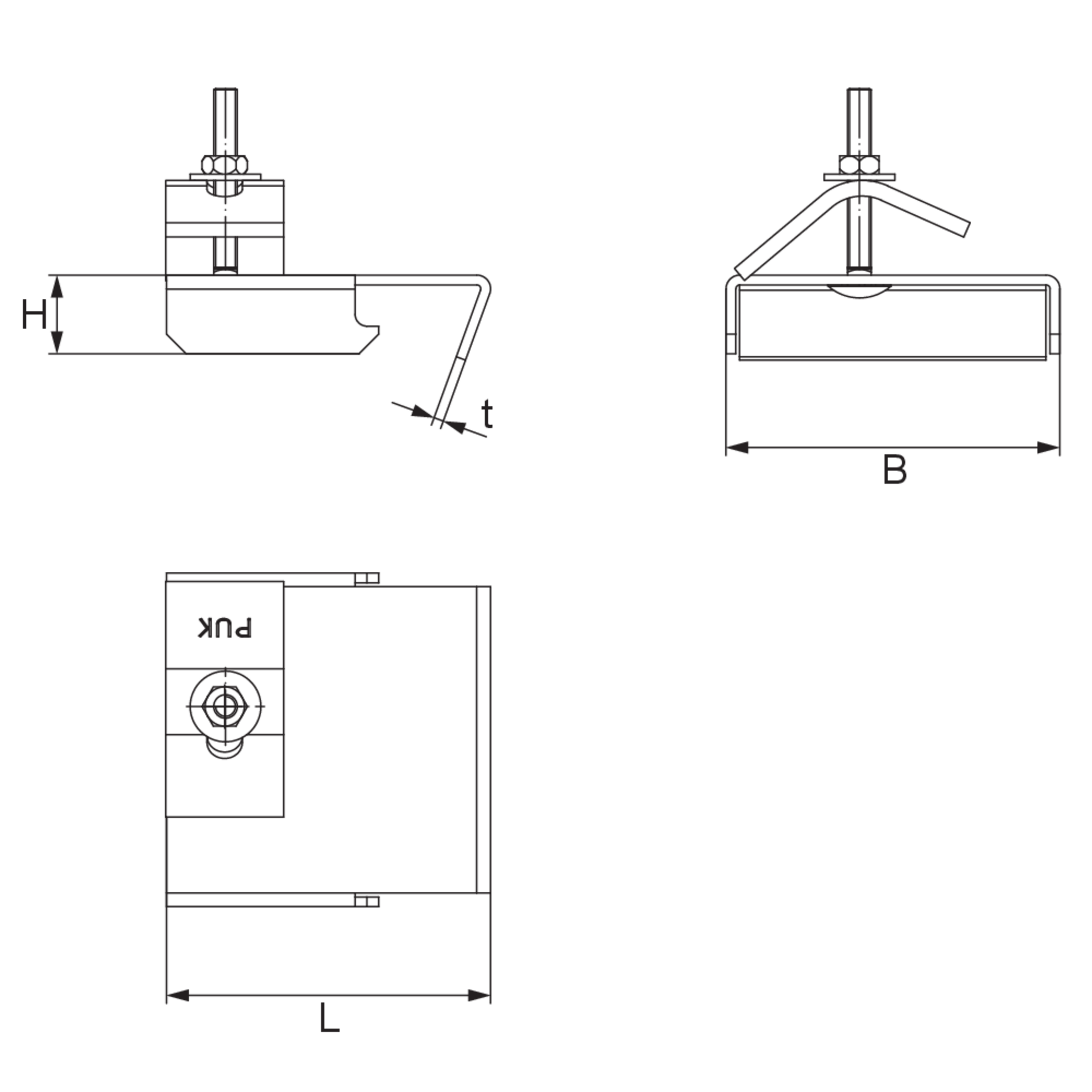

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • WPVTO S
    Wide-span coupler WPV 100F
    height
    20 mm
    width
    85 mm
    length
    83 mm
    material thickness
    2.5 mm
    Weight per storage unit
    0.244 kg
    Included accessories
