Art.-Nr. VM M10E

Rod coupling VM M10E

Rod coupling, maintenance of function

Connector sleeve VM can be used to mount threaded rods or central suspensions etc. on ceiling dowels. They are available in threads M8, M10 and M12. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Art.-Nr.
VM M10E
length
30 mm
thread diameter
10 mm
Weight per storage unit
0.015 kg
Fire protection
Get in touchDownload datasheet

Variants

steel, galvanic zinc plated

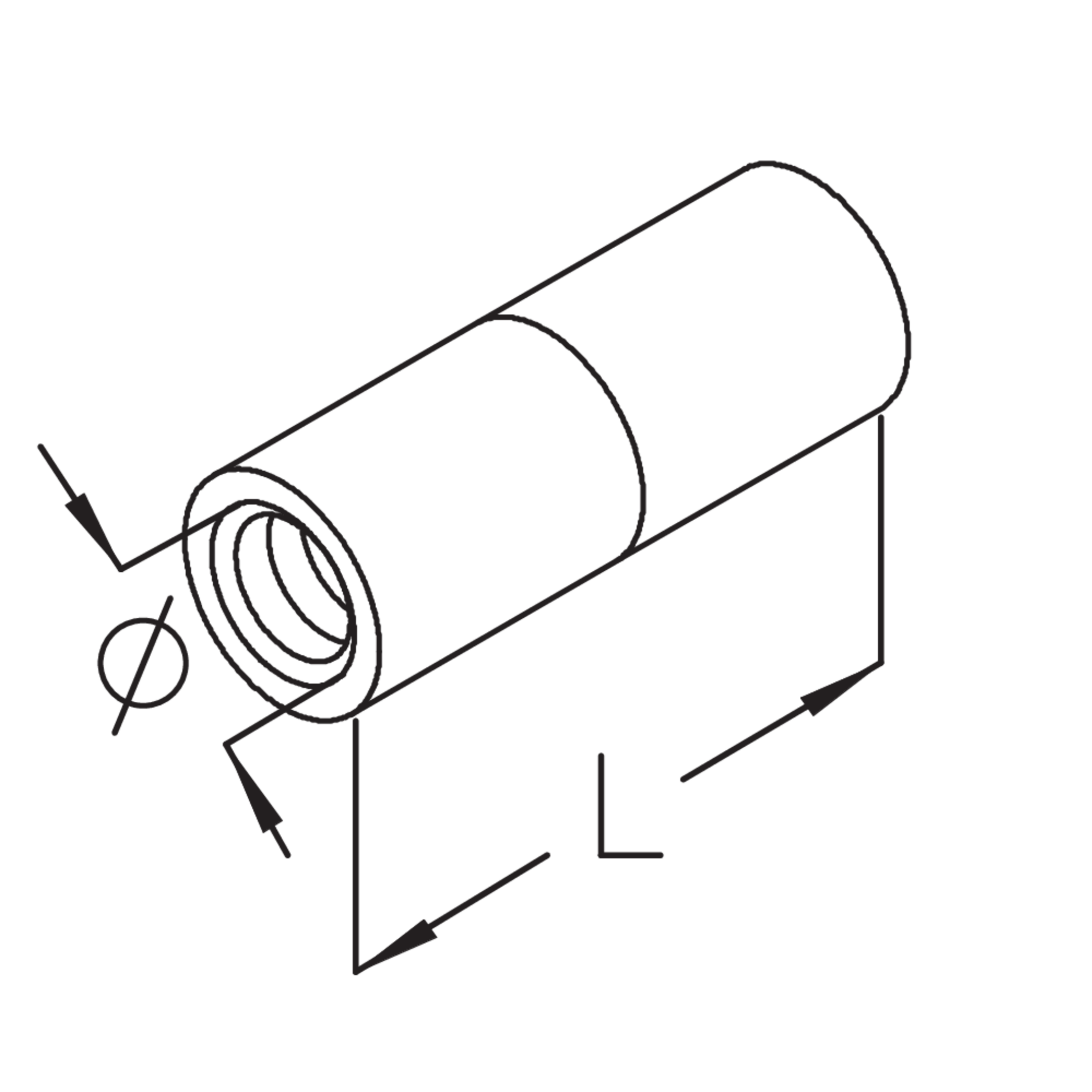

Article

L

length

Ø

thread diameter

G

Weight per storage unit

  • VM M8
    Rod coupling VM M8
    length
    30 mm
    thread diameter
    8 mm
    Weight per storage unit
    0.011 kg
    More information
  • VM M10
    Rod coupling VM M10
    length
    30 mm
    thread diameter
    10 mm
    Weight per storage unit
    0.014 kg
    More information
  • VM M12
    Rod coupling VM M12
    length
    30 mm
    thread diameter
    12 mm
    Weight per storage unit
    0.017 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

L

length

Ø

thread diameter

G

Weight per storage unit

  • VM M8E
    Rod coupling VM M8E
    length
    30 mm
    thread diameter
    8 mm
    Weight per storage unit
    0.012 kg
    More information
  • VM M10E
    Rod coupling VM M10E
    length
    30 mm
    thread diameter
    10 mm
    Weight per storage unit
    0.015 kg
    More information
  • VM M12E
    Rod coupling VM M12E
    length
    30 mm
    thread diameter
    12 mm
    Weight per storage unit
    0.024 kg
    More information

Details

  • These articles have been tested for use in escape route installations.
  • These articles have been tested for functional integrity in the event of fire.
  • The guidelines applicable to the specific application can be found in the relevant certificates and test reports.
