UVBUWI-3P

Socket component, Wieland

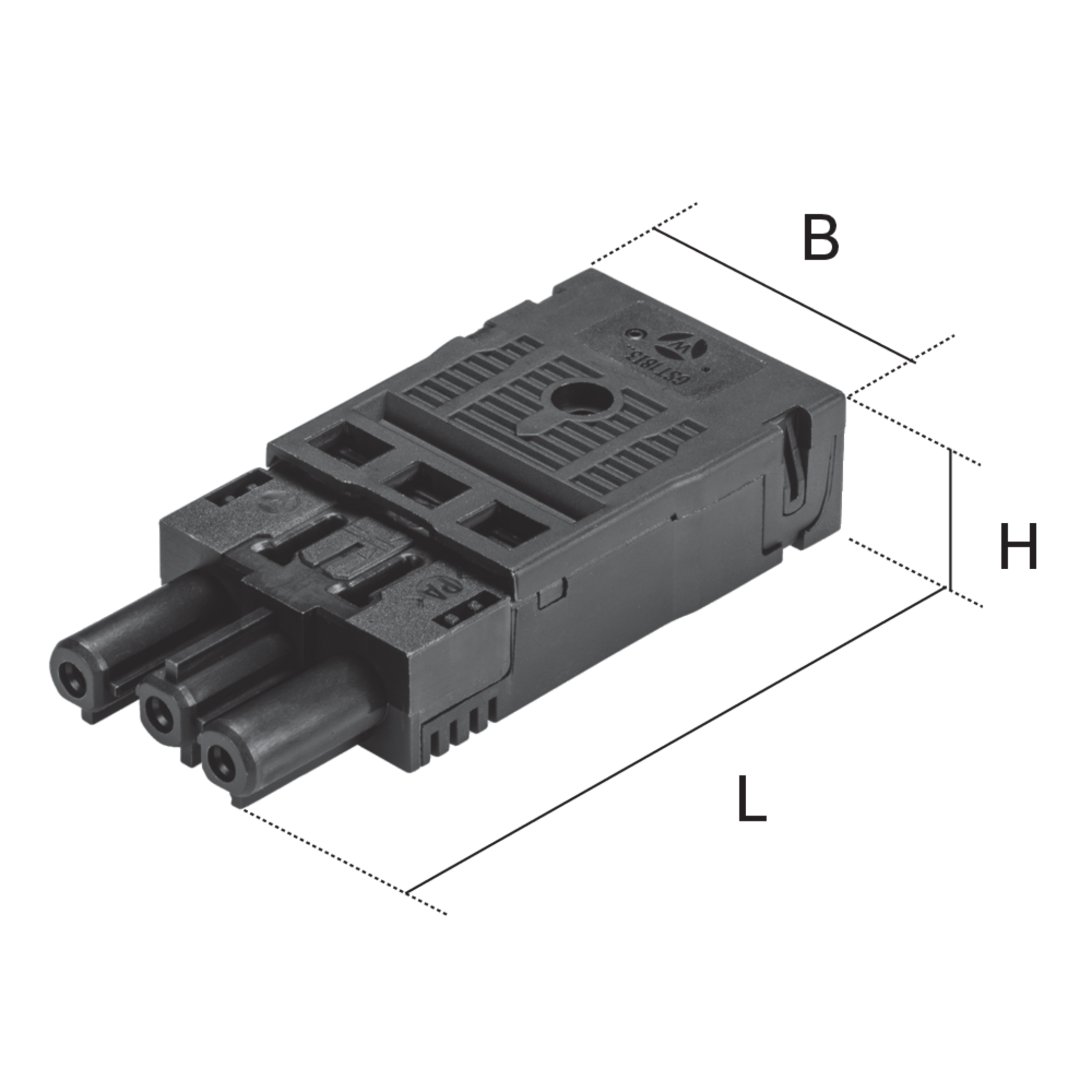

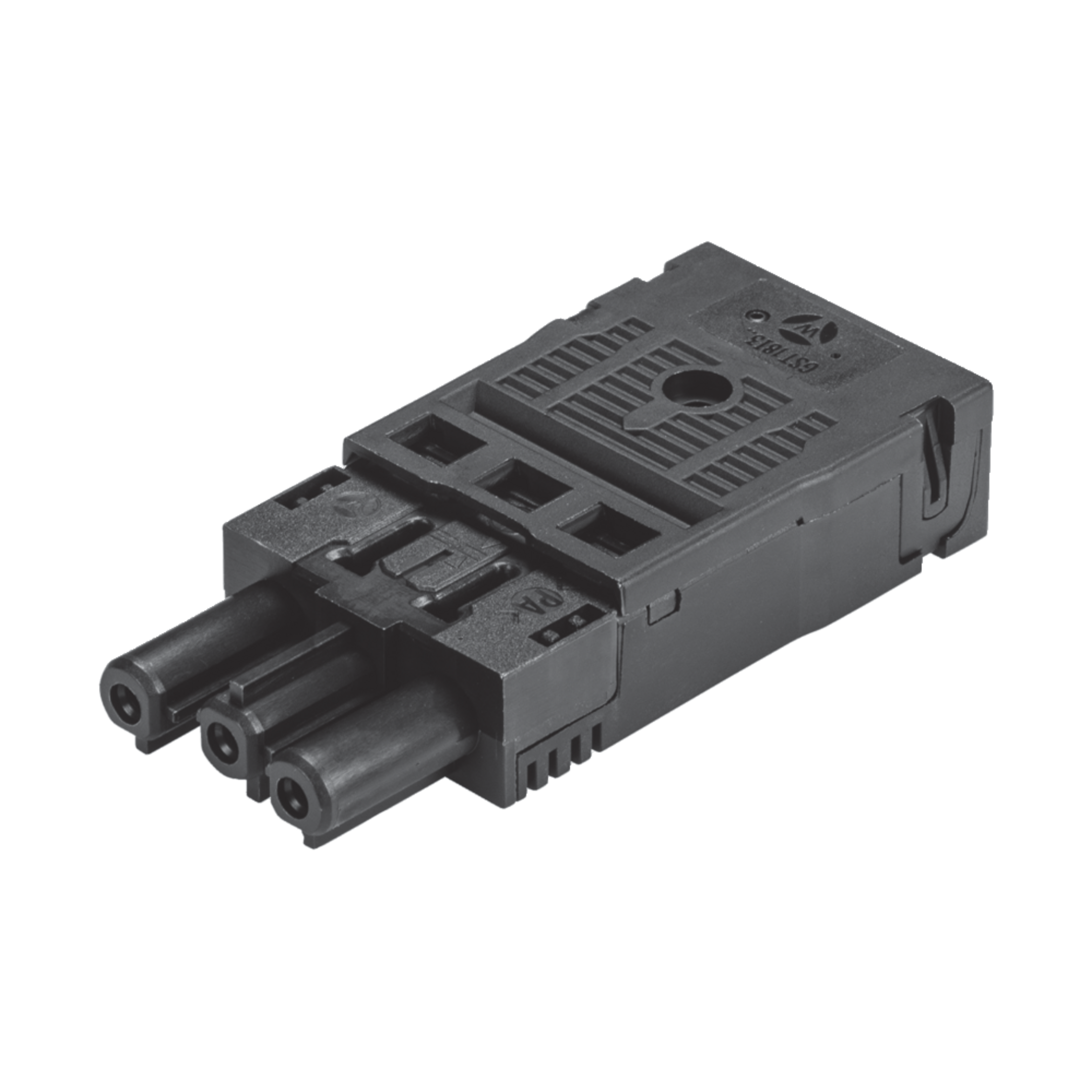

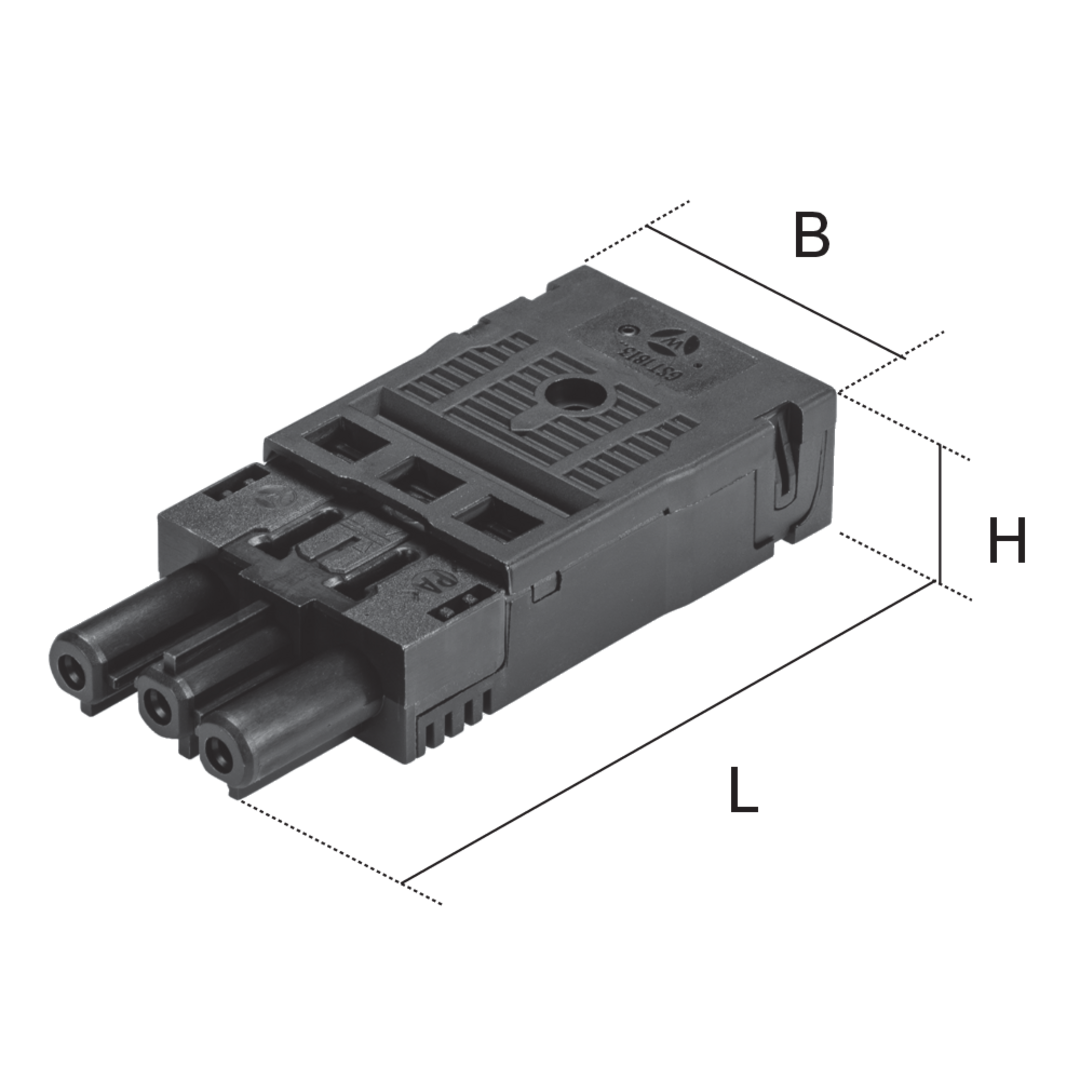

UVBUWI-3P components are Wieland socket parts of the type gesis GST 18i3. The plugs have a spring-loaded connection, a strain relief device for fine-stranded conductors with wire end ferrules and a 3-pole output. The solid-wire conductors have a connection cross-section of 1.5 to 2.5 mm², the cross-section of the fine-stranded conductors is 1.5 mm². Suitable for 250 V/4 kV/20 A

Get in touchDownload datasheet

Variants

Article

H

height

B

width

L

length

AQ

Connection cross-section

Output

Output

colour

color

G

Weight per storage unit

  • UVBUWI-S-3P
    Wieland socket section
    height
    16 mm
    width
    33 mm
    length
    75 mm
    Connection cross-section
    2.5 mm2
    Output
    3-polig
    color
    Black
    Weight per storage unit
    0.027 kg
    More information
  • UVBUWI-W-3P
    Wieland socket section
    height
    16 mm
    width
    33 mm
    length
    75 mm
    Connection cross-section
    2.5 mm2
    Output
    3-polig
    color
    White
    Weight per storage unit
    0.027 kg
    More information
