Art.-Nr. UVABUWI-S-2.5-100

Wieland connecting line

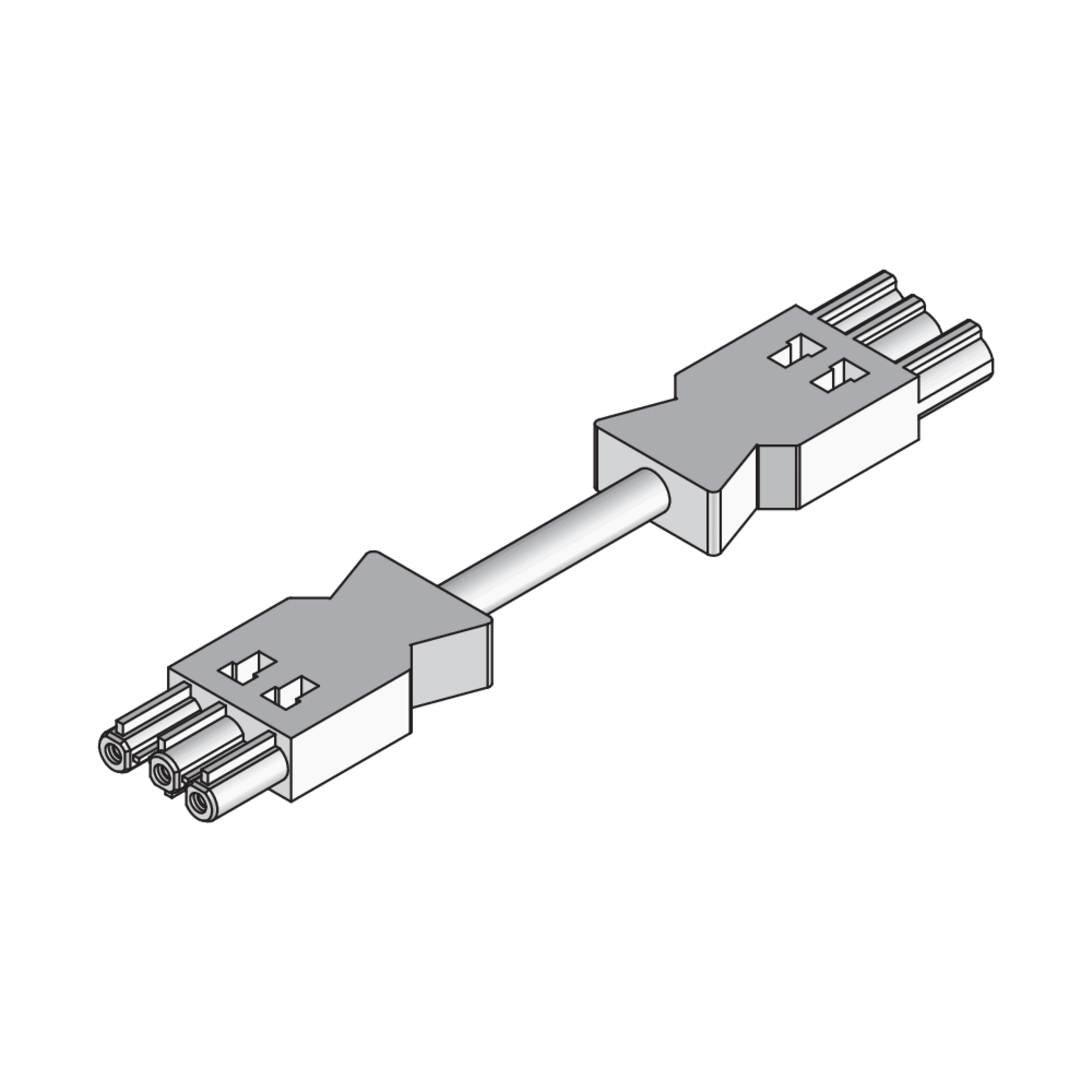

Plug-to-socket connecting line, Wieland

UVABUWI components are prefabricated Wieland connection cables with plug, socket and a 3-pole input and output. The connection cables are selected according to colour (black: normal mains, white: IT network) and length and their socket part is then inserted into the snap-in plugs of the pre-assembled mounting boxes. The cables correspond to type H05 VV-F with a cable cross-section of 2.5 mm² and a mains voltage/current of 250 V/16 A.

Art.-Nr.
UVABUWI-S-2.5-100
length
1000 mm
Output
3-polig
Input
3-polig
color
Black
Cable cross-section
2.5 mm2
Weight per storage unit
0.202 kg
Get in touchDownload datasheet

Variants

Article

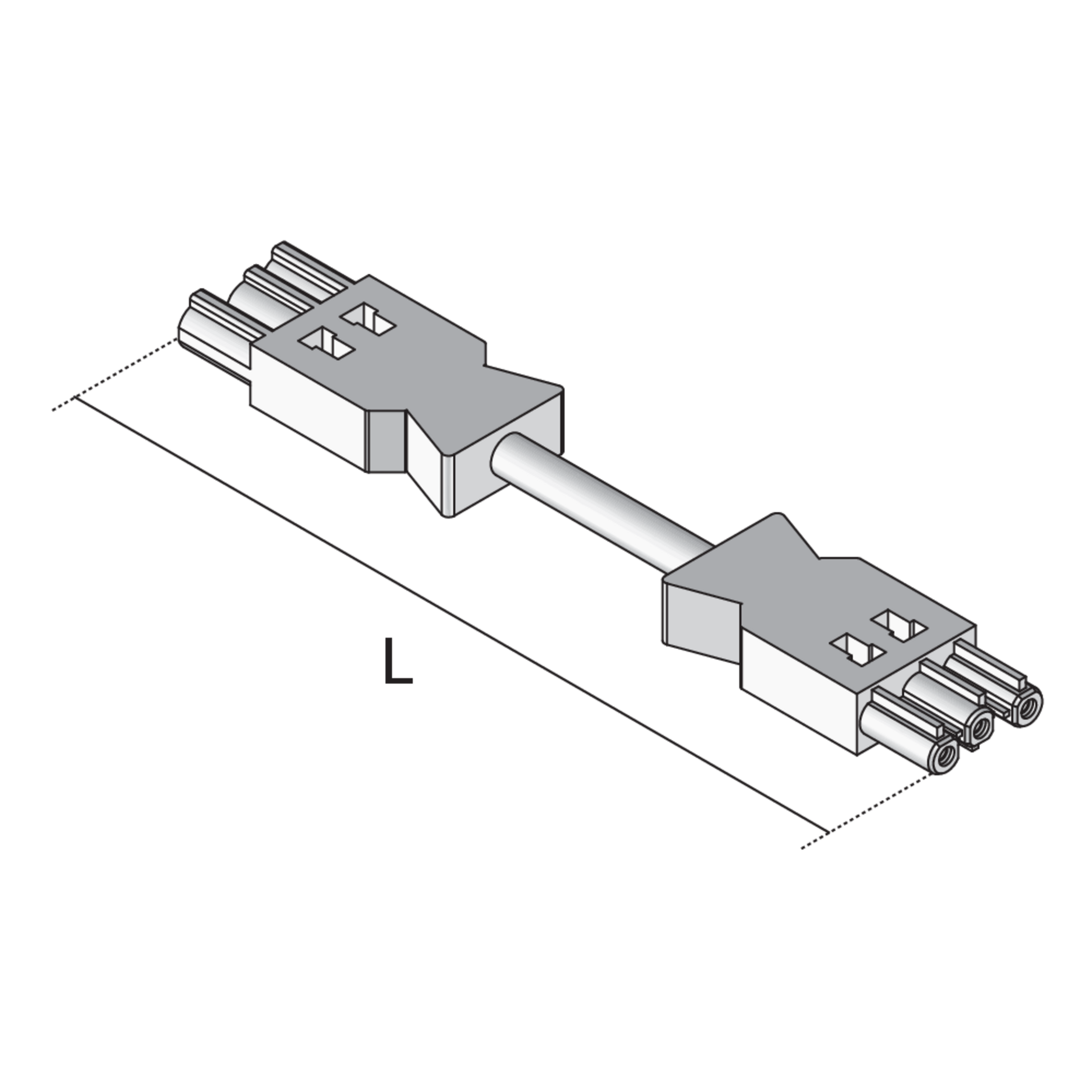

L

length

Output

Output

Input

Input

colour

color

KQ

Cable cross-section

G

Weight per storage unit

  • UVABUWI-S-2.5-100
    Wieland connecting line
    length
    1000 mm
    Output
    3-polig
    Input
    3-polig
    color
    Black
    Cable cross-section
    2.5 mm2
    Weight per storage unit
    0.202 kg
    More information
  • UVABUWI-S-2.5-400
    Wieland connecting line
    length
    4000 mm
    Output
    3-polig
    Input
    3-polig
    color
    Black
    Cable cross-section
    2.5 mm2
    Weight per storage unit
    0.675 kg
    More information
  • UVABUWI-S-2.5-600
    Wieland connecting line
    length
    6000 mm
    Output
    3-polig
    Input
    3-polig
    color
    Black
    Cable cross-section
    2.5 mm2
    Weight per storage unit
    1.006 kg
    More information
  • UVABUWI-S-2.5-800
    Wieland connecting line
    length
    8000 mm
    Output
    3-polig
    Input
    3-polig
    color
    Black
    Cable cross-section
    2.5 mm2
    Weight per storage unit
    1.325 kg
    More information
  • UVABUWI-W-2.5-100
    Wieland connecting line
    length
    1000 mm
    Output
    3-polig
    Input
    3-polig
    color
    White
    Cable cross-section
    2.5 mm2
    Weight per storage unit
    0.202 kg
    More information
  • UVABUWI-W-2.5-400
    Wieland connecting line
    length
    4000 mm
    Output
    3-polig
    Input
    3-polig
    color
    White
    Cable cross-section
    2.5 mm2
    Weight per storage unit
    0.675 kg
    More information
  • UVABUWI-W-2.5-600
    Wieland connecting line
    length
    6000 mm
    Output
    3-polig
    Input
    3-polig
    color
    White
    Cable cross-section
    2.5 mm2
    Weight per storage unit
    1.006 kg
    More information
  • UVABUWI-W-2.5-800
    Wieland connecting line
    length
    8000 mm
    Output
    3-polig
    Input
    3-polig
    color
    White
    Cable cross-section
    2.5 mm2
    Weight per storage unit
    1.006 kg
    More information
