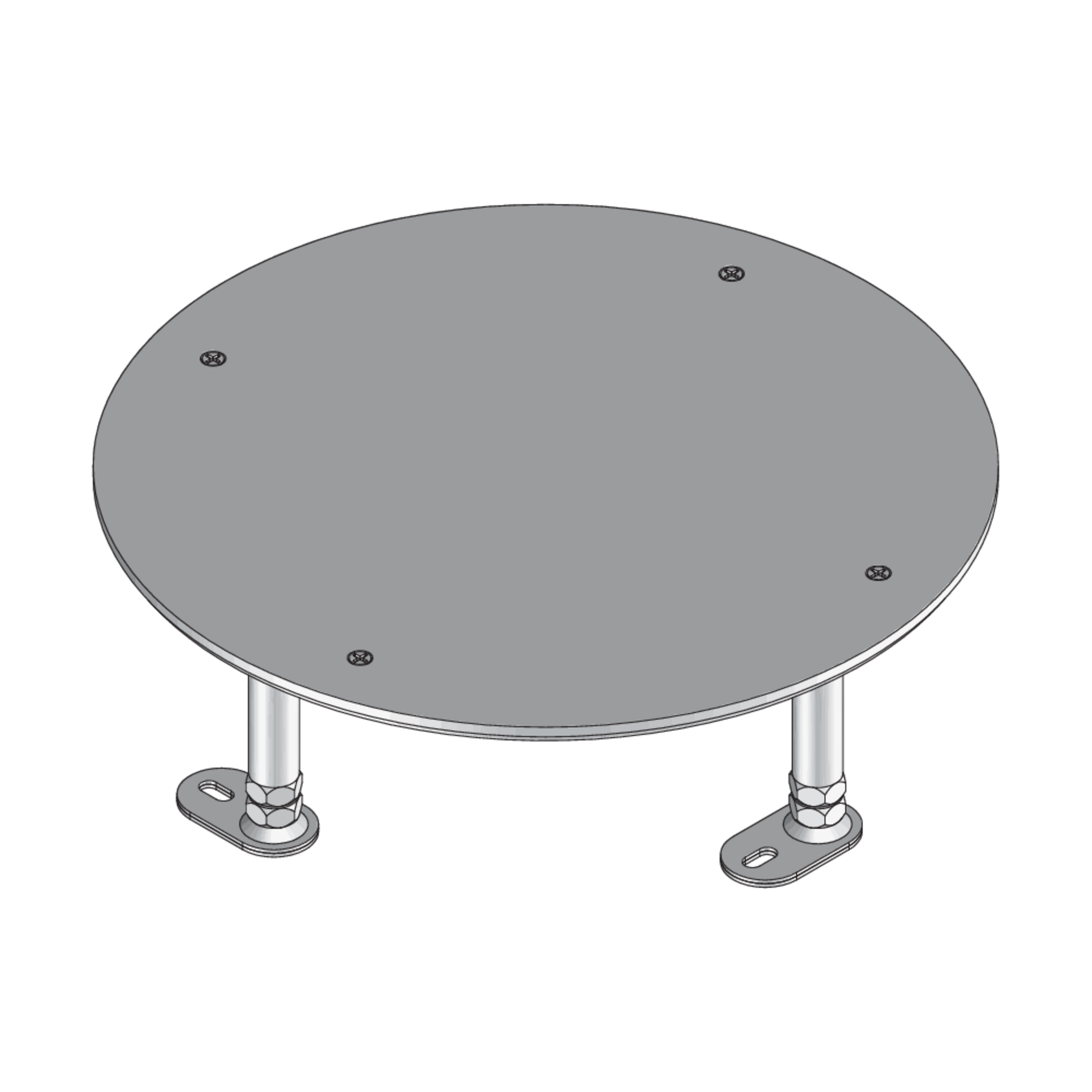

Dummy cover, 3x, round
UNE 305R components are round dummy covers. These height-adjustable covers are protective covers for cartridge installation units with a maximum of three mounting boxes in UBDHB floor sockets and raised or false floor openings. The units are suitable for dry-cleaned rooms with office traffic loads. The products from the underfloor systems range are made of sendzimir hot-dip galvanised sheet steel 4 mm thick and have a max. load capacity of 2 kN. The dummy covers have installation dimensions of 307 mm and a minimum installation height of 90 mm.

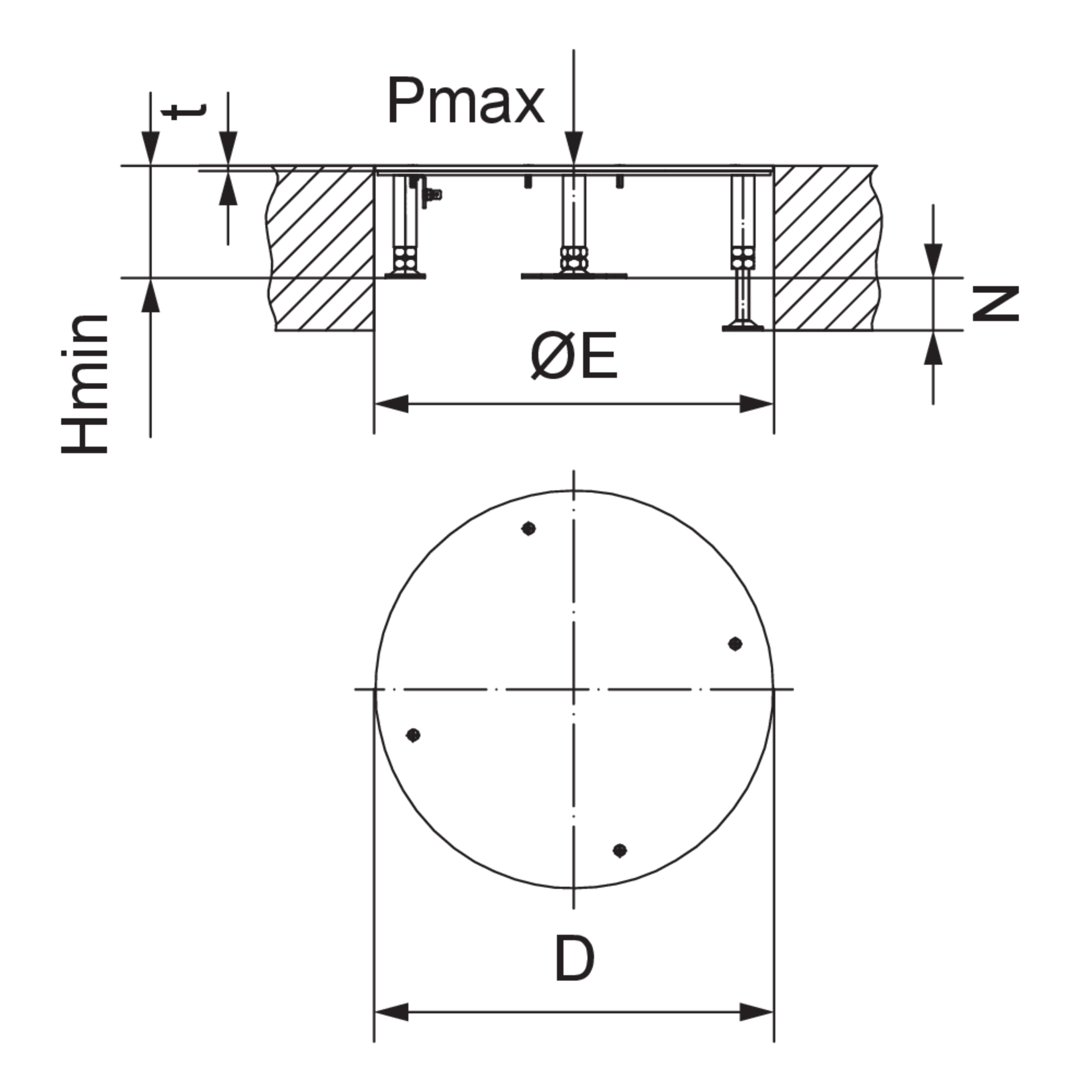

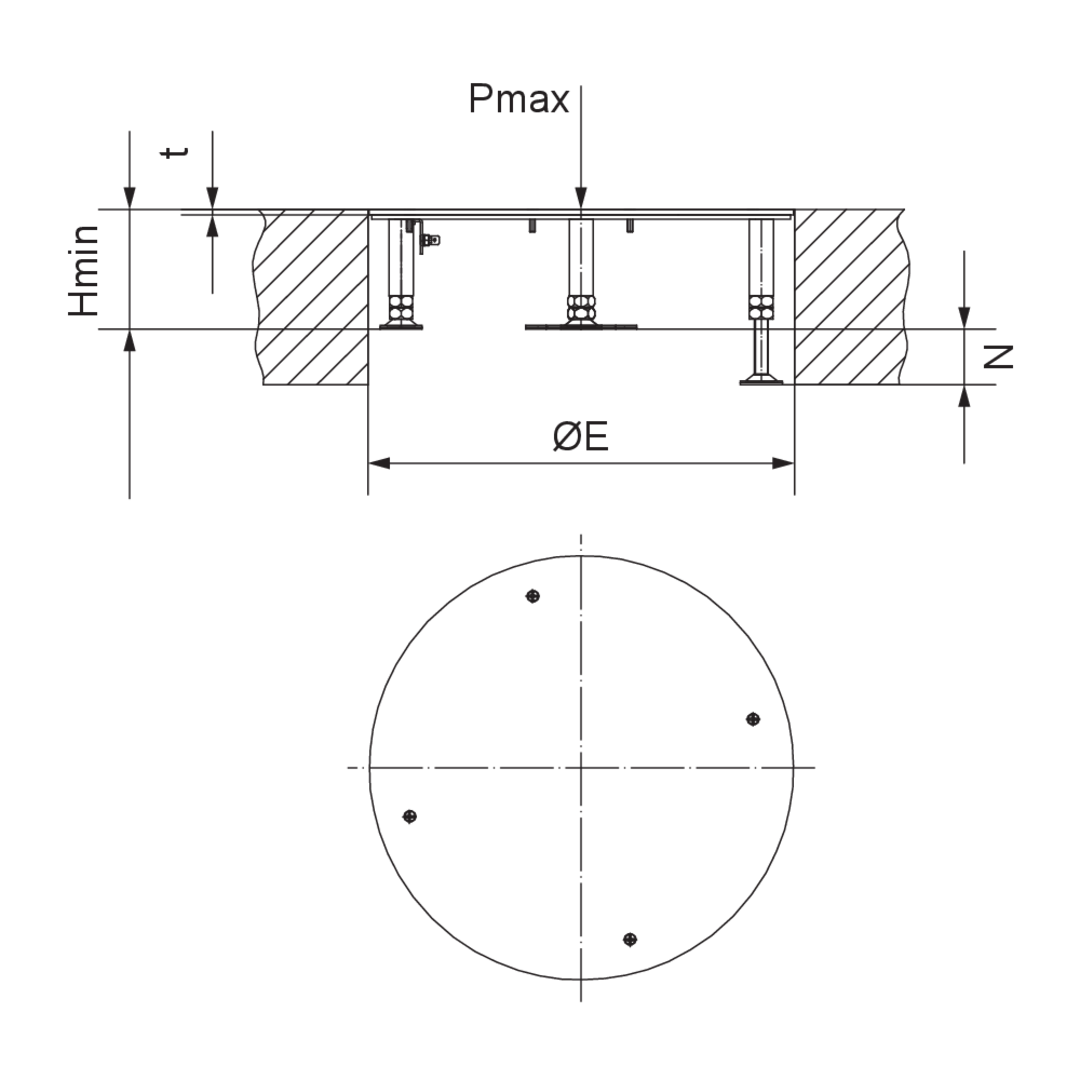

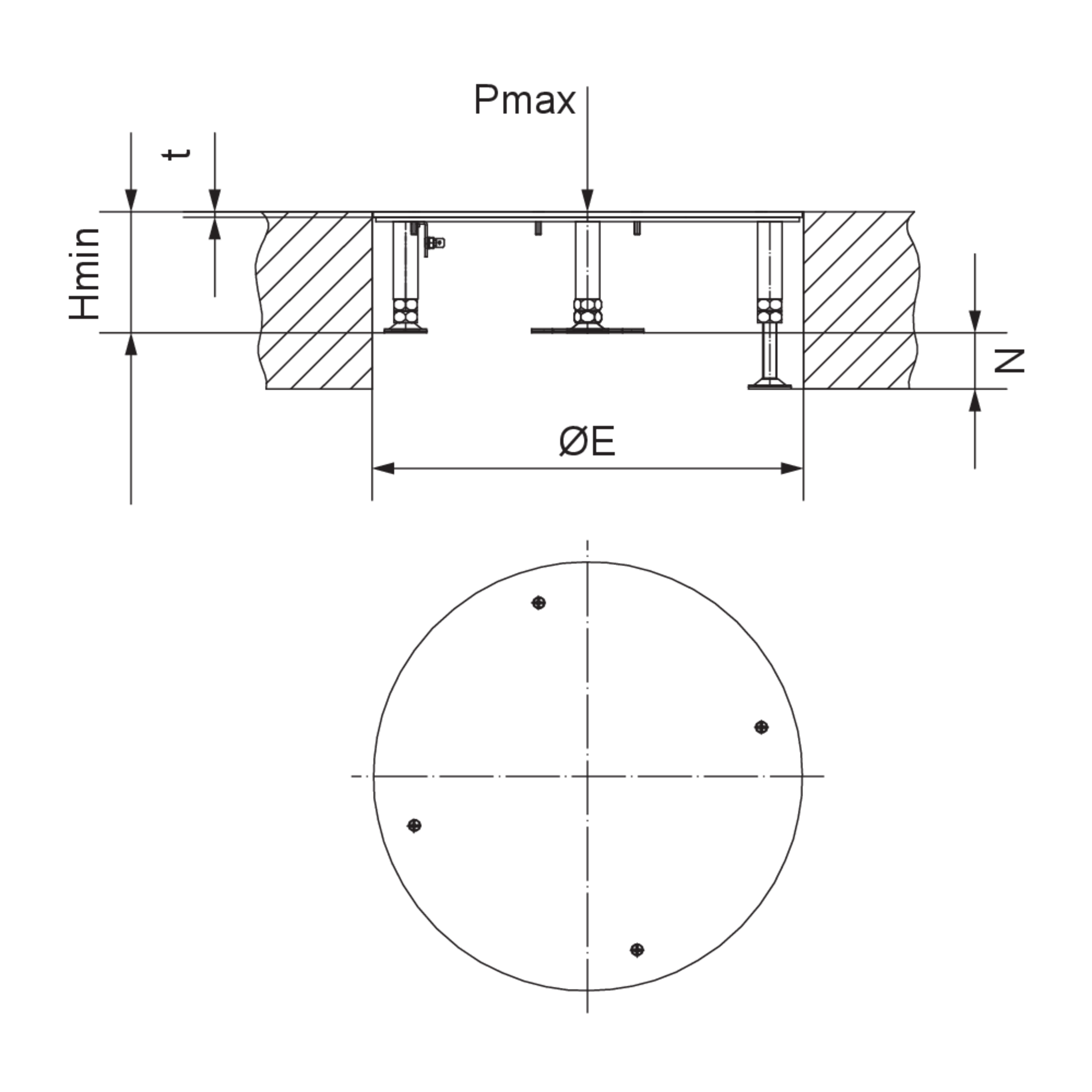

H
height
Hmin
minimum installation height
N
levelling range
t
material thickness
D
Diameter (mm)
Pmax
maximum load
ØE
fitting dimension round
G
Weight per storage unit
