UKS

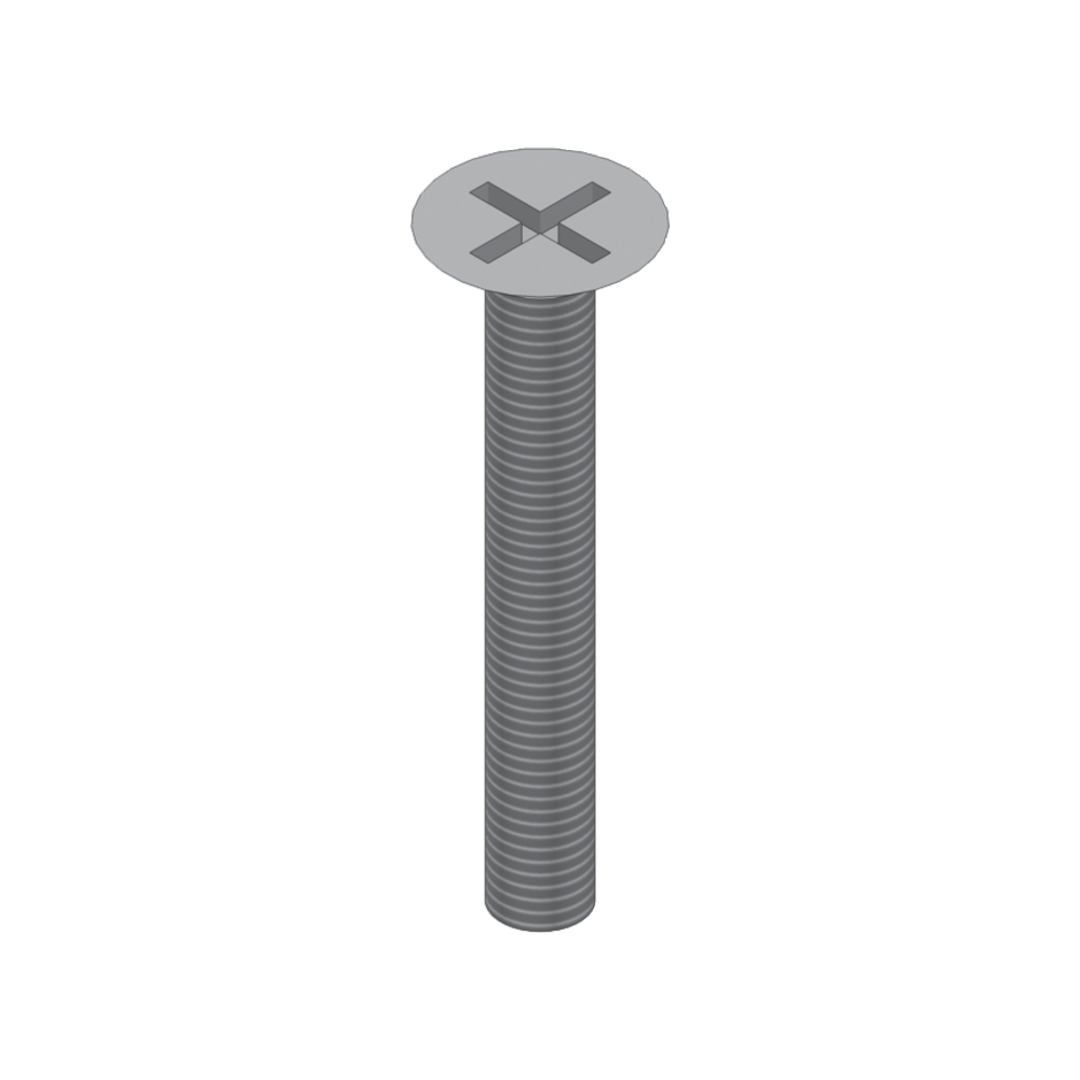

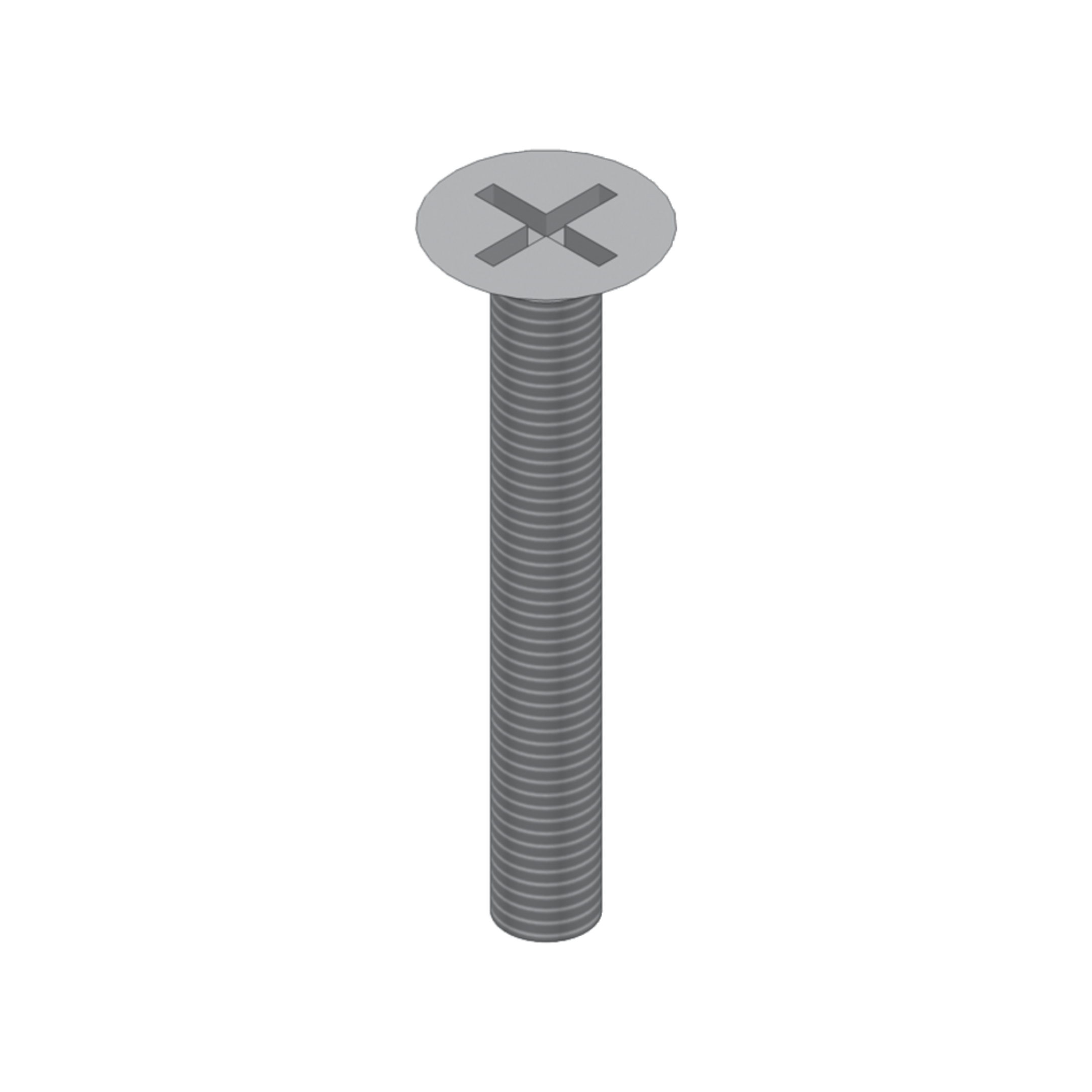

Phillips screw

UKS components are Phillips screws. Various components from the underfloor system range can be securely connected to each other using these accessories. Suitable screwdrivers centre themselves quickly in the cross shaped slots of the screws. They are made of sendzimir hot-dip galvanised steel and are 50 mm long and 4 mm in diameter. The stainless steel (V2A) versions of these accessories are 16 mm long and 4 mm in diameter.

Get in touchDownload datasheet

Variants

steel, galvanic zinc plated

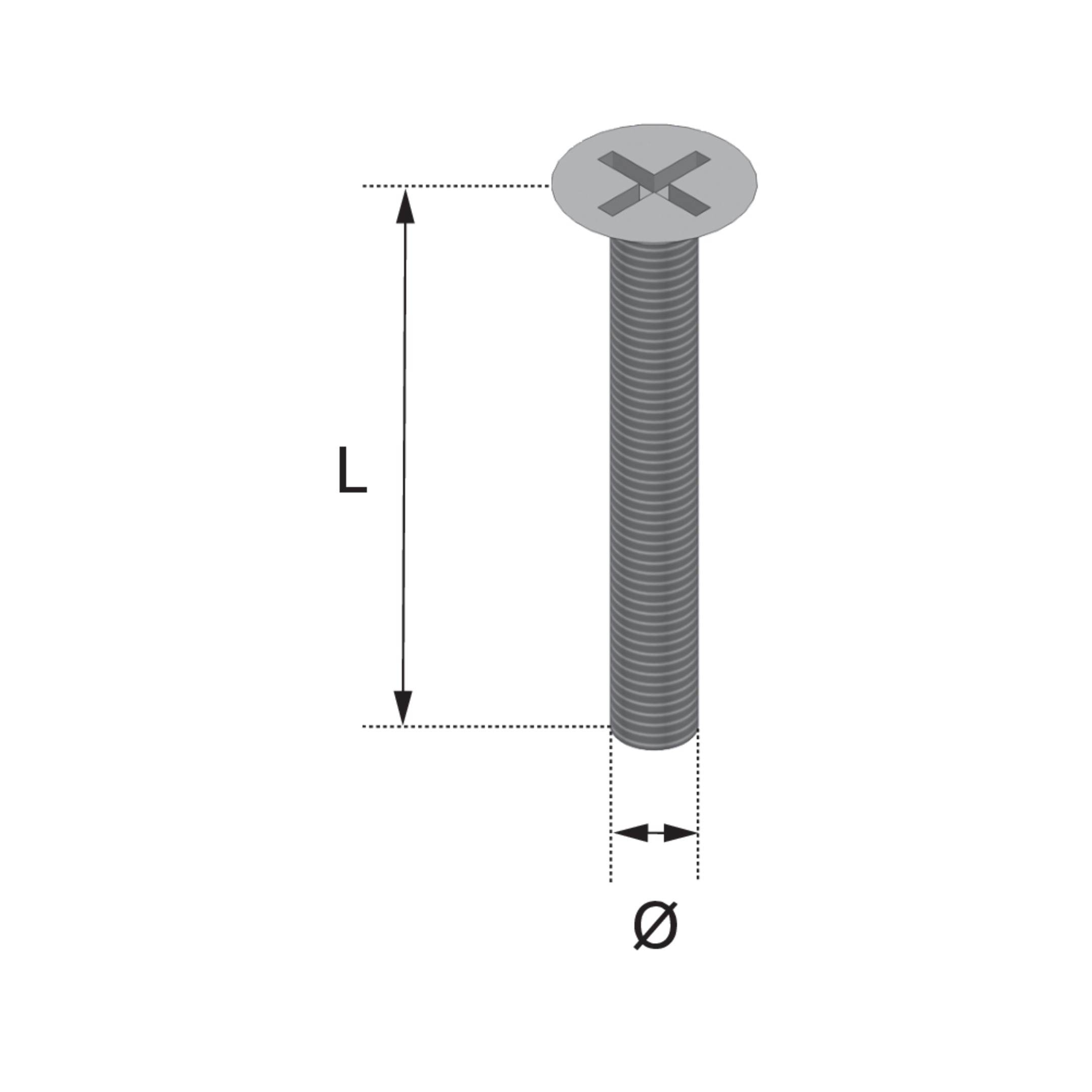

Article

L

length

Ø

thread diameter

G

Weight per storage unit

  • UKS M4X50
    Phillips screw UKS M4X50
    length
    50 mm
    thread diameter
    4 mm
    Weight per storage unit
    0.005 kg
    More information
  • UKS M4X60
    Phillips screw UKS M4X60
    length
    60 mm
    thread diameter
    4 mm
    Weight per storage unit
    0.000 kg
    More information
  • UKS M4X80
    Phillips screw UKS M4X60
    length
    80 mm
    thread diameter
    4 mm
    Weight per storage unit
    0.000 kg
    More information
  • UKS M4X100
    Phillips screw UKS M4X100
    length
    100 mm
    thread diameter
    4 mm
    Weight per storage unit
    0.008 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

L

length

Ø

thread diameter

G

Weight per storage unit

  • UKS M4X16E
    Phillips screw UKS M4X16E
    length
    16 mm
    thread diameter
    4 mm
    Weight per storage unit
    0.002 kg
    More information
