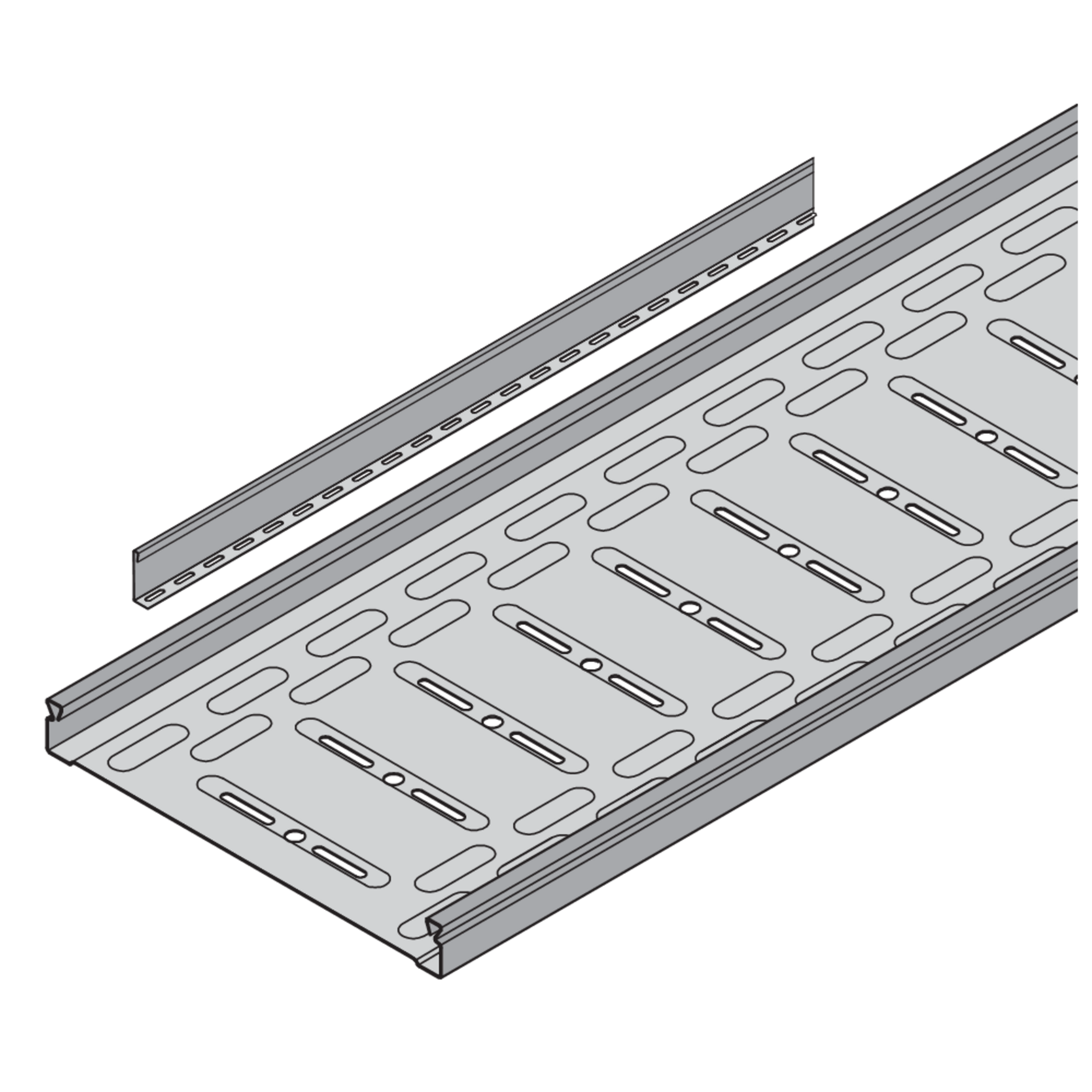

Cable duct base, two sections
The UKR 2 product is an open, two-section, screed-covered cable duct base that forms the lower part of the UKR underfloor duct system in conjunction with a separating strip. Both the bases and the separating strips are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346 and are supplied with the separating strip UKTR 35S and three nail anchors SNA 6x30/5. They are 35 mm high, 300 mm wide, 3000 mm long and are available with optional accessories.

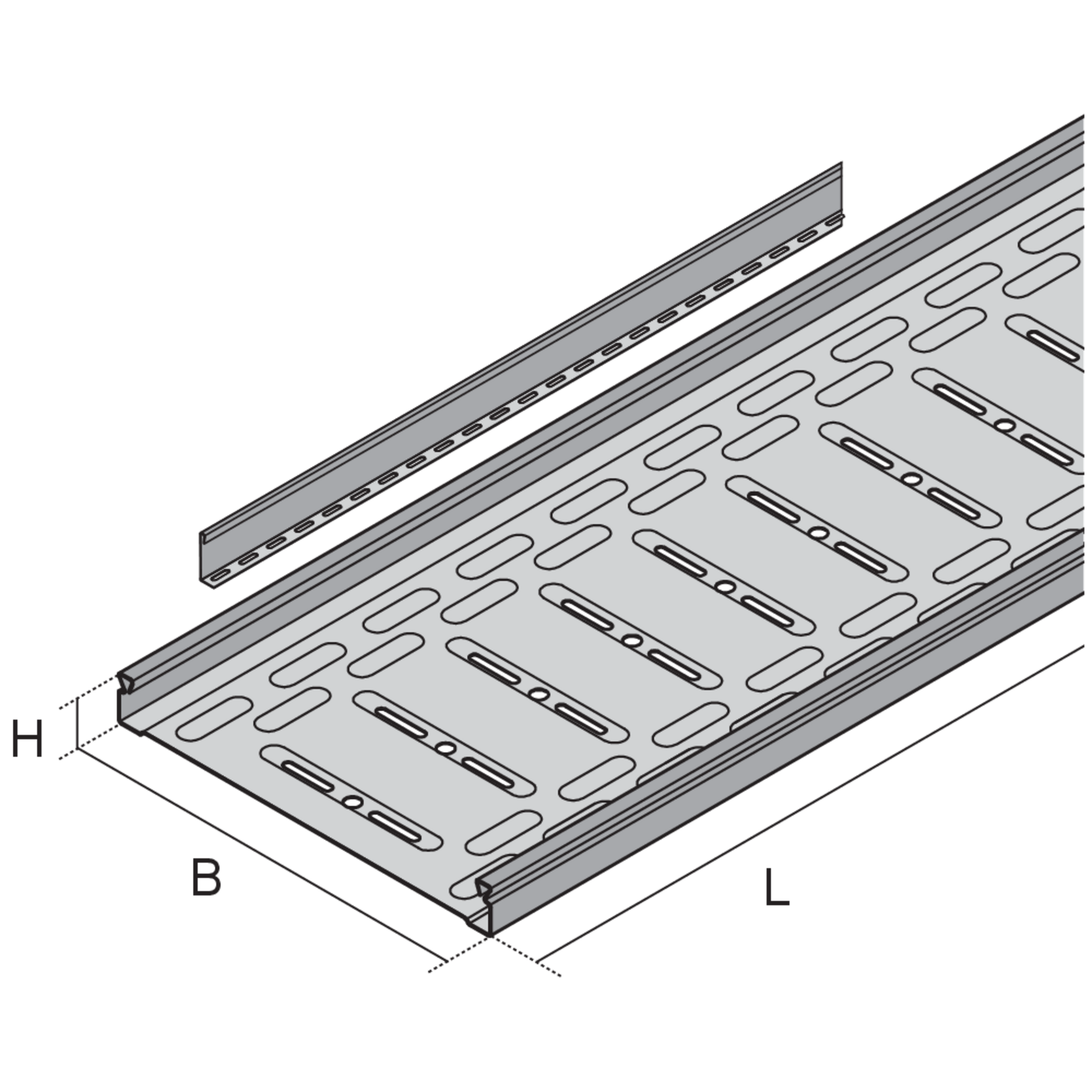

H
height
B
width
L
length
Produktstatus
G
Weight per storage unit
