UKENPS

Heavy duty plate

The UKENPS component is a heavy-duty plate from the underfloor systems product range. It is placed between the UKENP levelling plate and the compact single outlet. Thanks to the plate, the structure can support a load of up to 20 kN. The heavy-duty plate is made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

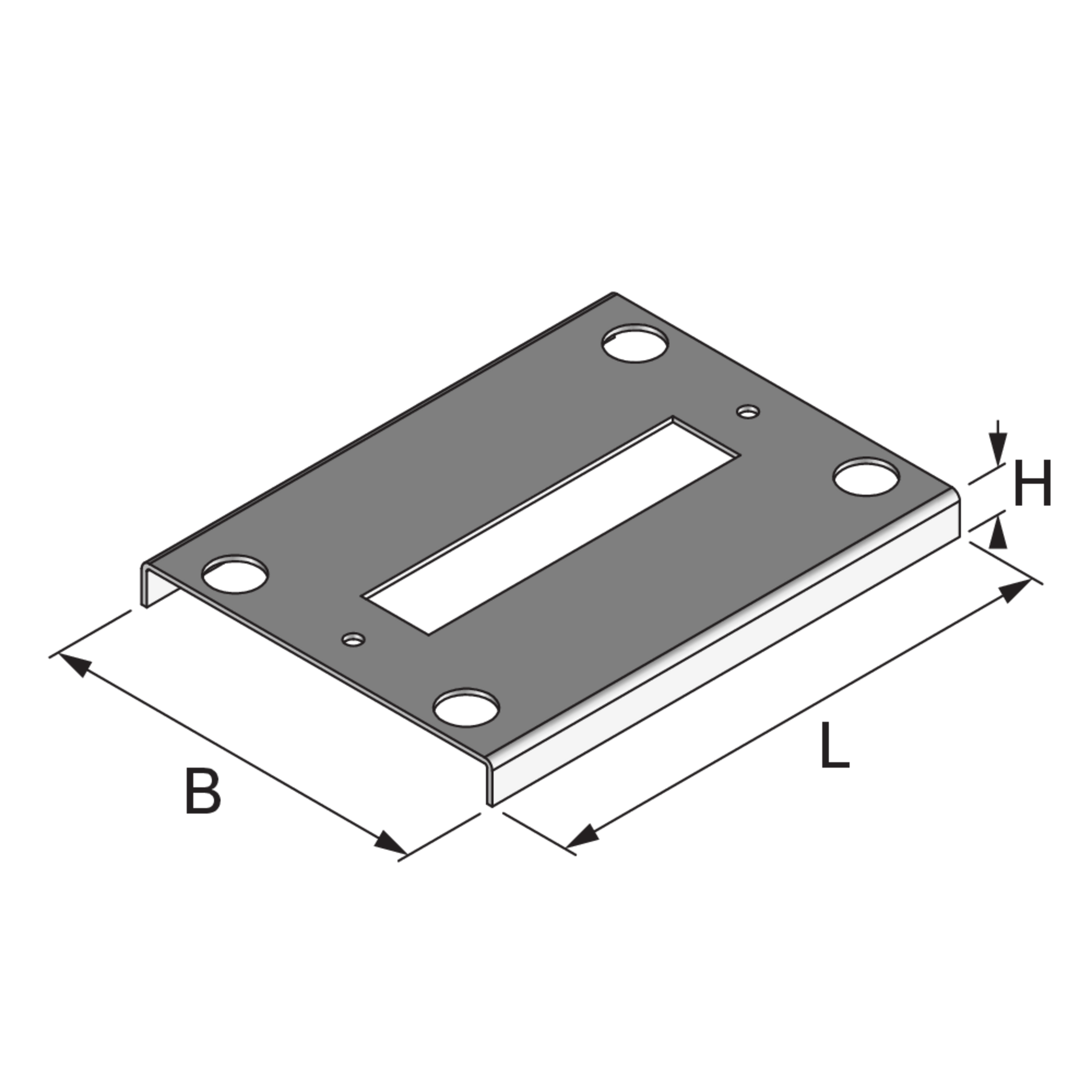

Article

H

height

B

width

L

length

G

Weight per storage unit

  • UKENPS 125S
    Heavy duty plate
    height
    15 mm
    width
    135 mm
    length
    180 mm
    Weight per storage unit
    0.379 kg
    More information
  • UKENPS 160S
    Heavy duty plate
    height
    15 mm
    width
    170 mm
    length
    215 mm
    Weight per storage unit
    0.576 kg
    More information

Details

    Tender texts

    Ausschreiben.de

    Tender texts for this product

    Open Link
    Heinze.de

    Tender texts for this product

    Open Link

    Included accessories
