UKBS

Fire-resistant partition

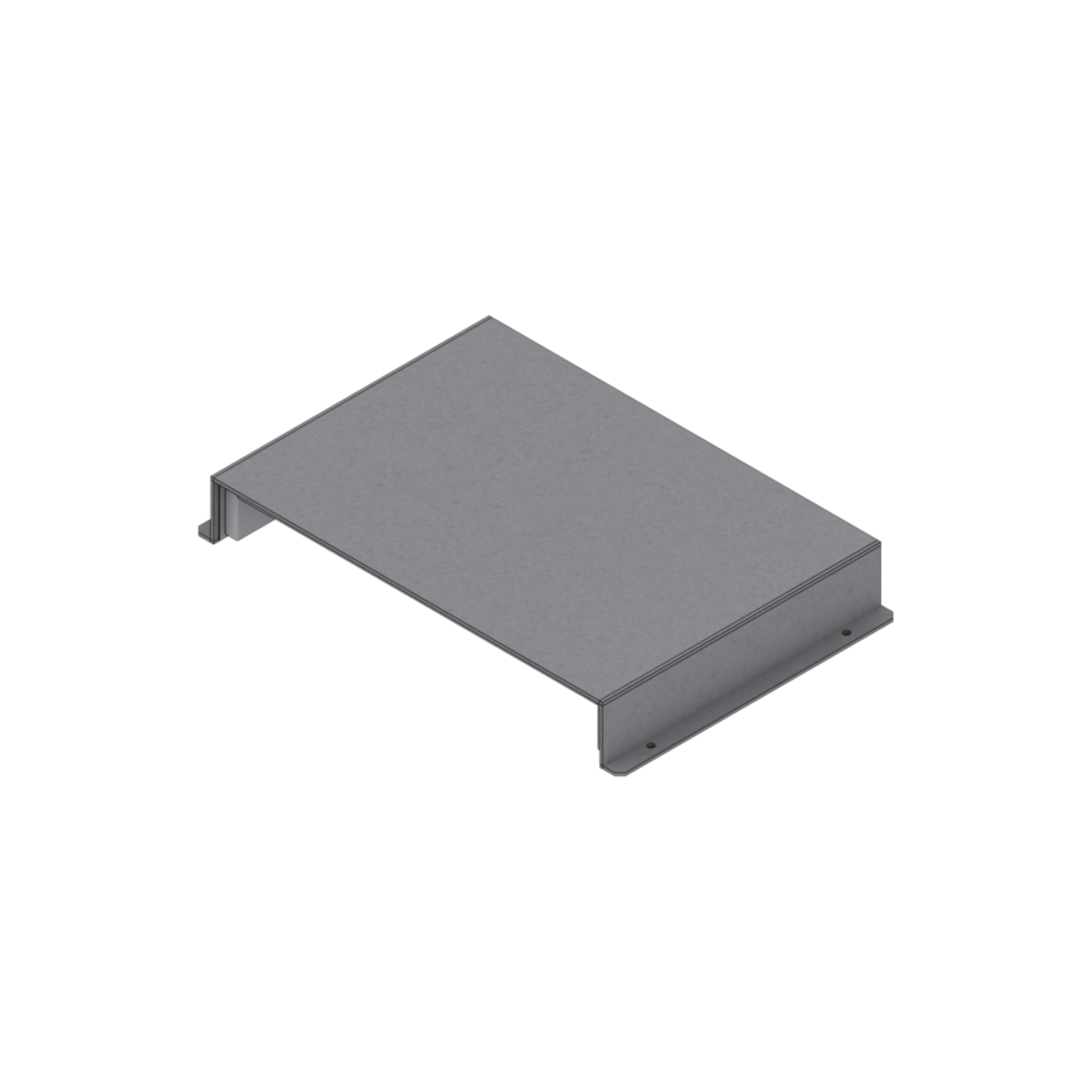

The UKBS fire protection partition seal is installed as a three-sided S90 duct fire protection bulkhead with a floor connection in wall penetrations. It forms part of the Wichmann WD 90 system, which prevents fire and smoke from spreading through fire-resistant walls for a fire resistance rating of 90 minutes. The fire protection partition seals can be retrofitted non-destructively at any time and with minimal effort near access hatches.

The UKBS fire protection partition seal is a construction product.
A declaration of conformity from the manufacturer is required for use in screed-covered duct systems.
A project-specific statement based on the applicable approvals will be issued on request.
Please contact your PohlCon representative.

Get in touchDownload datasheet

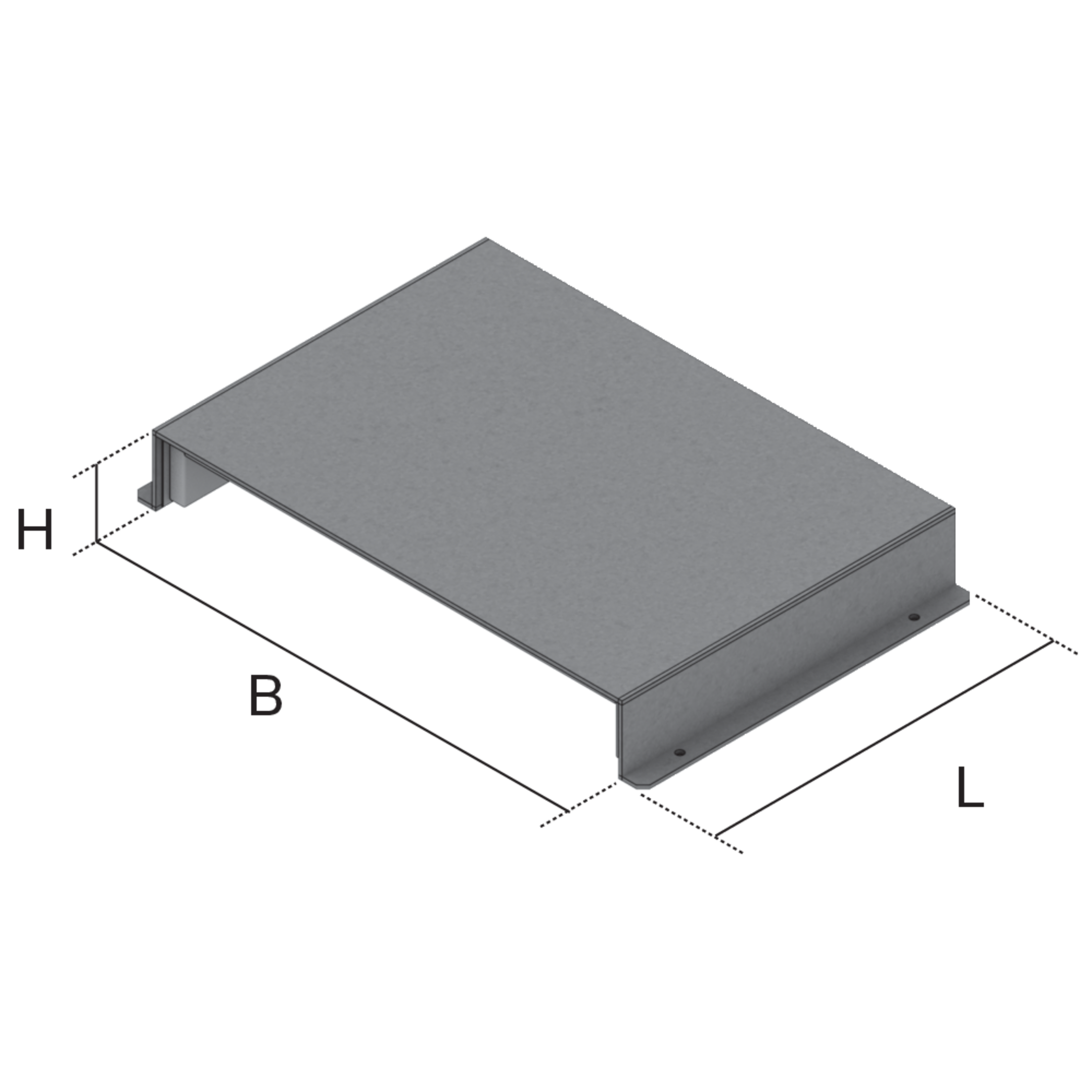

Variants

Article

H

height

B

width

L

length

E

fitting dimension

G

Weight per storage unit

  • UKBS 28-190S
    fire resistant
    height
    41 mm
    width
    220 mm
    length
    270 mm
    fitting dimension
    260 x 56 mm
    Weight per storage unit
    1.640 kg
    More information
  • UKBS 28-250S
    fire resistant
    height
    41 mm
    width
    280 mm
    length
    270 mm
    fitting dimension
    320 x 56 mm
    Weight per storage unit
    1.980 kg
    More information
  • UKBS 28-350S
    fire resistant
    height
    41 mm
    width
    380 mm
    length
    270 mm
    fitting dimension
    420 x 56 mm
    Weight per storage unit
    2.500 kg
    More information
  • UKBS 38-190S
    fire resistant
    height
    55 mm
    width
    220 mm
    length
    270 mm
    fitting dimension
    260 x 70 mm
    Weight per storage unit
    1.860 kg
    More information
  • UKBS 38-250S
    fire resistant
    height
    55 mm
    width
    280 mm
    length
    270 mm
    fitting dimension
    320 x 70 mm
    Weight per storage unit
    2.200 kg
    More information
  • UKBS 38-350S
    fire resistant
    height
    55 mm
    width
    380 mm
    length
    270 mm
    fitting dimension
    420 x 70 mm
    Weight per storage unit
    2.750 kg
    More information
  • UKBS 48-190S
    fire resistant
    height
    68 mm
    width
    220 mm
    length
    270 mm
    fitting dimension
    260 x 83 mm
    Weight per storage unit
    2.070 kg
    More information
  • UKBS 48-250S
    fire resistant
    height
    68 mm
    width
    280 mm
    length
    270 mm
    fitting dimension
    320 x 83 mm
    Weight per storage unit
    2.420 kg
    More information
  • UKBS 48-350S
    fire resistant
    height
    68 mm
    width
    380 mm
    length
    270 mm
    fitting dimension
    420 x 83 mm
    Weight per storage unit
    3.000 kg
    More information
  • UKBS 58-250S
    Fire-resistant,
    height
    90 mm
    width
    280 mm
    length
    270 mm
    fitting dimension
    320 x 95 mm
    Weight per storage unit
    2.640 kg
    More information
  • UKBS 58-350S
    Fire-resistant,
    height
    90 mm
    width
    380 mm
    length
    270 mm
    fitting dimension
    420 x 95 mm
    Weight per storage unit
    3.250 kg
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM Data Screed-Covered Duct Systems

    BIM Data

    ZIP (8.66 MB)

    DownloadDownload

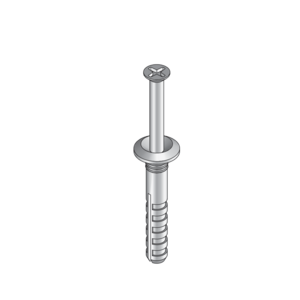

Included accessories
