Variants
Article
H
height
B
width
L
length
G
Weight per storage unit
- UGETD-UZ

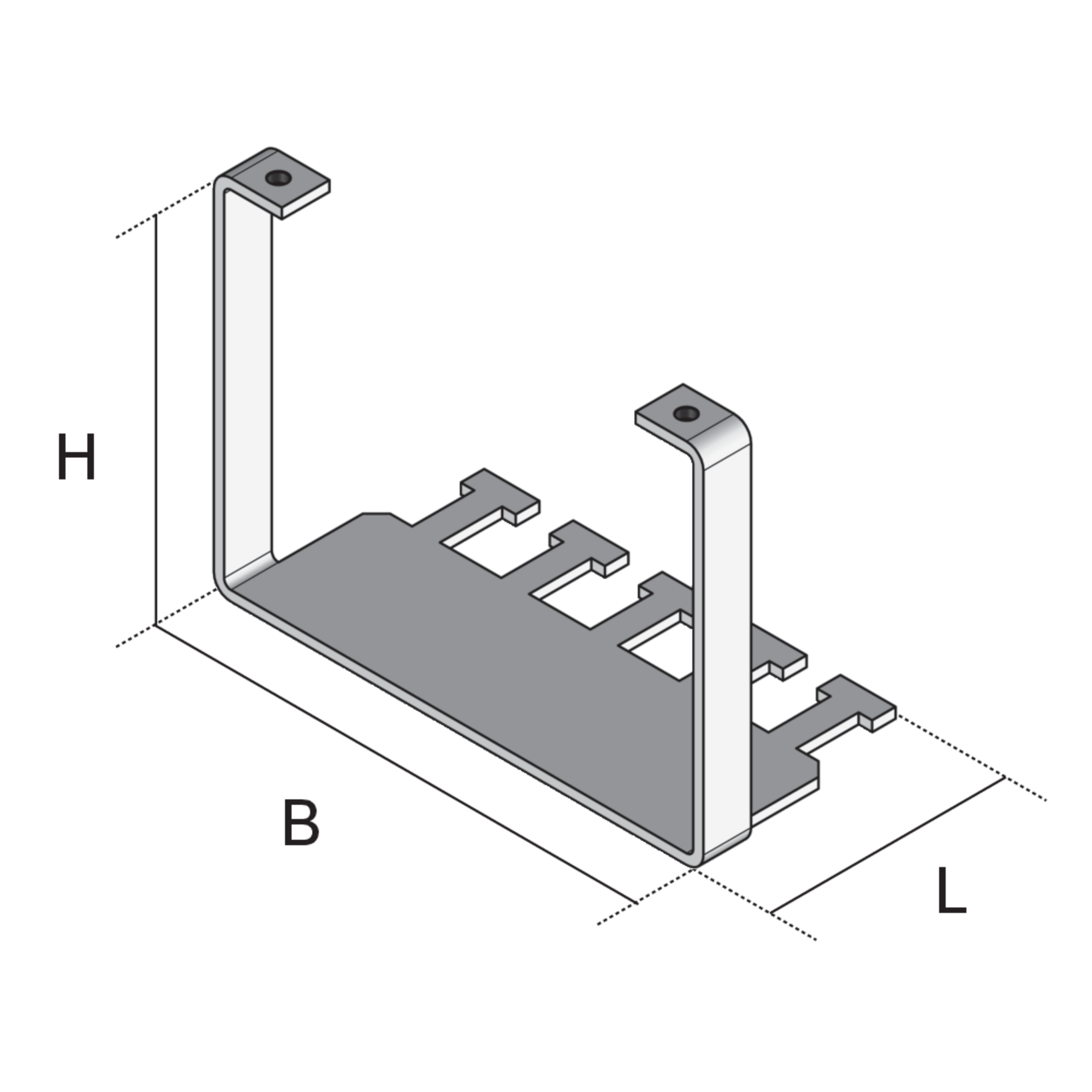

strain-relief UGETD-UZ,height54 mmwidth72 mmlength34 mmWeight per storage unit0.034 kg
Art.-Nr. UGETD-UZ
strain-relief UGETD-UZ,

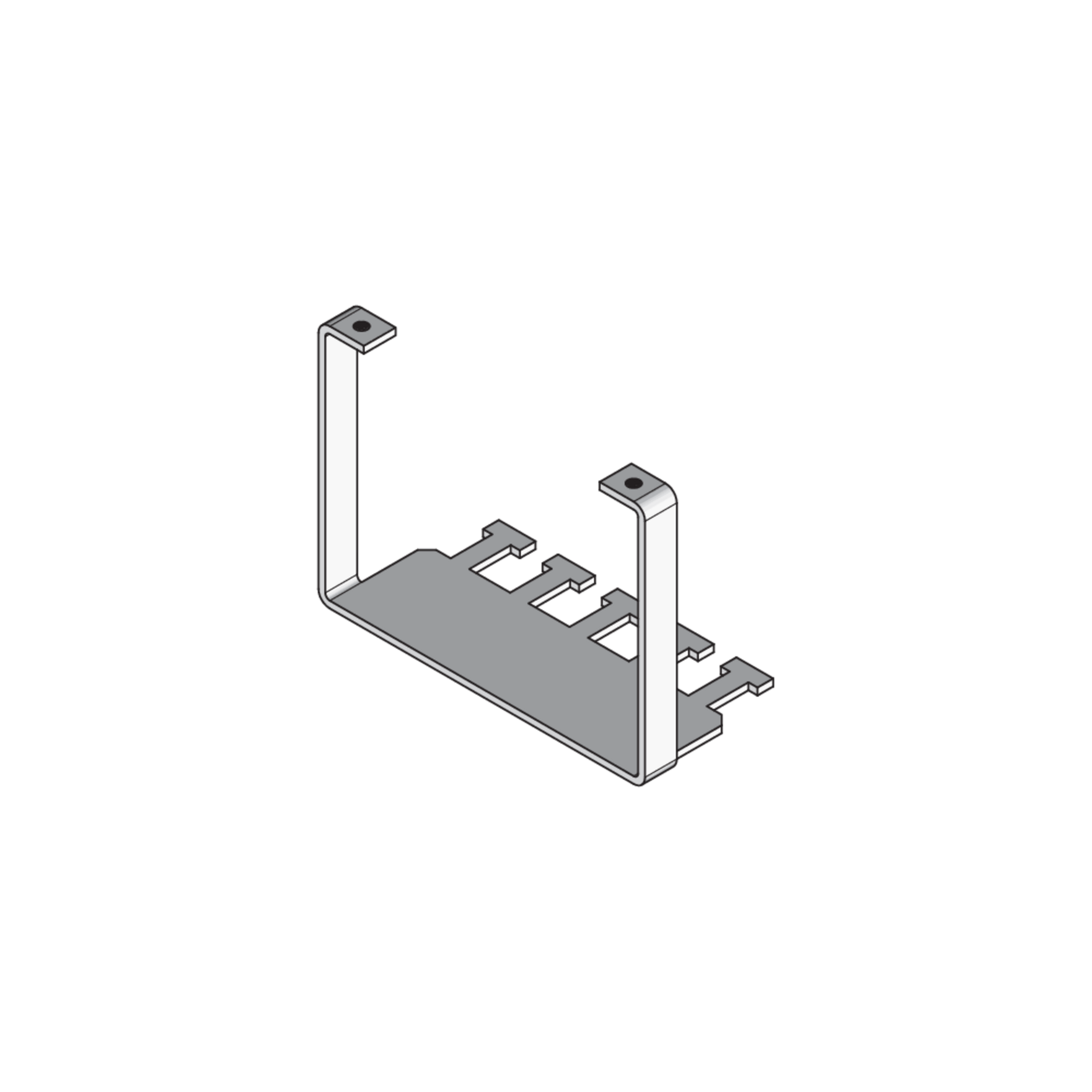

Strain relief device
The UGETD-UZ component is a strain relief device from the underfloor systems range. These accessories are mechanical protection devices that are bolted into the boards of the installation devices and protect the electrical cables from being pulled out accidentally. The strain relief devices are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.
- Art.-Nr.
- UGETD-UZ
- height
- 54 mm
- width
- 72 mm
- length
- 34 mm
- Weight per storage unit
- 0.034 kg
Tender texts
Downloads
de
en
de
en
de
de
en
de
en
de
en
Technical Information Device Sockets and Installation Devices
Technical Information
Floor installation systems - Catalogue
Catalogue for screed-flush and screed-covered duct systems, installation units, floor sockets, mounting boxes and accessories.
Electrical and Electronic Devices – Information from Manufacturers for Commercial Users
Declaration
PDF (106.06 KB)
DownloadDownload
EC Declaration of Conformity for Underfloor systems
Installation equipment for electric cables and circuits
Price list 2026 Building extension
Valid from February 1st, 2026
Price list 2026 Building extension (Excel)
Valid from February 1, 2026
