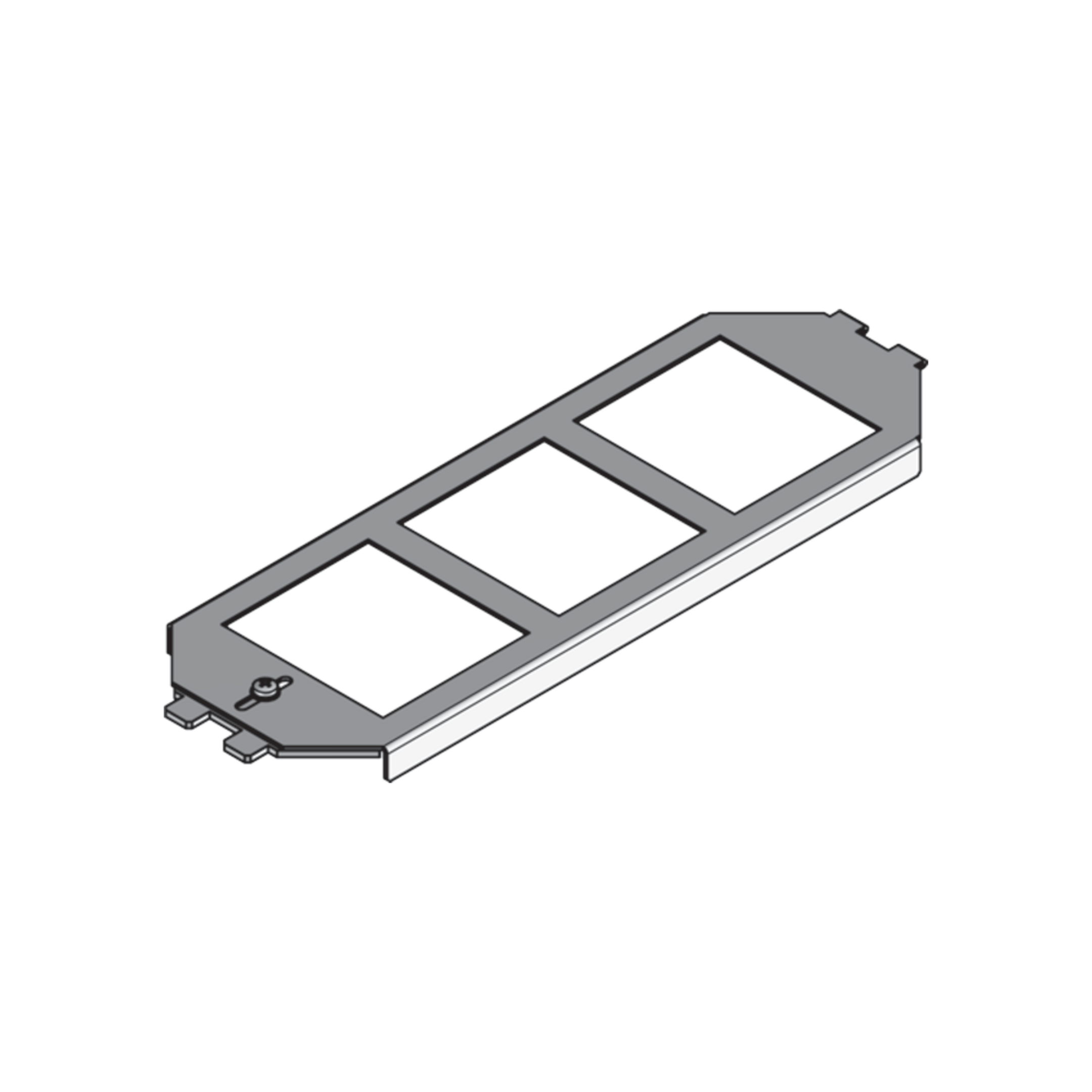

Device carrier, 3x UDAE
UGET 3-3 components are device carriers from the underfloor system range. They are placed in the corresponding mounting box from above, bolted in place and can then be equipped with up to three suspension bracket installation devices, such as an UDAE data connection socket. UAA B 65 covers reliably protect empty mounting holes. The device carriers are made of high-quality polyamide in black (similar to RAL 9011). They have the installation dimensions of E1 50 mm and E2 50 mm.

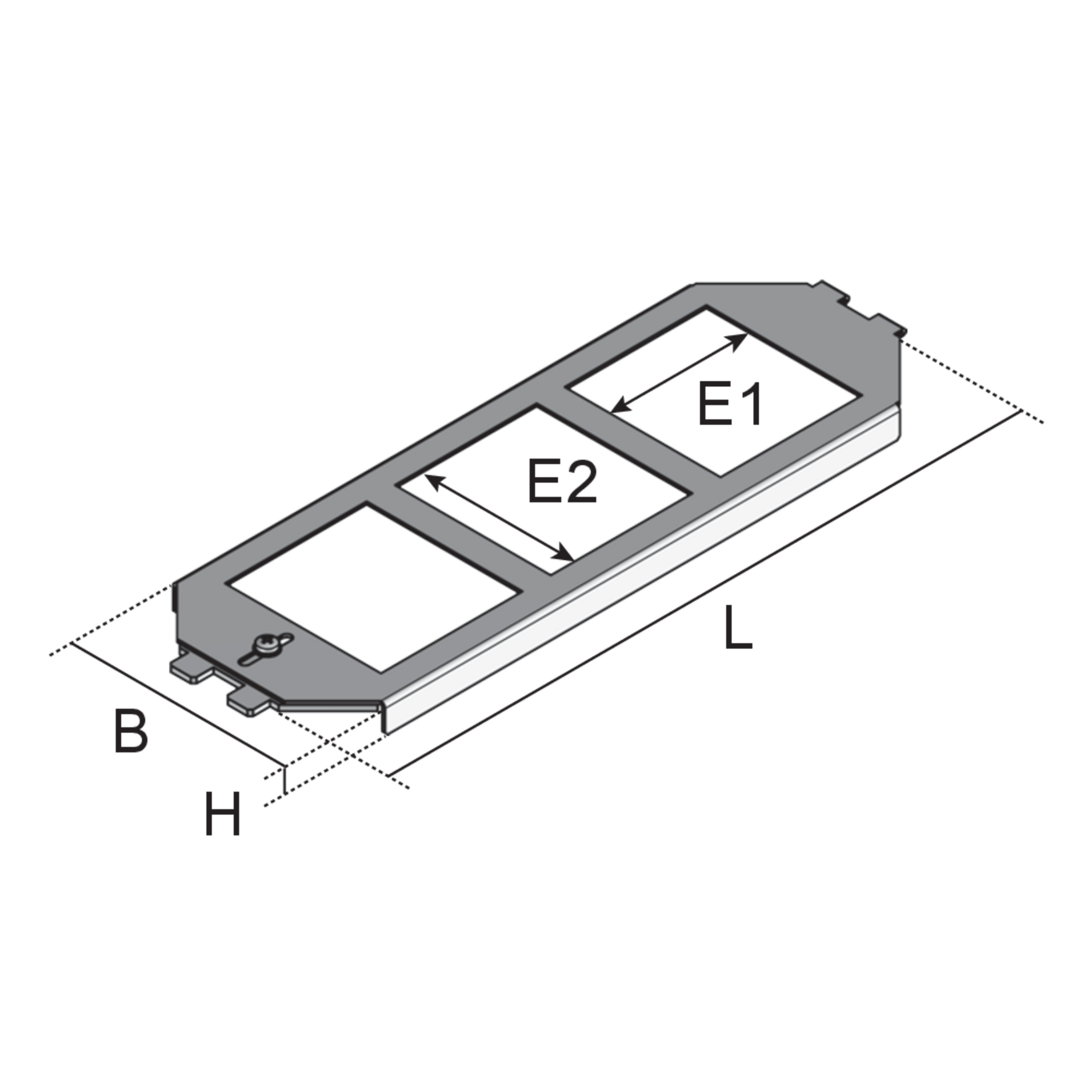

H
height
B
width
L
length
E1
fitting dimension E1
E2
fitting dimension E2
colour
color
G
Weight per storage unit
de
en
Valid from February 1st, 2025, updated version from 31/03/2025.
