UG3

Mounting box, angular, lowered

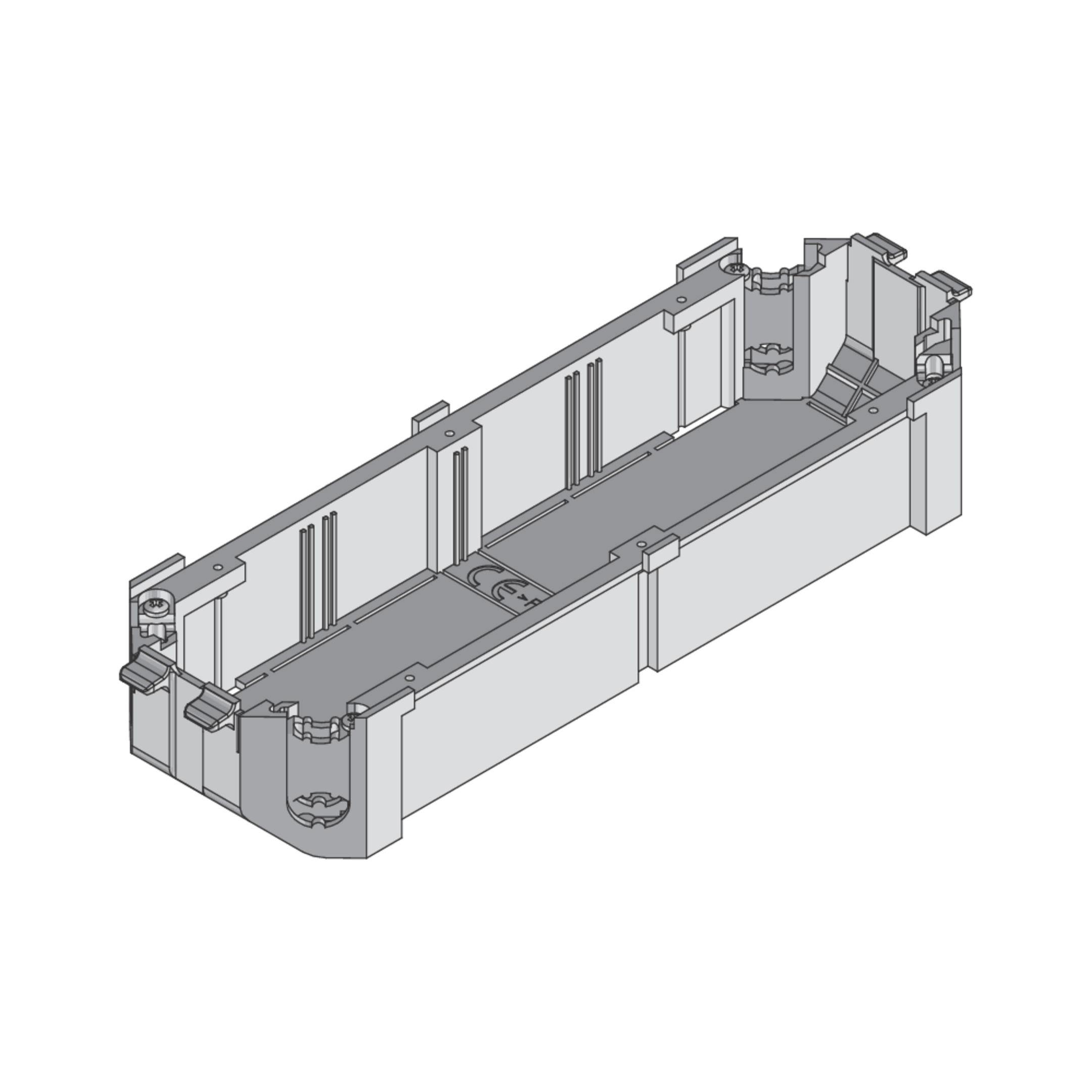

UG3 components are square, lowered mounting boxes consisting of a one-piece shell with a perforated base and a strain relief device for inserting the incoming cables. During assembly, the mounting boxes are snapped into installation units and can be equipped with up to four 45x45 mm installation units or three suspension bracket mounting devices. The mounting boxes are made of ABS copolymer in graphite black (RAL 9011).

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

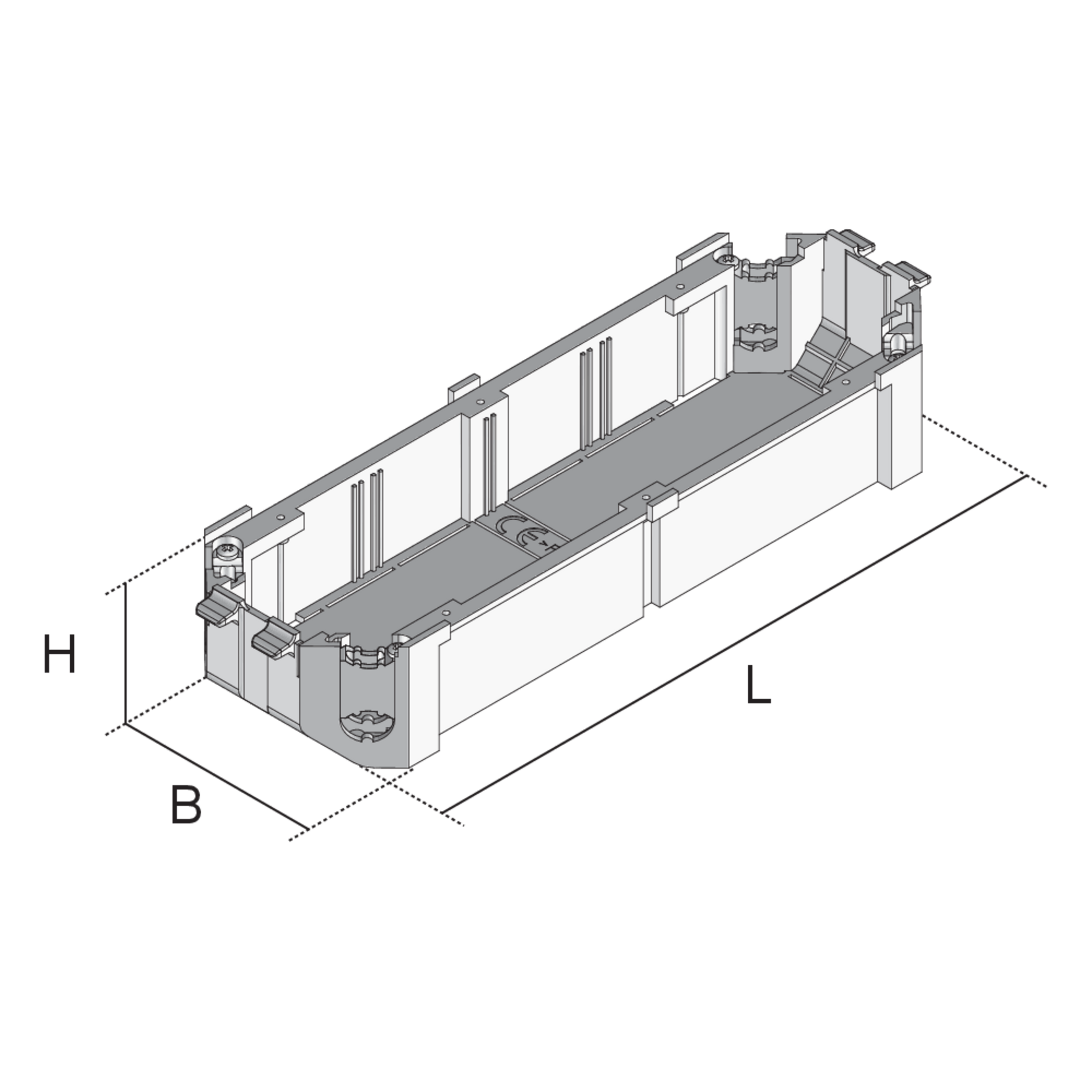

Variants

Article

H

height

B

width

L

length

colour

color

Strain relief

Installation devices

Max. number of installation devices

G

Weight per storage unit

RAL

RAL-Nummer

Included accessories
  • UG3
    device cup,
    height
    38 mm
    width
    74 mm
    length
    225 mm
    color
    Graphite black
    Strain relief
    4x for cable Ø 6 to 12 mm
    Max. number of installation devices
    3x hanging brackets or 4x 45x45 mm
    Weight per storage unit
    0.098 kg
    RAL-Nummer
    9011
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
