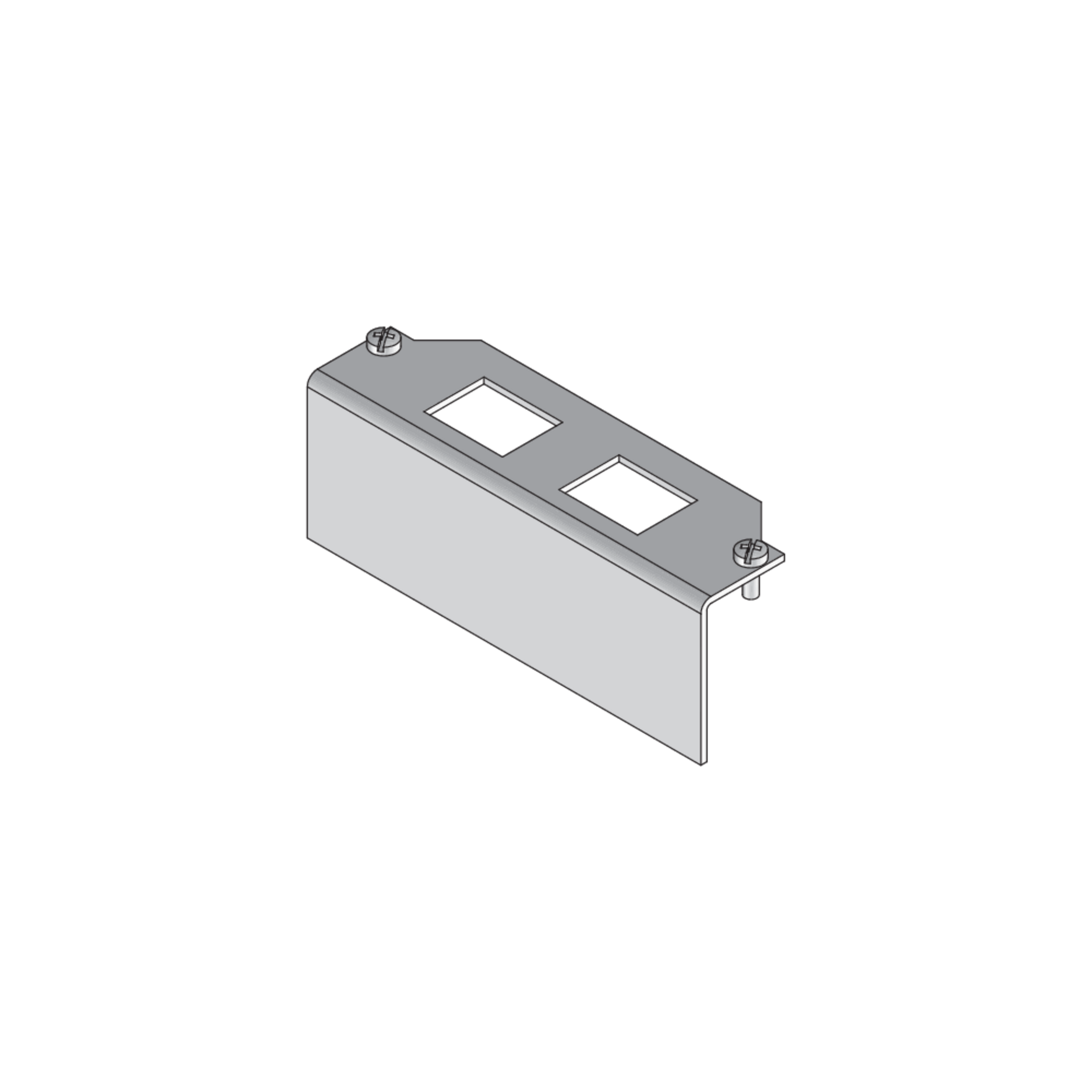

Mounting board, Keystone
UEP125 KS components are built-in circuit boards from the underfloor system product range. These accessories can be fitted with two connected Keystone data jacks and then bolted to the side of the frame of a compact single outlet. The circuit boards are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.

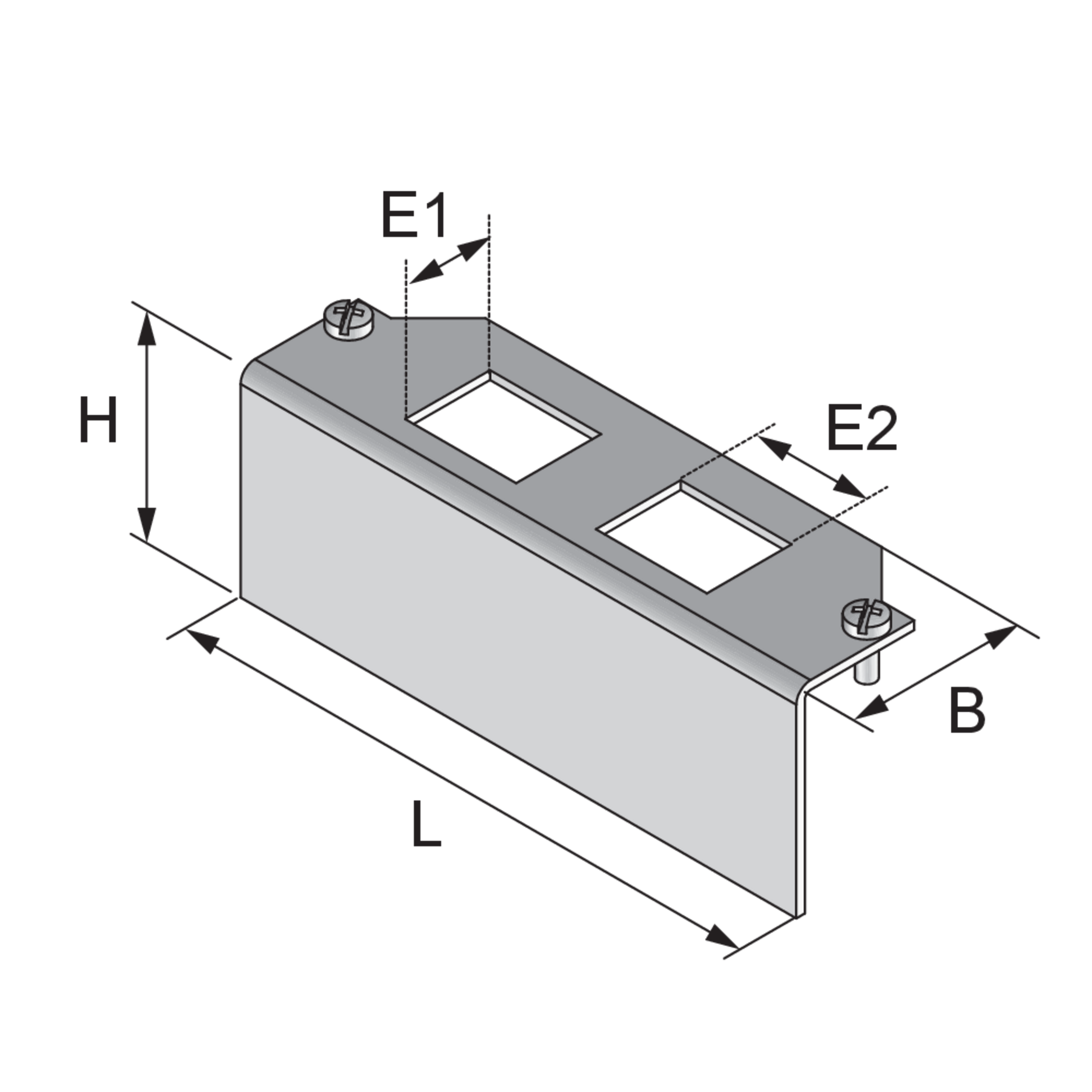

H
height
B
width
L
length
E1
fitting dimension E1
E2
fitting dimension E2
colour
color
G
Weight per storage unit
