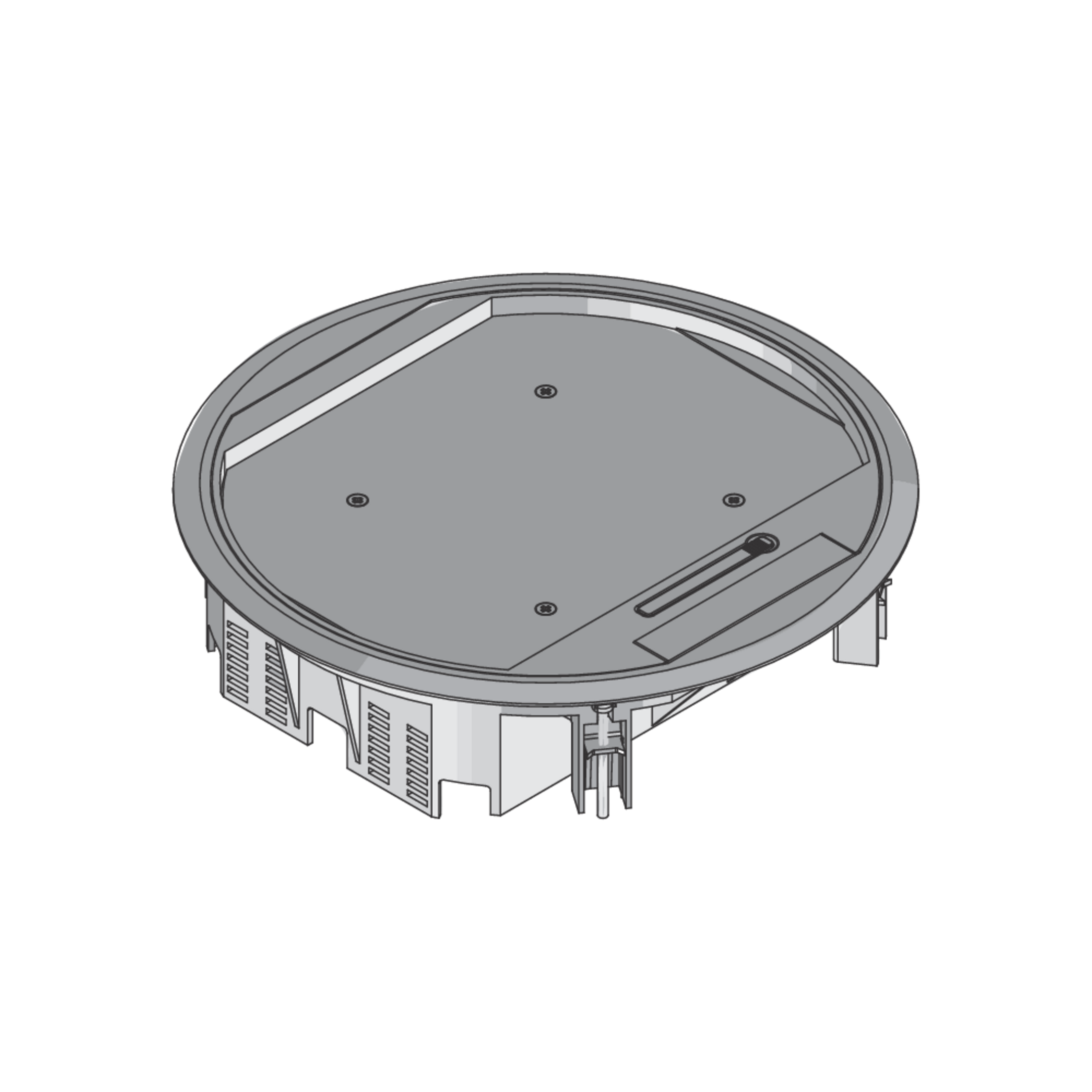

UEKD2 R

Plastic hinged cover unit, 2x, round

UEKD2 R installation units are round hinged cover units with carpet protection frames that are used in dry-cleaned rooms in assembly covers, floor sockets and in raised or false floor openings. They are designed for office traffic loads and can be used to gradually lower two mounting boxes when supplemented with snap-in ladders. The units have floor-level, swivelling cable outlets, opening levers and universal claws. The cover and frame are made of polyamide in graphite black (RAL 9011) and iron grey (RAL 7011). They have an IP protection rating of IP 30 in an unused condition and an IP protection rating of IP 20 when used. Their minimum installation height is 74 mm, they have a maximum load of 2 kN and installation dimensions of 260 mm.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

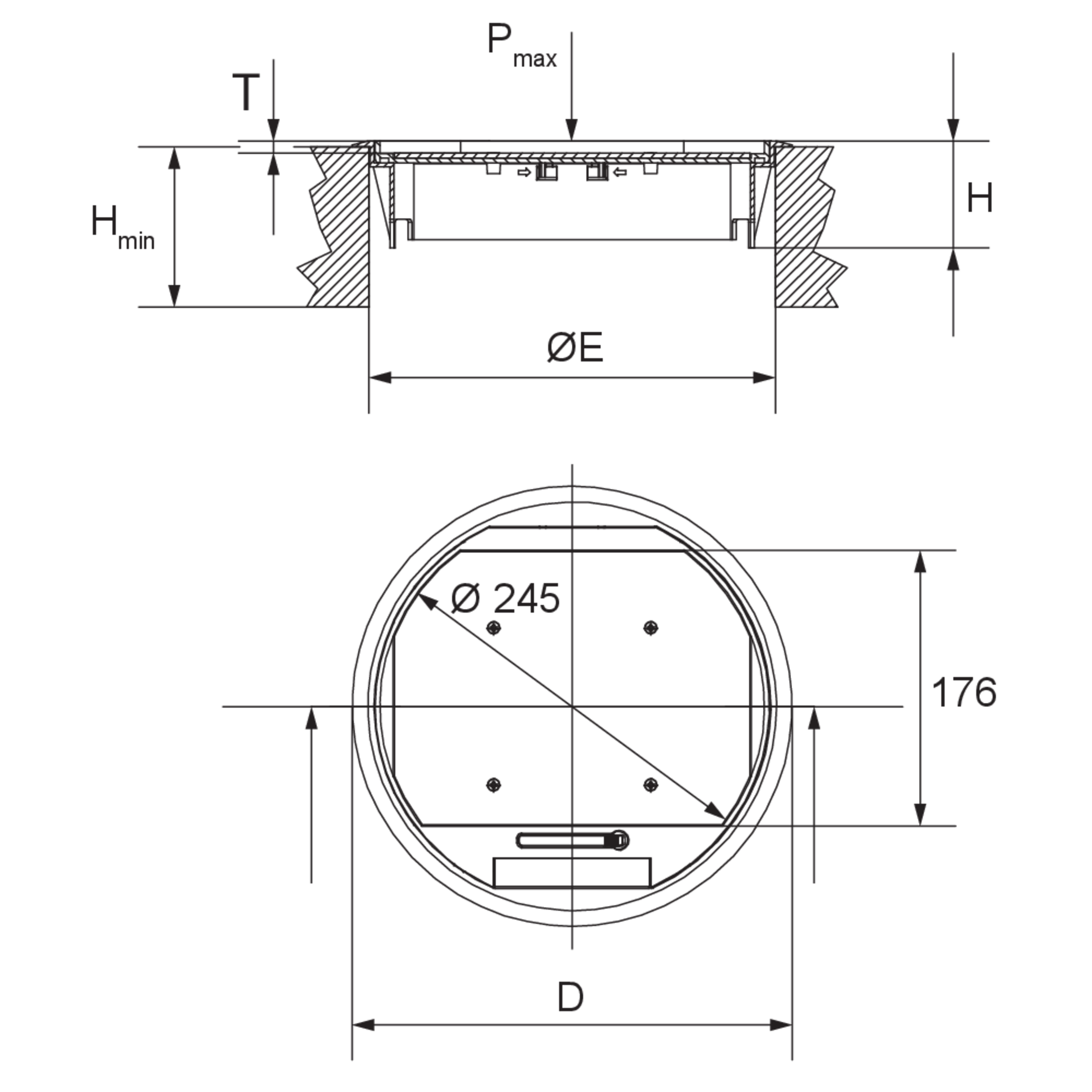

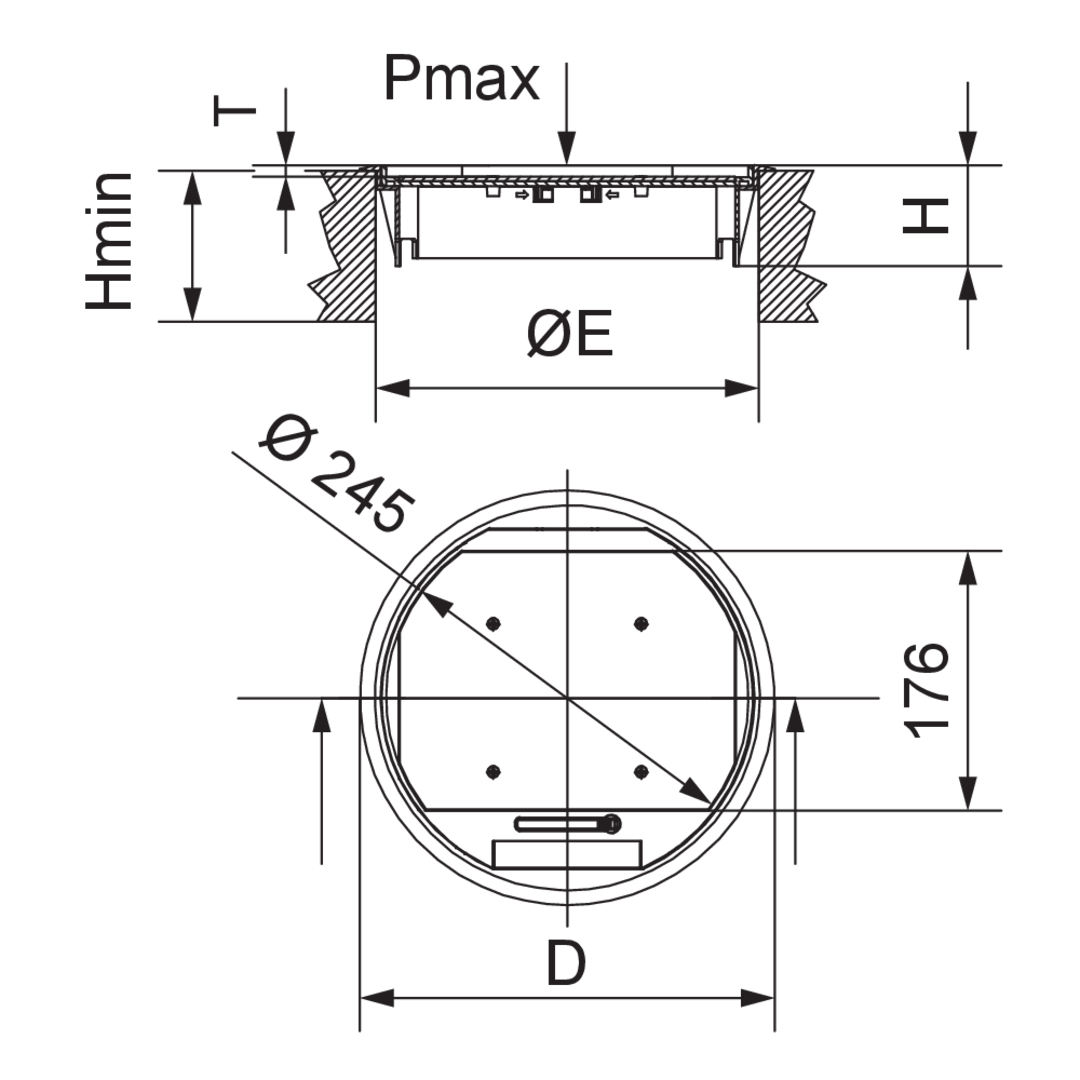

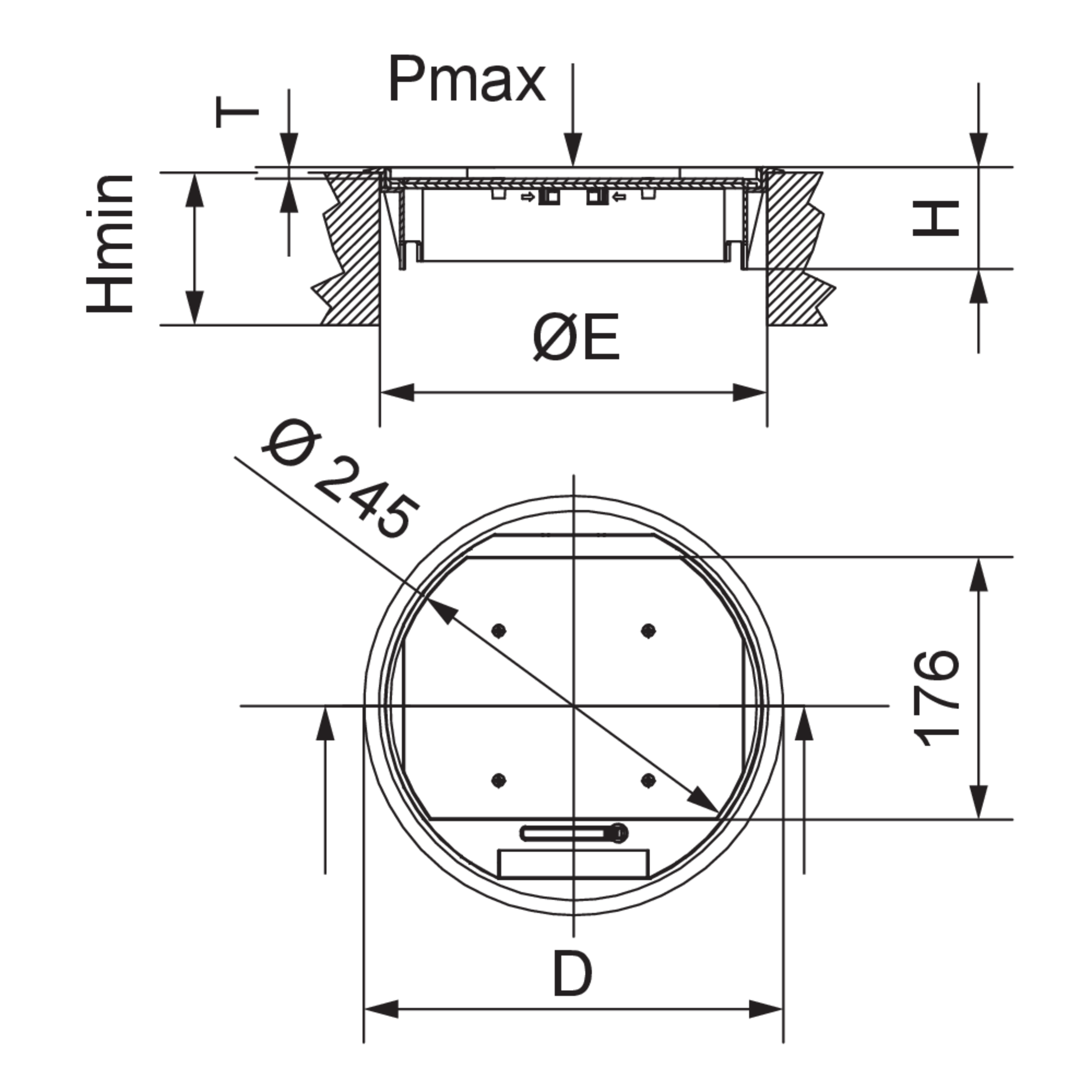

Variants

Article

H

height

Hmin

minimum installation height

Pmax

maximum load

ØB

Installation diameter

mounting box

maximum number of installable device casings

ØE

fitting dimension round

colour

color

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

  • UEKD2-R-G
    installation unit,
    height
    65 mm
    minimum installation height
    81 mm
    maximum load
    2.00 kN
    Installation diameter
    280 mm
    maximum number of installable device casings
    2
    fitting dimension round
    260 mm
    color
    RAL 7011 (iron gray)
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    8 mm
    Weight per storage unit
    1.391 kg

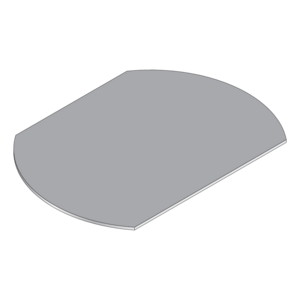

    Included accessories
    More information
  • UEKD2-R-S
    installation unit,
    height
    65 mm
    minimum installation height
    81 mm
    maximum load
    2.00 kN
    Installation diameter
    280 mm
    maximum number of installable device casings
    2
    fitting dimension round
    260 mm
    color
    RAL 9011 (graphite black)
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    8 mm
    Weight per storage unit
    1.391 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 2/3 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
