UEKD VP E

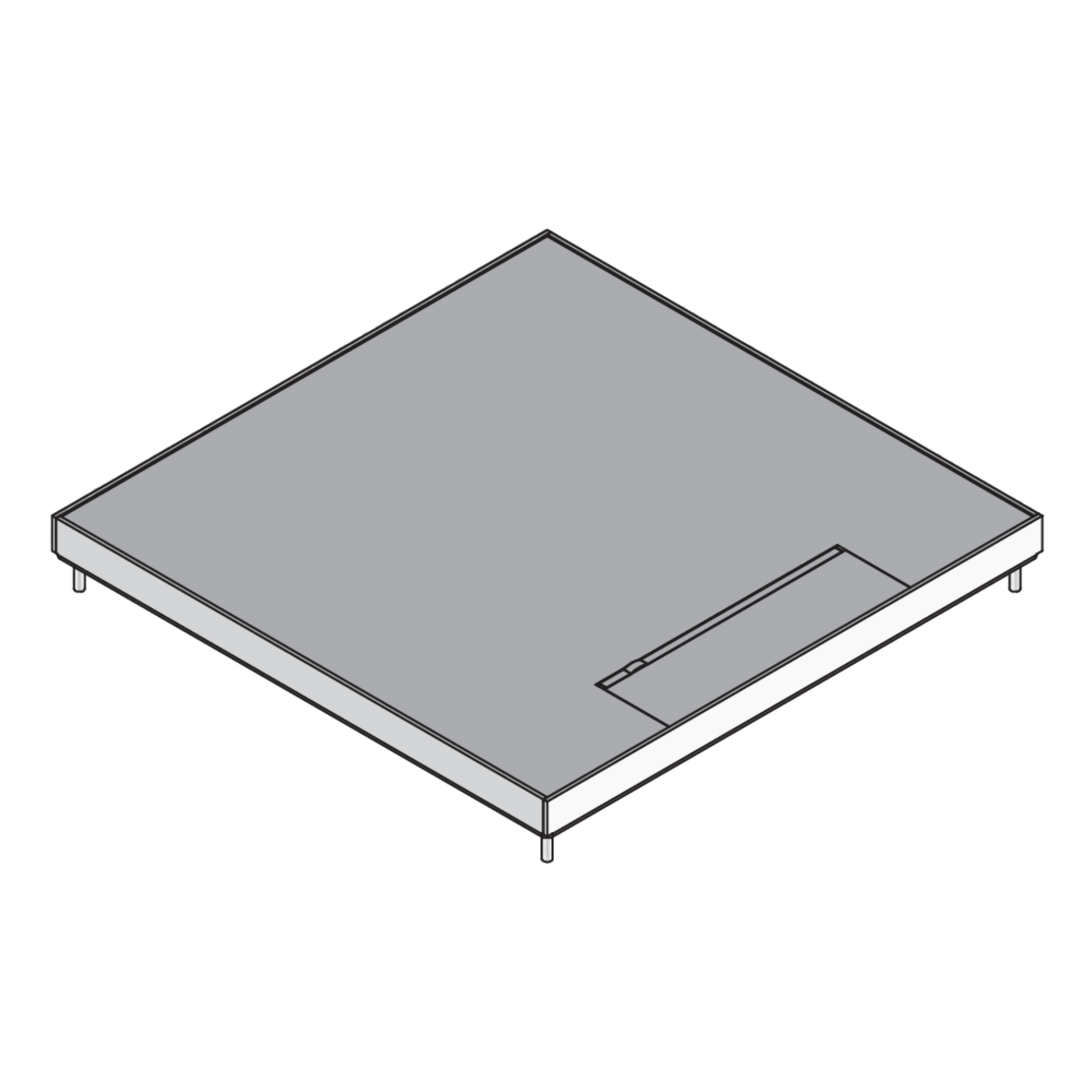

Stainless steel hinged cover unit, 3x, angular, flat

UEKD VP E components are square hinged cover units. They consist of a cartridge mounting frame with insert cartridge, cable outlet, floor-level cable outlet and rubber seal. Mounted on levelling units with Phillips screws, they accommodate max. 3 mounting boxes with installation devices and are used in floor sockets in dry-cleaned and damp-cleaned rooms with office traffic loads. The units are made of stainless steel with flat surfaces. They have an IP protection class of IP 30 in an unused condition, an IP protection class of IP 20 when used and a max. load capacity of 4.00 kN. They have installation dimensions of 261 x 261 mm and a minimum installation height of 85 mm.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

Hmin

minimum installation height

B

width

L

length

Pmax

maximum load

mounting box

maximum number of installable device casings

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

Included accessories
  • UEKD 15-VP E
    cartridge unit,
    height
    19 mm
    minimum installation height
    85 mm
    width
    258 mm
    length
    258 mm
    maximum load
    4.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    0 mm
    Weight per storage unit
    4.634 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 4/10 kN
