UDO350 3V

Screed junction box, 3x, square

Available from July.

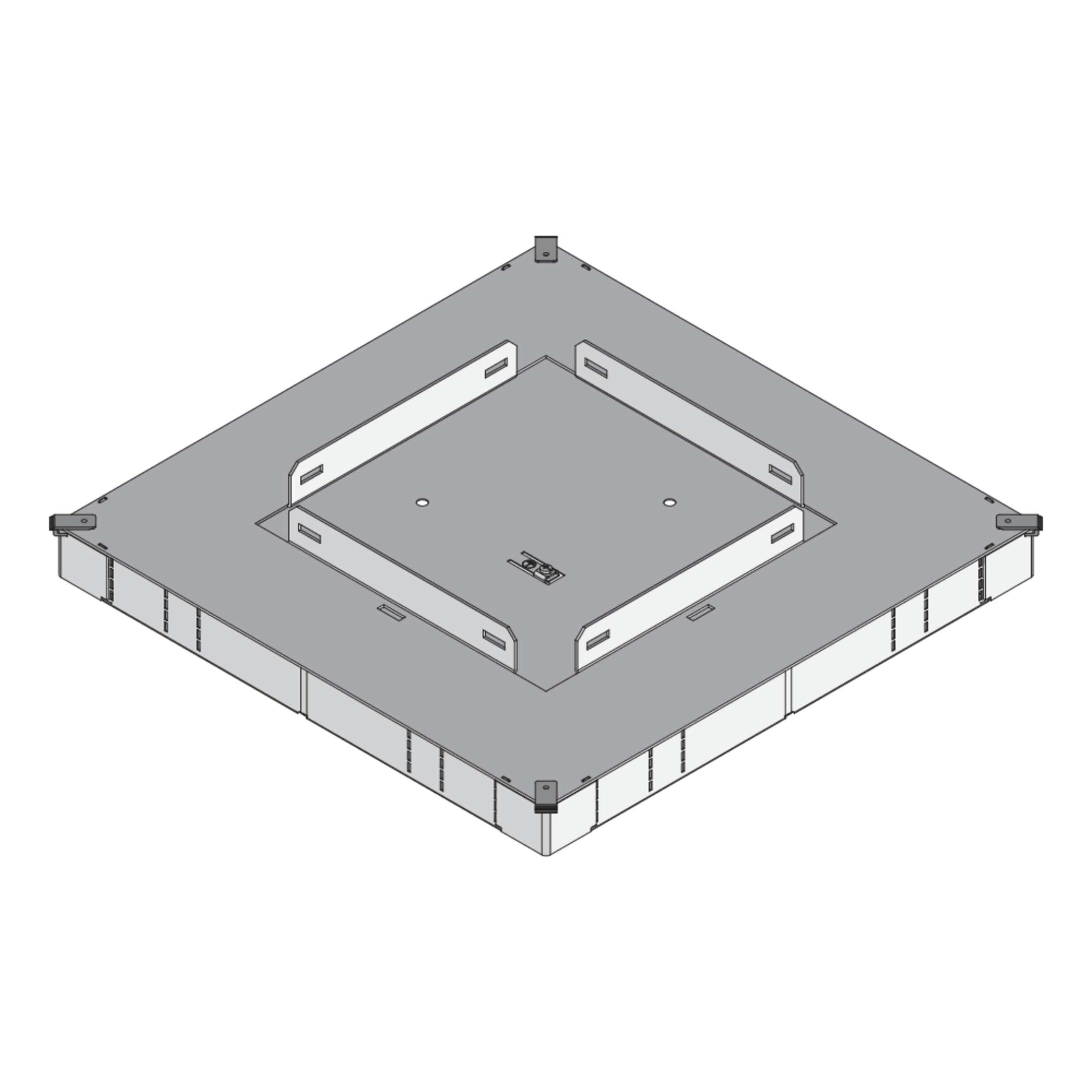

The UDO350 3V screed junction box is certified to DIN EN 50085-2-2 and developed for use in the screed-covered duct system UKO. Made from sendzimir hot-dip galvanized steel sheet to DIN EN 10346, it offers strong mechanical stability and corrosion resistance.

UDO350 3V supports 190 mm, 250 mm, and 350 mm duct widths. Foldable side walls allow flexible duct integration. Its two-piece construction features a removable snap-on cover. The square opening (262×262 mm) holds the shuttering unit USK, which is later replaced by a triple device unit. An integrated protective earth terminal ensures proper equipotential bonding.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

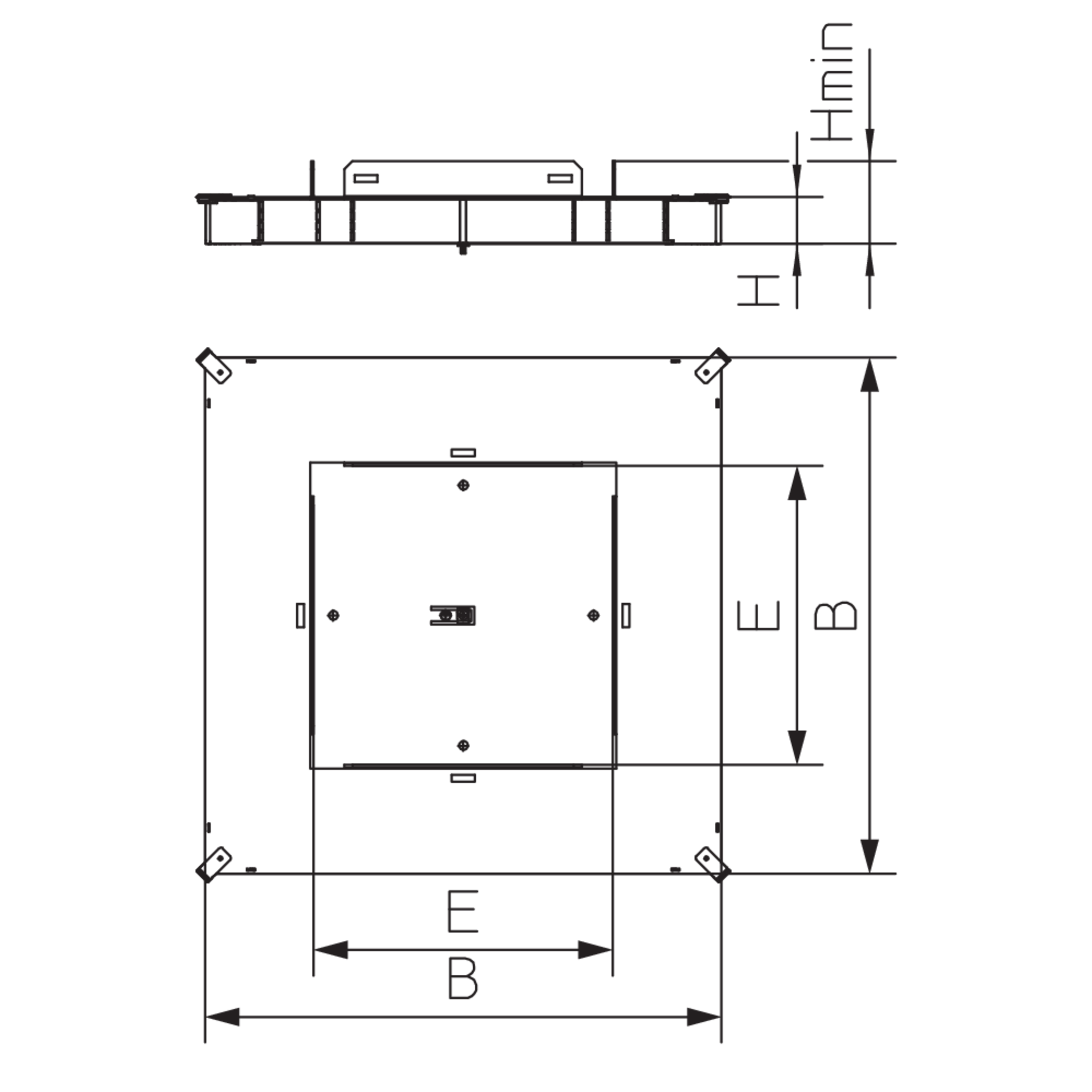

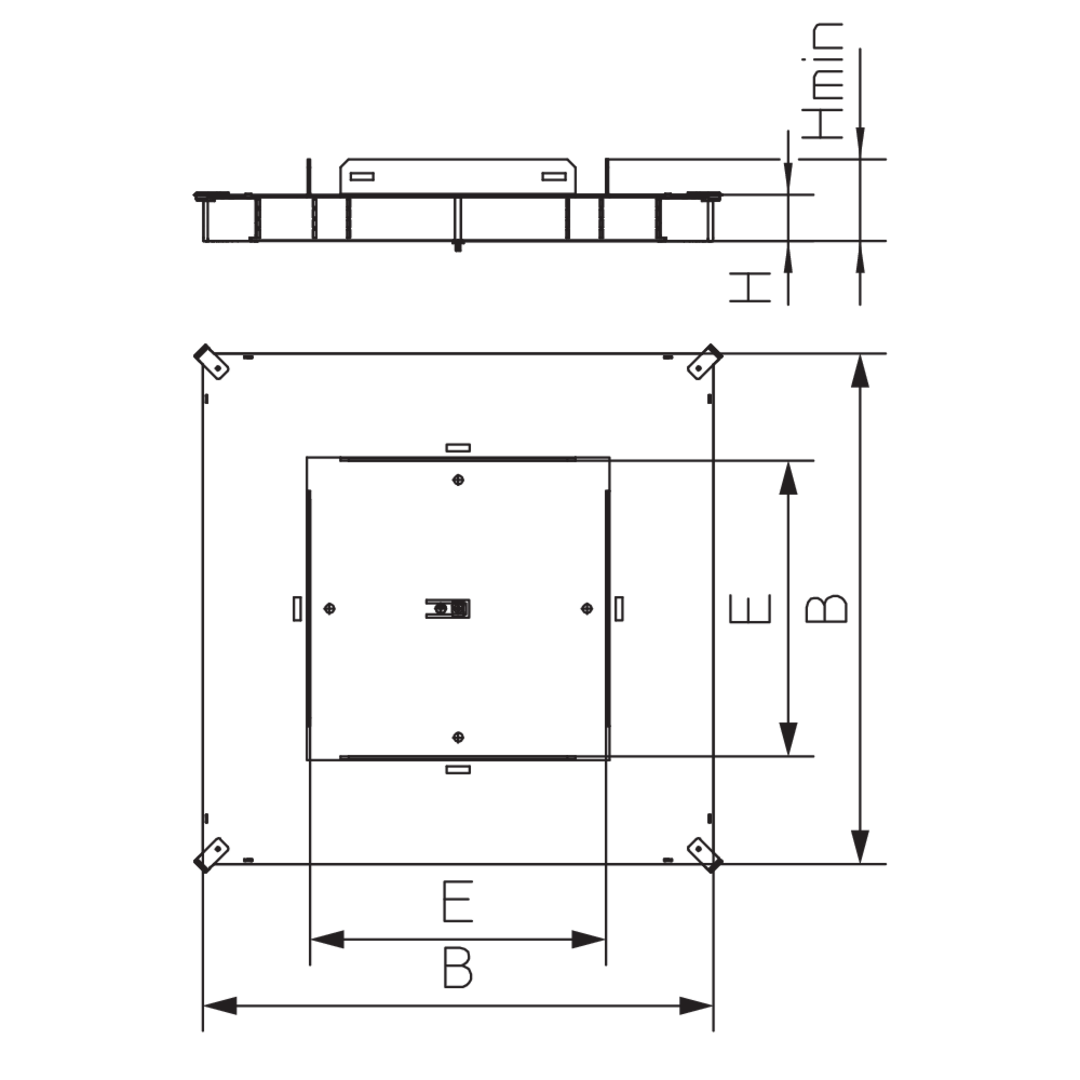

Article

H

height

Hmin

minimum installation height

B

width

E

fitting dimension

G

Weight per storage unit

  • UDO350 28-259V
    Screed junction box
    height
    31 mm
    minimum installation height
    63 mm
    width
    452 mm
    fitting dimension
    262 x 262 mm
    Weight per storage unit
    4.022 kg
    More information
  • UDO350 38-259V
    Screed junction box
    height
    41 mm
    minimum installation height
    73 mm
    width
    452 mm
    fitting dimension
    262 x 262 mm
    Weight per storage unit
    4.142 kg
    More information
  • UDO350 48-259V
    Screed junction box
    height
    51 mm
    minimum installation height
    83 mm
    width
    452 mm
    fitting dimension
    262 x 262 mm
    Weight per storage unit
    4.262 kg
    More information
  • UDO350 58-259V
    Screed junction box
    height
    61 mm
    minimum installation height
    93 mm
    width
    452 mm
    fitting dimension
    262 x 262 mm
    Weight per storage unit
    4.394 kg
    More information
