Art.-Nr. UDO350 28-308R

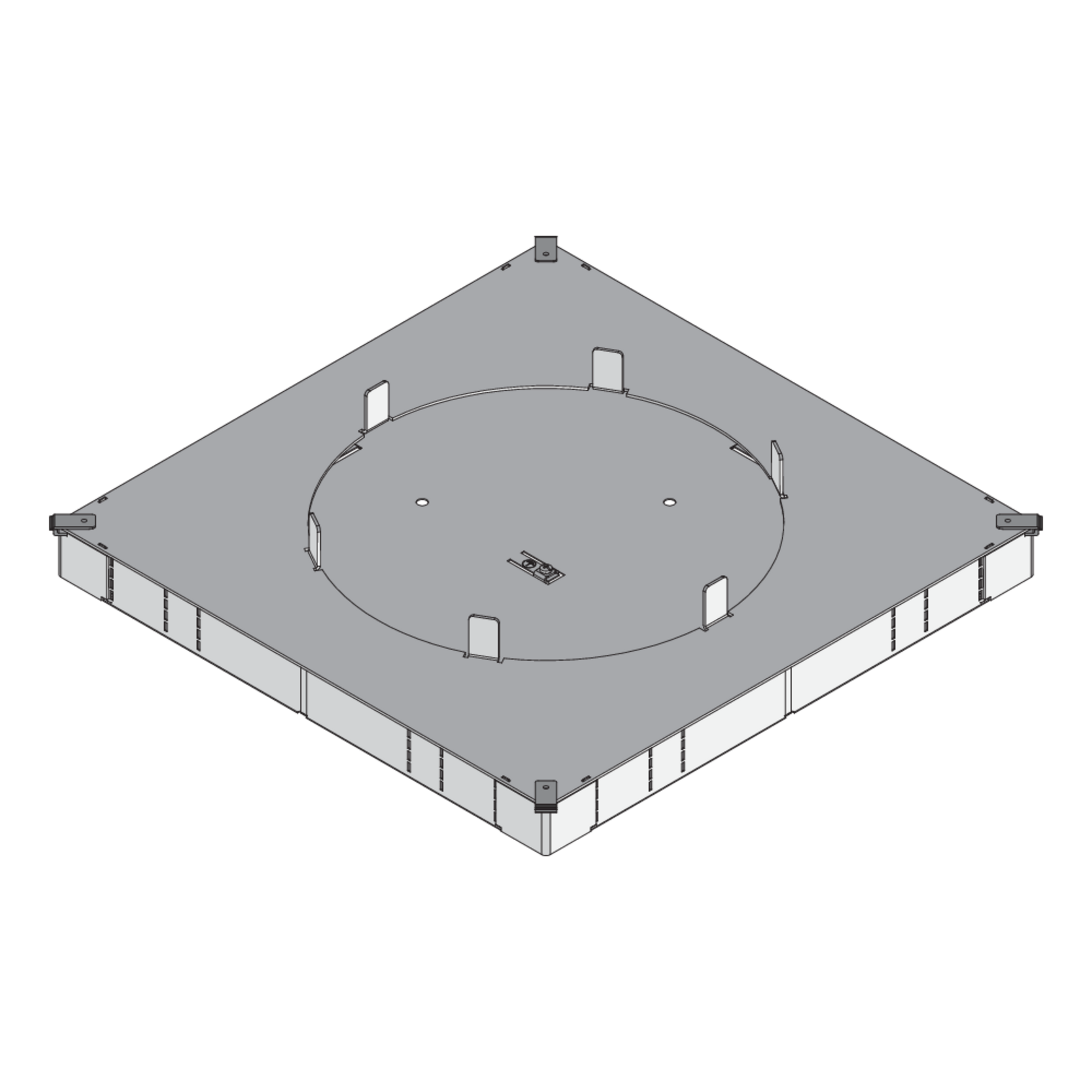

Screed junction box

Screed junction box, 3x, round

Available from July.

The UDO350 3R screed junction box is certified to DIN EN 50085-2-2 and developed for use in the screed-covered duct system UKO. It is made from sendzimir hot-dip galvanized steel sheet to DIN EN 10346, ensuring durability and corrosion resistance.

UDO350 3R is suitable for 190 mm, 250 mm, and 350 mm duct widths. Foldable side walls enable flexible duct connections. The two-piece construction includes a removable snap-on cover. The round opening (Ø 310 mm) holds the shuttering pipe USR, later replaced by a triple device installation unit. An integrated protective earth terminal provides reliable equipotential bonding.

Art.-Nr.
UDO350 28-308R
height
31 mm
minimum installation height
63 mm
width
452 mm
fitting dimension round
310 mm
Weight per storage unit
3.606 kg
Get in touchDownload datasheet

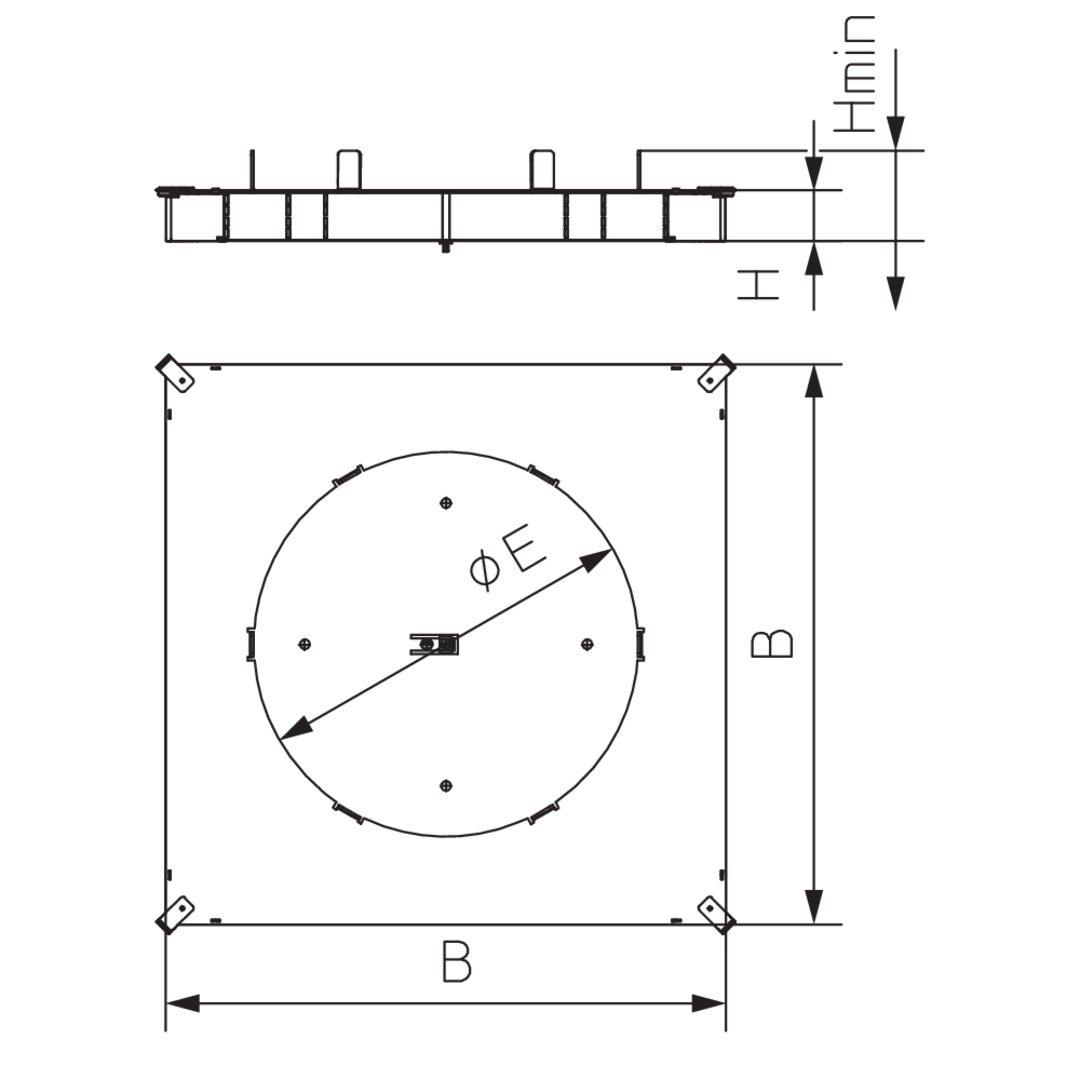

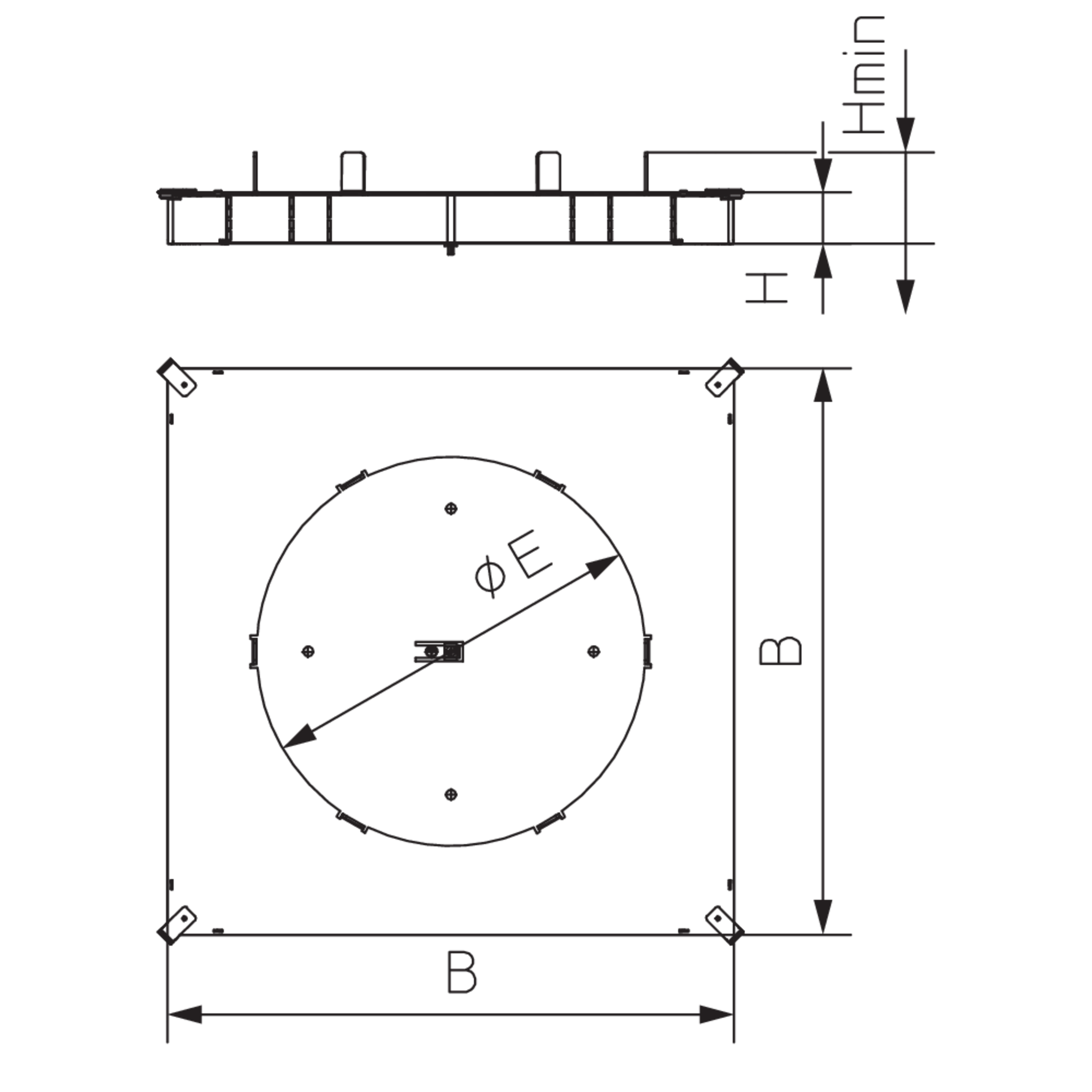

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

Hmin

minimum installation height

B

width

ØE

fitting dimension round

G

Weight per storage unit

  • UDO350 28-308R
    Screed junction box
    height
    31 mm
    minimum installation height
    63 mm
    width
    452 mm
    fitting dimension round
    310 mm
    Weight per storage unit
    3.606 kg
    More information
  • UDO350 38-308R
    Screed junction box
    height
    41 mm
    minimum installation height
    73 mm
    width
    452 mm
    fitting dimension round
    310 mm
    Weight per storage unit
    3.726 kg
    More information
  • UDO350 48-308R
    Screed junction box
    height
    51 mm
    minimum installation height
    83 mm
    width
    452 mm
    fitting dimension round
    310 mm
    Weight per storage unit
    3.846 kg
    More information
  • UDO350 58-308R
    Screed junction box
    height
    61 mm
    minimum installation height
    93 mm
    width
    452 mm
    fitting dimension round
    310 mm
    Weight per storage unit
    3.978 kg
    More information
