UDO250 2V

Screed junction box, 2x, square

Available from August.

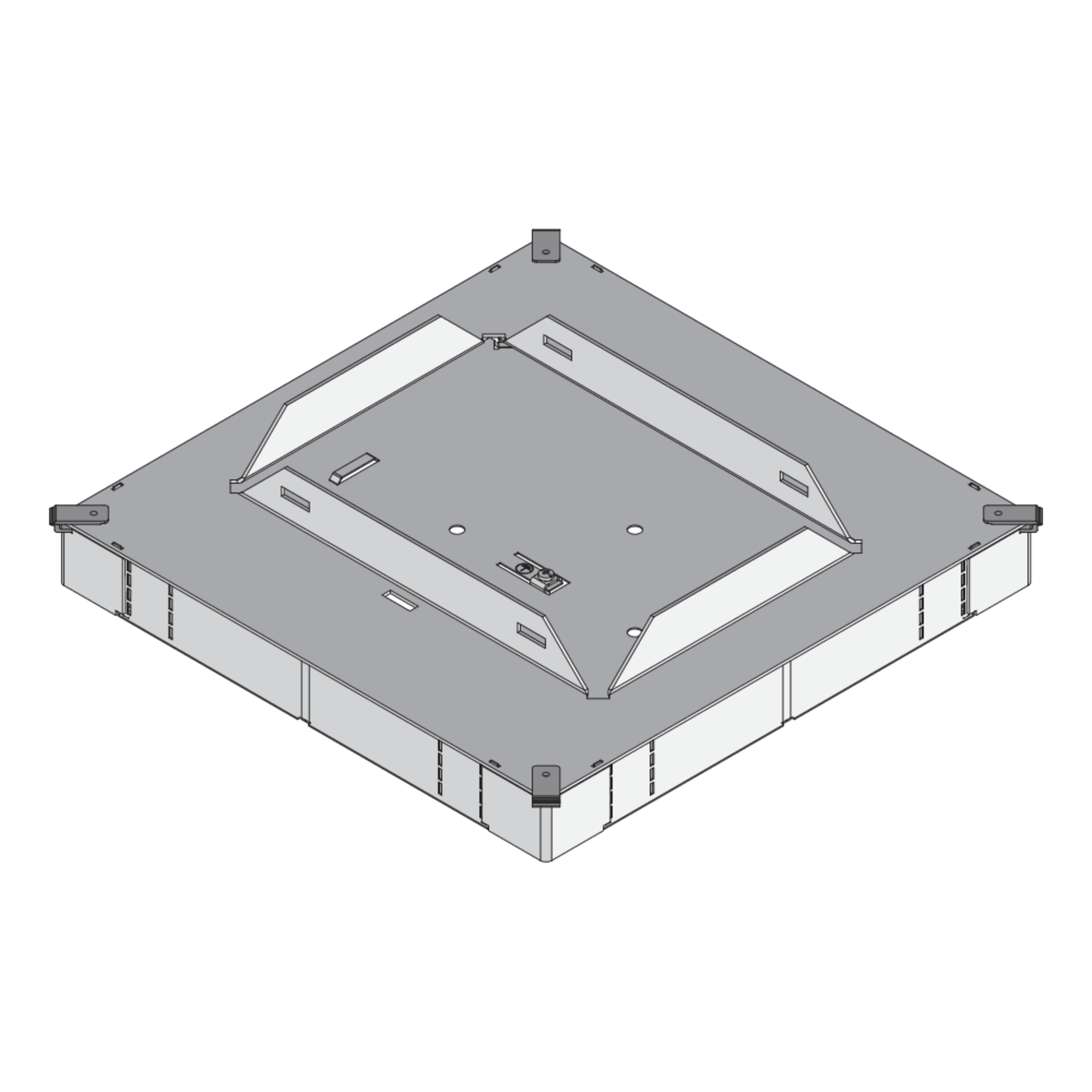

The UDO250 2V screed junction box is VDE-certified to DIN EN 50085-2-2 and developed for use in the screed-covered duct system UKO. Made from sendzimir hot-dip galvanized steel sheet to DIN EN 10346, it provides robust mechanical and corrosion resistance.

UDO250 2V fits 190 mm and 250 mm duct widths. Foldable side walls support flexible duct connections. The two-piece box includes a removable snap-on cover. The rectangular opening (187×262 mm) holds the shuttering unit USK, later replaced by a dual device unit. An integrated protective earth terminal ensures equipotential bonding.

CE-Zeichen (Conformité Européenne): Ja
VDE-zertifiziert: Ja
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

Hmin

minimum installation height

B

width

E1

fitting dimension E1

E2

fitting dimension E2

G

Weight per storage unit

  • UDO250 28-185V
    Screed junction box
    height
    31 mm
    minimum installation height
    63 mm
    width
    352 mm
    fitting dimension E1
    262 mm
    fitting dimension E2
    187 mm
    Weight per storage unit
    2.501 kg
    More information
  • UDO250 38-185V
    Screed junction box
    height
    41 mm
    minimum installation height
    73 mm
    width
    352 mm
    fitting dimension E1
    262 mm
    fitting dimension E2
    187 mm
    Weight per storage unit
    2.601 kg
    More information
  • UDO250 48-185V
    Screed junction box
    height
    51 mm
    minimum installation height
    83 mm
    width
    352 mm
    fitting dimension E1
    262 mm
    fitting dimension E2
    187 mm
    Weight per storage unit
    2.705 kg
    More information
