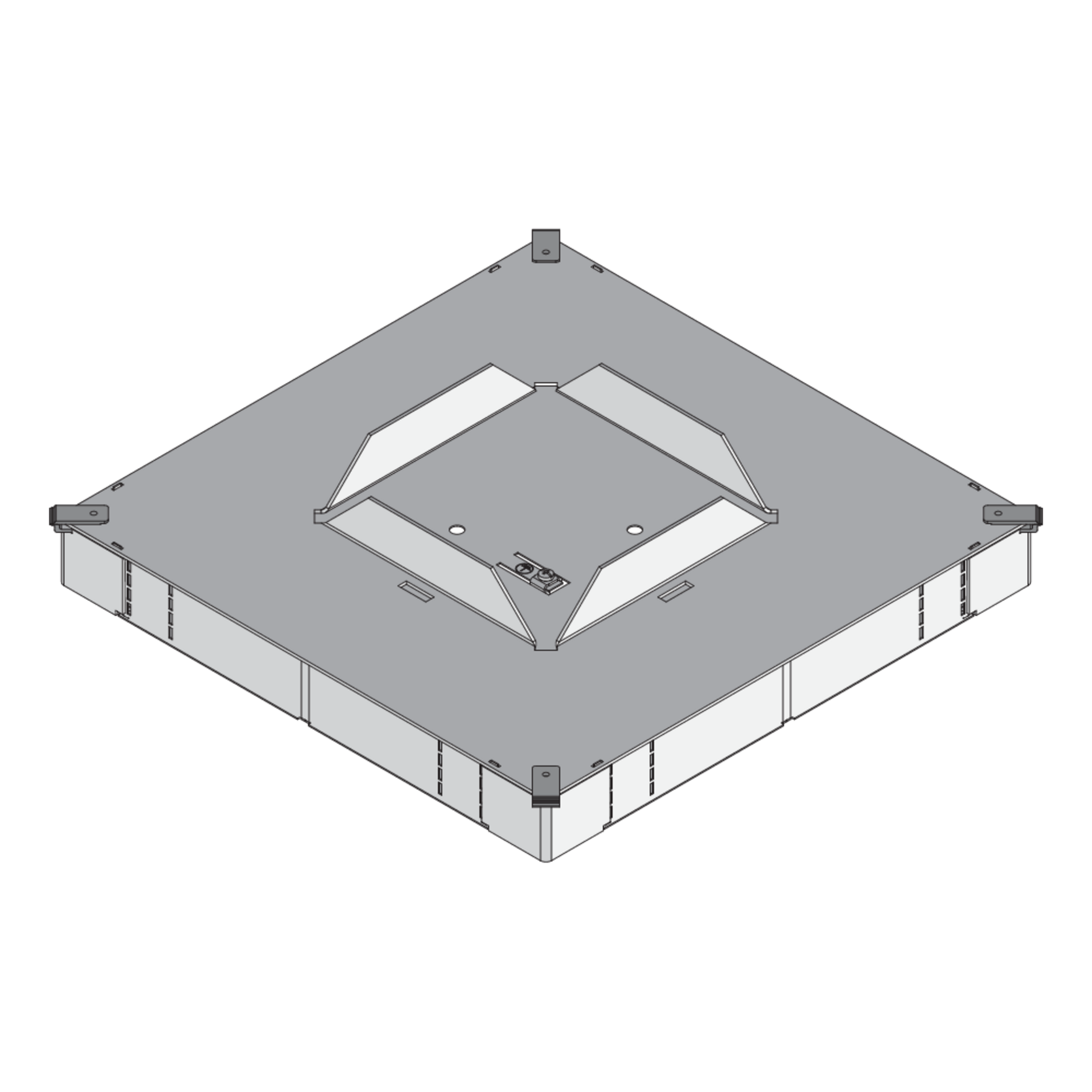

Screed junction box, 2x, square
The UDO250 1V screed junction box is certified to DIN EN 50085-2-2 and developed for use in the screed-covered duct system UKO. Manufactured from sendzimir hot-dip galvanized steel sheet to DIN EN 10346, it offers high strength and corrosion resistance.
Suitable for 190 mm and 250 mm duct widths, it features foldable side walls for flexible duct alignment. The two-piece design with removable snap-on cover facilitates installation. The square opening (164×164 mm) holds the shuttering unit USK, later replaced by a single device unit. An integrated protective earth terminal ensures equipotential bonding.

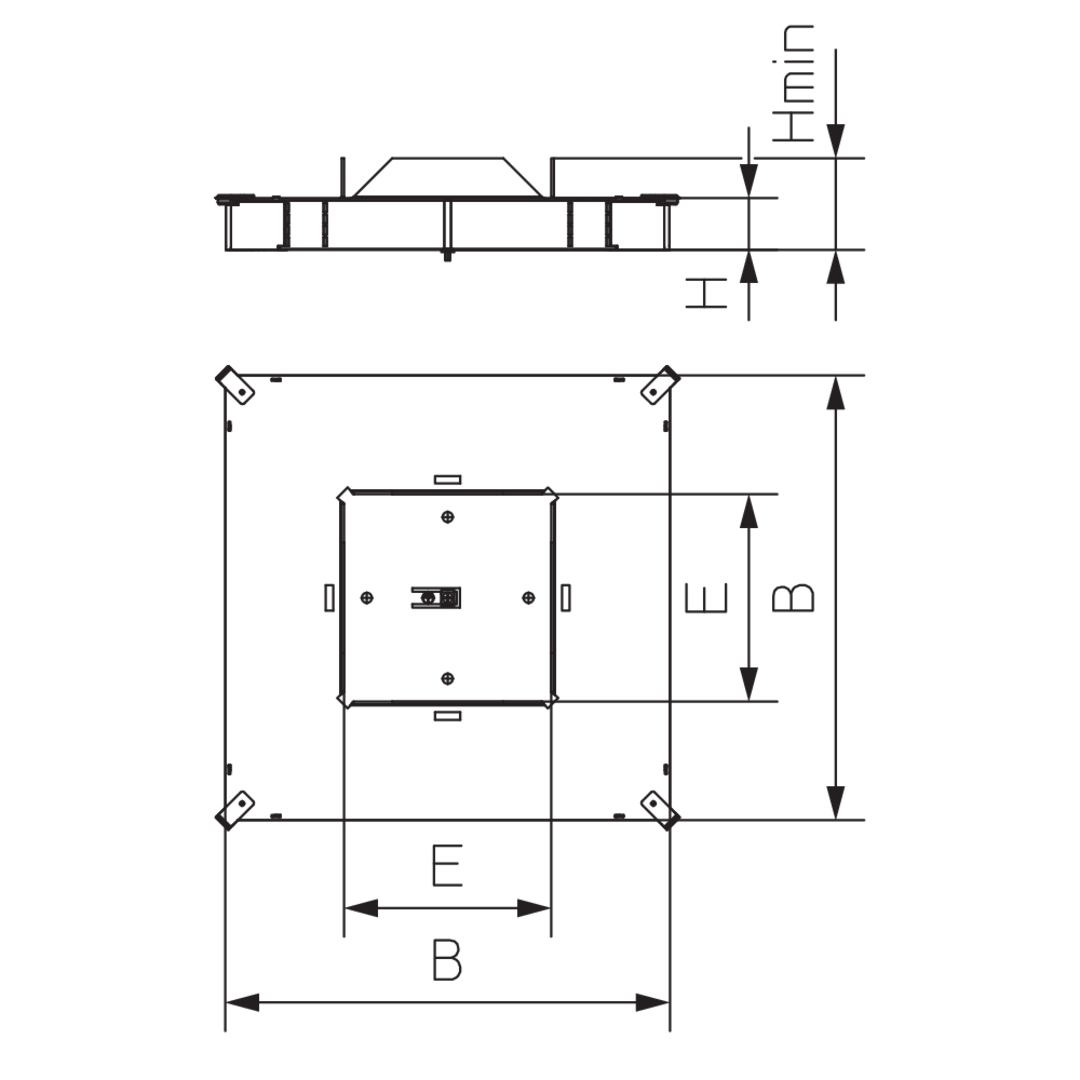

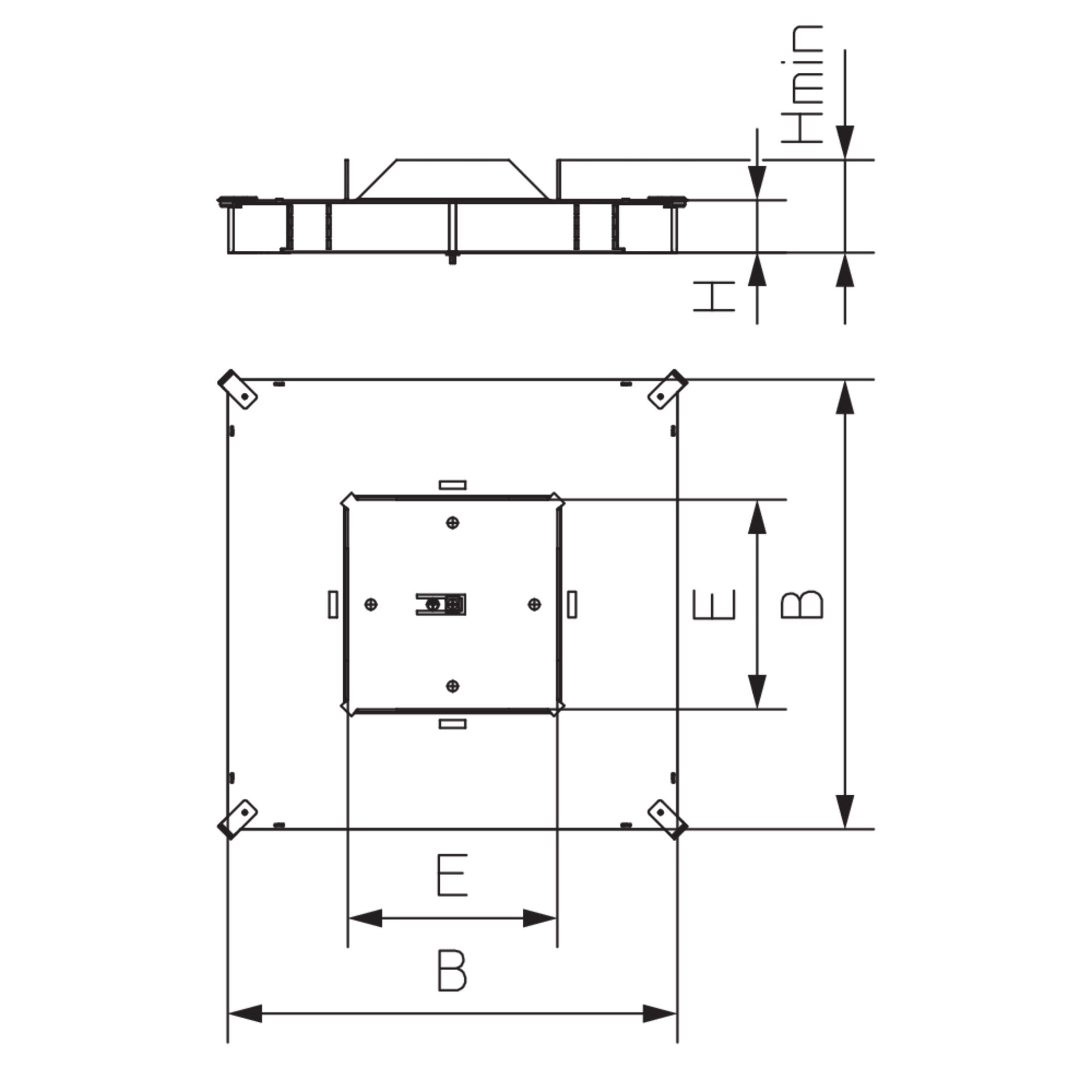

H
height
Hmin
minimum installation height
B
width
E
fitting dimension
G
Weight per storage unit
