Variants
Article
B
width
L
length
colour
color
G
Weight per storage unit
- UDAE45-CAT6U 8/8

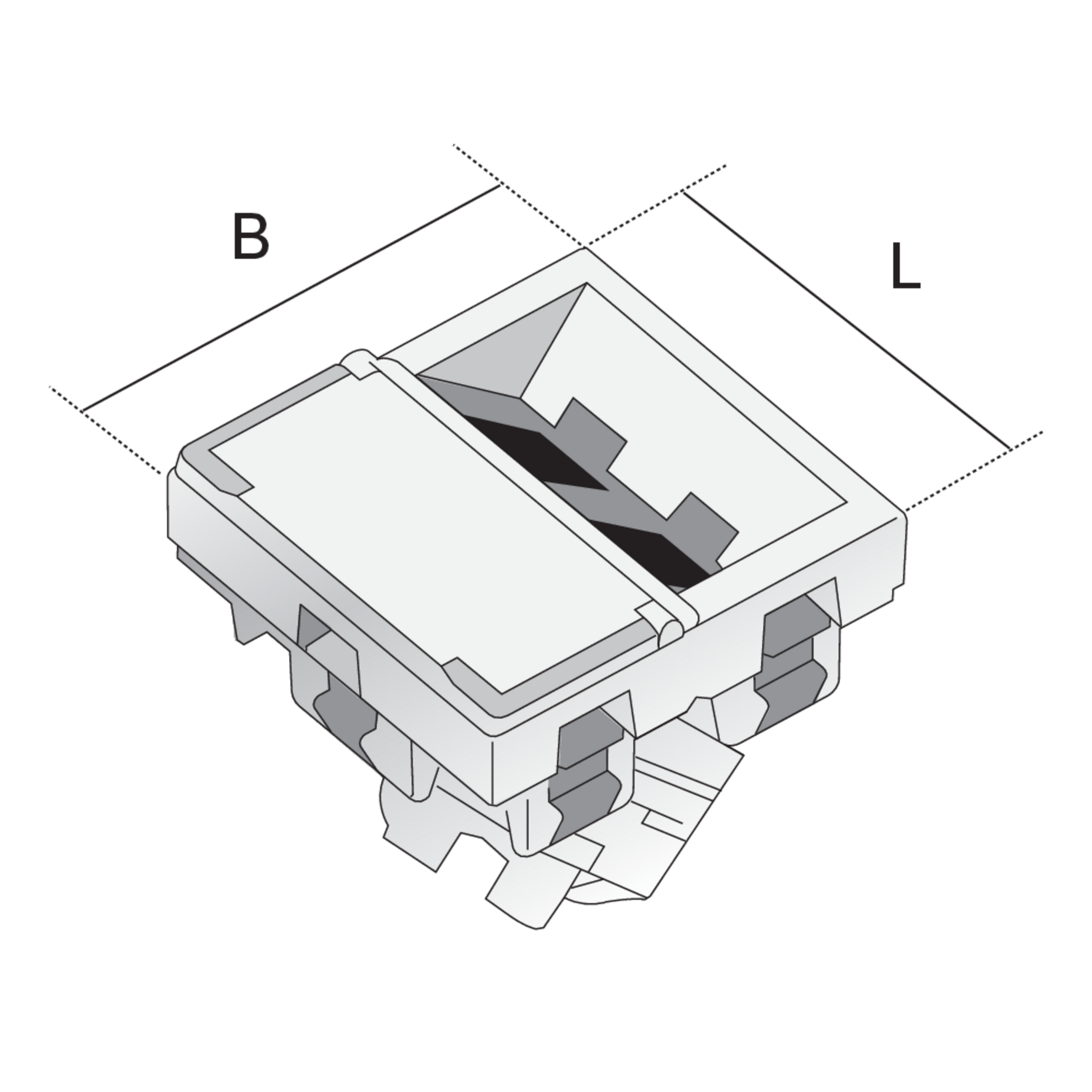

data junction boxRJ45 double,width45 mmlength45 mmcolorwhiteWeight per storage unit0.026 kg
UDAE45

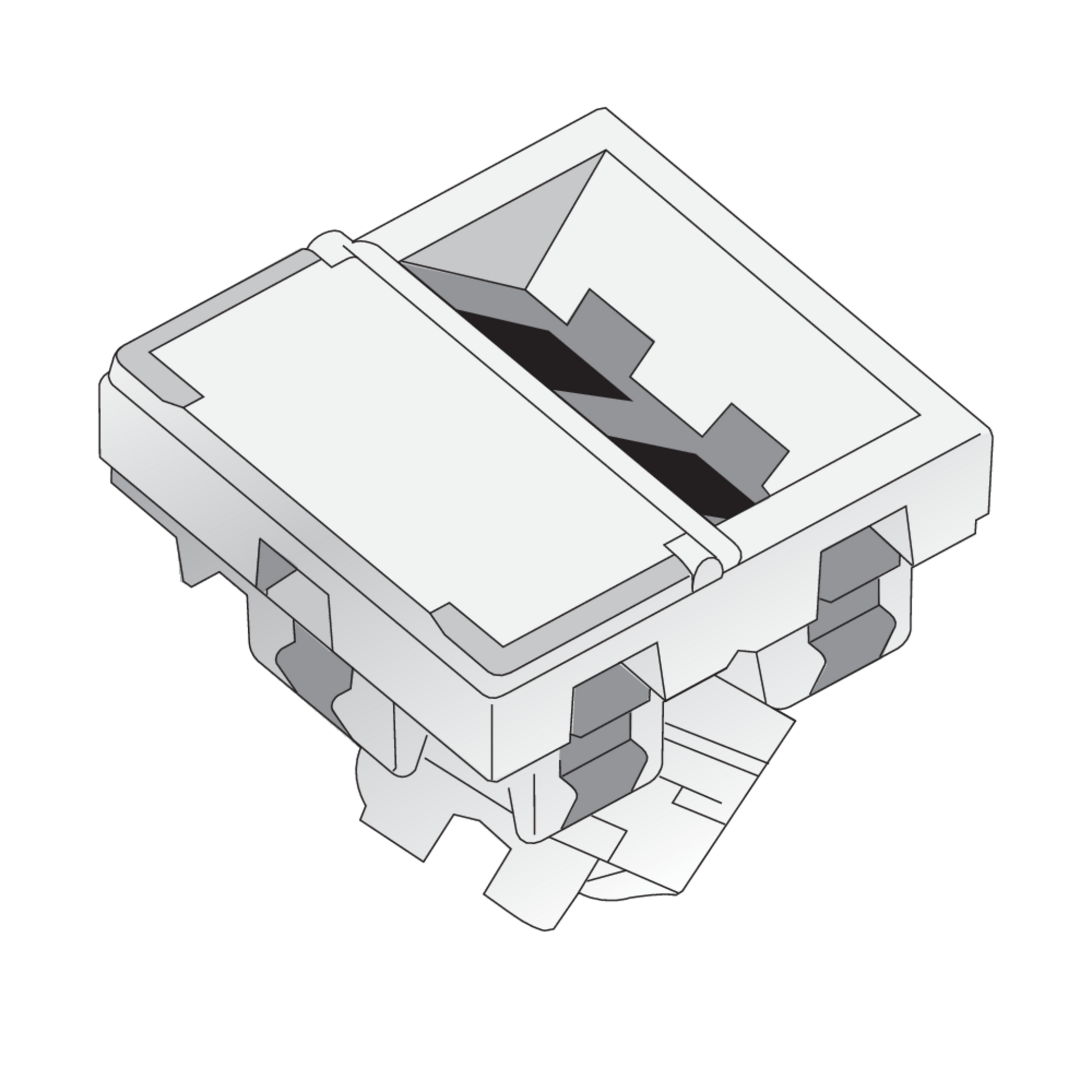

Data connection box, 2x, unshielded, 45x45 mm
UDAE45 components are 2-way data connection boxes from the range of installation devices for underfloor systems. The 8-pole junction boxes correspond to type CAT6U 8/8, RJ45 and can be used for unshielded twisted pair (UTP) network cables. They can be snapped into installation openings with 45x45 mm in size. The data boxes are made of white polycarbonate.
Details
Tender texts
Accessories
Downloads
de
de
en
de
en
de
en
de
en
de
en
de
en
Electrical and Electronic Devices – Information from Manufacturers for Commercial Users
Declaration
PDF (106.06 KB)
DownloadDownload
EC Declaration of Conformity for Underfloor systems
Installation equipment for electric cables and circuits
Underfloor Systems - Catalogue
Catalogue
Assembly instruction for device installation cups and installation devices
Assembly Instructions
Technical Information Device Sockets and Installation Devices
Technical Information
Price list 2026 Building extension
Valid from February 1st, 2026
Price list 2026 Building extension (Excel)
Valid from February 1, 2026
ZIP
Choose languageChoose languageIncluded accessories
Anzahl:
Our finishing services
Whether apartment blocks, office complexes or industrial plants: as your reliable partner for numerous applications and construction phases, we support you in every project with expert advice and support services. This allows you to concentrate fully on your core business.
