UBST R WD

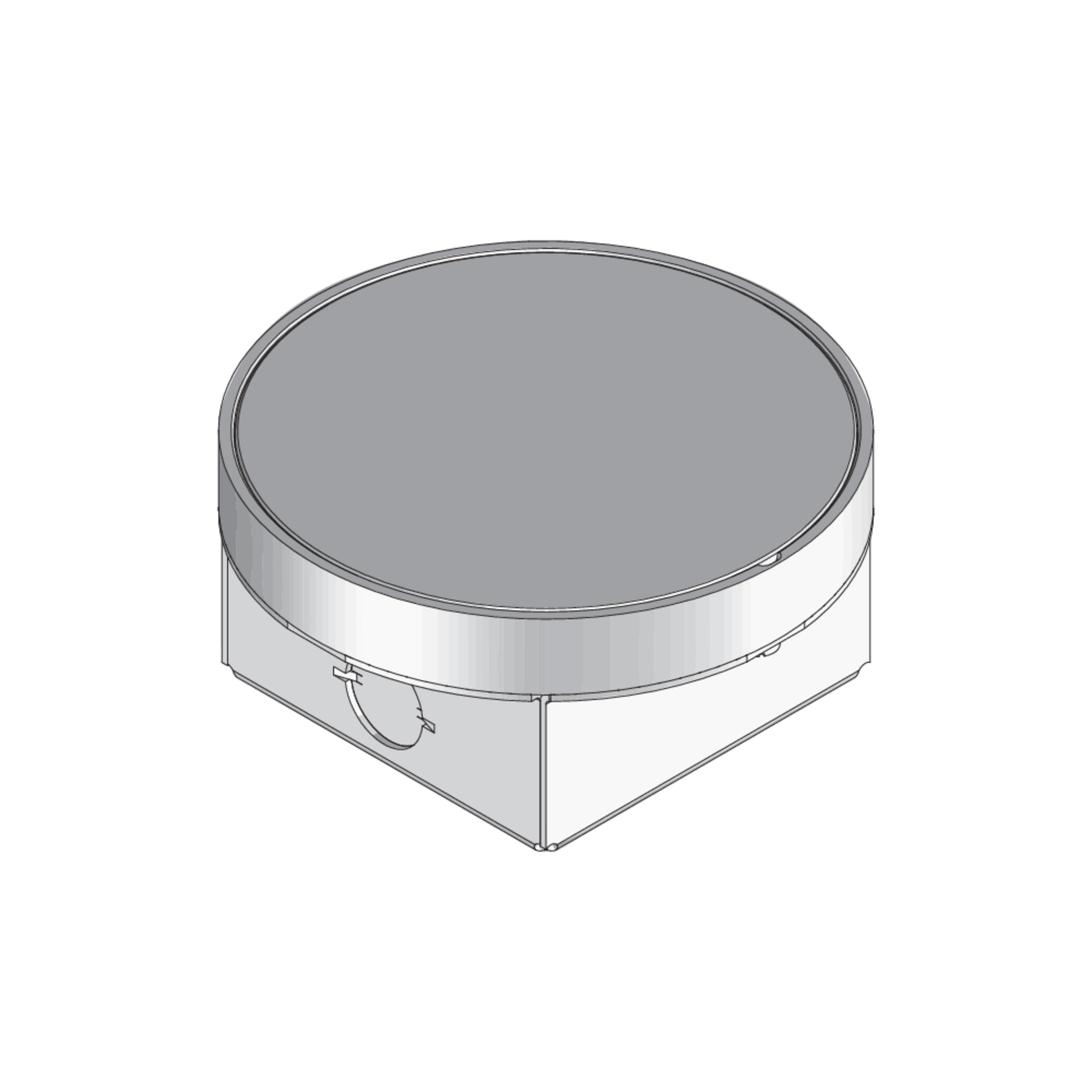

Cleaning socket, single, round, levelable

Round cleaning socket made of high-grade steel sheet with a hem. Incl. white single isolated ground receptacle. As levellable unit with tube cover, retainer box made of sheet steel. For direct installation in screed floors. Suitable for rooms with low floor build-up and wet-cleaned floor coverings. Designed for office traffic loads.

Get in touchDownload datasheet

Variants

aluminium

Article

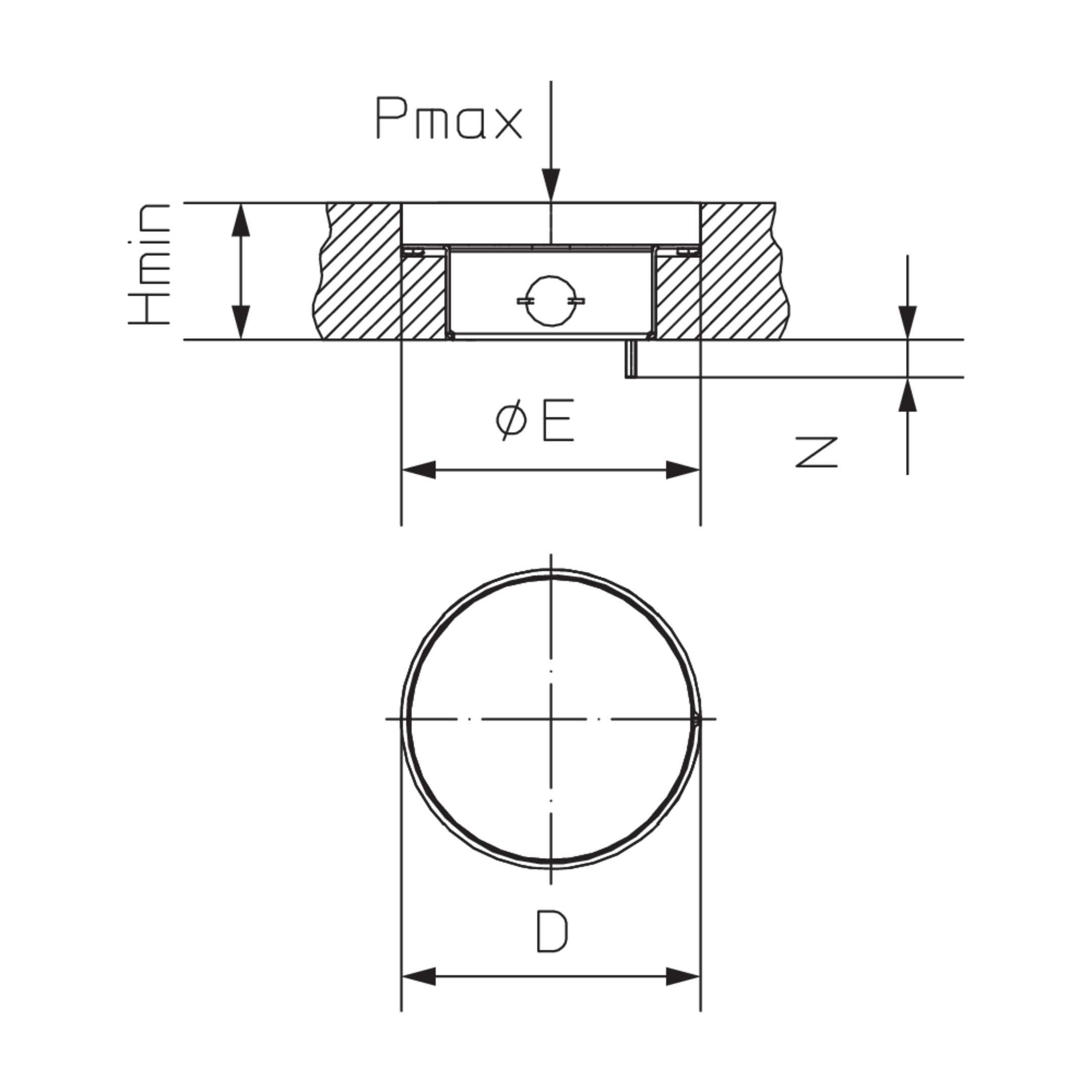

Hmin

minimum installation height

B

width

N

levelling range

Pmax

maximum load

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

G

Weight per storage unit

  • UBST-R W1-WD
    Floor socket,
    minimum installation height
    55 mm
    width
    119 mm
    levelling range
    15 mm
    maximum load
    2.00 kN
    fitting dimension
    125 mm
    IP protection level in used condition
    IP 43
    IP protection level in unused condition
    IP 66
    Weight per storage unit
    0.654 kg
