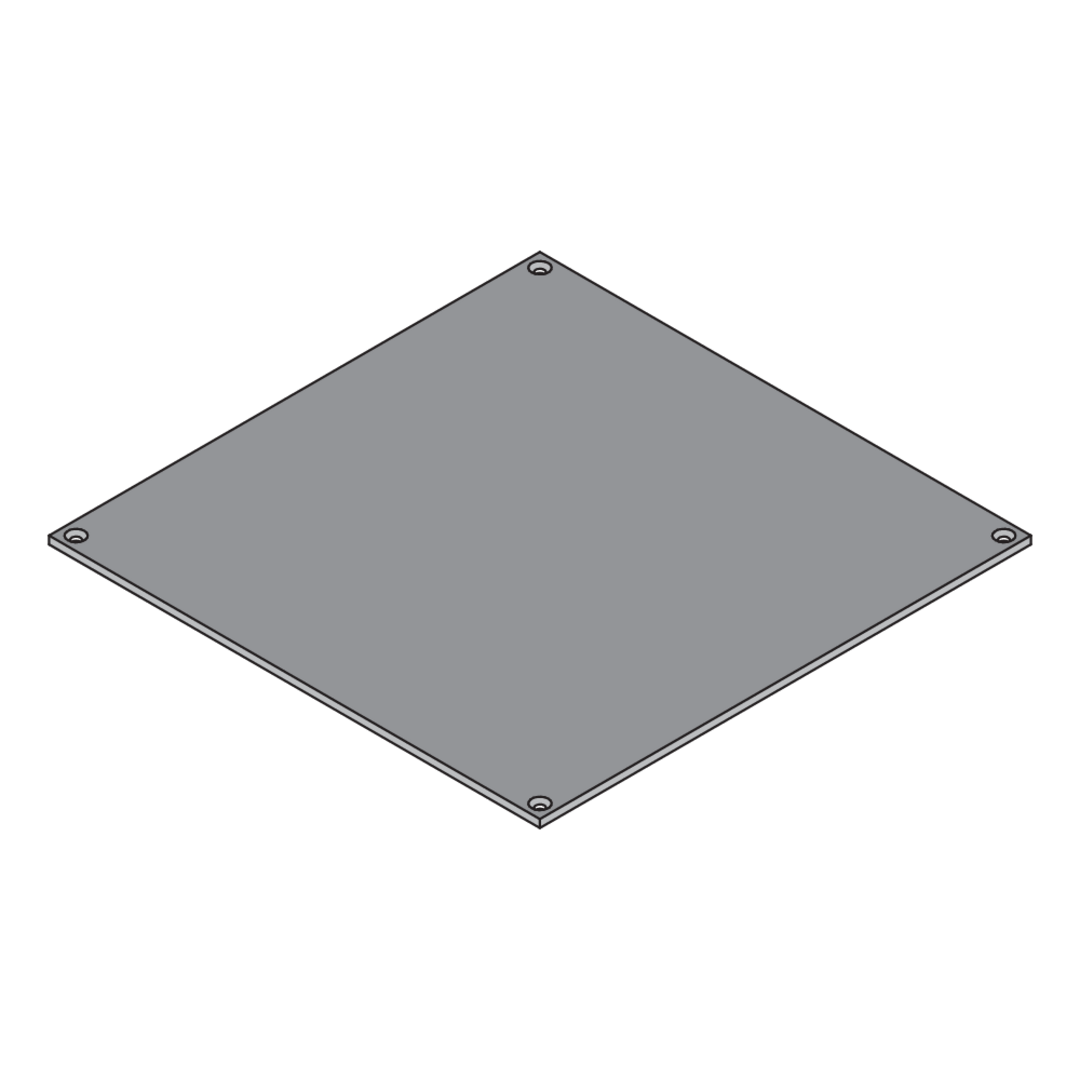

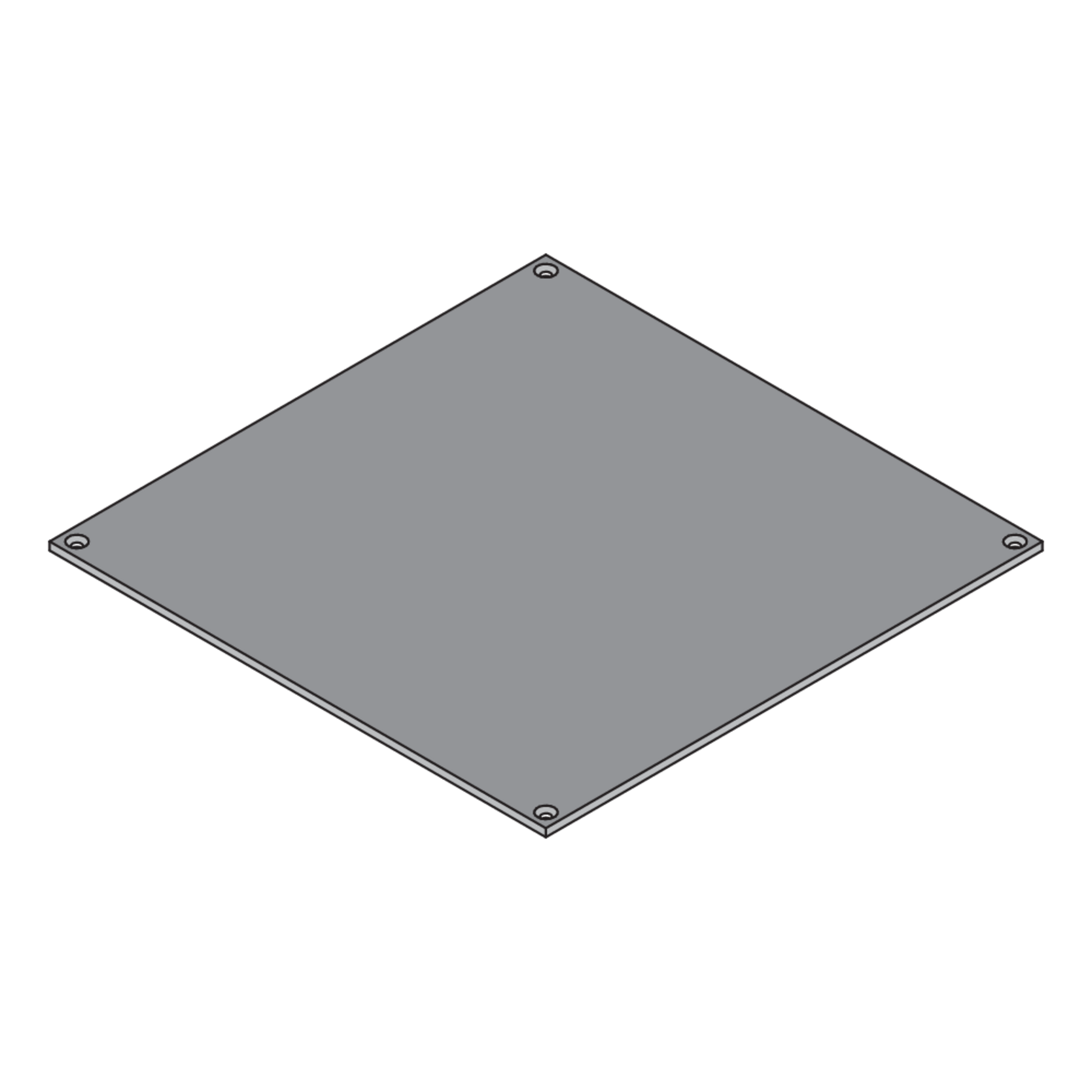

Dummy cover, 3x, angular
UBP V components are frameless dummy covers. These square sheet metal inserts are mounted on UNE levelling units using UKS M4X16E Phillips screws and can be used with up to three mounting boxes in floor sockets, assembly covers and raised or false floor openings. The covers are made of sendzimir hot-dip galvanised sheet steel and are suitable for use in dry-cleaned and damp-cleaned rooms with office traffic loads. They have VDE/TÜV certification according to DIN EN 50085. They have a minimum installation height of 65 mm, an installation dimension of 261 x 261 mm and a max. load of 2 kN.

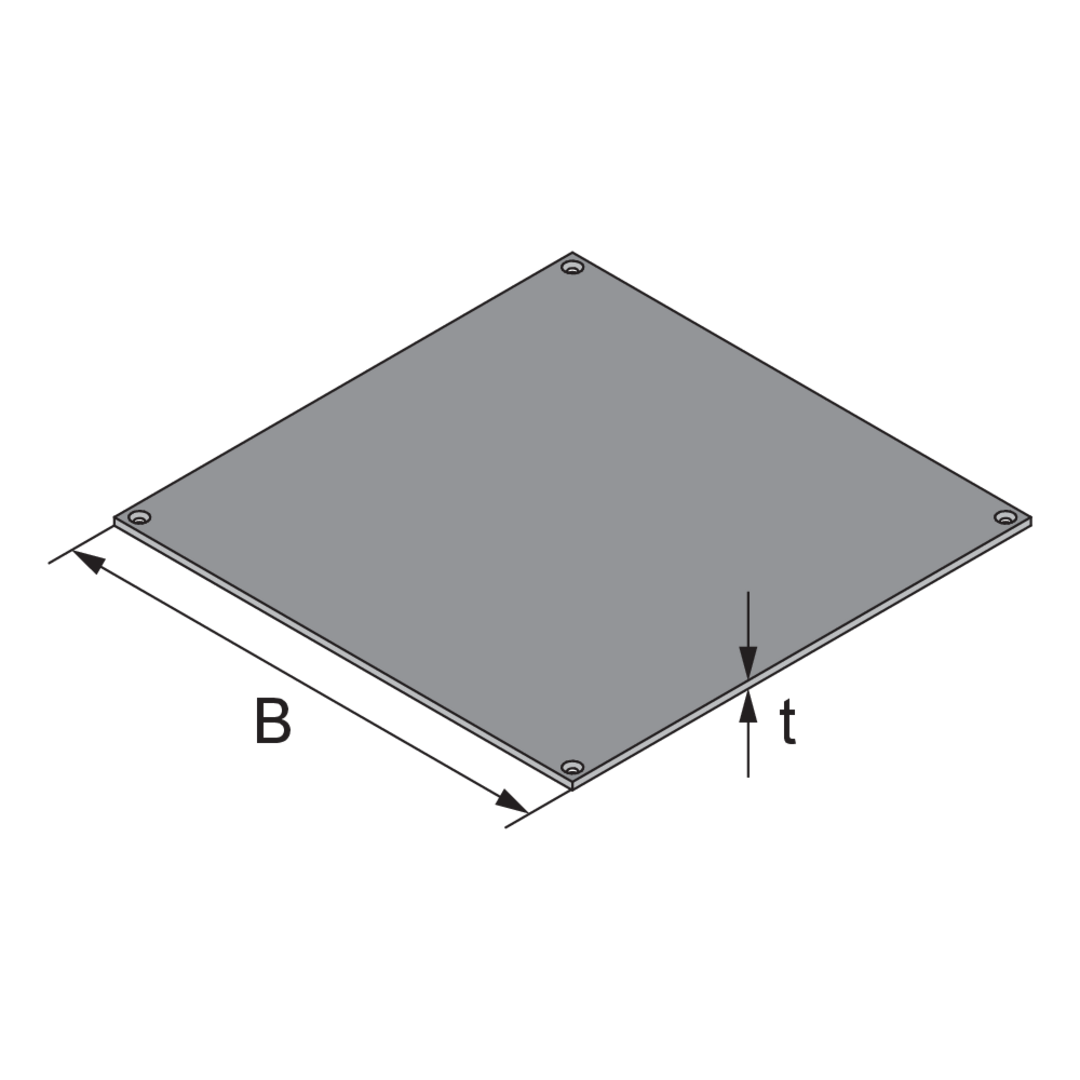

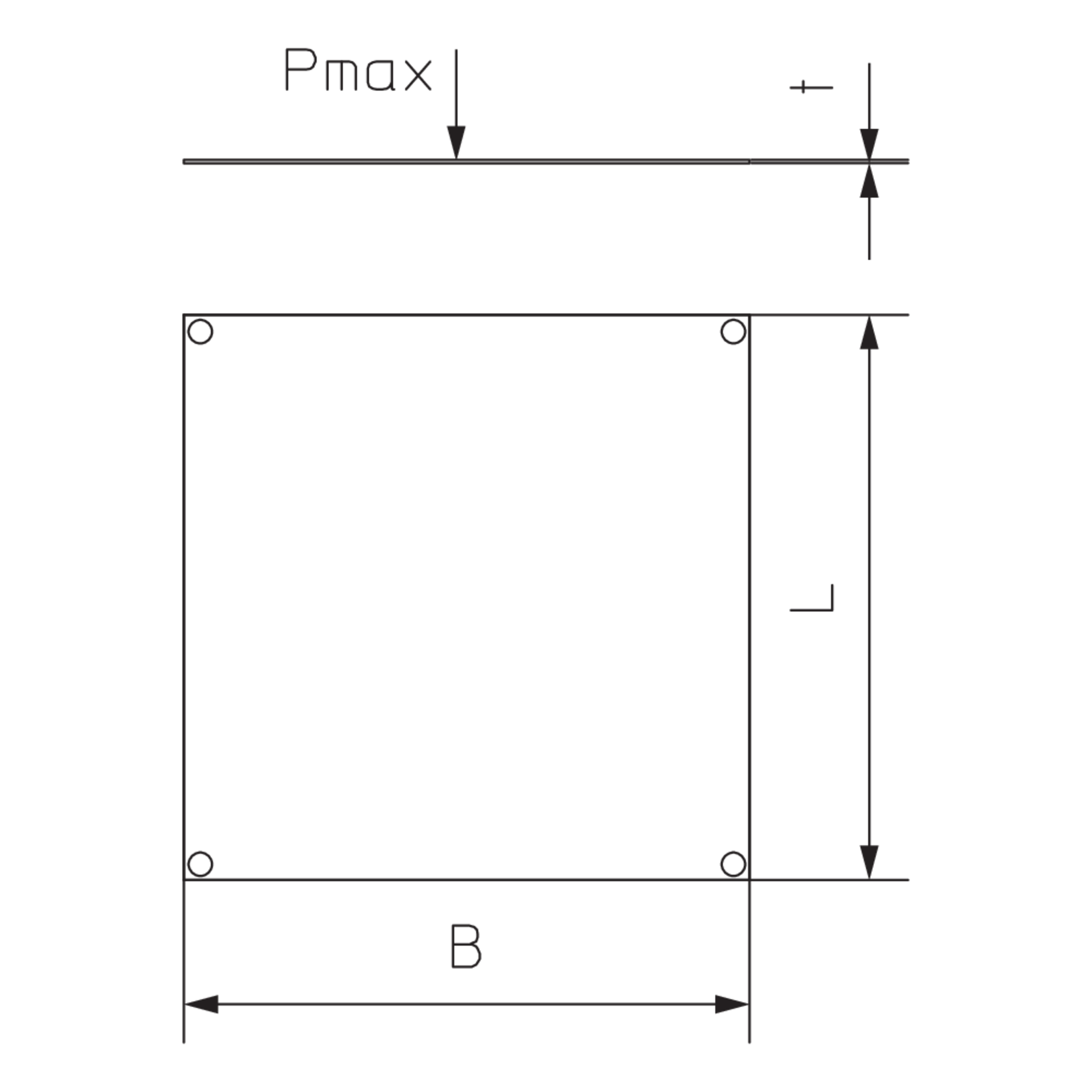

B
width
L
length
Pmax
maximum load
E
fitting dimension
G
Weight per storage unit
de
en
Valid from February 1st, 2025, updated version from 31/03/2025.
