Cover plate for data technology

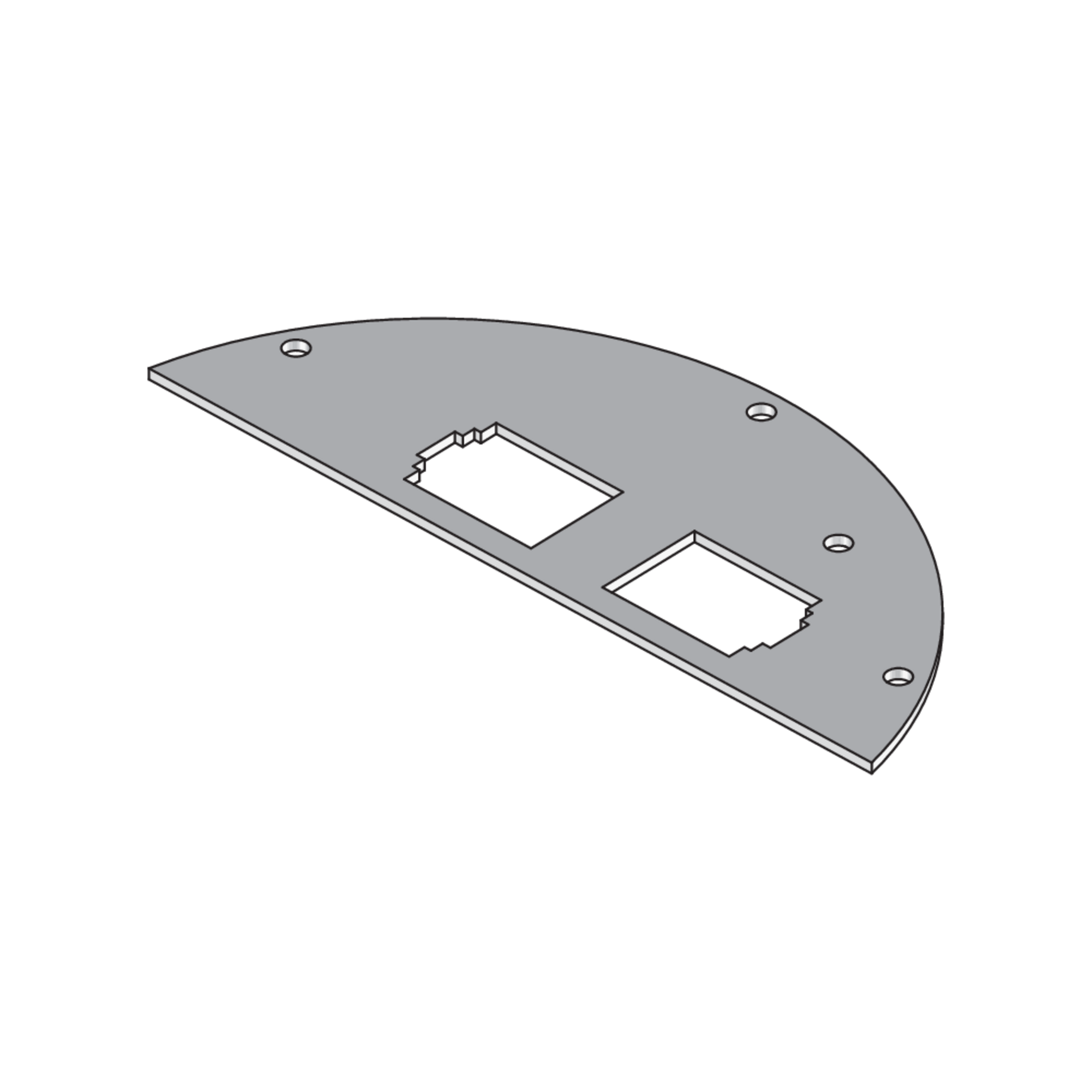

UBE BTR components from the underfloor systems range are semicircular cover plates with two openings. The installation boards for data technology, equipped with two BTR data modules, can be bolted into BODO mounting boxes. The cover plates are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. The installation dimension E1 is 15 mm, the installation dimension E2 is 19,5 / 21,7 mm.

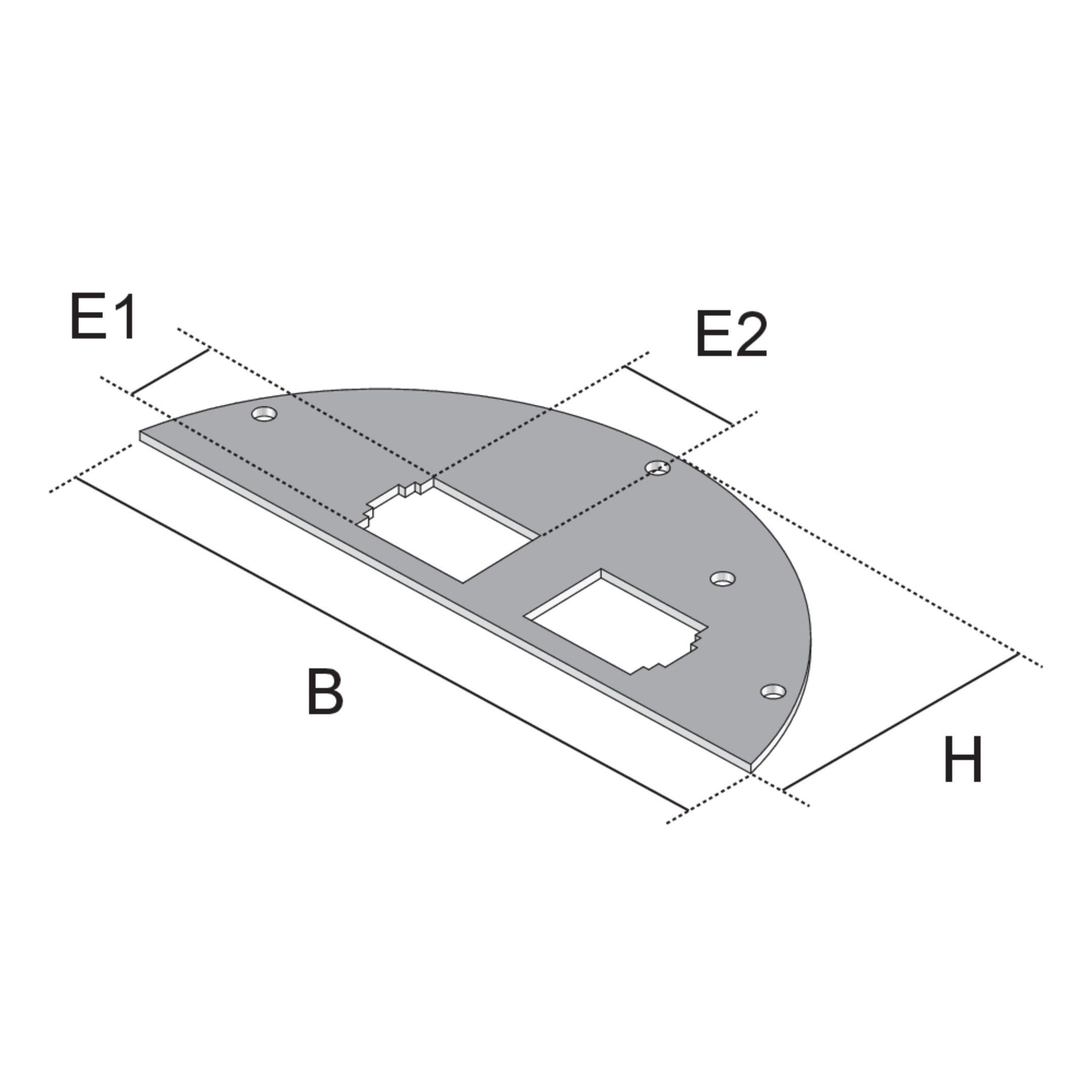

H
height
B
width
E1
fitting dimension E1
E2
fitting dimension E2
colour
color
G
Weight per storage unit
de
en
Valid from February 1st, 2025, updated version from 31/03/2025.
