Cover plate for data technology

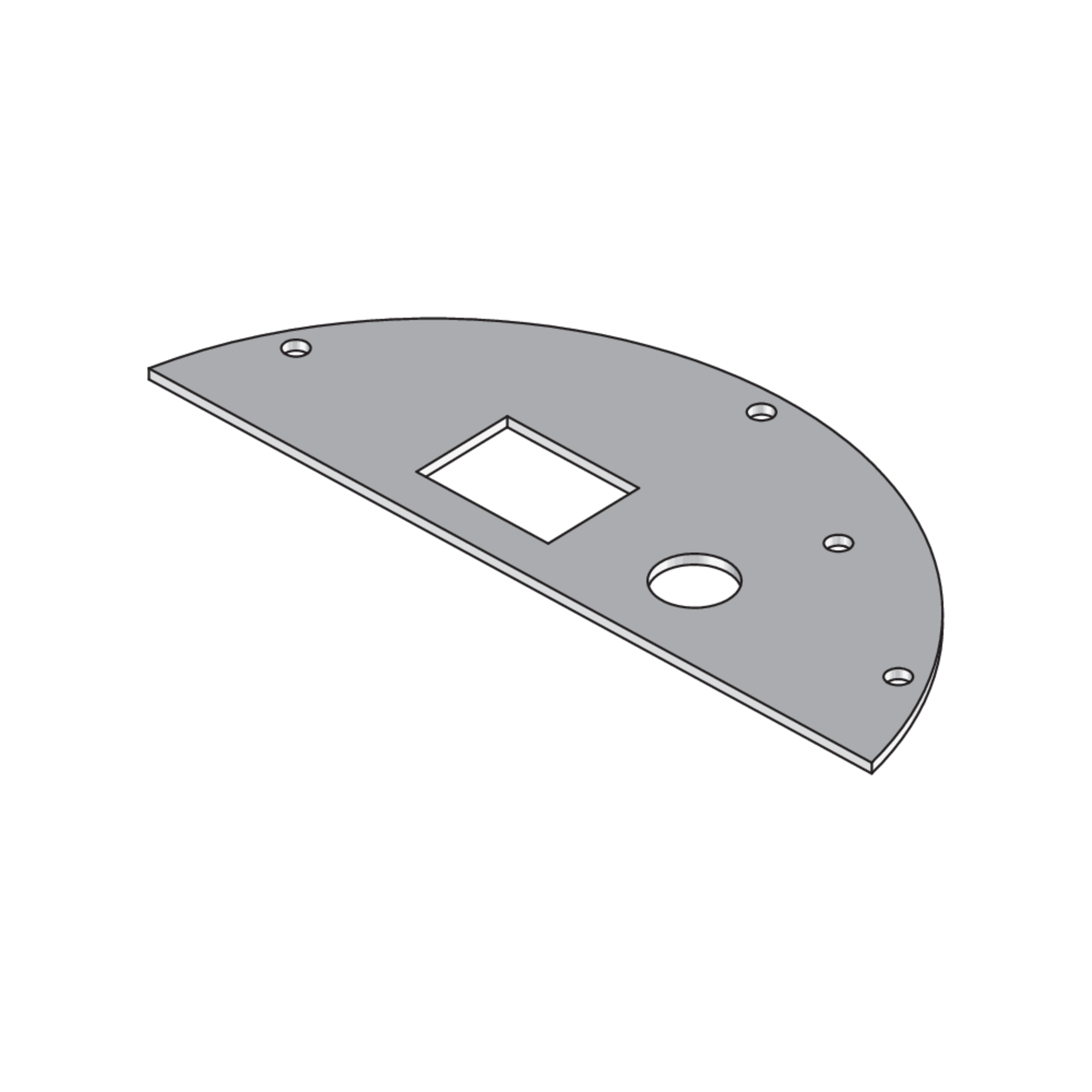

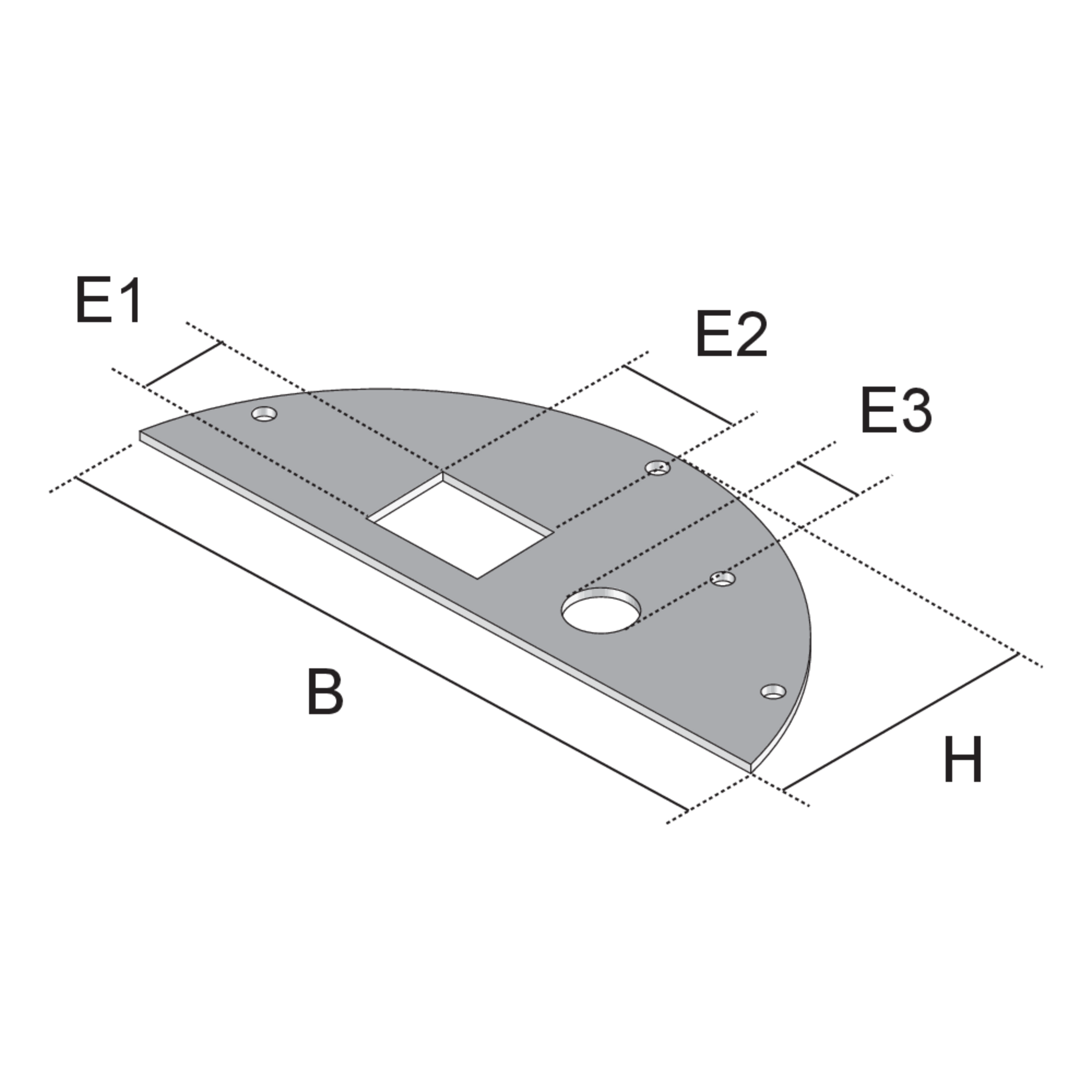

UBE AMPSL TV components from the underfloor systems range are semicircular cover plates with one square and one round opening. The installation boards for data technology, equipped with an AMPSL data module and a TV connection socket, can be bolted into the BODO mounting boxes. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. For the AMPSL data modules, the installation dimension E1 is 20.25 mm, E2 is 14.78 mm and the installation dimension for the TV connection socket E3 is 10.5 mm.
H
height
B
width
E1
fitting dimension E1
E2
fitting dimension E2
E3
Installation dimensions E3
colour
color
G
Weight per storage unit
