Cover plate for 4x UDAE22

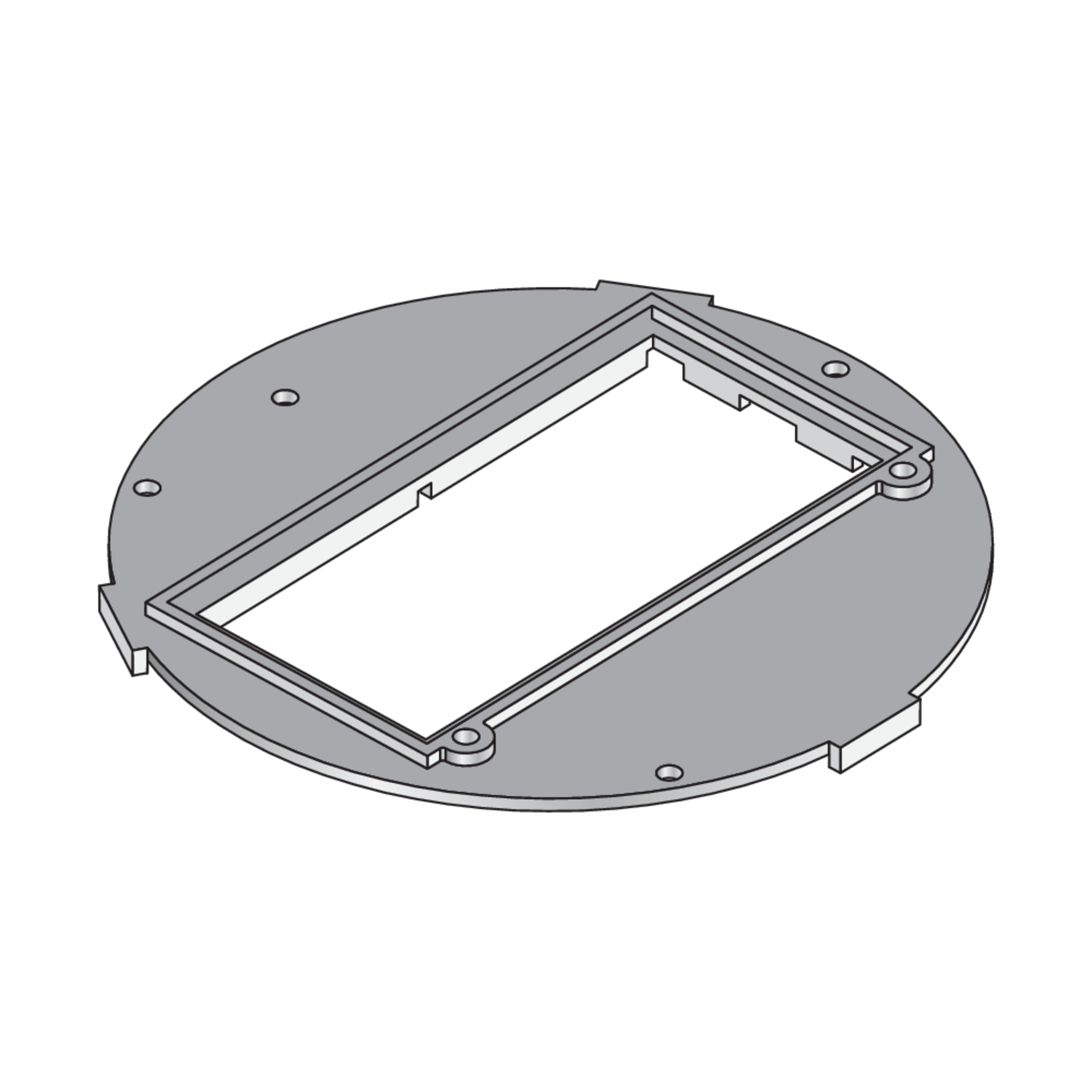

UARM-4-1 components from the underfloor system product range are round, one-piece cover plates with a square opening. Two 45x45 mm snap-in installation devices can be installed in the opening. The panels are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011). They have the installation dimensions of E1 40.5 mm and E2 86 mm.

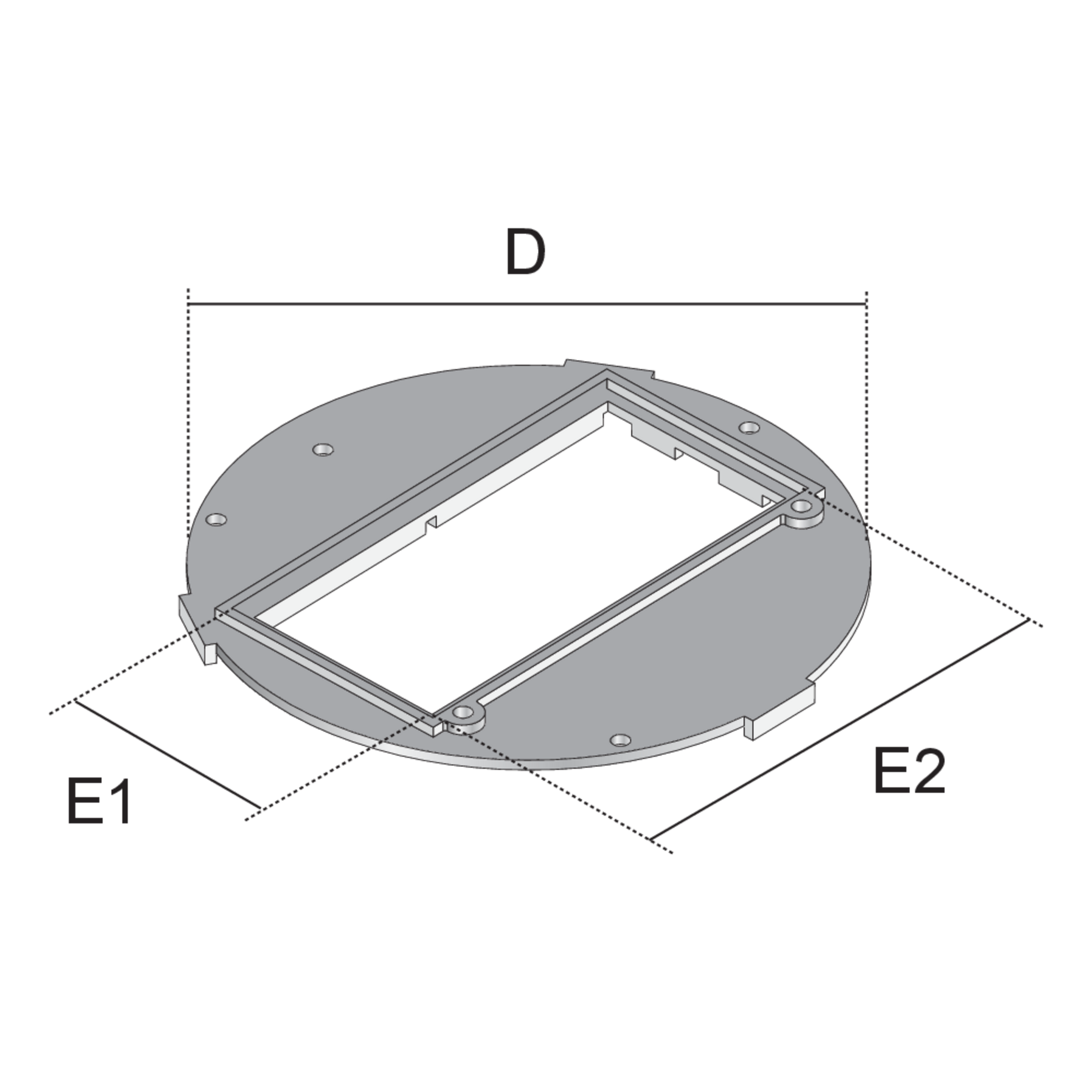

D
Diameter (mm)
E1
fitting dimension E1
E2
fitting dimension E2
colour
color
G
Weight per storage unit
RAL
RAL-Nummer
