Variants
Article

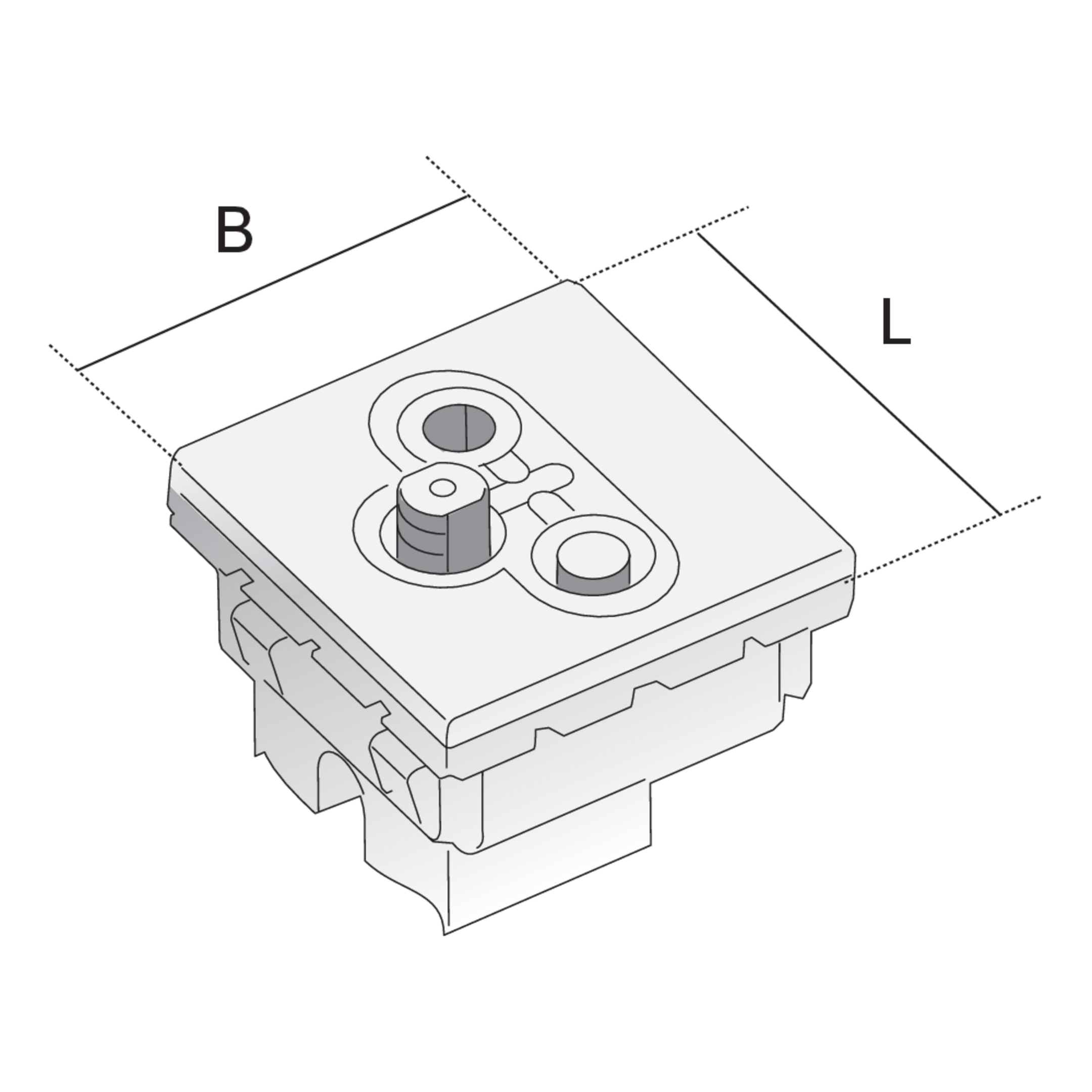

B
width
L
length
colour
color
G
Weight per storage unit
- UANT45 1
aerial socket UANT45 1, alswidth45 mmlength45 mmcolorwhiteWeight per storage unit0.072 kg
UANT45

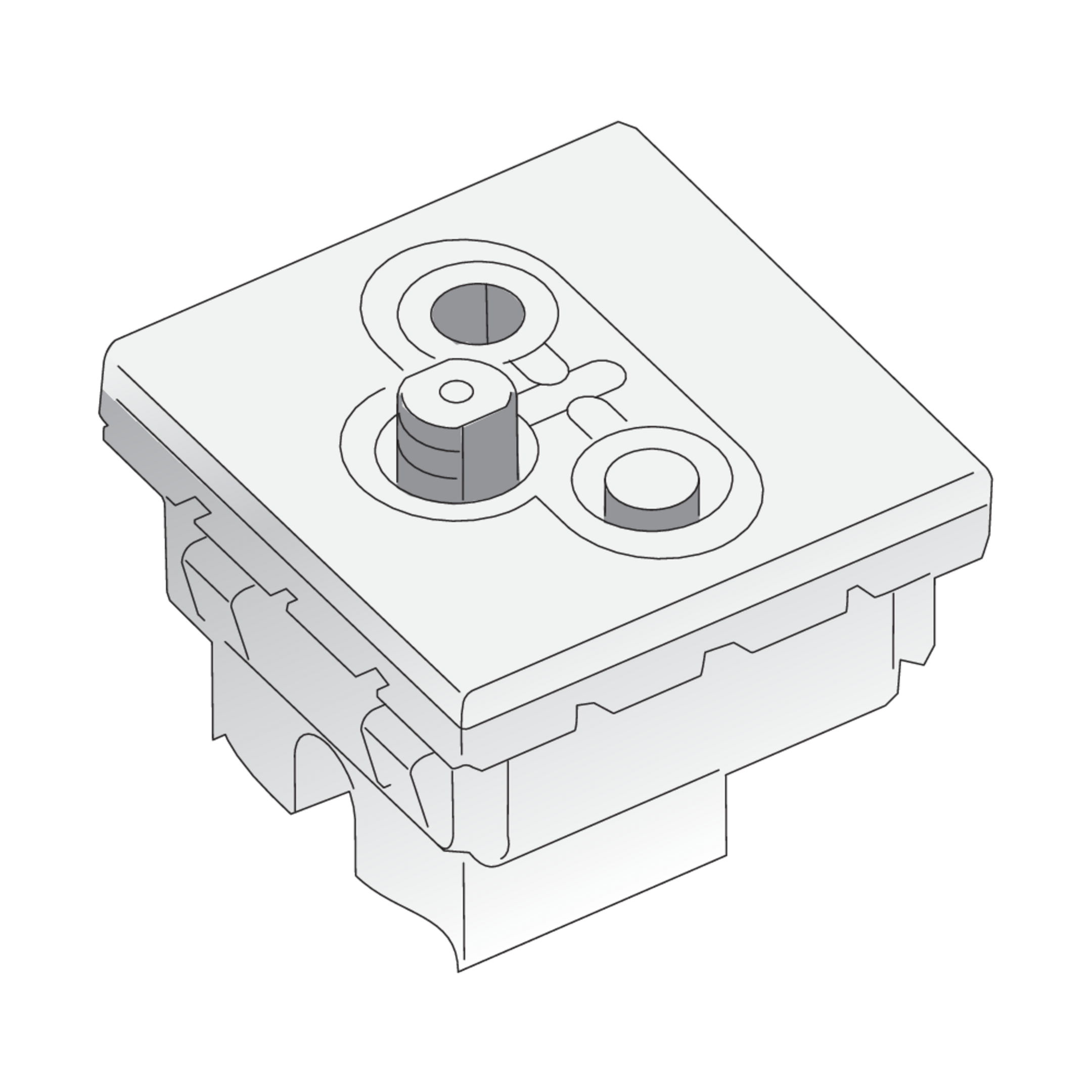

TV/radio/SAT single socket, 45x45 mm
UANT45 components are single sockets. They are snapped into 45x45 mm installation openings where they accommodate TV, radio and SAT network cables. These single sockets are suitable for: TV IEC male connector IEC 60 169-2, FM IEC female connector IEC 60 169-2 and SAT F female connector IEC 60 169-24 with corresponding TV, FM and SAT frequencies. The connection impedance is 75 ohms and the screening attenuation corresponds to UHF > 65 dB, VHF > 75 dB and SAT > 55 dB. They are made of high-quality polycarbonate in white.
Details
Tender texts
Accessories
Downloads
de
de
en
de
en
de
en
de
en
de
en
de
en
Electrical and Electronic Devices – Information from Manufacturers for Commercial Users
Declaration
PDF (106.06 KB)
DownloadDownload
EC Declaration of Conformity for Underfloor systems
Installation equipment for electric cables and circuits
Underfloor Systems - Catalogue
Catalogue
Assembly instruction for device installation cups and installation devices
Assembly Instructions
Technical Information Device Sockets and Installation Devices
Technical Information
Price list 2026 Building extension
Valid from February 1st, 2026
Price list 2026 Building extension (Excel)
Valid from February 1, 2026
ZIP
Choose languageChoose languageIncluded accessories
