SEH

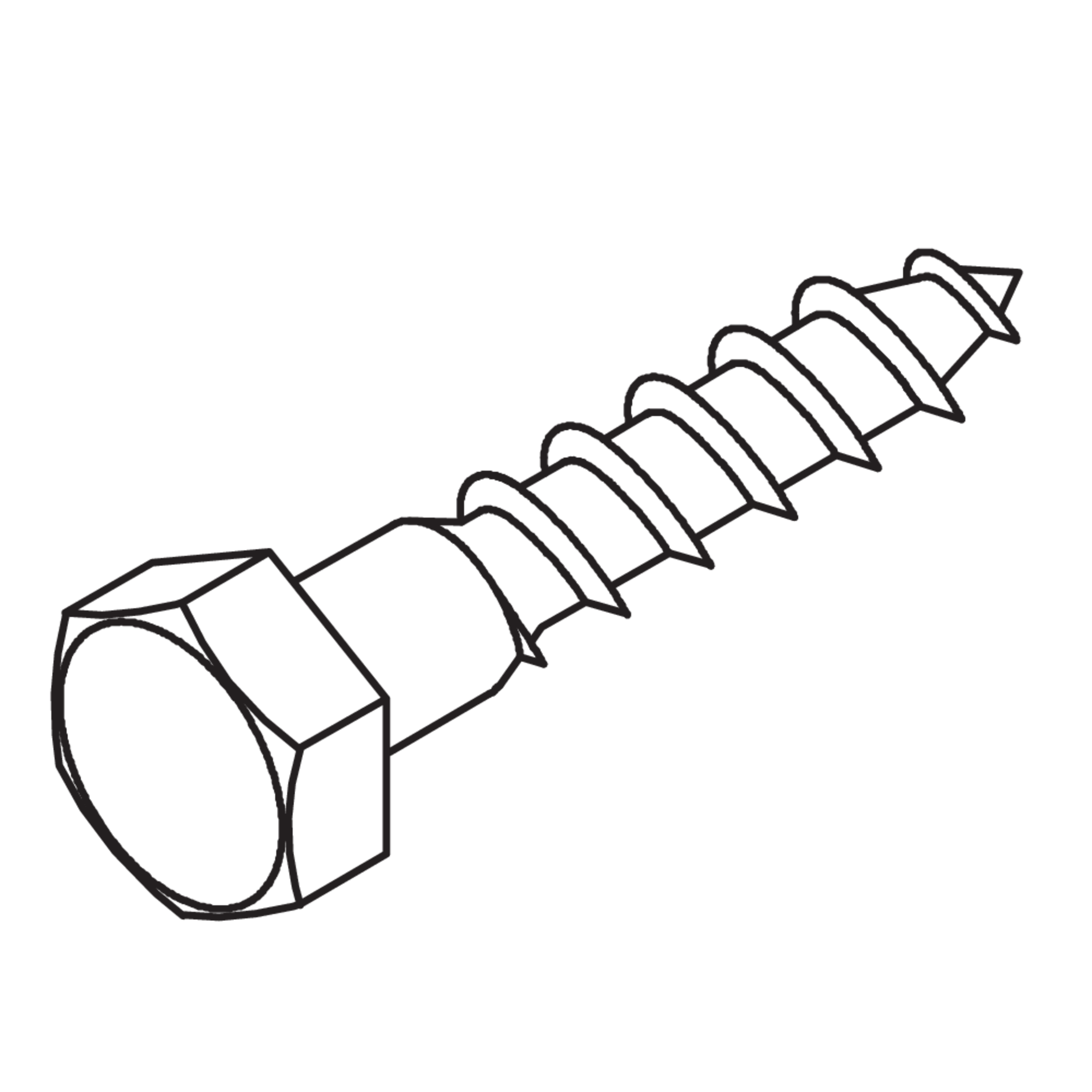

Hexagon wood screw

The hexagon wood screw SEH is suitable for connecting wooden structures. It is made of galvanised steel and is available in lengths from 50 to 80 mm and with threads from M8 to M10.

Get in touchDownload datasheet

Variants

steel, galvanic zinc plated

Article

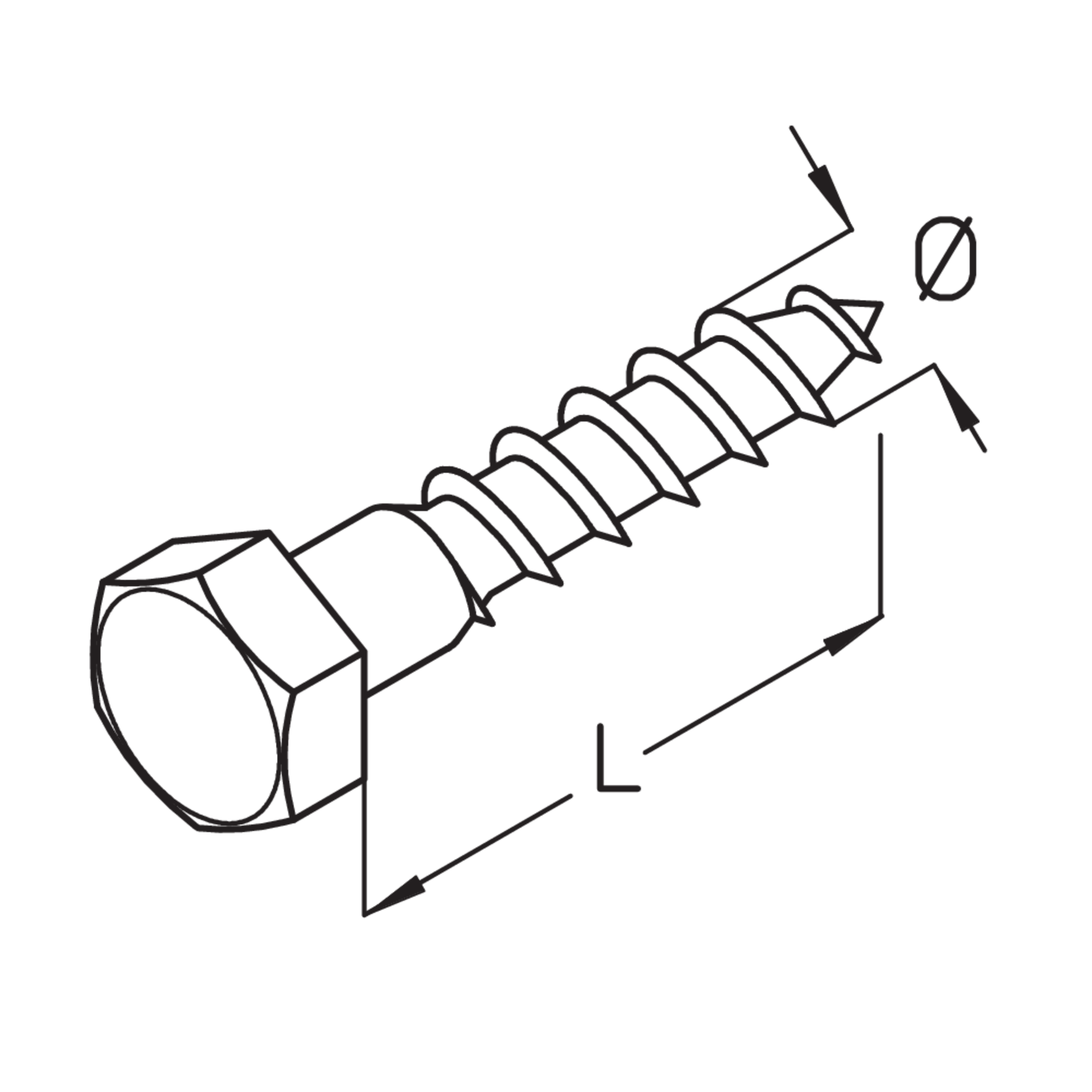

L

length

Ø

thread diameter

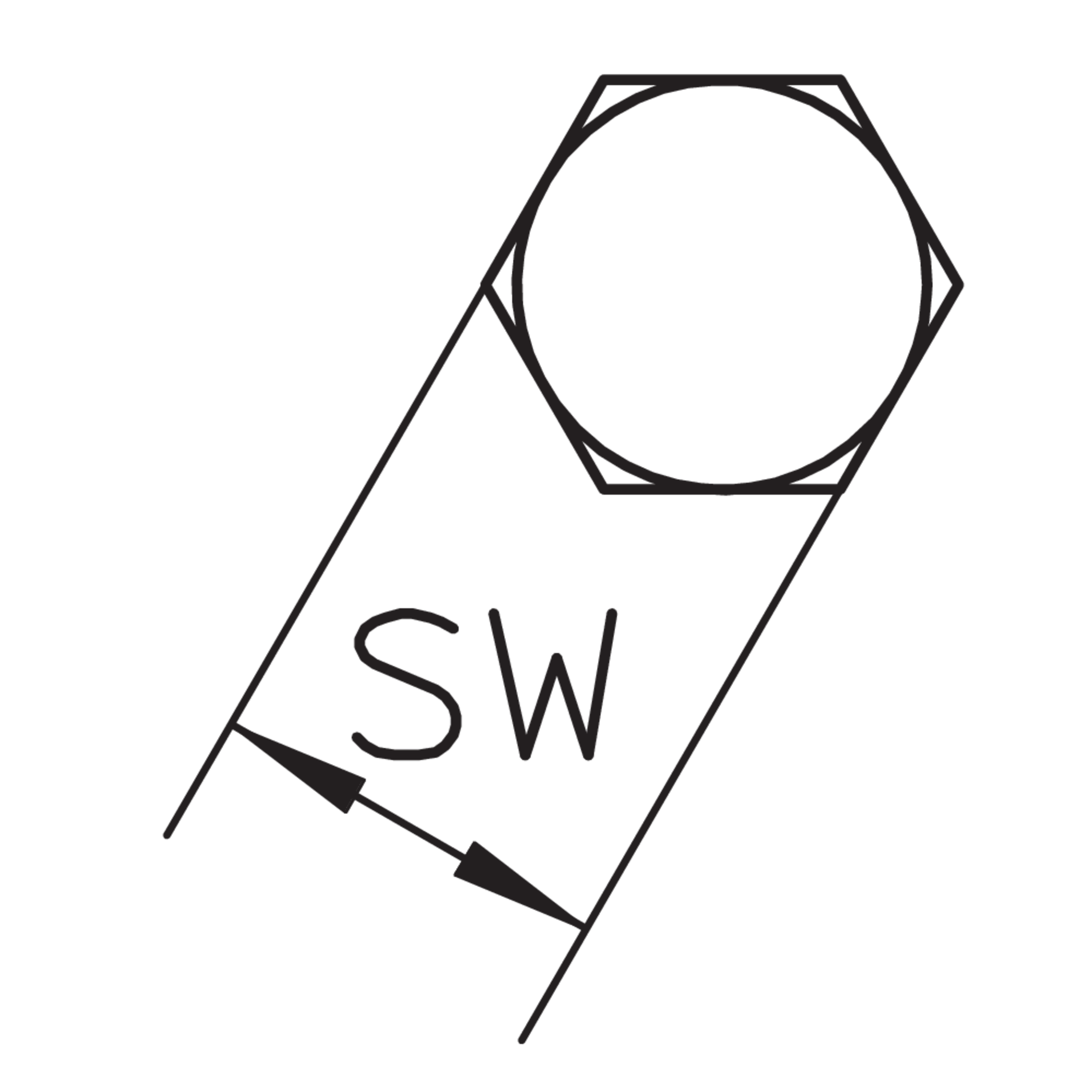

SW

wrench size

G

Weight per storage unit

  • SEH 8X50
    Hexagon wood screw SEH 8X50
    length
    50 mm
    thread diameter
    8 mm
    wrench size
    13 mm
    Weight per storage unit
    0.017 kg
    More information
  • SEH 8X60
    Hexagon wood screw SEH 8X60
    length
    60 mm
    thread diameter
    8 mm
    wrench size
    13 mm
    Weight per storage unit
    0.019 kg
    More information
  • SEH 10X50
    Hexagon wood screw SEH 10X50
    length
    50 mm
    thread diameter
    10 mm
    wrench size
    17 mm
    Weight per storage unit
    0.030 kg
    More information
  • SEH 10X60
    Hexagon wood screw SEH 10X60
    length
    60 mm
    thread diameter
    10 mm
    wrench size
    17 mm
    Weight per storage unit
    0.034 kg
    More information
  • SEH 10X80
    Hexagon wood screw SEH 10X80
    length
    80 mm
    thread diameter
    10 mm
    wrench size
    17 mm
    Weight per storage unit
    0.046 kg
    More information
