RAPIDOBAT® lined

Formwork tube for very smooth concrete surfaces

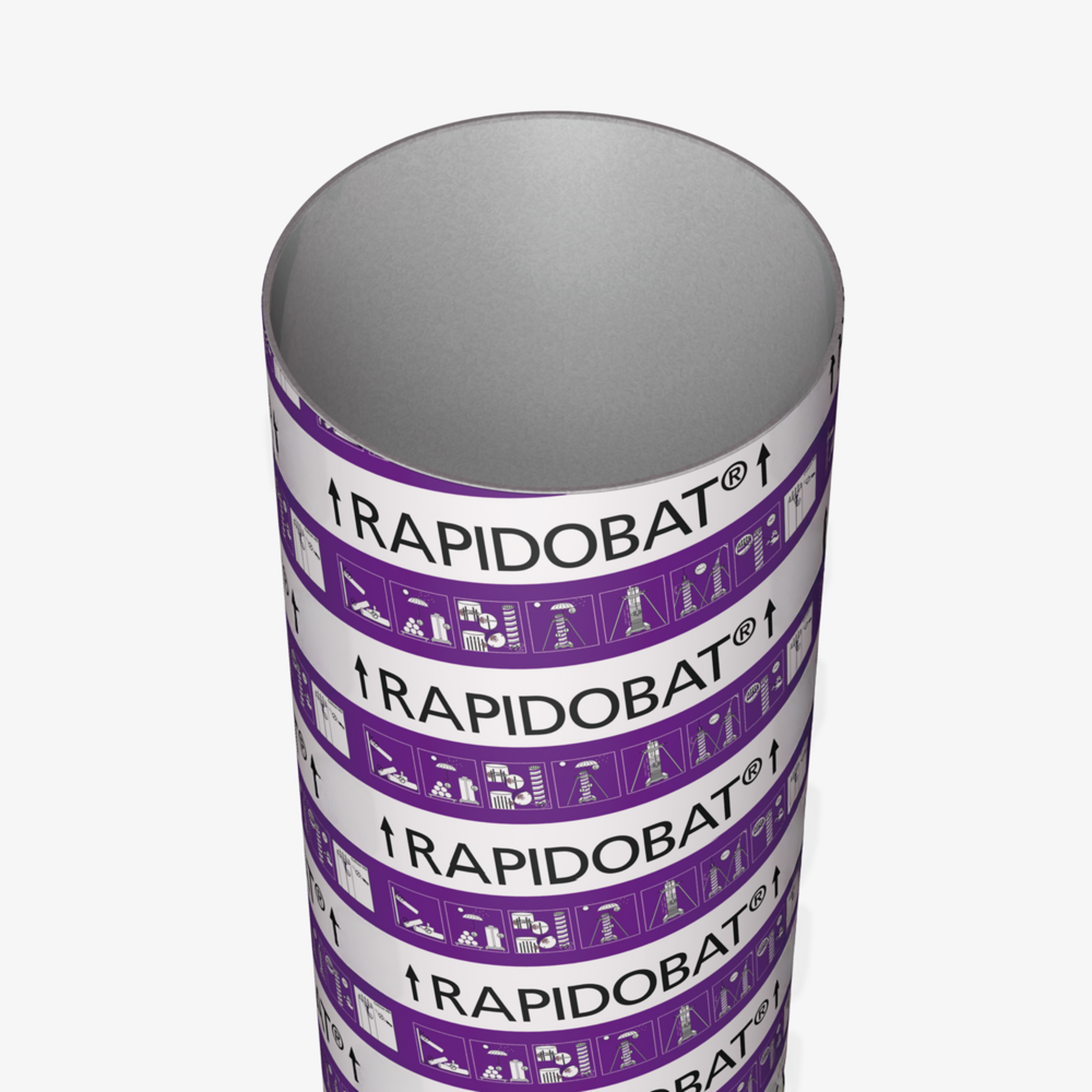

The RAPIDOBAT® lined is a round formwork tube with a special foil insert. They are used to produce reinforced concrete columns with a very smooth concrete surface of the highest formlining class SHK3. The formwork tubes consist of multi-layered, robust paper and cardboard sheets that retain their shape even in driving rain. They have an integrated ripcord for easy stripping of the formwork. The formwork tube can also be used to protect uncured concrete. We provide this component with inner diameters from 150 to 1200 mm and a stock length of up to 7000 mm. Other diameters and lengths are available on request.

Get in touchDownload datasheet

Variants

Article

HF

Formwork height

Ø ext

Outer diameter

Ø

inner diameter

G

Weight per storage unit

  • 310200001851
    RAG 150-m
    Formwork height
    7000 mm
    Outer diameter
    157 mm
    inner diameter
    150.0 mm
    Weight per storage unit
    1.390 kg
    More information
  • 310200001852
    RAG 200-m
    Formwork height
    7000 mm
    Outer diameter
    207 mm
    inner diameter
    200.0 mm
    Weight per storage unit
    1.843 kg
    More information
  • 310200001854
    RAG 240-m
    Formwork height
    7000 mm
    Outer diameter
    247 mm
    inner diameter
    240.0 mm
    Weight per storage unit
    2.603 kg
    More information
  • 310200001855
    RAG 250-m
    Formwork height
    7000 mm
    Outer diameter
    257 mm
    inner diameter
    250.0 mm
    Weight per storage unit
    2.711 kg
    More information
  • 310200001857
    RAG 300-m
    Formwork height
    7000 mm
    Outer diameter
    309 mm
    inner diameter
    300.0 mm
    Weight per storage unit
    3.607 kg
    More information
  • 310200001860
    RAG 350-m
    Formwork height
    7000 mm
    Outer diameter
    359 mm
    inner diameter
    350.0 mm
    Weight per storage unit
    4.575 kg
    More information
  • 310200001861
    RAG 360-m
    Formwork height
    7000 mm
    Outer diameter
    369 mm
    inner diameter
    360.0 mm
    Weight per storage unit
    4.909 kg
    More information
  • 310200001863
    RAG 400-m
    Formwork height
    7000 mm
    Outer diameter
    409 mm
    inner diameter
    400.0 mm
    Weight per storage unit
    5.754 kg
    More information
  • 310200001864
    RAG 435-m
    Formwork height
    7000 mm
    Outer diameter
    444 mm
    inner diameter
    435.0 mm
    Weight per storage unit
    6.262 kg
    More information
  • 310200001865
    RAG 450-m
    Formwork height
    7000 mm
    Outer diameter
    461 mm
    inner diameter
    450.0 mm
    Weight per storage unit
    7.457 kg
    More information
  • 310200001866
    RAG 500-m
    Formwork height
    7000 mm
    Outer diameter
    513 mm
    inner diameter
    500.0 mm
    Weight per storage unit
    9.266 kg
    More information
  • 310200013199
    RAG 550-m
    Formwork height
    7000 mm
    Outer diameter
    563 mm
    inner diameter
    550.0 mm
    Weight per storage unit
    11.220 kg
    More information
  • 310200001867
    RAG 560-m
    Formwork height
    7000 mm
    Outer diameter
    573 mm
    inner diameter
    560.0 mm
    Weight per storage unit
    11.425 kg
    More information
  • 310200001868
    RAG 600-m
    Formwork height
    7000 mm
    Outer diameter
    613 mm
    inner diameter
    600.0 mm
    Weight per storage unit
    12.250 kg
    More information
  • 310200001869
    RAG 650-m
    Formwork height
    7000 mm
    Outer diameter
    665 mm
    inner diameter
    650.0 mm
    Weight per storage unit
    14.702 kg
    More information
  • 310200001871
    RAG 700-m
    Formwork height
    7000 mm
    Outer diameter
    715 mm
    inner diameter
    700.0 mm
    Weight per storage unit
    15.851 kg
    More information
  • 310200001872
    RAG 750-m
    Formwork height
    7000 mm
    Outer diameter
    767 mm
    inner diameter
    750.0 mm
    Weight per storage unit
    18.632 kg
    More information
  • 310200001873
    RAG 800-m
    Formwork height
    7000 mm
    Outer diameter
    817 mm
    inner diameter
    800.0 mm
    Weight per storage unit
    21.674 kg
    More information
  • 310200001874
    RAG 900-m
    Formwork height
    7000 mm
    Outer diameter
    917 mm
    inner diameter
    900.0 mm
    Weight per storage unit
    26.388 kg
    More information
  • 310200001849
    RAG 1000-m
    Formwork height
    7000 mm
    Outer diameter
    1019 mm
    inner diameter
    1000.0 mm
    Weight per storage unit
    30.949 kg
    More information
  • 310200001850
    RAG 1200-m
    Formwork height
    6000 mm
    Outer diameter
    1219 mm
    inner diameter
    1200.0 mm
    Weight per storage unit
    39.131 kg
    More information

Details

  • German Sustainable Building Council (DGNB) product declaration (NBV09)
  • German Sustainable Building Council (DGNB) product declaration (NBV12)

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    • en

    RAPIDOBAT® formwork tubes - Technical information

    Technical information

    PDF

    Choose languageChoose language

    RAPIDOBAT® formwork tubes - Technical information

    Choose language to download

    • de

    DGNB Product Declaration RAPIDOBAT® Formwork Tubes (NBV09)

    Declaration

    PDF (177.16 KB)

    DownloadDownload

    • de

    DGNB Product Declaration RAPIDOBAT® Formwork Tubes (NBV12)

    Declaration

    PDF (366.56 KB)

    DownloadDownload

    • de

    • en

    Price list 2026 Shell construction / facade

    Valid from February 1st, 2026

    PDF

    Choose languageChoose language

    Price list 2026 Shell construction / facade

    Choose language to download

Included accessories

    Services: From planning to utilisation

    We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.

    Consulting, planning, design

    Customised solutions
