PENTAFLEX® OBS Wall

In-situ concrete crack control element with joint sheet

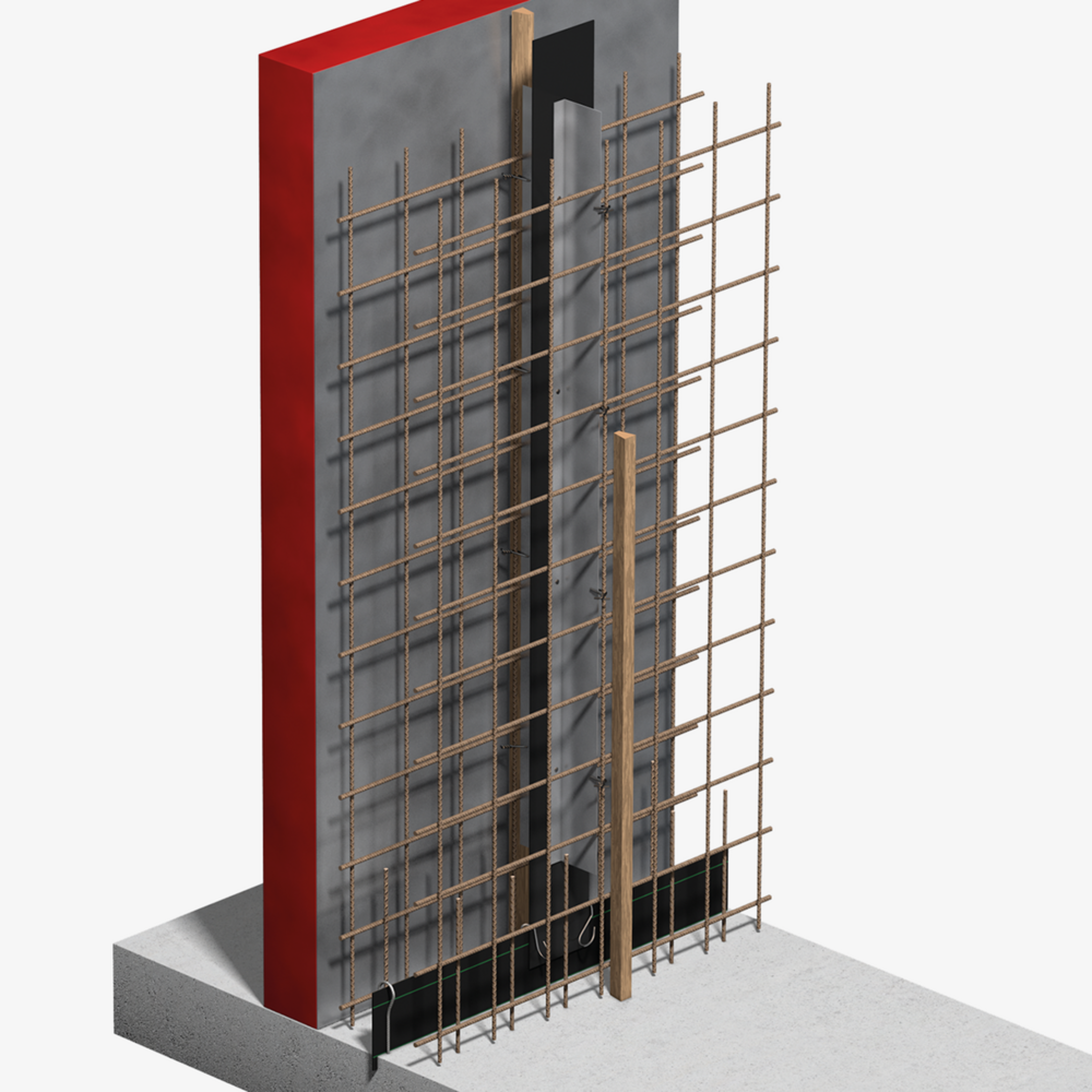

PENTAFLEX® OBS Wall wall elements consist of PENTAFLEX KB® joint sheets with wings made of galvanised sheet steel. They come in lengths of 2.50, 2.75 and 3.00 m as standard. The standard installation dimension is 140 and 180 mm for walls 240 - 250 and 300 mm thick respectively. Larger installation dimensions are possible on request. The wall elements are supplied ready for installation.

General building authority test certificate: P-5120/231/09 MPA-BS
European Technical Assessment: ETA-15/0003
Get in touch Download datasheet

Variants

Article

L

length

G

Weight per storage unit
  • 110700004416
    Penta OBS Fuge 140 2.5
    length
    2500 mm
    Weight per storage unit
    2.450 kg
    More information
  • 110700004417
    Penta OBS Fuge 140 2.75
    length
    2750 mm
    Weight per storage unit
    2.450 kg
    More information
  • 110700004418
    Penta OBS Fuge 140 3.0
    length
    3000 mm
    Weight per storage unit
    2.450 kg
    More information
  • 110700004419
    Penta OBS Fuge 160 2.5
    length
    2500 mm
    Weight per storage unit
    2.525 kg
    More information
  • 110700004420
    Penta OBS Fuge 160 2.75
    length
    2750 mm
    Weight per storage unit
    2.525 kg
    More information
  • 110700004421
    Penta OBS Fuge 160 3.0
    length
    3000 mm
    Weight per storage unit
    2.525 kg
    More information
  • 110700004422
    Penta OBS Fuge 180 2.5
    length
    2500 mm
    Weight per storage unit
    2.600 kg
    More information
  • 110700004423
    Penta OBS Fuge 180 2.75
    length
    2750 mm
    Weight per storage unit
    2.600 kg
    More information
  • 110700004424
    Penta OBS Fuge 180 3.0
    length
    3000 mm
    Weight per storage unit
    2.600 kg
    More information

Details

  • General building authority test certificate: P-5120/231/09 MPA-BS
  • European Technical Assessment: ETA-15/0003

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • General building authority test certificate PENTAFLEX® KB, FTS, OBS, ABS, Modul (general technical approval certificate)

    Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 1 MB

    de en

  • Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 875 KB

    en
    Download

  • PENTAFLEX® - Technical information

    Technical information

    PDF, 7 MB

    de en

  • ETA 15/0003 PENTAFLEX®

    Zulassung

    PDF, 1 MB

    de en

  • Installation instructions PENTAFLEX® OBS

    Please observe these installation and application instructions before installation. Our application technology and consulting engineers will be happy to answer any questions you may have.

    PDF, 144 KB

    de en
