PENTAFLEX® OBS V-S Floor

In-situ concrete crack control element with joint sheet (interlocking joint)

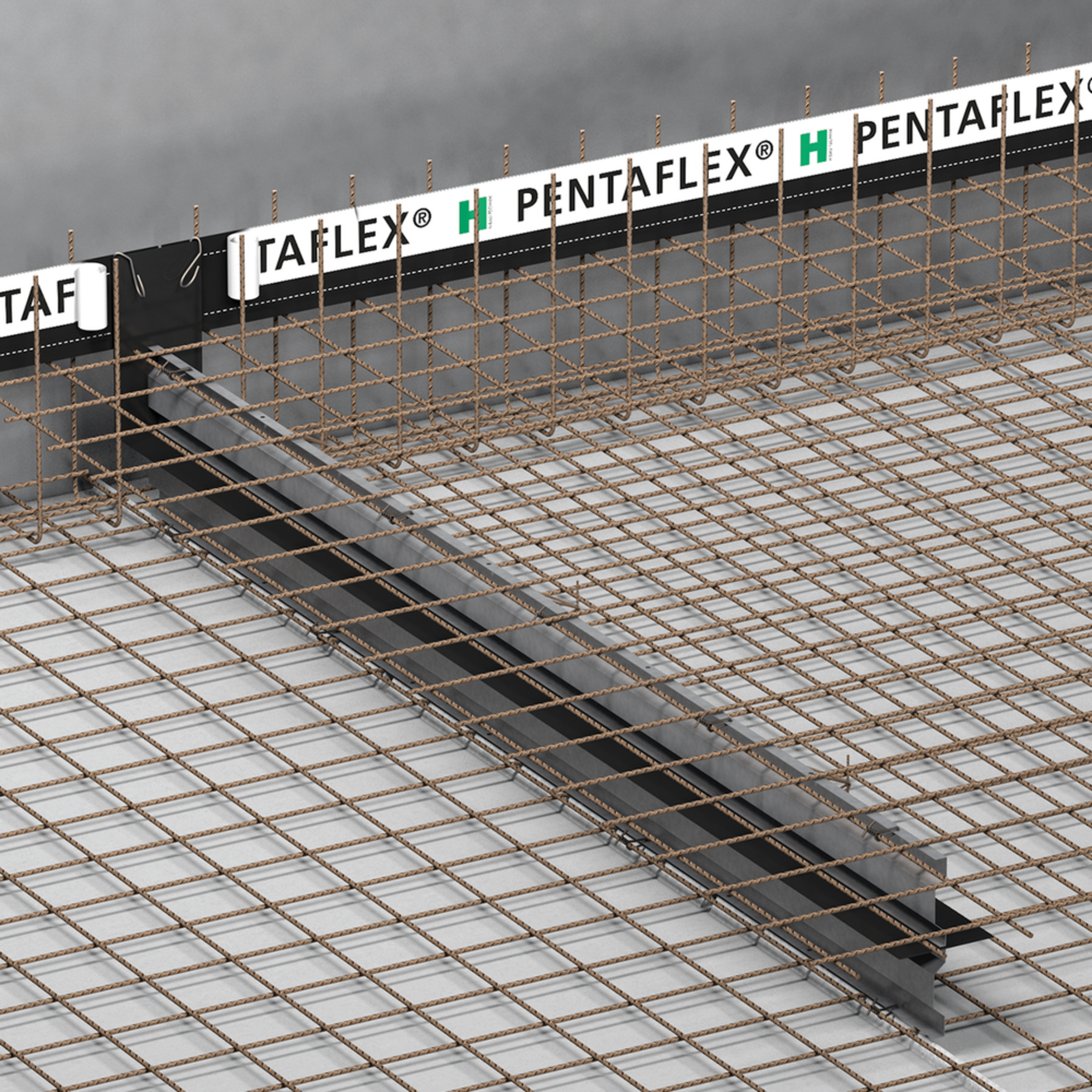

PENTAFLEX® OBS V-S Floor floor panel elements for interlocked joints consist of PENTAFLEX KB® joint sheets with wings made of galvanised sheet steel. They come in lengths of 2500 mm as standard. The standard installation dimension is 140 - 1000 mm.

General building authority test certificate: P-5120/231/09 MPA-BS
European Technical Assessment: ETA-15/0003
Get in touch Download datasheet

Variants

Article

H

installation height

L

length

G

Weight per storage unit
  • 110700019961
    Penta OBS V B 140 200
    installation height
    140-200 mm
    length
    2500 mm
    Weight per storage unit
    2.610 kg
    More information
  • 110700019962
    Penta OBS V B 210 250
    installation height
    210-250 mm
    length
    2500 mm
    Weight per storage unit
    2.740 kg
    More information
  • 110700019963
    Penta OBS-V B 260 300
    installation height
    260-300 mm
    length
    2500 mm
    Weight per storage unit
    2.960 kg
    More information
  • 110700019964
    Penta OBS V B 310 350
    installation height
    310-350 mm
    length
    2500 mm
    Weight per storage unit
    3.340 kg
    More information
  • 110700019965
    Penta OBS V B 360 400
    installation height
    360-400 mm
    length
    2500 mm
    Weight per storage unit
    3.590 kg
    More information
  • 110700020319
    Penta OBS XV BD 410 500
    installation height
    410-500 mm
    length
    2500 mm
    Weight per storage unit
    4.080 kg
    More information
  • 110700020321
    Penta OBS XV BD 710 800
    installation height
    710-800 mm
    length
    2500 mm
    Weight per storage unit
    8.900 kg
    More information
  • 110700020322
    Penta OBS XV BD 610 700
    installation height
    610-700 mm
    length
    2500 mm
    Weight per storage unit
    5.950 kg
    More information
  • 110700020323
    Penta OBS XV BD 810 900
    installation height
    810-900 mm
    length
    2500 mm
    Weight per storage unit
    9.390 kg
    More information
  • 110700020324
    Penta OBS XV BD 910 1000
    installation height
    910-1000 mm
    length
    2500 mm
    Weight per storage unit
    9.880 kg
    More information
  • 110700020331
    Penta OBS XV BD 510 600
    installation height
    510-600 mm
    length
    2500 mm
    Weight per storage unit
    5.460 kg
    More information

Details

  • General building authority test certificate: P-5120/231/09 MPA-BS
  • European Technical Assessment: ETA-15/0003

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • General building authority test certificate PENTAFLEX® KB, FTS, OBS, ABS, Modul (general technical approval certificate)

    Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 1 MB

    de en

  • Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 875 KB

    en
    Download

  • PENTAFLEX® - Technical information

    Technical information

    PDF, 7 MB

    de en

  • ETA 15/0003 PENTAFLEX®

    Zulassung

    PDF, 1 MB

    de en

  • Installation instructions PENTAFLEX® OBS Floor

    Please observe these installation and application instructions before installation. Our application technology and consulting engineers will be happy to answer any questions you may have.

    PDF, 201 KB

    de en
