PENTAFLEX® OBS G-S Floor

In-situ concrete crack control element with joint sheet (smooth joint)

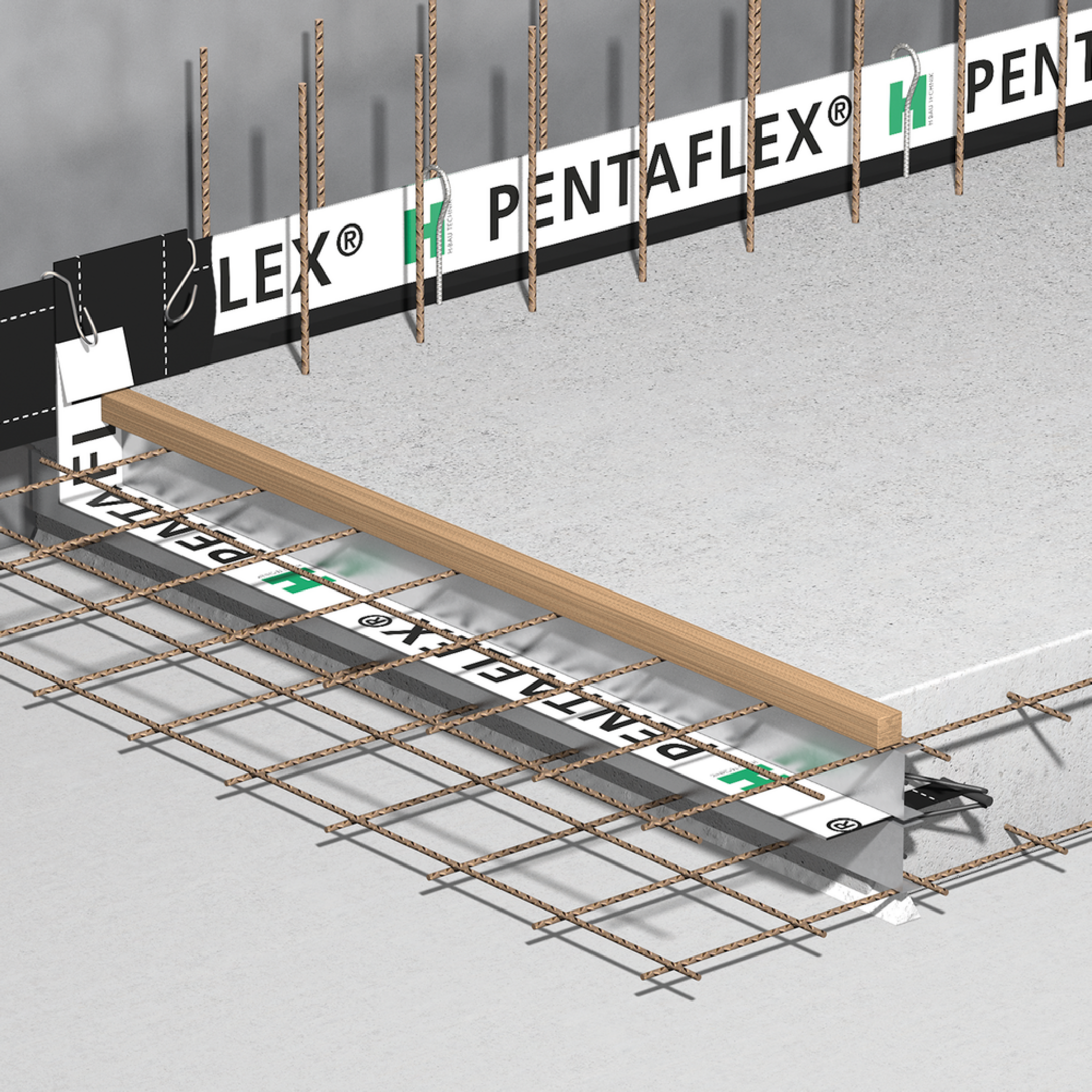

PENTAFLEX® OBS G-S Floor floor panel elements for smooth joints (according to EC 2) consist of PENTAFLEX KB® joint sheets with wings made of galvanised sheet steel. They come in lengths of 2500 mm as standard. The standard installation dimension is 80 - 1000 mm.

General building authority test certificate: P-5120/231/09 MPA-BS
European Technical Assessment: ETA-15/0003
Get in touch Download datasheet

Variants

Article

H

Einbauhöhe

L

Länge

G

Gewicht je Lagermengeneinheit
  • 110700020316
    Penta OBS G-S BD 610 700
    Einbauhöhe
    610-700 mm
    Länge
    2500 mm
    Gewicht je Lagermengeneinheit
    5.410 kg
    More information
  • 110700020317
    Penta OBS G-S BD 810 900
    Einbauhöhe
    810-900 mm
    Länge
    2500 mm
    Gewicht je Lagermengeneinheit
    10.390 kg
    More information
  • 110700020318
    Penta OBS G-S BD 910 1000
    Einbauhöhe
    910-1000 mm
    Länge
    2500 mm
    Gewicht je Lagermengeneinheit
    10.920 kg
    More information
  • 110700020320
    Penta OBS G-S BD 710 800
    Einbauhöhe
    710-800 mm
    Länge
    2500 mm
    Gewicht je Lagermengeneinheit
    9.870 kg
    More information
  • 110700020325
    Penta OBS G-S BD 260 300
    Einbauhöhe
    260-300 mm
    Länge
    2500 mm
    Gewicht je Lagermengeneinheit
    2.820 kg
    More information
  • 110700020326
    Penta OBS G-S BD 310 350
    Einbauhöhe
    310-350 mm
    Länge
    2500 mm
    Gewicht je Lagermengeneinheit
    3.260 kg
    More information
  • 110700020327
    Penta OBS G-S BD 360 400
    Einbauhöhe
    360-400 mm
    Länge
    2500 mm
    Gewicht je Lagermengeneinheit
    3.500 kg
    More information
  • 110700020328
    Penta OBS G-S BD 80 200
    Einbauhöhe
    80-200 mm
    Länge
    2500 mm
    Gewicht je Lagermengeneinheit
    2.380 kg
    More information
  • 110700020329
    Penta OBS G-S BD 510 600
    Einbauhöhe
    510-600 mm
    Länge
    2500 mm
    Gewicht je Lagermengeneinheit
    4.920 kg
    More information
  • 110700020330
    Penta OBS G-S BD 210 250
    Einbauhöhe
    210-250 mm
    Länge
    2500 mm
    Gewicht je Lagermengeneinheit
    2.600 kg
    More information
  • 110700020332
    Penta OBS G-S BD 410 500
    Einbauhöhe
    410-500 mm
    Länge
    2500 mm
    Gewicht je Lagermengeneinheit
    3.990 kg
    More information

Details

  • General building authority test certificate: P-5120/231/09 MPA-BS
  • European Technical Assessment: ETA-15/0003

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • General building authority test certificate PENTAFLEX® KB, FTS, OBS, ABS, Modul (general technical approval certificate)

    Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 1 MB

    de en

  • Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 875 KB

    en
    Download

  • PENTAFLEX® - Technical information

    Technical information

    PDF, 7 MB

    de en

  • ETA 15/0003 PENTAFLEX®

    Zulassung

    PDF, 1 MB

    de en

  • Installation instructions PENTAFLEX® OBS Floor

    Please observe these installation and application instructions before installation. Our application technology and consulting engineers will be happy to answer any questions you may have.

    PDF, 201 KB

    de en
