Variants
Article
G
Weight per storage unit
- 110100005569
Penta KB 80Weight per storage unit0.426 kg
PENTAFLEX KB® 80
joint sheet for construction joints in walls/slabs

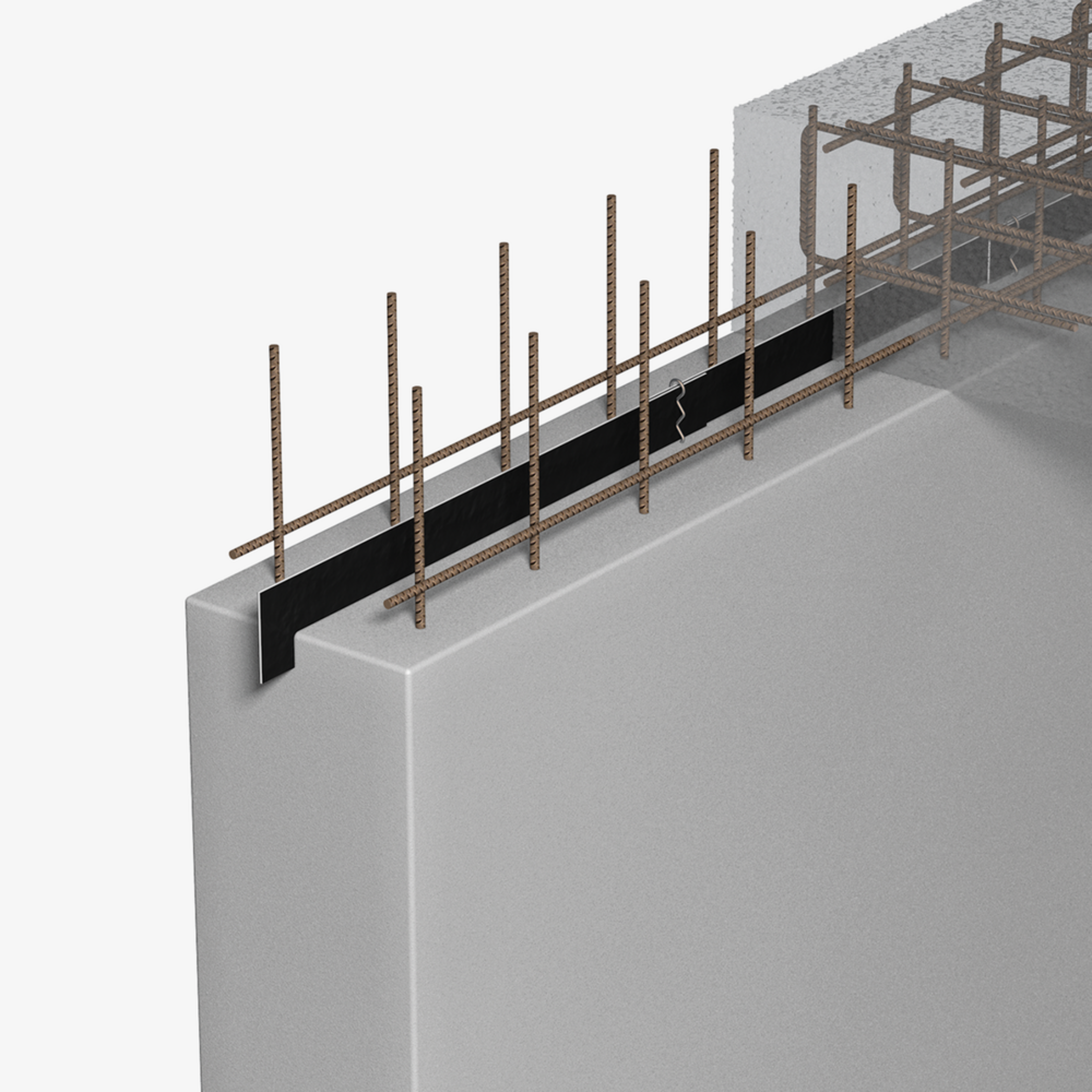

PENTAFLEX KB® 80 is a galvanised steel sheet with a special coating for sealing construction joints in walls/slab areas. It is attached to the wall reinforcement using one mounting stirrup per metre. The guide marking can be used to easily check the minimum embedment depth of 30 mm during casting. The individual elements are 2 m long and 80 mm high. They are covered on both sides by a split protective film that is only removed immediately before pouring the concrete. Construction joints sealed with PENTAFLEX KB® 80 withstand a water pressure of up to 5.0 bar.
General building authority test certificate: P-5120/231/09 MPA-BS
European Technical Assessment: ETA-15/0003
Details
- General building authority test certificate: P-5120/231/09 MPA-BS
- European Technical Assessment: ETA-15/0003
- Approved throughout Europe by ETA-15/0003
- German building code test certificate (abP) P-5120/231/09 MPA-BS
Tender texts
Accessories
Downloads
de
en
de
en
de
en
de
en
de
en
de
en
Price list 2025 Shell construction / facade
Valid from February 1, 2025, updated version from 27/09/2025.

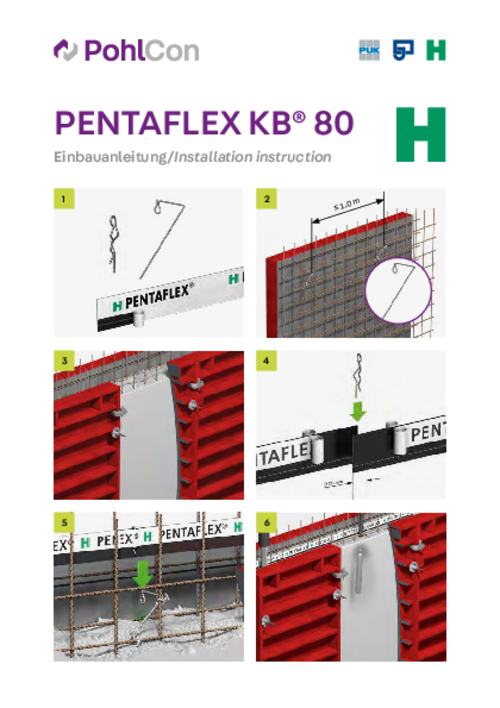

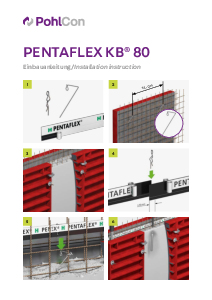

Einbauanleitung PENTAFLEX® KB80
Please observe these installation and application instructions before installation. Our application technology and consulting engineers will be happy to answer any questions you may have.
PDF, 176.66 KB
DownloadDownload
ETA 15/0003 PENTAFLEX®
Approval
PENTAFLEX® - Technical information
Technical information
Declaration of Performance PENTAFLEX®
Declaration
DGNB Product Declaration PENTAFLEX®
Environmental product declaration
General building authority test certificate PENTAFLEX® KB, FTS, OBS, ABS, Modul (general technical approval certificate)
General Building Authority Test Certificate
Included accessories
Anzahl:
