PENTAFLEX® FTS-Corner

Pre-cast concrete crack control element with joint sheet (corner section)

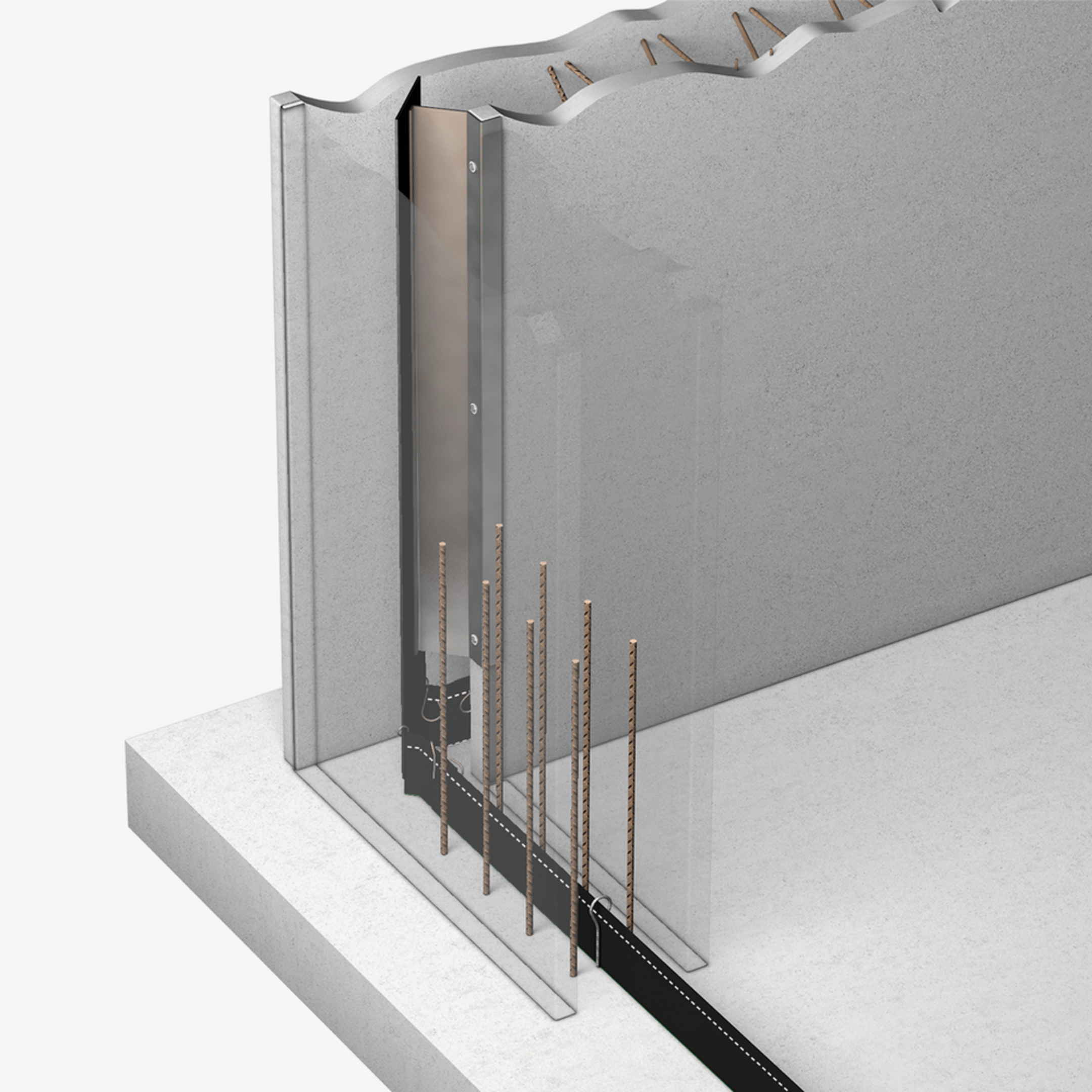

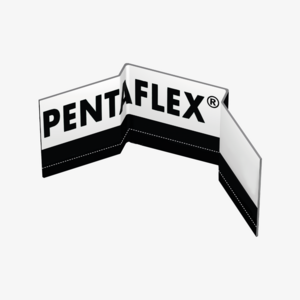

PENTAFLEX® FTS-Corner crack control elements for corner joints consist of PENTAFLEX KB® joint sheets with a wing made of galvanised sheet steel. They come in lengths of 2.50, 2.75 and 3.00 m as standard. The PENTAFLEX® FTS joint element is available for walls of any thickness. Standard elements for 240 - 250 or 300 mm thick walls are kept in stock. The elements are supplied ready for installation. When using PENTAFLEX® FTS-Corner elements, PENTAFLEX KB® corner elements must be installed in the floor slab.

General building authority test certificate: P-5120/231/09 MPA-BS
European Technical Assessment: ETA-15/0003
Get in touchDownload datasheet

Variants

Article

L

Länge

Geignet für Wandstärke

G

Gewicht je Lagermengeneinheit

  • 110600004396
    Penta FTS Eck 240 280 2.5
    Länge
    2500 mm
    Geignet für Wandstärke
    240-280 mm
    Gewicht je Lagermengeneinheit
    2.000 kg
    More information
  • 110600004397
    Penta FTS Eck 240 280 2.75
    Länge
    2750 mm
    Geignet für Wandstärke
    240-280 mm
    Gewicht je Lagermengeneinheit
    2.000 kg
    More information
  • 110600004398
    Penta FTS Eck 240 280 3.0
    Länge
    3000 mm
    Geignet für Wandstärke
    240-280 mm
    Gewicht je Lagermengeneinheit
    2.000 kg
    More information
  • 110600004399
    Penta FTS Eck 290 340 2.5
    Länge
    2500 mm
    Geignet für Wandstärke
    290-340 mm
    Gewicht je Lagermengeneinheit
    2.150 kg
    More information
  • 110600004400
    Penta FTS Eck 290 340 2.75
    Länge
    2750 mm
    Geignet für Wandstärke
    290-340 mm
    Gewicht je Lagermengeneinheit
    2.150 kg
    More information
  • 110600004401
    Penta FTS Eck 290 340 3.0
    Länge
    3000 mm
    Geignet für Wandstärke
    290-340 mm
    Gewicht je Lagermengeneinheit
    2.150 kg
    More information
  • 110600004402
    Penta FTS Eck 350 400 2.5
    Länge
    2500 mm
    Geignet für Wandstärke
    350-400 mm
    Gewicht je Lagermengeneinheit
    2.300 kg
    More information
  • 110600004403
    Penta FTS Eck 350 400 2.75
    Länge
    2750 mm
    Geignet für Wandstärke
    350-400 mm
    Gewicht je Lagermengeneinheit
    2.300 kg
    More information
  • 110600004404
    Penta FTS Eck 350 400 3.0
    Länge
    3000 mm
    Geignet für Wandstärke
    350-400 mm
    Gewicht je Lagermengeneinheit
    2.300 kg
    More information

Details

  • General building authority test certificate: P-5120/231/09 MPA-BS
  • European Technical Assessment: ETA-15/0003
  • Approved throughout Europe by ETA-15/0003
  • German building code test certificate (abP) P-5120/231/09 MPA-BS

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

    Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    • de

    • en

    General building authority test certificate PENTAFLEX® KB, FTS, OBS, ABS, Modul (general technical approval certificate)

    • de

    • en

    , 0.00 B

    • en

    Download

    PENTAFLEX® - Technical information

    Technical information

    • de

    • en

    ETA 15/0003 PENTAFLEX®

    • de

    • en

    Installation instructions PENTAFLEX® FTS Corner

    Please observe these installation and application instructions before installation. Our application technology and consulting engineers will be happy to answer any questions you may have.

    • de

    • en
