PENTAFLEX® ABS V Wall/Wall

Sealing formwork element as interlocked joint

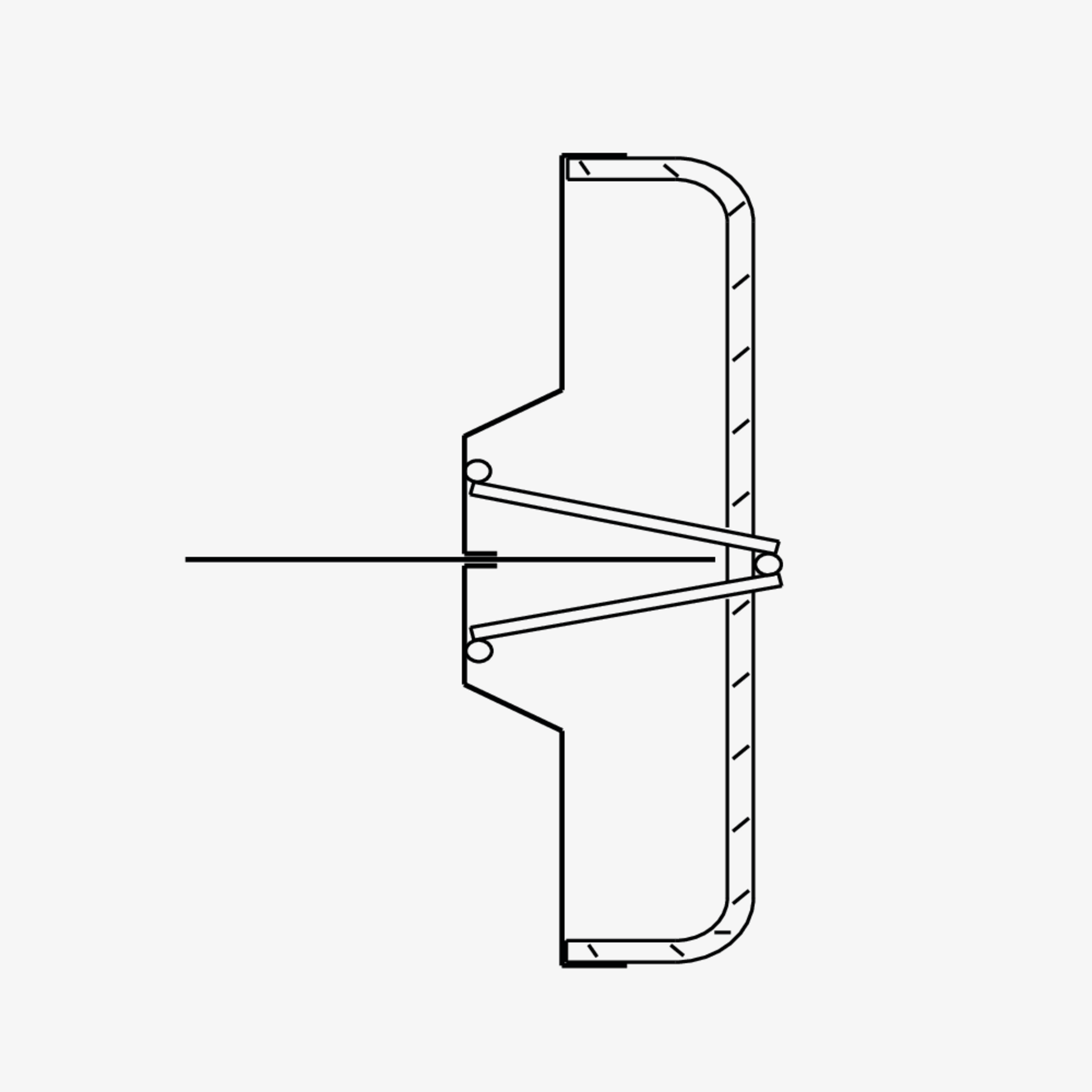

The component PENTAFLEX® ABS V Wall/Wall is a formwork element that is used to create waterproof construction joints in the wall-to-wall connection area of reinforced concrete components. The ABS-R version with a shortened, stiffening lattice girder construction is suitable for interlocked joint versions according to DIN EN 1992-1-1/NA (EC2). The formwork element is made of DC04 steel and has been verified as watertight up to 5.0 bar. It is 2400 mm long and 140 to 590 mm high. Other length dimensions, e.g. short or conical pieces, are also available on request.

European Technical Assessment: ETA-15/0003
Get in touch Download datasheet

Variants

Article

H

Einbauhöhe

G

Gewicht je Lagermengeneinheit
  • 112000022869
    Penta ABS V W 120 200 2.4 N
    Einbauhöhe
    140-200 mm
    Gewicht je Lagermengeneinheit
    2.610 kg
    More information
  • 112000022870
    Penta ABS V W 210 250 2.4 N
    Einbauhöhe
    210-250 mm
    Gewicht je Lagermengeneinheit
    2.740 kg
    More information
  • 112000022871
    Penta ABS V W 260 300 2.4 N
    Einbauhöhe
    260-300 mm
    Gewicht je Lagermengeneinheit
    2.960 kg
    More information
  • 112000022872
    Penta ABS V W 310 350 2.4 N
    Einbauhöhe
    310-350 mm
    Gewicht je Lagermengeneinheit
    3.340 kg
    More information
  • 112000022873
    Penta ABS V W 360 400 2.4 N
    Einbauhöhe
    360-400 mm
    Gewicht je Lagermengeneinheit
    3.590 kg
    More information
  • 112000022874
    Penta ABS V W 410 500 2.4 N
    Einbauhöhe
    410-500 mm
    Gewicht je Lagermengeneinheit
    4.080 kg
    More information
  • 112000022875
    Penta ABS V W 510 590 2.4 N
    Einbauhöhe
    510-590 mm
    Gewicht je Lagermengeneinheit
    5.460 kg
    More information
  • 112000022901
    Penta ABS V W 120 200 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    2.610 kg
    More information
  • 112000022902
    Penta ABS V W 210 250 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    2.740 kg
    More information
  • 112000022903
    Penta ABS V W 260 300 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    2.960 kg
    More information
  • 112000022904
    Penta ABS V W 310 350 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    3.340 kg
    More information
  • 112000022905
    Penta ABS V W 360 400 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    3.590 kg
    More information
  • 112000022906
    Penta ABS V W 410 500 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    4.080 kg
    More information
  • 112000022907
    Penta ABS V W 510 590 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    5.460 kg
    More information

Details

  • European Technical Assessment: ETA-15/0003

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • General building authority test certificate PENTAFLEX® KB, FTS, OBS, ABS, Modul (general technical approval certificate)

    Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 1 MB

    de en

  • Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 875 KB

    en
    Download

  • PENTAFLEX® - Technical information

    Technical information

    PDF, 7 MB

    de en

  • ETA 15/0003 PENTAFLEX®

    Zulassung

    PDF, 1 MB

    de en

  • Order Sheet PENTAFLEX® ABS Wall

    Bestellblatt

    PDF, 137 KB

    de
    Download

  • Order Sheet PENTAFLEX® Perforated ABS Wall

    Bestellblatt

    PDF, 131 KB

    de
    Download

  • Order Sheet PENTAFLEX® ABS Element Wall

    Bestellblatt

    PDF, 128 KB

    de
    Download
