PENTAFLEX® ABS V-S Wall/Wall

Sealing formwork element, reinforced

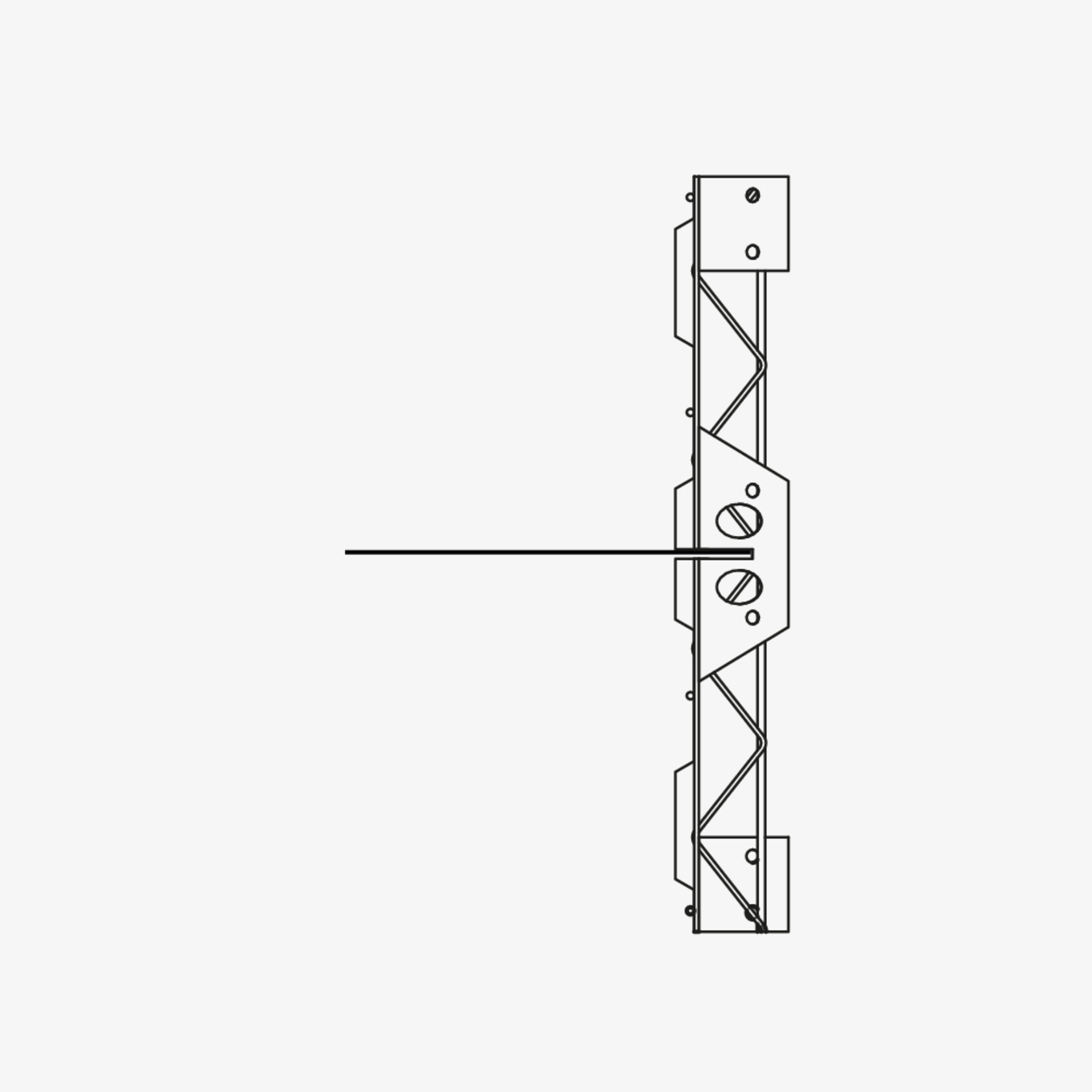

The component PENTAFLEX® ABS V-S Wall/Wall is a formwork element that is used to create waterproof construction joints in the wall-to-wall connection area of reinforced concrete components. The ABS-R version with a reinforced lattice girder construction is suitable for interlocking joint versions according to DIN EN 1992-1-1/NA (EC2). The formwork element is made of DC04 steel and has been verified as watertight up to 5.0 bar. It is 2400 mm long and 600 to 1990 mm high. Other length dimensions, e.g. short or conical pieces, are also available on request.

European Technical Assessment: ETA-15/0003
Get in touch Download datasheet

Variants

Article

H

Einbauhöhe

G

Gewicht je Lagermengeneinheit
  • 112200022098
    Penta ABS VS 600 690 2.4 N
    Einbauhöhe
    600-690 mm
    Gewicht je Lagermengeneinheit
    4.820 kg
    More information
  • 112200022100
    Penta ABS VS 800 890 2.4 N
    Einbauhöhe
    800-890 mm
    Gewicht je Lagermengeneinheit
    6.780 kg
    More information
  • 112200022102
    Penta ABS VS 1000 1090 2.4 N
    Einbauhöhe
    1000-1090 mm
    Gewicht je Lagermengeneinheit
    8.960 kg
    More information
  • 112200022104
    Penta ABS VS 1200 1290 2.4 N
    Einbauhöhe
    1200-1290 mm
    Gewicht je Lagermengeneinheit
    9.840 kg
    More information
  • 112200022106
    Penta ABS VS 1400 1490 2.4 N
    Einbauhöhe
    1400-1490 mm
    Gewicht je Lagermengeneinheit
    11.380 kg
    More information
  • 112200022108
    Penta ABS VS 1600 1690 2.4 N
    Einbauhöhe
    1600-1690 mm
    Gewicht je Lagermengeneinheit
    14.010 kg
    More information
  • 112200022110
    Penta ABS VS 1800 1890 2.4 N
    Einbauhöhe
    1800-1890 mm
    Gewicht je Lagermengeneinheit
    14.980 kg
    More information

Details

  • European Technical Assessment: ETA-15/0003

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • General building authority test certificate PENTAFLEX® KB, FTS, OBS, ABS, Modul (general technical approval certificate)

    Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 1 MB

    de en

  • Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 875 KB

    en
    Download

  • PENTAFLEX® - Technical information

    Technical information

    PDF, 7 MB

    de en

  • ETA 15/0003 PENTAFLEX®

    Zulassung

    PDF, 1 MB

    de en
