PENTAFLEX® ABS V-S Floor/Floor

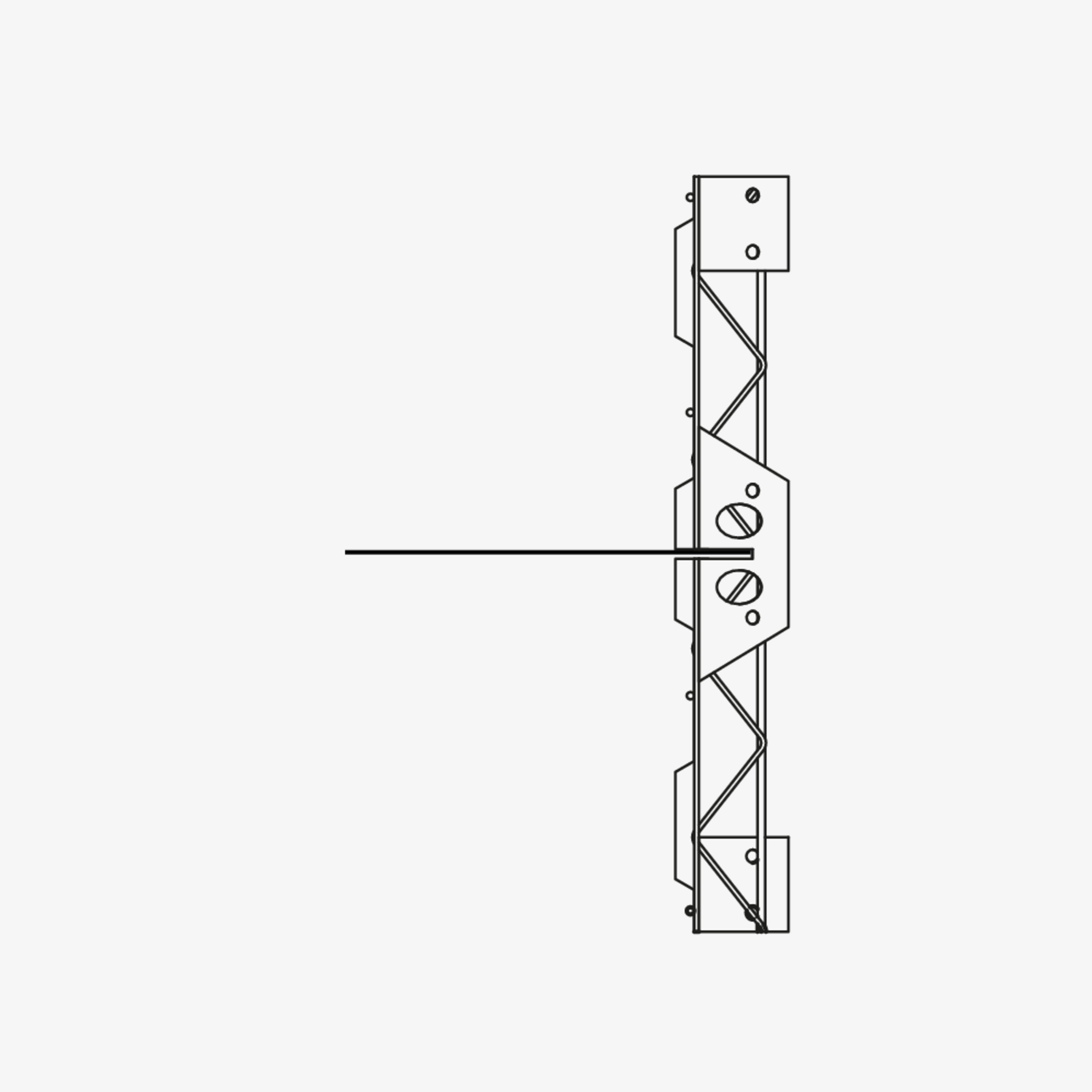

The component PENTAFLEX® ABS V-S Floor/Floor is a formwork element that is used to create waterproof construction joints in the floor-to-floor connection area of reinforced concrete components. The ABS-R version with a reinforced lattice girder construction is suitable for interlocking joint versions according to DIN EN 1992-1-1/NA (EC2). The formwork element is made of DC04 steel and has been verified as watertight up to 5.0 bar. It is 2400 mm long and 600 to 1990 mm high. Other length dimensions, e.g. short or conical pieces, are also available on request.
