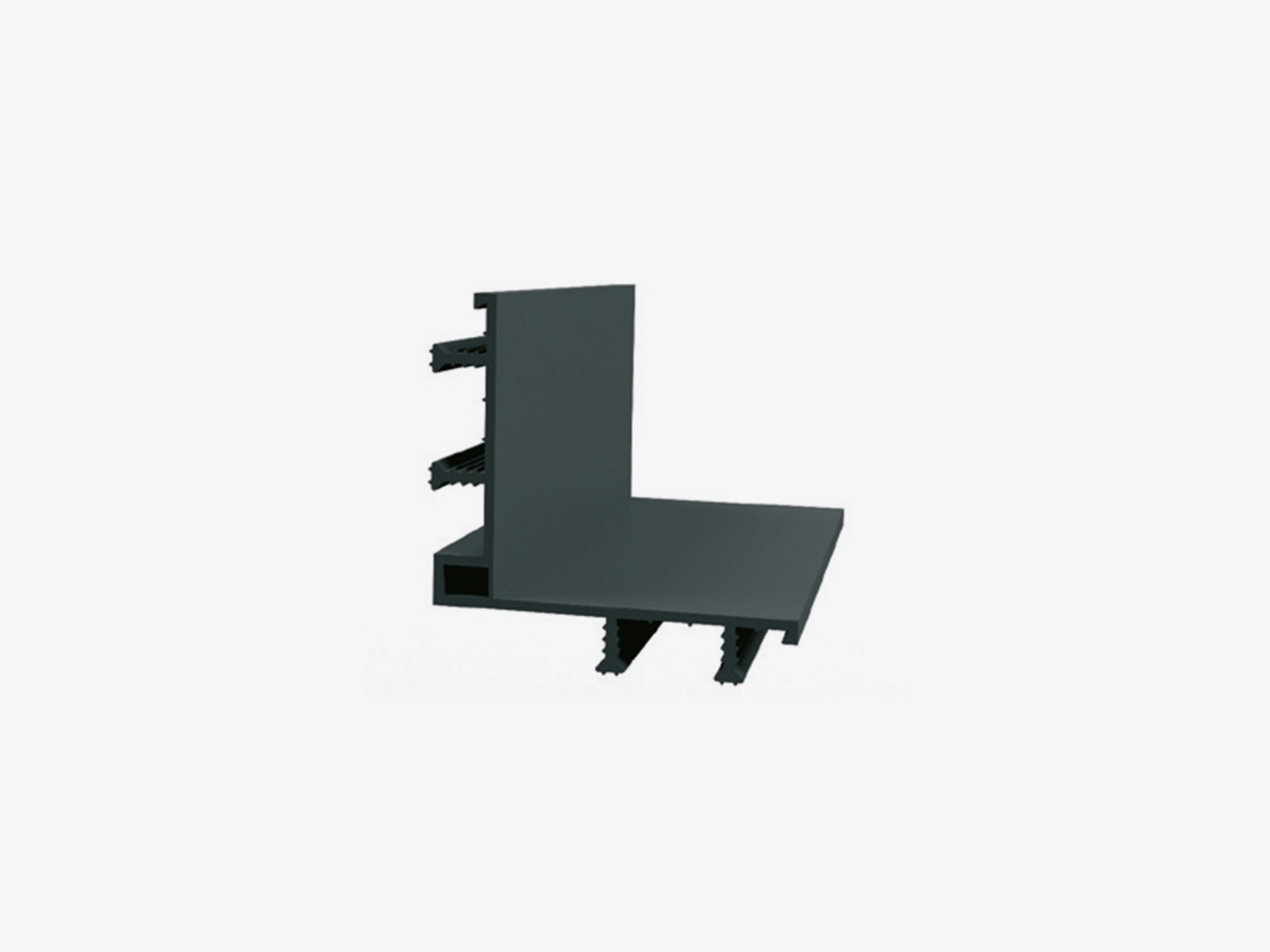

KUNEX® DA Corner Joint Tape

Expansion joint tape for corner area, PVC-P

External KUNEX® PVC-P corner joint tape reliably seals expansion joints in offset concrete components. The expansion joint tapes are available according to DIN or with abP (German building code test certificate) in accordance with the factory standard and have 4 or 6 stop anchors depending on the version. The DIN joint tapes are bitumen-compatible.

General building authority test certificate: P-5143/478/13 MPA BS
Get in touchDownload datasheet

Variants

factory standard (not bitumen-compatible)

Article

HP

profile height

B

width

Width hollow section

Width expansion element

Thickness expansion element

No. of stop anchors

G

Weight per storage unit

  • 120600002754
    Kunex DA120 120EA
    profile height
    25 mm
    width
    120 mm
    Width hollow section
    20 mm
    Width expansion element
    50 mm
    Thickness expansion element
    4 mm
    No. of stop anchors
    4
    Weight per storage unit
    2.400 kg
    More information
  • 120600002758
    Kunex DA165 165EA
    profile height
    25 mm
    width
    165 mm
    Width hollow section
    20 mm
    Width expansion element
    50 mm
    Thickness expansion element
    4 mm
    No. of stop anchors
    6
    Weight per storage unit
    3.250 kg
    More information

DIN BV (bitumen-compatible)

Article

HP

profile height

B

width

Width hollow section

Width expansion element

Thickness expansion element

No. of stop anchors

G

Weight per storage unit

  • 120600002757
    Kunex DA120 120EA DIN BV
    profile height
    25 mm
    width
    120 mm
    Width hollow section
    20 mm
    Width expansion element
    50 mm
    Thickness expansion element
    4 mm
    No. of stop anchors
    4
    Weight per storage unit
    2.400 kg
    More information
  • 120600002761
    Kunex DA165 165EA DIN BV
    profile height
    25 mm
    width
    165 mm
    Width hollow section
    20 mm
    Width expansion element
    50 mm
    Thickness expansion element
    4 mm
    No. of stop anchors
    6
    Weight per storage unit
    3.100 kg
    More information

Details

  • General building authority test certificate: P-5143/478/13 MPA BS
  • German building code test certificate (abP) P-5143/478/13 MPA BS

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Shell construction / facade

    Valid from February 1, 2025, updated version from 27/09/2025.

    • de

    • en

    Technical Information KUNEX®

    Technical information for KUNEX® PVC-P Joint tapes, TPE joint tapes, ABS construction joints, ABS expansion joints, clamp joints, star tubes, puddle flanges and formed parts and accessories

    • de

    • en

    General building authority test certificate for KUNEX® waterstops

    General Building Authority Test Certificate

    PDF, 1.37 MB

    • de

    Download

    Order sheet KUNEX® Overview (BK00)

    Order Sheet

    • de

    • en

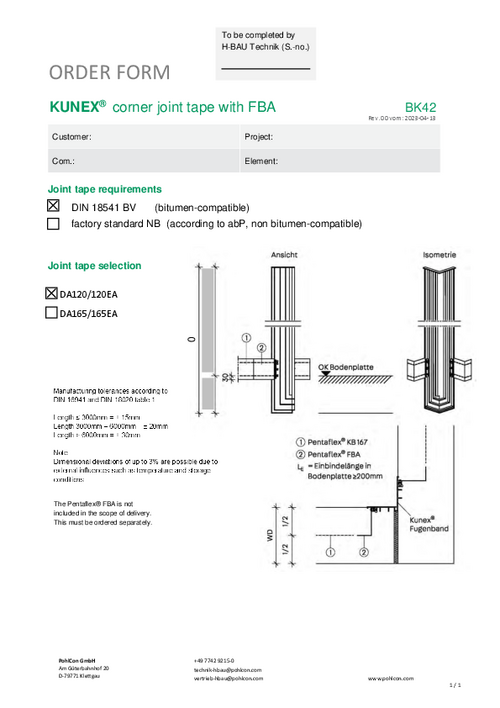

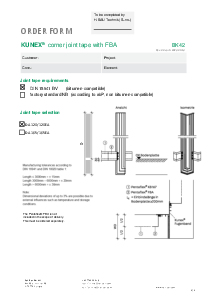

    Order sheet KUNEX® corner joint with FBA (BK42)
