KUNEX® Clamp Joint Tape

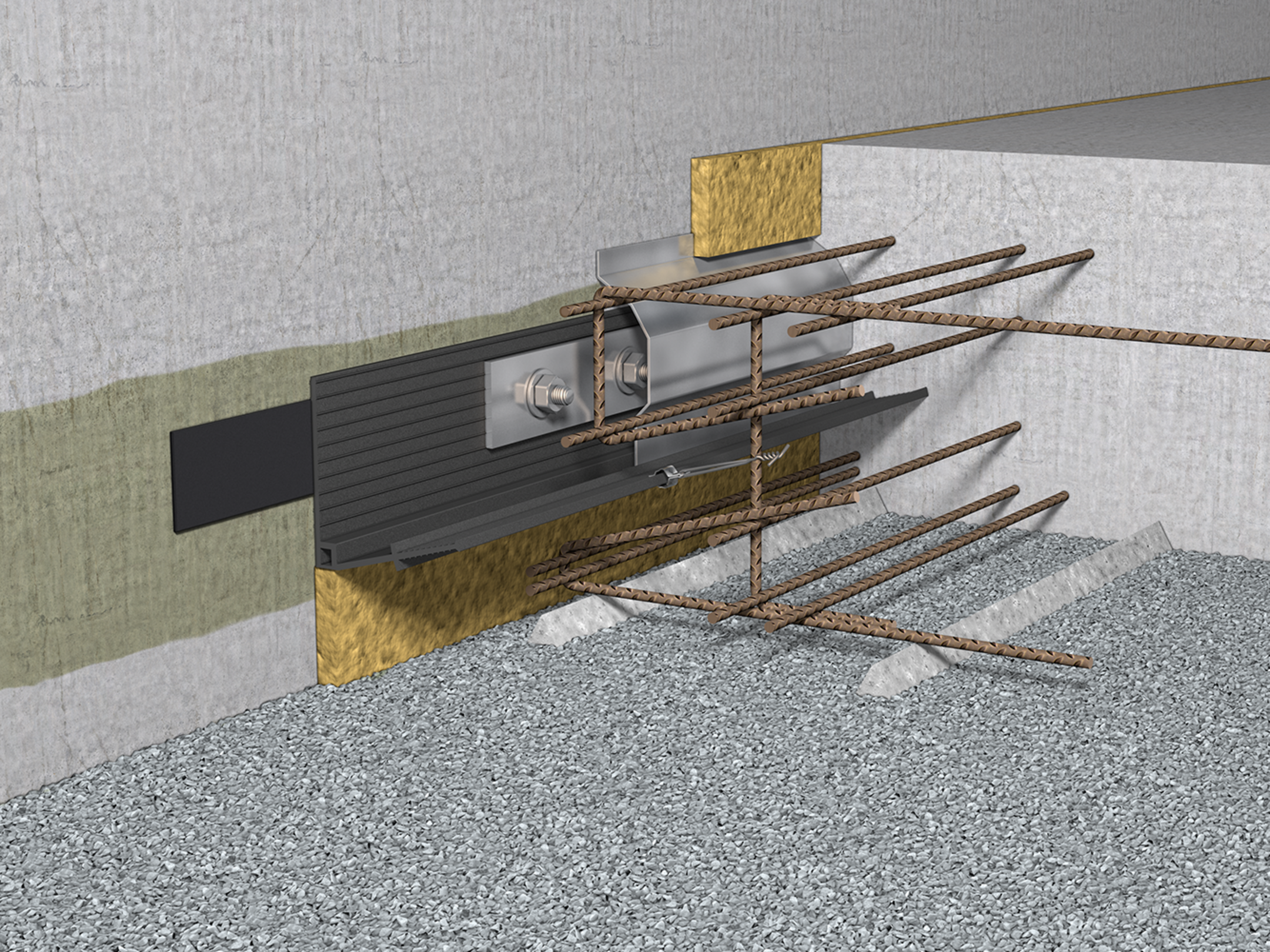

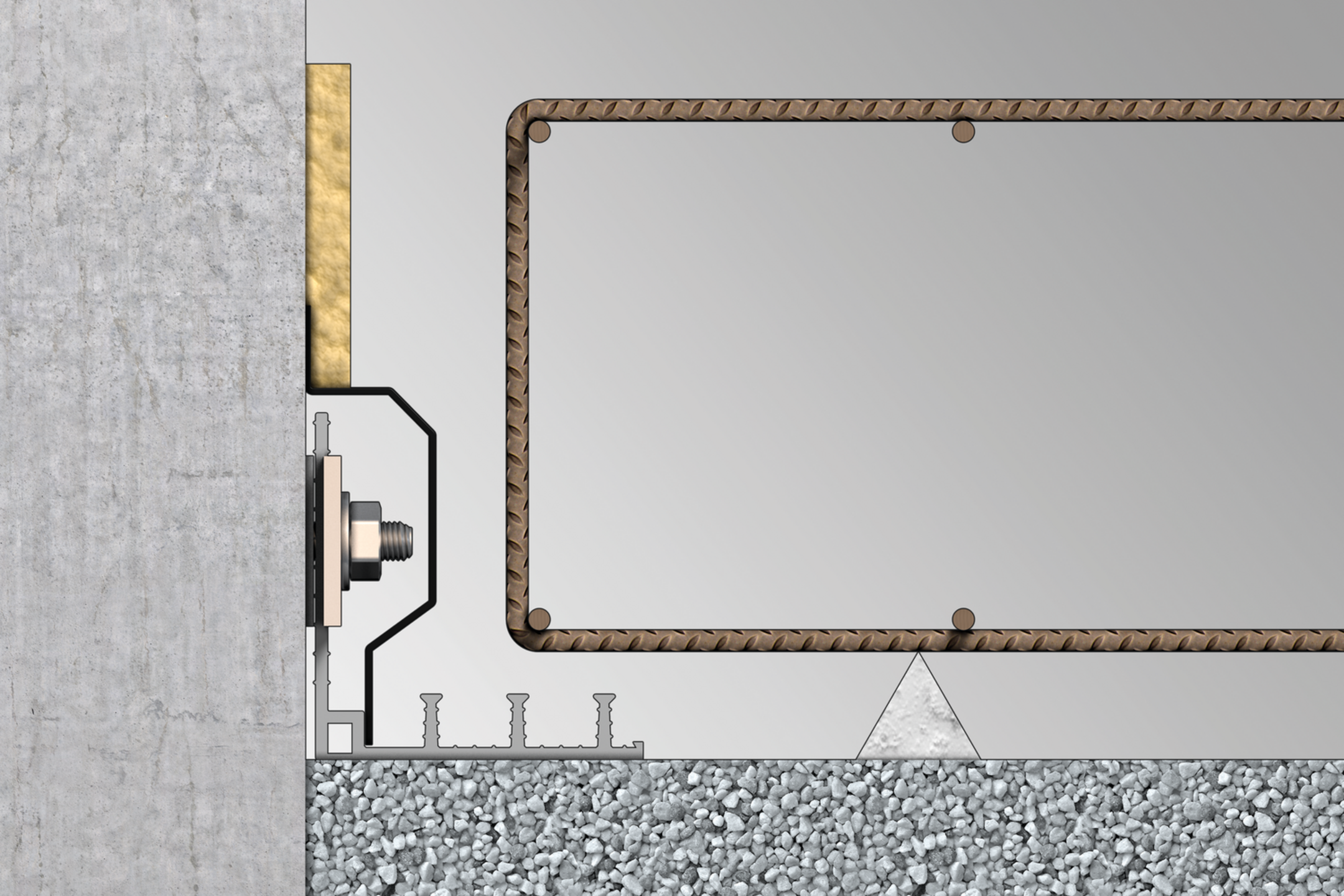

Clamp joint tape, internal/external, for connecting new buildings to existing buildings

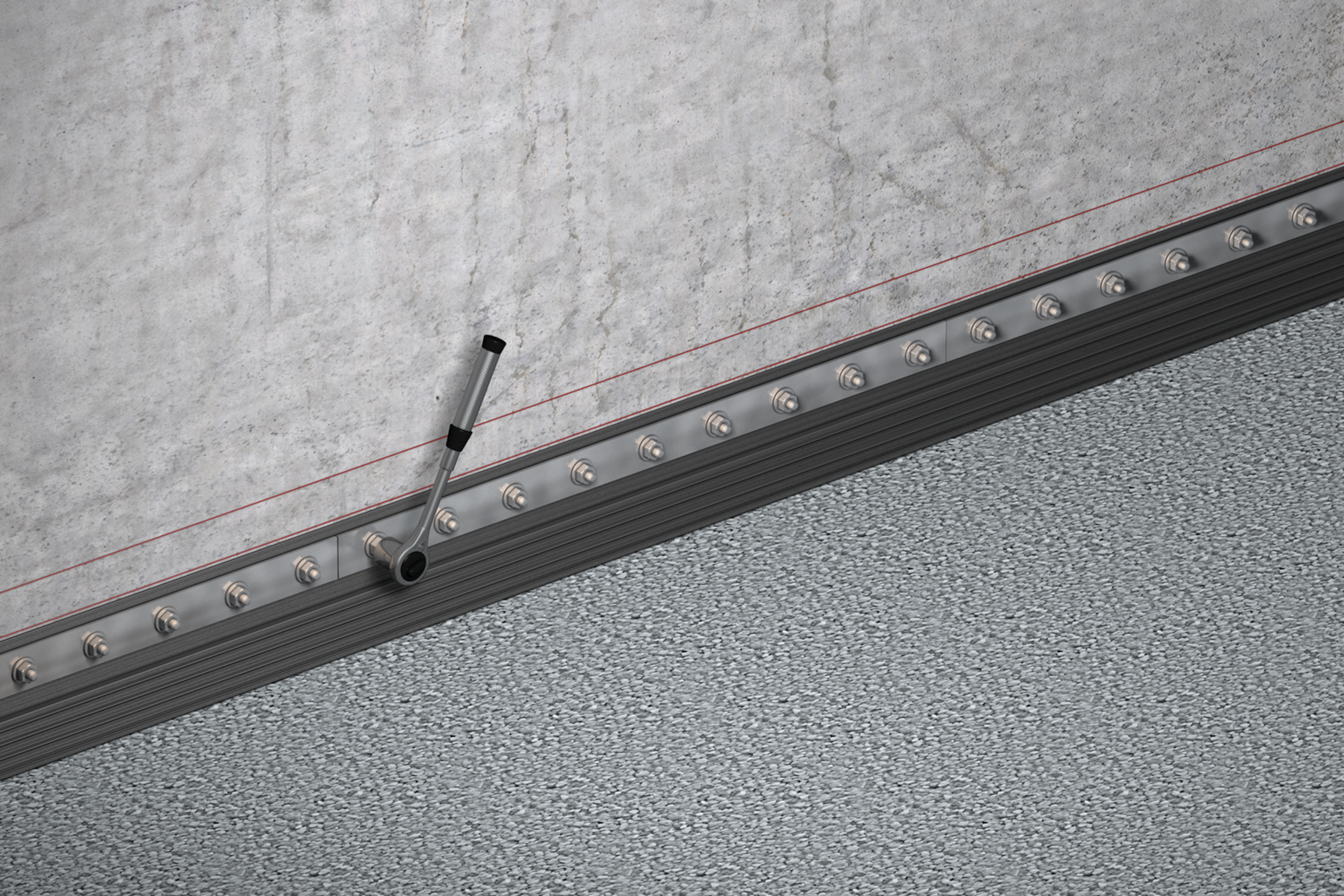

Internal or external KUNEX® PVC-P clamp joint tape is used to form watertight expansion joints in connections between buildings. The joint tapes absorb expansion and shear movements and are available in accordance with DIN and with abP (German building code test certificate). DIN joint tapes are available in bitumen-compatible versions on request. The expansion joint can be up to 30 mm wide and the resulting deformation (vr) max. 20 mm. Clamp joint tapes are usually manufactured as prefabricated joint tape structures specially designed for the particular installation situation.

General building authority test certificate: P-5316/053/14 MPA-BS
Get in touch Download datasheet

Variants

DIN (not bitumen-compatible)

Article

HP

profile height

B

width

Width hollow section

Width expansion element

No. of stop anchors

G

Weight per storage unit
  • 120500002730
    Kunex D180 170K DIN
    profile height
    26 mm
    width
    180 mm
    Width hollow section
    25 mm
    Width expansion element
    95 mm
    No. of stop anchors
    0
    Weight per storage unit
    3.100 kg
    More information
  • 120600002762
    Kunex DA180 170K DIN
    profile height
    35 mm
    width
    180 mm
    Width hollow section
    25 mm
    Width expansion element
    60 mm
    No. of stop anchors
    3
    Weight per storage unit
    3.600 kg
    More information

DIN BV (bitumen-compatible)

Article

HP

profile height

B

width

Width hollow section

Width expansion element

No. of stop anchors

G

Weight per storage unit
  • 120500002731
    Kunex D180 170K DIN BV
    profile height
    26 mm
    width
    180 mm
    Width hollow section
    25 mm
    Width expansion element
    95 mm
    No. of stop anchors
    0
    Weight per storage unit
    3.200 kg
    More information
  • 120600002763
    Kunex DA180 170K DIN BV
    profile height
    35 mm
    width
    180 mm
    Width hollow section
    25 mm
    Width expansion element
    60 mm
    No. of stop anchors
    3
    Weight per storage unit
    3.900 kg
    More information
  • 120600002780
    Kunex DA320 KB DIN BV
    profile height
    4 mm
    width
    320 mm
    Width hollow section
    20 mm
    Width expansion element
    100 mm
    No. of stop anchors
    0
    Weight per storage unit
    1.990 kg
    More information
  • 120600002782
    Kunex DA320 KE DIN BV
    profile height
    20 mm
    width
    320 mm
    Width hollow section
    20 mm
    Width expansion element
    100 mm
    No. of stop anchors
    3
    Weight per storage unit
    2.300 kg
    More information

Details

  • General building authority test certificate: P-5316/053/14 MPA-BS

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Technical Information KUNEX®

    Technical information for KUNEX® PVC-P Joint tapes, TPE joint tapes, ABS construction joints, ABS expansion joints, clamp joints, star tubes, puddle flanges and formed parts and accessories

    PDF, 5 MB

    de en

  • Order sheet KUNEX® Clamp joint tape accessories O (BK32)

    With this order sheet, you can easily and conveniently register your order on the screen, send it to us by e-mail, fax or letter. We would be pleased to receive your inquiries and orders personally by phone.

    PDF, 293 KB

    en
    Download

  • Order sheet KUNEX® Clamp joint tape accessories O (BK32)

    Bestellblatt

    PDF, 291 KB

    de
    Download

  • Order sheet KUNEX® Clamp joint tape accessories U (BK33)

    With this order sheet, you can easily and conveniently register your order on the screen, send it to us by e-mail, fax or letter. We would be pleased to receive your inquiries and orders personally by phone.

    PDF, 335 KB

    en
    Download

  • Order sheet KUNEX® Clamp joint tape accessories U (BK33)

    Bestellblatt

    PDF, 321 KB

    de
    Download

  • Order sheet KUNEX® Clamp joint tape accessories (BK39)

    With this order sheet, you can easily and conveniently register your order on the screen, send it to us by e-mail, fax or letter. We would be pleased to receive your inquiries and orders personally by phone.

    PDF, 149 KB

    en
    Download

  • Order sheet KUNEX® Clamp joint tape accessories (BK39)

    Bestellblatt

    PDF, 146 KB

    de
    Download

  • Installation instructions KUNEX® Clamp joint

    Please observe these installation and application instructions before installation. Our application technology and consulting engineers will be happy to answer any questions you may have.

    PDF, 9 MB

    de en

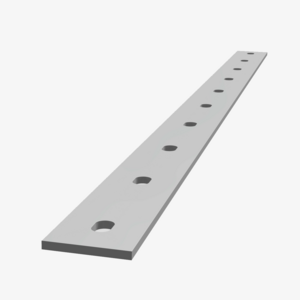

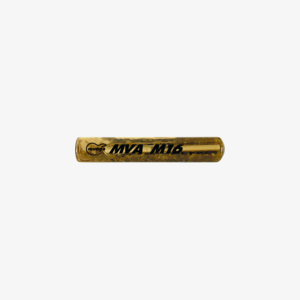

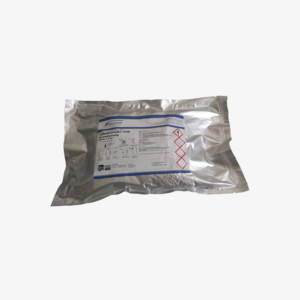

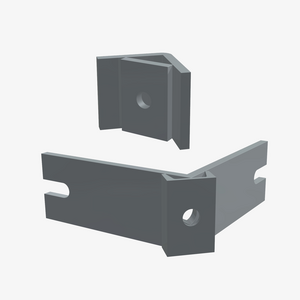

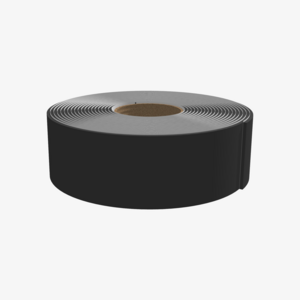

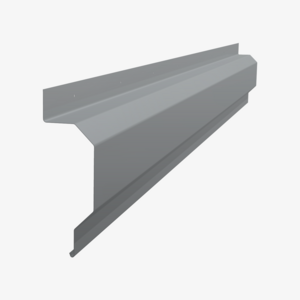

Included accessories
