KUNEX® ABS Expansion Joint D

Formwork element with expansion joint tape

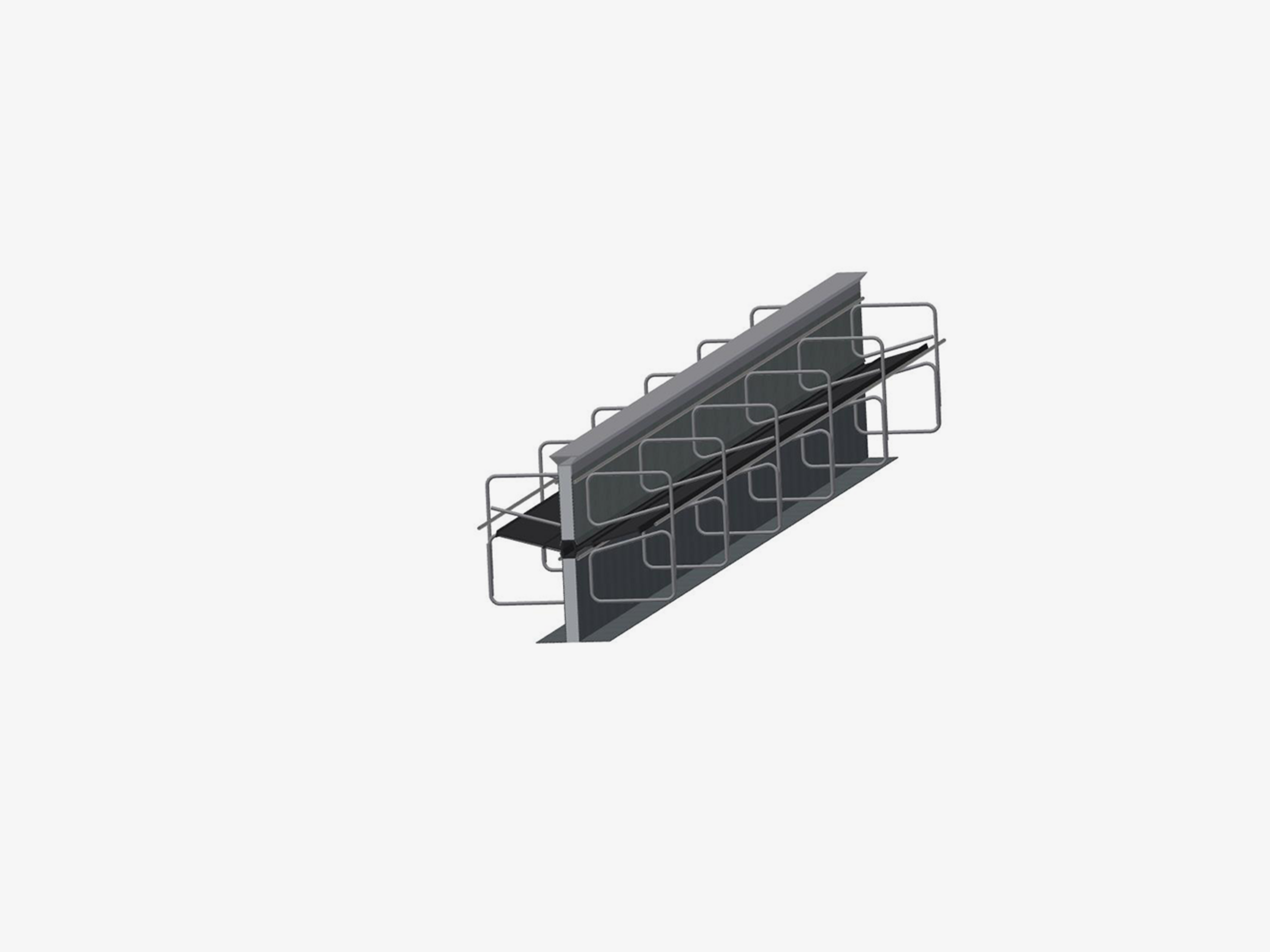

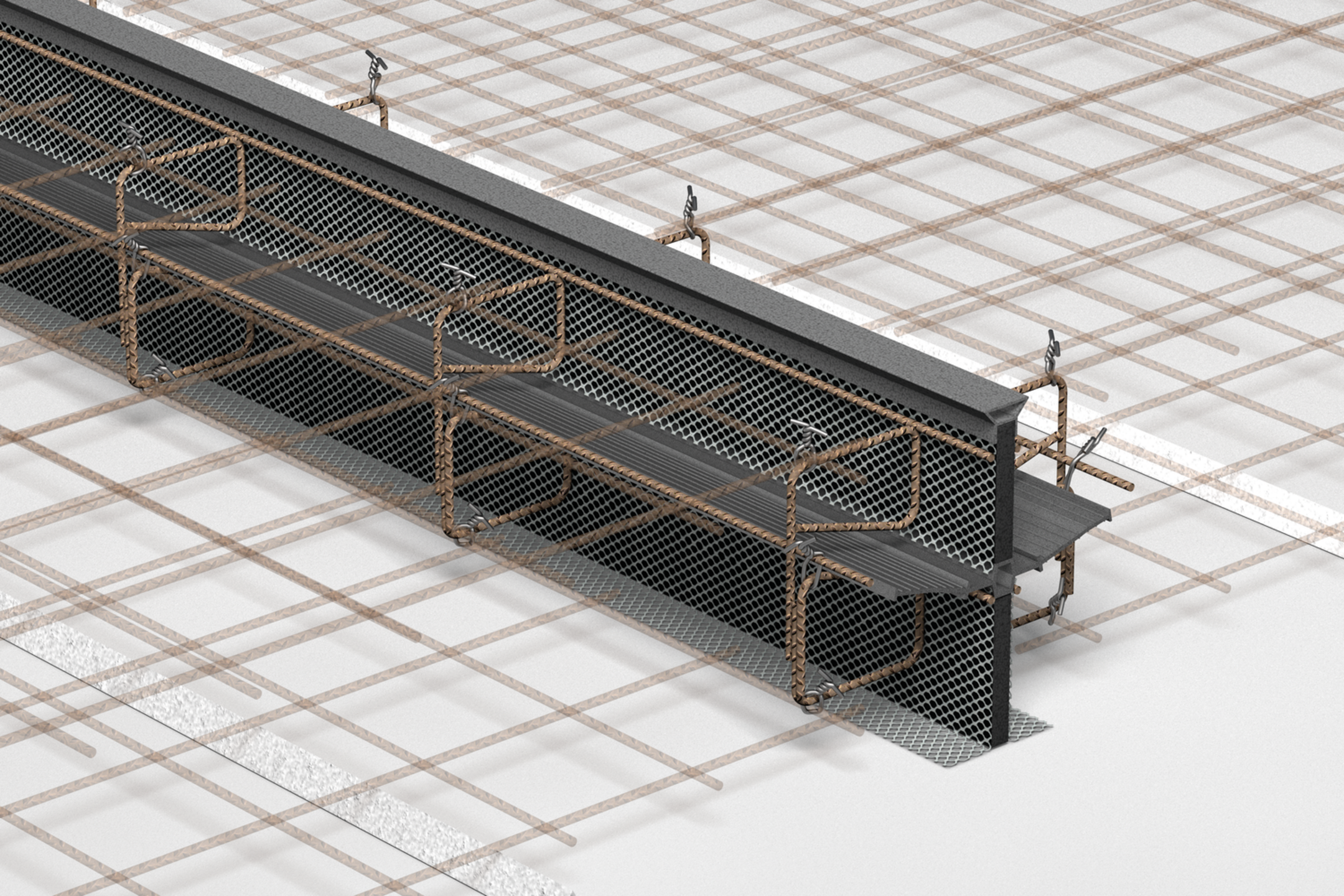

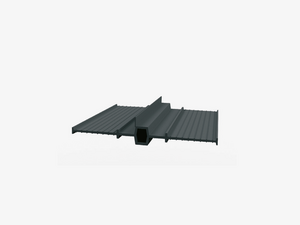

The component KUNEX® ABS Expansion Joint D is a two-part formwork element. It is used for the easy installation of internal KUNEX® joint tapes in waterproof expansion joints 20mm wide in reinforced concrete constructions. The element is suitable for KUNEX® D240 expansion joint tapes in combination with floor slabs from 240 mm to 500 mm thick. The KUNEX® ABS Expansion Joint D are made of steel DC04 and are 2400 mm long. Other dimensions are also available on request.

General building authority test certificate: P-5143/478/13 MPA BS
Get in touchDownload datasheet

Variants

Article

H

Einbauhöhe

für KUNEX Typ

G

Gewicht je Lagermengeneinheit

  • 122200021901
    Kunex ABS D240 BD h=240-300
    Einbauhöhe
    240-300 mm
    für KUNEX Typ
    D240
    Gewicht je Lagermengeneinheit
    3.990 kg
    More information
  • 122200021902
    Kunex ABS D240 BD h=310-350
    Einbauhöhe
    310-350 mm
    für KUNEX Typ
    D240
    Gewicht je Lagermengeneinheit
    4.530 kg
    More information
  • 122200021903
    Kunex ABS D240 BD h=360-400
    Einbauhöhe
    360-400 mm
    für KUNEX Typ
    D240
    Gewicht je Lagermengeneinheit
    4.990 kg
    More information
  • 122200021904
    Kunex ABS D240 BD h=410-450
    Einbauhöhe
    410-450 mm
    für KUNEX Typ
    D240
    Gewicht je Lagermengeneinheit
    5.440 kg
    More information
  • 122200021905
    Kunex ABS D240 BD h=460-500
    Einbauhöhe
    460-500 mm
    für KUNEX Typ
    D240
    Gewicht je Lagermengeneinheit
    5.890 kg
    More information
  • 122200021906
    Kunex ABS D320 BD h=240-300
    Einbauhöhe
    240-300 mm
    für KUNEX Typ
    D320
    Gewicht je Lagermengeneinheit
    3.990 kg
    More information
  • 122200021907
    Kunex ABS D320 BD h=310-350
    Einbauhöhe
    310-350 mm
    für KUNEX Typ
    D320
    Gewicht je Lagermengeneinheit
    4.530 kg
    More information
  • 122200021908
    Kunex ABS D320 BD h=360-400
    Einbauhöhe
    360-400 mm
    für KUNEX Typ
    D320
    Gewicht je Lagermengeneinheit
    4.990 kg
    More information
  • 122200021909
    Kunex ABS D320 BD h=410-450
    Einbauhöhe
    410-450 mm
    für KUNEX Typ
    D320
    Gewicht je Lagermengeneinheit
    5.440 kg
    More information
  • 122200021910
    Kunex ABS D320 BD h=460-500
    Einbauhöhe
    460-500 mm
    für KUNEX Typ
    D320
    Gewicht je Lagermengeneinheit
    5.890 kg
    More information

Details

  • General building authority test certificate: P-5143/478/13 MPA BS
  • German building code test certificate (abP) P-5143/478/13 MPA BS

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Shell construction / facade

    Valid from February 1, 2025, updated version from 27/09/2025.

    • de

    • en

    Technical Information KUNEX®

    Technical information for KUNEX® PVC-P Joint tapes, TPE joint tapes, ABS construction joints, ABS expansion joints, clamp joints, star tubes, puddle flanges and formed parts and accessories

    • de

    • en
