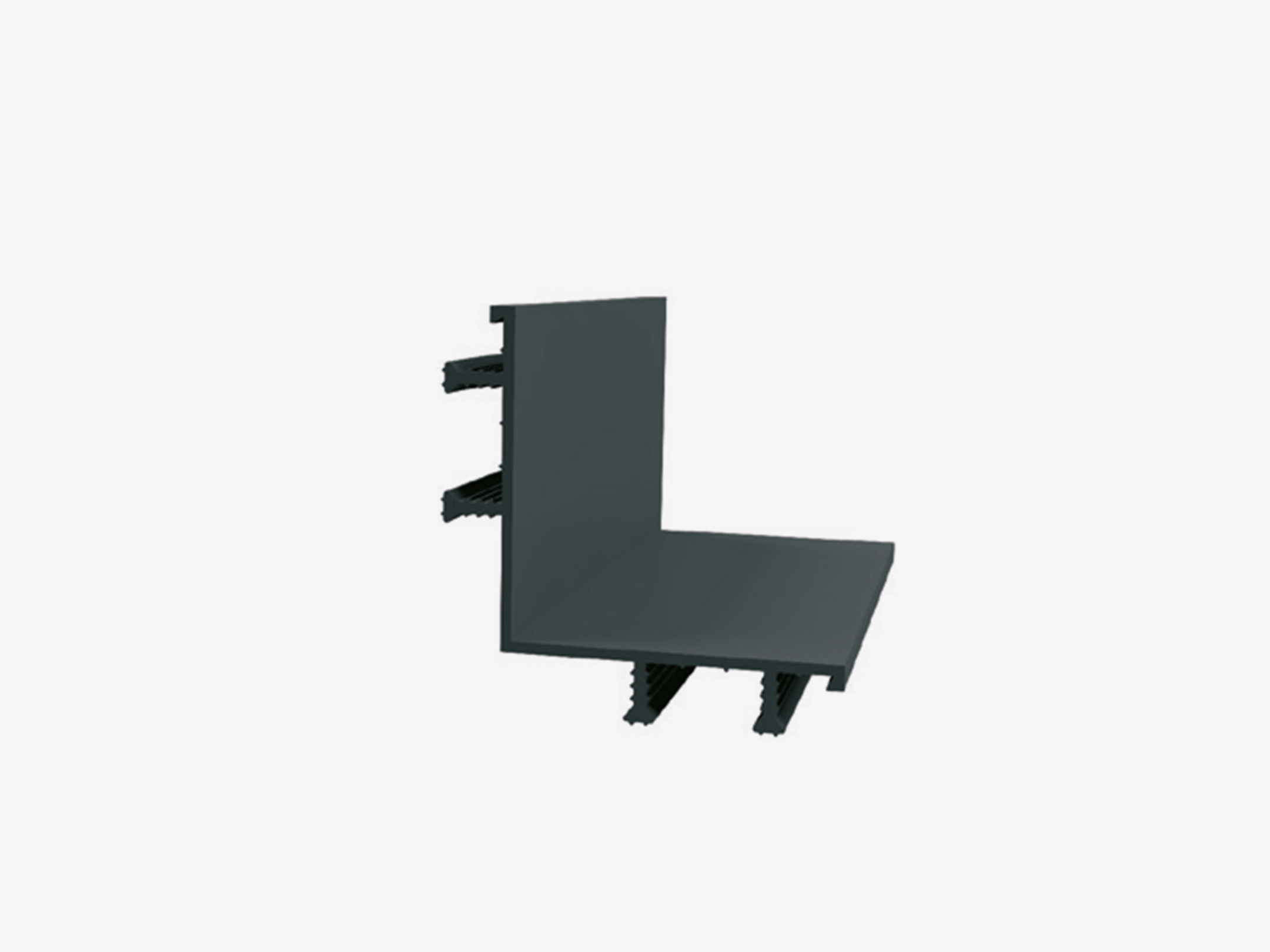

KUNEX® AA Corner Joint Tape

Construction joint tape for corner area, PVC-P

External KUNEX® PVC-P corner joint tape reliably seals construction joints in offset concrete components. The construction joint tapes are available according to DIN or with abP (German building code test certificate) in accordance with the factory standard and have 4 or 6 stop anchors depending on the version. The DIN joint tapes are bitumen-compatible.

General building authority test certificate: P-5143/478/13 MPA BS
Get in touch Download datasheet

Variants

DIN BV (bitumen-compatible)

Article

H

height

HP

profile height

B

width

No. of stop anchors

G

Weight per storage unit
  • 120400002688
    Kunex AA120 120EA DIN BV
    height
    120 mm
    profile height
    25 mm
    width
    120 mm
    No. of stop anchors
    4
    Weight per storage unit
    2.000 kg
    More information
  • 120400002692
    Kunex AA165 165EA DIN BV
    height
    165 mm
    profile height
    25 mm
    width
    165 mm
    No. of stop anchors
    6
    Weight per storage unit
    2.840 kg
    More information

factory standard (not bitumen-compatible)

Article

H

height

HP

profile height

B

width

No. of stop anchors

G

Weight per storage unit
  • 120400002689
    Kunex AA165 165EA
    height
    165 mm
    profile height
    255 mm
    width
    165 mm
    No. of stop anchors
    6
    Weight per storage unit
    3.030 kg
    More information

Details

  • General building authority test certificate: P-5143/478/13 MPA BS
  • Made of PVC-P according to DIN 18541 or according to factory standard (with abP (German building code test certificate) P-5143/478/13 MPA BS)
  • Water-tightness: Joint tape according to DIN
  • Dimensions: Length max. 25 m, extend on site using welded butt joints
  • Fastened to the reinforcement with eyelets or joint tape clamps
