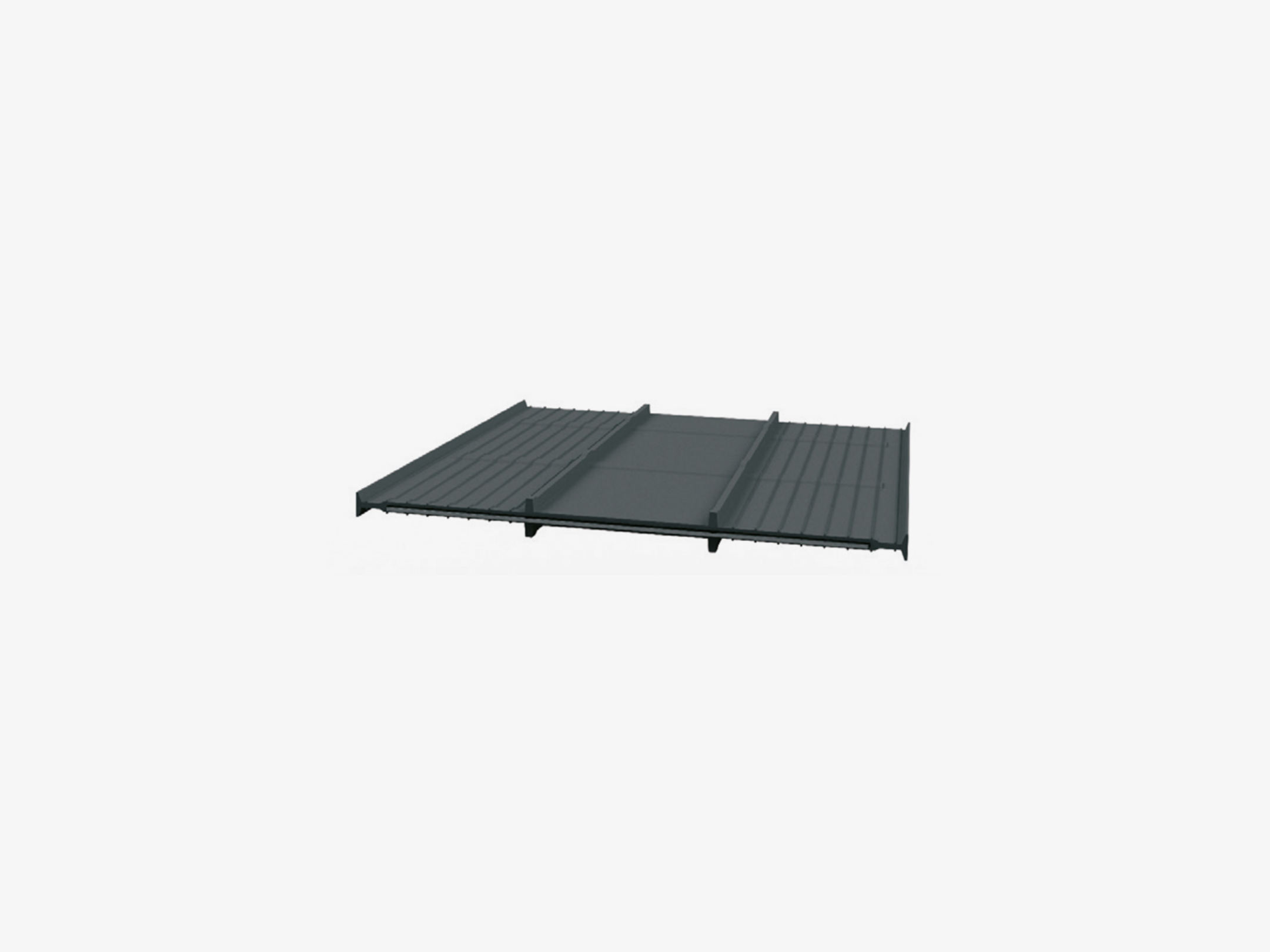

KUNEX® A, steel reinforced

Construction joint tape, PVC-P, internal

Internal KUNEX® PVC-P construction joint tape with spring steel reinforcement reliably seals joints in concrete structures. It is installed in the centre of the concrete cross-section. The construction joint tapes are available with abP (German building code test certificate) in accordance with the factory standard. Joint tapes up to 320 mm wide with fixing eyelets on one or both sides can be supplied on request. The eyelets are spaced 200 mm apart. The eyelets replace the joint tape clips that would otherwise be required to fix the joint tapes in place. Please specify the bar spacing when ordering.

Allgemeines bauaufsichtliches Prüfzeugnis: P-5143/478/13 MPA BS
Get in touch Download datasheet

Variants

factory standard with abP (not bitumen-compatible)

Article

Height anchor rib

Band width

Width expansion element

Thickness expansion element

W

Details

  • Allgemeines bauaufsichtliches Prüfzeugnis: P-5143/478/13 MPA BS

    • Technical Details

    • Made of PVC-P according to factory standard (with abP (German building code test certificate) 1200/575/15 MPA BS)
    • Dimensions: Length max. 25 m, extend on site using welded butt joints
    • Fastened to the reinforcement with eyelets or joint tape clamps
