Art.-Nr. KDU 60-04F

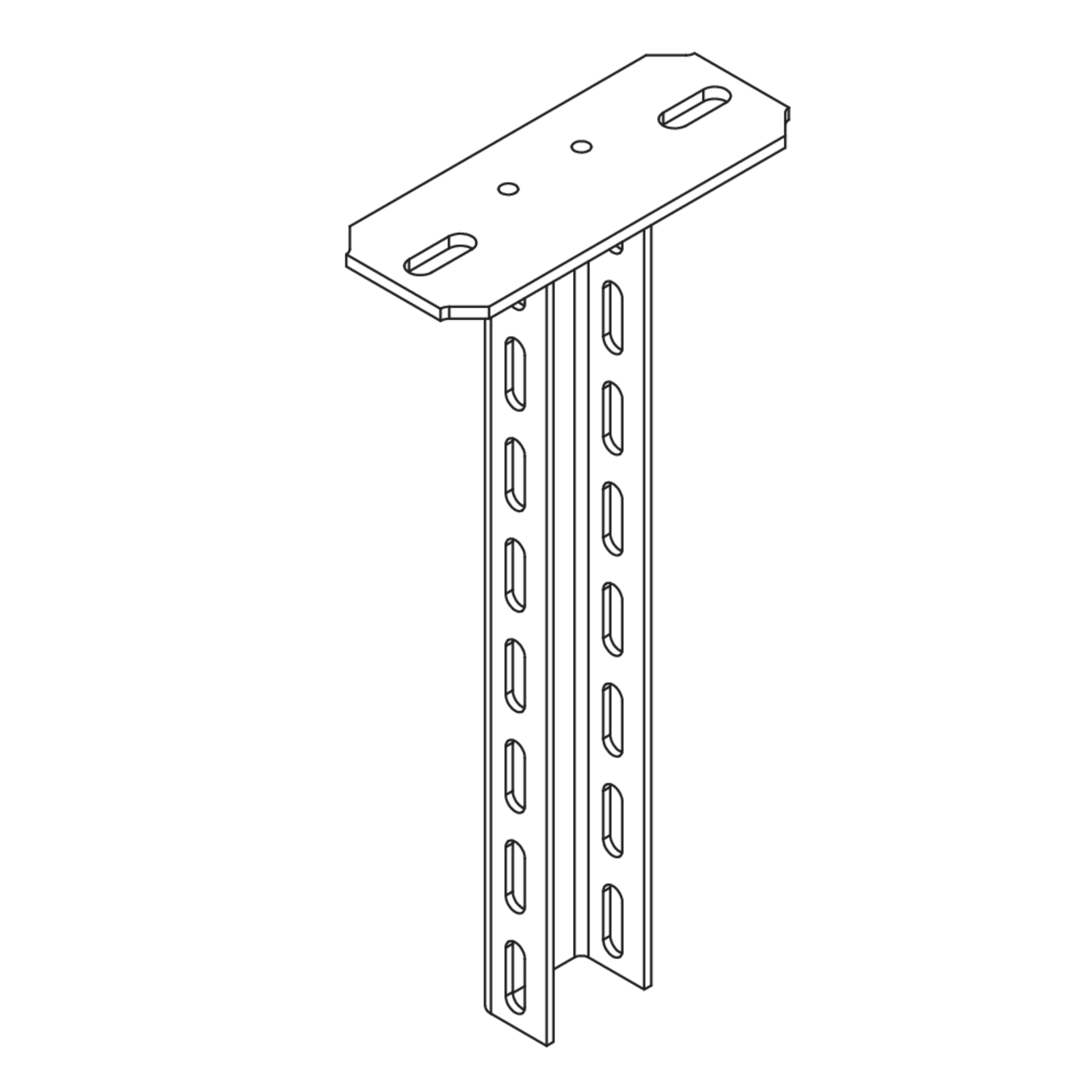

Bracket support KDU 60-04F

Bracket holder, heavy duty, 60x40 mm for escape route installation

Art.-Nr.
KDU 60-04F

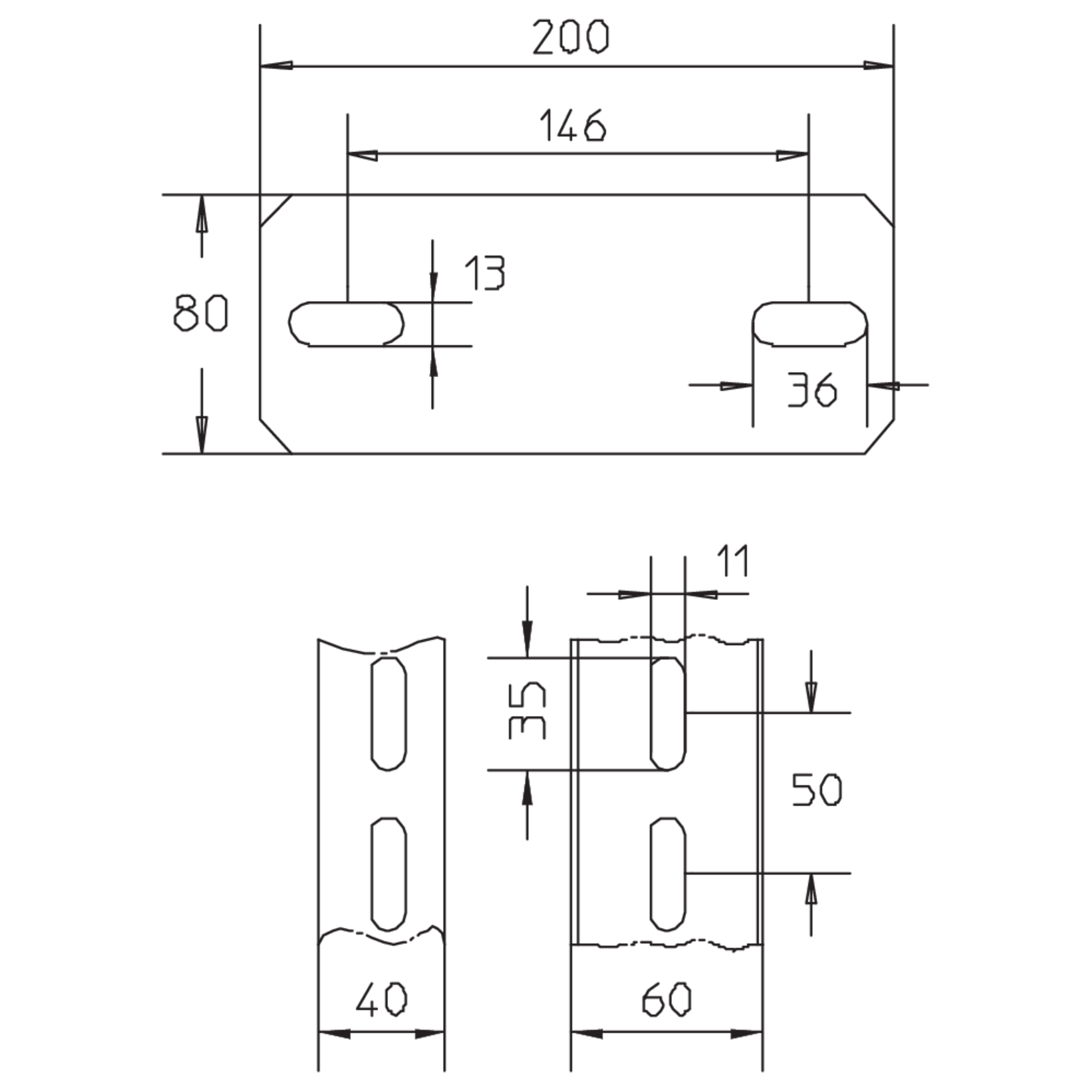

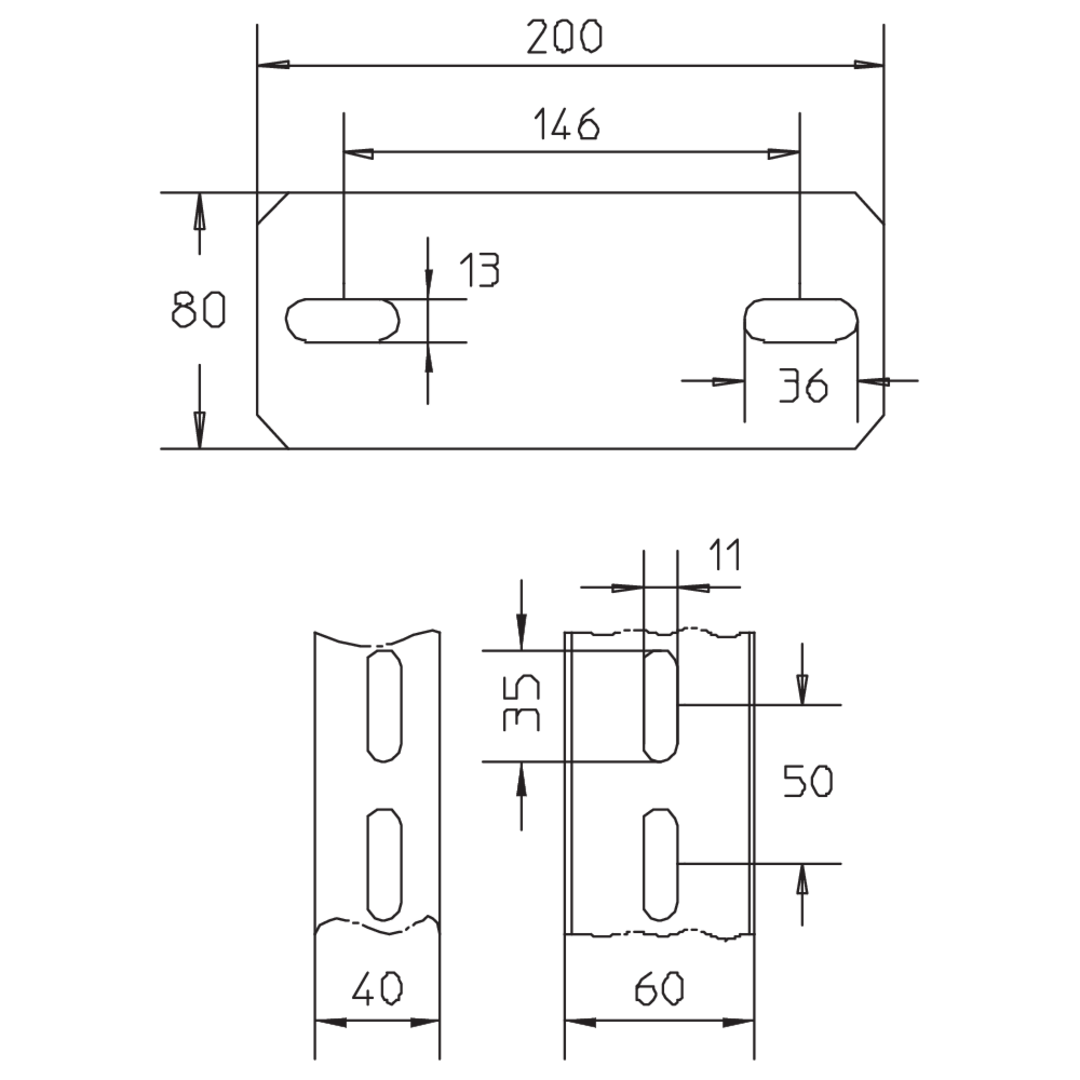

profile height
40 mm
profile width
60 mm
length
400 mm
material thickness
6.00 mm
Weight per storage unit
2.070 kg
Fire protection
Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

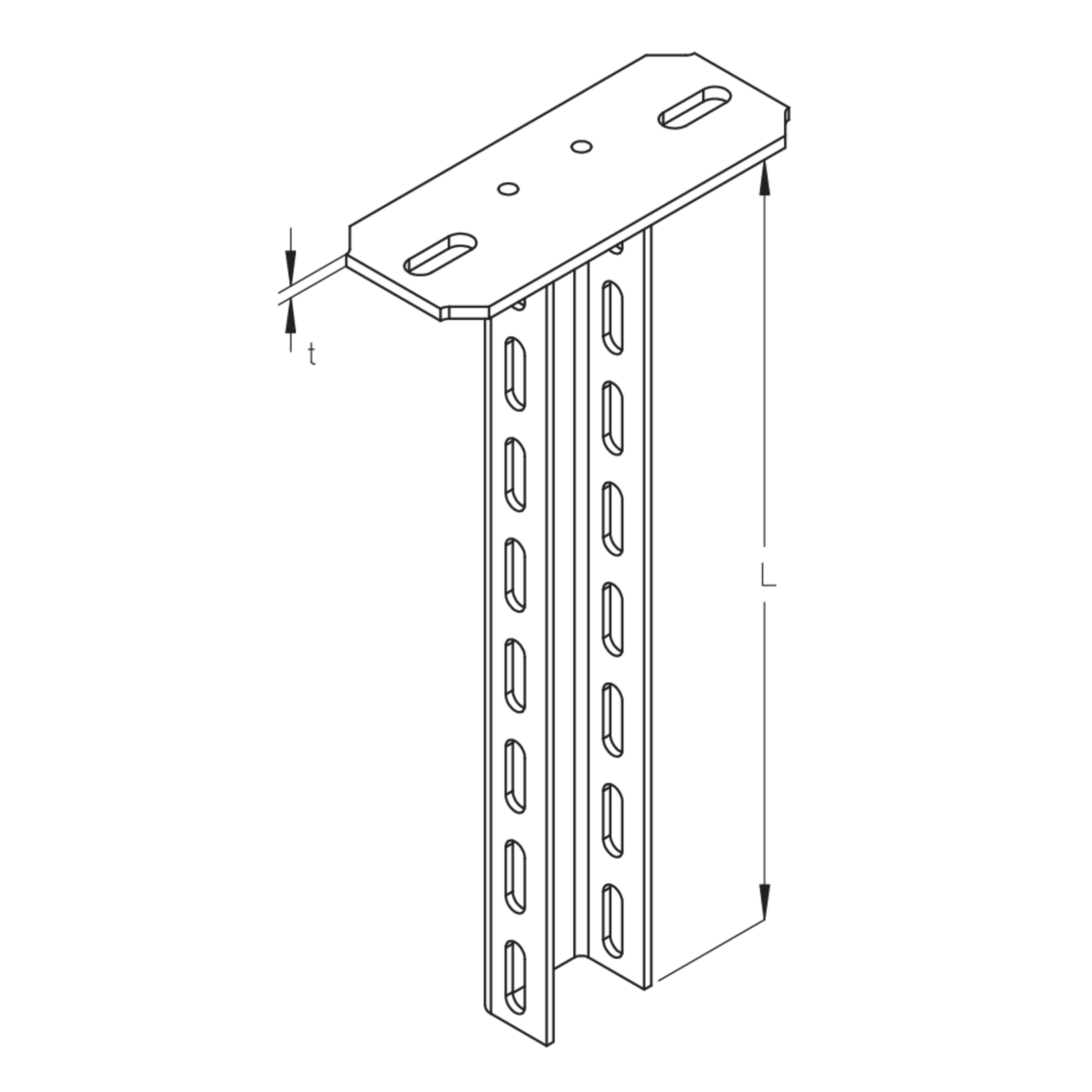

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit

  • KDU 60-02F
    Bracket support KDU 60-02F
    profile height
    40 mm
    profile width
    60 mm
    length
    200 mm
    material thickness
    6.00 mm
    Weight per storage unit
    1.410 kg
    More information
  • KDU 60-03F
    Bracket support KDU 60-03F
    profile height
    40 mm
    profile width
    60 mm
    length
    300 mm
    material thickness
    6.00 mm
    Weight per storage unit
    1.770 kg
    More information
  • KDU 60-04F
    Bracket support KDU 60-04F
    profile height
    40 mm
    profile width
    60 mm
    length
    400 mm
    material thickness
    6.00 mm
    Weight per storage unit
    2.070 kg
    More information
  • KDU 60-05F
    Bracket support KDU 60-05F
    profile height
    40 mm
    profile width
    60 mm
    length
    500 mm
    material thickness
    6.00 mm
    Weight per storage unit
    2.370 kg
    More information
  • KDU 60-06F
    Bracket support KDU 60-06F
    profile height
    40 mm
    profile width
    60 mm
    length
    600 mm
    material thickness
    6.00 mm
    Weight per storage unit
    2.720 kg
    More information
  • KDU 60-07F
    Bracket support KDU 60-07F
    profile height
    40 mm
    profile width
    60 mm
    length
    700 mm
    material thickness
    6.00 mm
    Weight per storage unit
    3.080 kg
    More information
  • KDU 60-08F
    Bracket support KDU 60-08F
    profile height
    40 mm
    profile width
    60 mm
    length
    800 mm
    material thickness
    6.00 mm
    Weight per storage unit
    3.500 kg
    More information
  • KDU 60-09F
    Bracket support KDU 60-09F
    profile height
    40 mm
    profile width
    60 mm
    length
    900 mm
    material thickness
    6.00 mm
    Weight per storage unit
    3.820 kg
    More information
  • KDU 60-10F
    Bracket support KDU 60-10F
    profile height
    40 mm
    profile width
    60 mm
    length
    1000 mm
    material thickness
    6.00 mm
    Weight per storage unit
    4.090 kg
    More information
  • KDU 60-11F
    Bracket support KDU 60-11F
    profile height
    40 mm
    profile width
    60 mm
    length
    1100 mm
    material thickness
    8.00 mm
    Weight per storage unit
    4.900 kg
    More information
  • KDU 60-12F
    Bracket support KDU 60-12F
    profile height
    40 mm
    profile width
    60 mm
    length
    1200 mm
    material thickness
    8.00 mm
    Weight per storage unit
    5.200 kg
    More information
  • KDU 60-13F
    Bracket support KDU 60-13F
    profile height
    40 mm
    profile width
    60 mm
    length
    1300 mm
    material thickness
    8.00 mm
    Weight per storage unit
    5.500 kg
    More information
  • KDU 60-14F
    Bracket support KDU 60-14F
    profile height
    40 mm
    profile width
    60 mm
    length
    1400 mm
    material thickness
    8.00 mm
    Weight per storage unit
    5.900 kg
    More information
  • KDU 60-15F
    Bracket support KDU 60-15F
    profile height
    40 mm
    profile width
    60 mm
    length
    1500 mm
    material thickness
    8.00 mm
    Weight per storage unit
    6.300 kg
    More information
  • KDU 60-16F
    Bracket support KDU 60-16F
    profile height
    40 mm
    profile width
    60 mm
    length
    1600 mm
    material thickness
    8.00 mm
    Weight per storage unit
    6.600 kg
    More information
  • KDU 60-17F
    Bracket support KDU 60-17F
    profile height
    40 mm
    profile width
    60 mm
    length
    1700 mm
    material thickness
    8.00 mm
    Weight per storage unit
    7.000 kg
    More information
  • KDU 60-18F
    Bracket support KDU 60-18F
    profile height
    40 mm
    profile width
    60 mm
    length
    1800 mm
    material thickness
    8.00 mm
    Weight per storage unit
    7.300 kg
    More information
  • KDU 60-19F
    Bracket support KDU 60-19F
    profile height
    40 mm
    profile width
    60 mm
    length
    1900 mm
    material thickness
    8.00 mm
    Weight per storage unit
    7.700 kg
    More information
  • KDU 60-20F
    Bracket support KDU 60-20F
    profile height
    40 mm
    profile width
    60 mm
    length
    2000 mm
    material thickness
    8.00 mm
    Weight per storage unit
    7.800 kg
    More information

Details

    Tender texts

    Ausschreiben.de

    Tender texts for this product

    Open Link
    Heinze.de

    Tender texts for this product

    Open Link

    Downloads

      • de

      P-MPA-E-14-010 - KDU57/KDU 60 - Functional maintenance certificate

      General building authority test certificate
      DIN 4102-12
      Cable manufacturer: Kabelwerke Eupen AG
      Fire resistance duration: F30; F60; F90
      Functional maintenance classes: E30; E60; F90
      Cable load: 20 kg/m
      Fastening distance: ≤ 1.5 m
      Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
      Period of validity: 23/07/2029

      PDF (4.94 MB)

      DownloadDownload

      • de

      P-MPA-E-16-013 - KDU57/KDU 60 - Functional maintenance certificate

      General building authority test certificate
      DIN 4102-12
      Cable manufacturer: Studer Cables AG
      Fire resistance duration: F30; F60; F90
      Functional maintenance classes: E30; E60; F90
      Cable load: 20 kg/m
      Fastening distance: ≤ 1.5 m
      Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
      Period of validity: 30.08.2027

      PDF (7.84 MB)

      DownloadDownload

      • de

      P-MPA-E-16-007 - KDU60 - Functional maintenance certificate

      DIN 4102-12
      Cable manufacturer: Dätwyler
      Fire resistance duration: F30; F60; F90
      Functional maintenance classes: E30; E60; F90
      Cable load: ≤ 30 kg/m
      Fastening distance: ≤ 1.5 m
      Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
      Validity period: 01.02.2027

      PDF (8.13 MB)

      DownloadDownload

      • de

      MPABS-2402543 - Fire protection statement

      DIN 4102-12
      Standardised supporting structure: Cable trays
      Fire resistance duration: F30; F60; F90
      Functional maintenance classes: E30; E60; F90
      Cable load: ≤ 10 kg/m
      Fastening distance: ≤ 1.2 m
      Period of validity: 15.01.2030

      PDF (11.03 MB)

      DownloadDownload

      • de

      MPABS-2402542 - Fire protection statement

      DIN 4102-12
      Standardised supporting structure: Cable ladders
      Fire resistance duration: F30; F60; F90
      Functional maintenance classes: E30; E60; F90
      Cable load: ≤ 20 kg/m
      Fastening distance: ≤ 1.2 m
      Period of validity: 15.01.2030

      PDF (4.85 MB)

      DownloadDownload

      • de

      2104/681/23 - Fire protection assessment

      False ceiling installation, escape route installation, MLAR, LAR
      Fire resistance duration: F30
      Fire resistance: 30 minutes
      Fastening distance: ≤ 1.5 m
      Period of validity: 18.12.2028

      PDF (5.77 MB)

      DownloadDownload

      • de

      GA-2017/068 - Expert statement

      DIN 4102-12
      Fire protection fastening on load-bearing timber components
      Fire resistance duration: F30; F60
      Functional maintenance classes: E30; E60
      Cable load: ≤ 10 kg/m, ≤ 20 kg/m, ≤ 30 kg/m
      Mounting distance: ≤ 1.5 m
      Period of validity: 22/08/2027

      PDF (1.49 MB)

      DownloadDownload
