KDU 40

Bracket holder, 40x30 mm for escape route installation

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

H

height

HP

profile height

B

width

BP

profile width

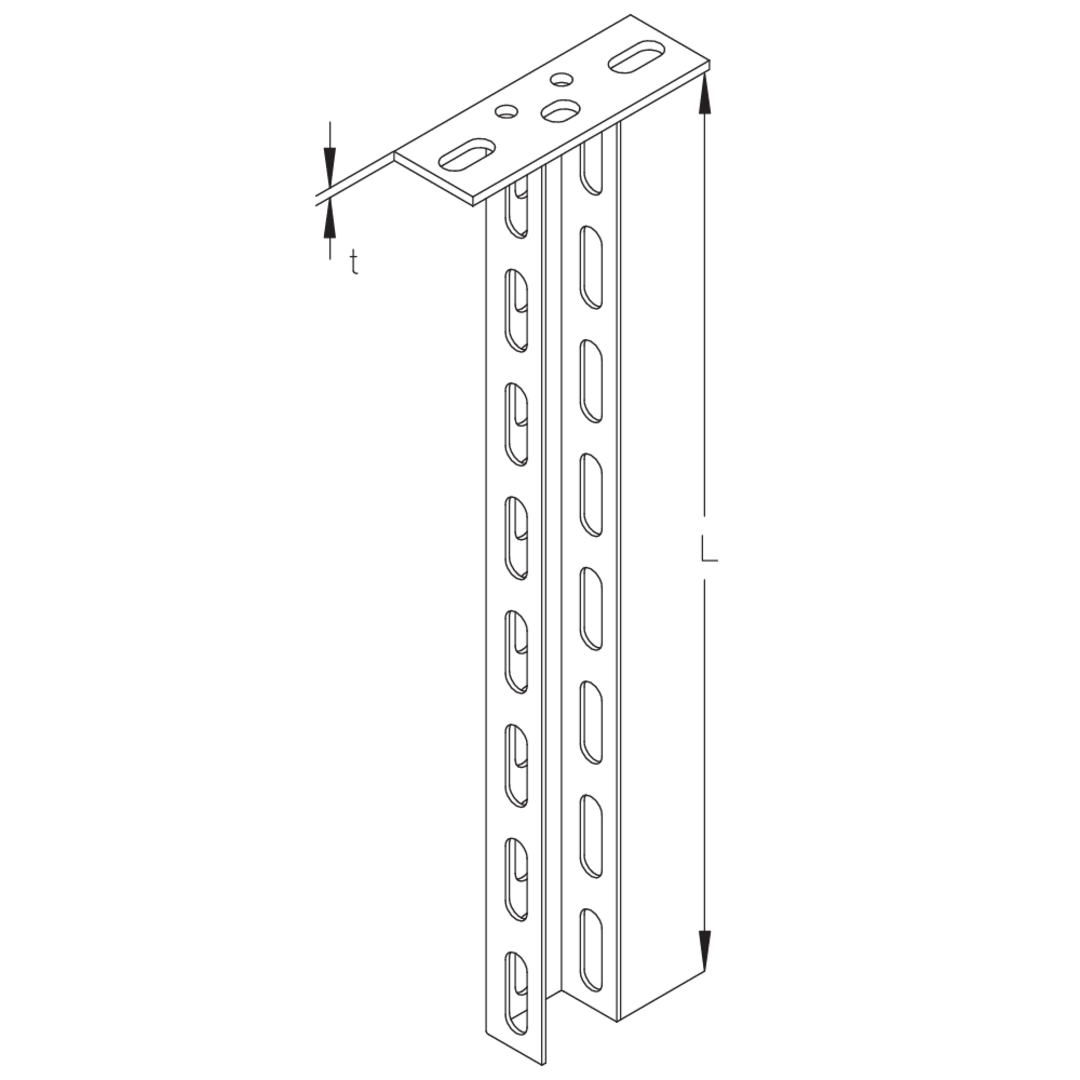

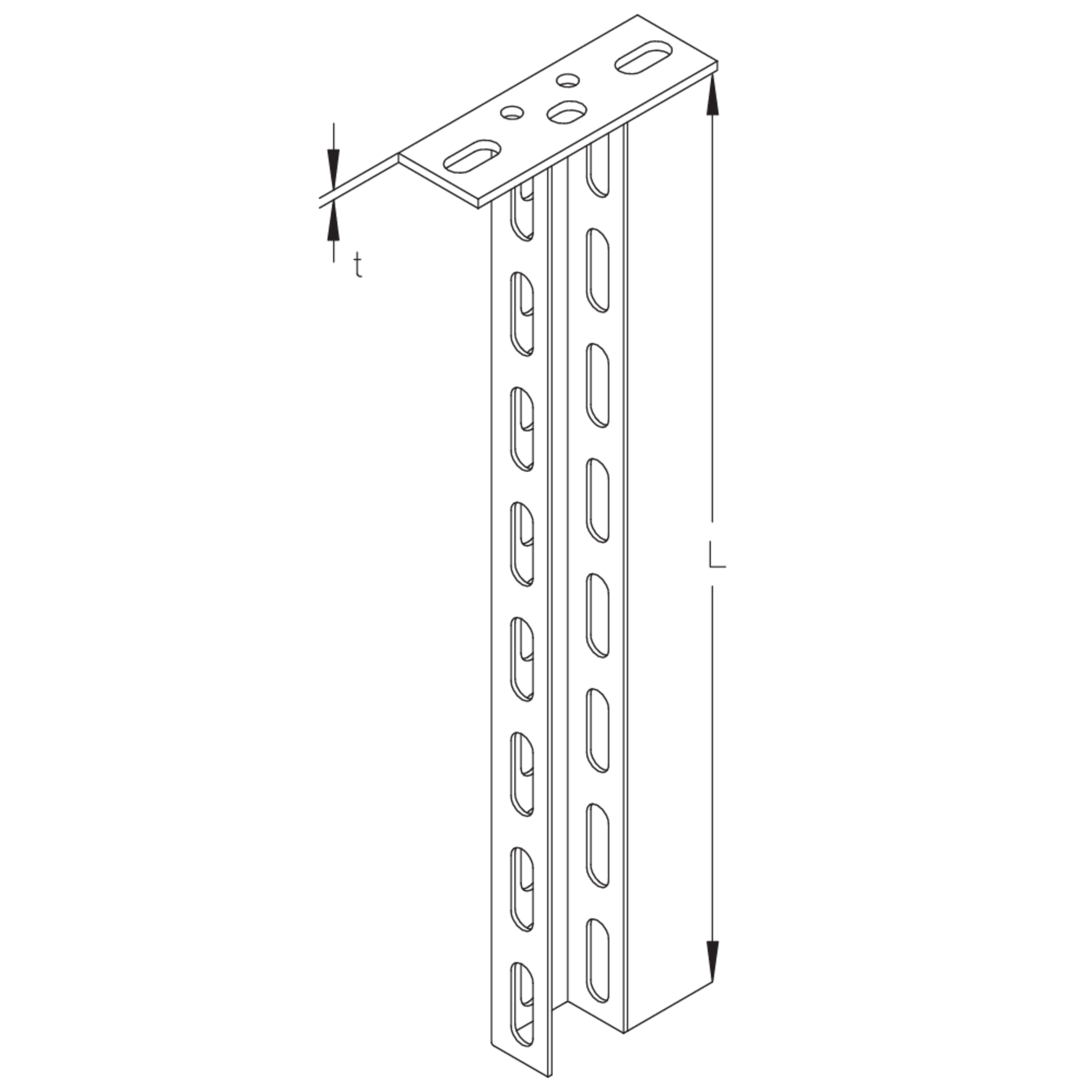

L

length

t

material thickness

G

Weight per storage unit

Geeignet für Funktionserhalt

  • KDU 40-02F
    Bracket Support KDU 40-02F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    200 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.380 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-03F
    Bracket Support KDU 40-03F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    300 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.500 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-04F
    Bracket Support KDU 40-04F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    400 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.620 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-05F
    Bracket Support KDU 40-05F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    500 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.730 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-06F
    Bracket Support KDU 40-06F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    600 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.860 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-07F
    Bracket Support KDU 40-07F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    700 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.980 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-08F
    Bracket Support KDU 40-08F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    800 mm
    material thickness
    4.00 mm
    Weight per storage unit
    1.100 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-09F
    Bracket Support KDU 40-09F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    900 mm
    material thickness
    4.00 mm
    Weight per storage unit
    1.220 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-10F
    Bracket Support KDU 40-10F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    1000 mm
    material thickness
    4.00 mm
    Weight per storage unit
    1.340 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-11F
    Bracket Support KDU 40-11F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    1100 mm
    material thickness
    4.00 mm
    Weight per storage unit
    1.460 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-12F
    Bracket Support KDU 40-12F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    1200 mm
    material thickness
    4.00 mm
    Weight per storage unit
    1.580 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-13F
    Bracket Support KDU 40-13F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    1300 mm
    material thickness
    4.00 mm
    Weight per storage unit
    1.700 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-14F
    Bracket Support KDU 40-14F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    1400 mm
    material thickness
    4.00 mm
    Weight per storage unit
    1.820 kg
    Geeignet für Funktionserhalt
    Ja
    More information
  • KDU 40-15F
    Bracket Support KDU 40-15F
    height
    30 mm
    profile height
    30 mm
    width
    40 mm
    profile width
    40 mm
    length
    1500 mm
    material thickness
    4.00 mm
    Weight per storage unit
    1.940 kg
    Geeignet für Funktionserhalt
    Ja
    More information
