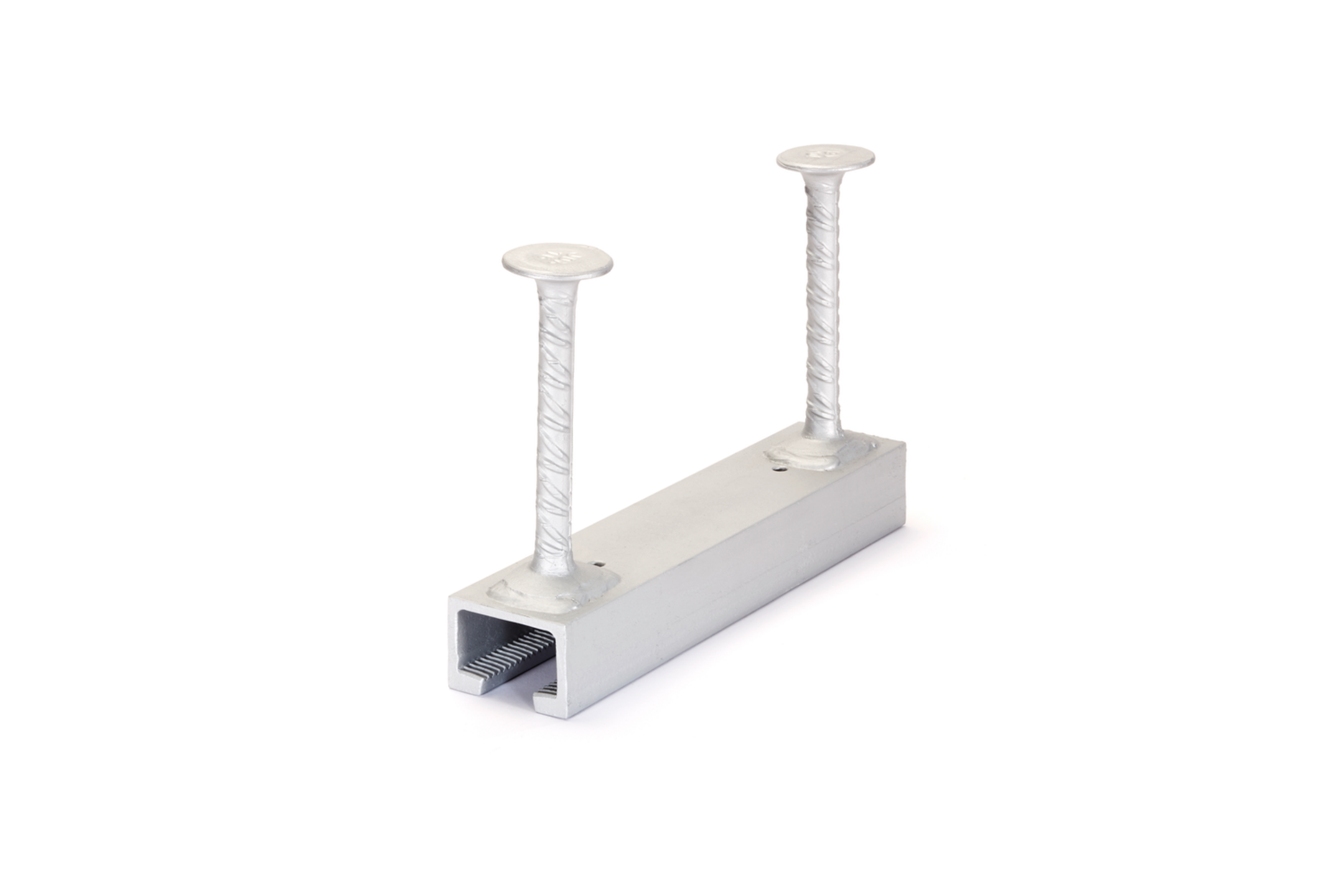

Anchor channel, hot-rolled, toothed, ribbed anchor with large undercut profile
The anchor channel JXA PC W 64/44 is made of hot-dip galvanised steel (fv) or stainless steel (A4). The material is 5 mm thick and it can be supplied in any desired length up to a maximum of 6 m. It is paired with the bolts JXE M20 - JXE M24. The profile is 64 mm wide and 44 mm high. The filling is made of polyethylene (PE).
H
installation height
HP
profile height
BP
profile width
L
length
t
Material strength profile
G
Weight per storage unit
de
en
Valid from February 1, 2025, updated version from 27/09/2025.
de
en
Compact overview of anchor channels JTA K, JTA W, JZA K, JXA W, JTA-PC W
ZIP, 185.94 MB
DownloadDownload
de
en
Assembly Instructions
de
en
Declaration
de
en
Declaration
de
en
pl
Declaration of Performance No. DOP_JTA_1124_EN
de
en
Approval
de
en
Technical information
Anzahl:
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
