Profiled metal sheet channel rail for fastening profiled sheets to reinforced concrete components

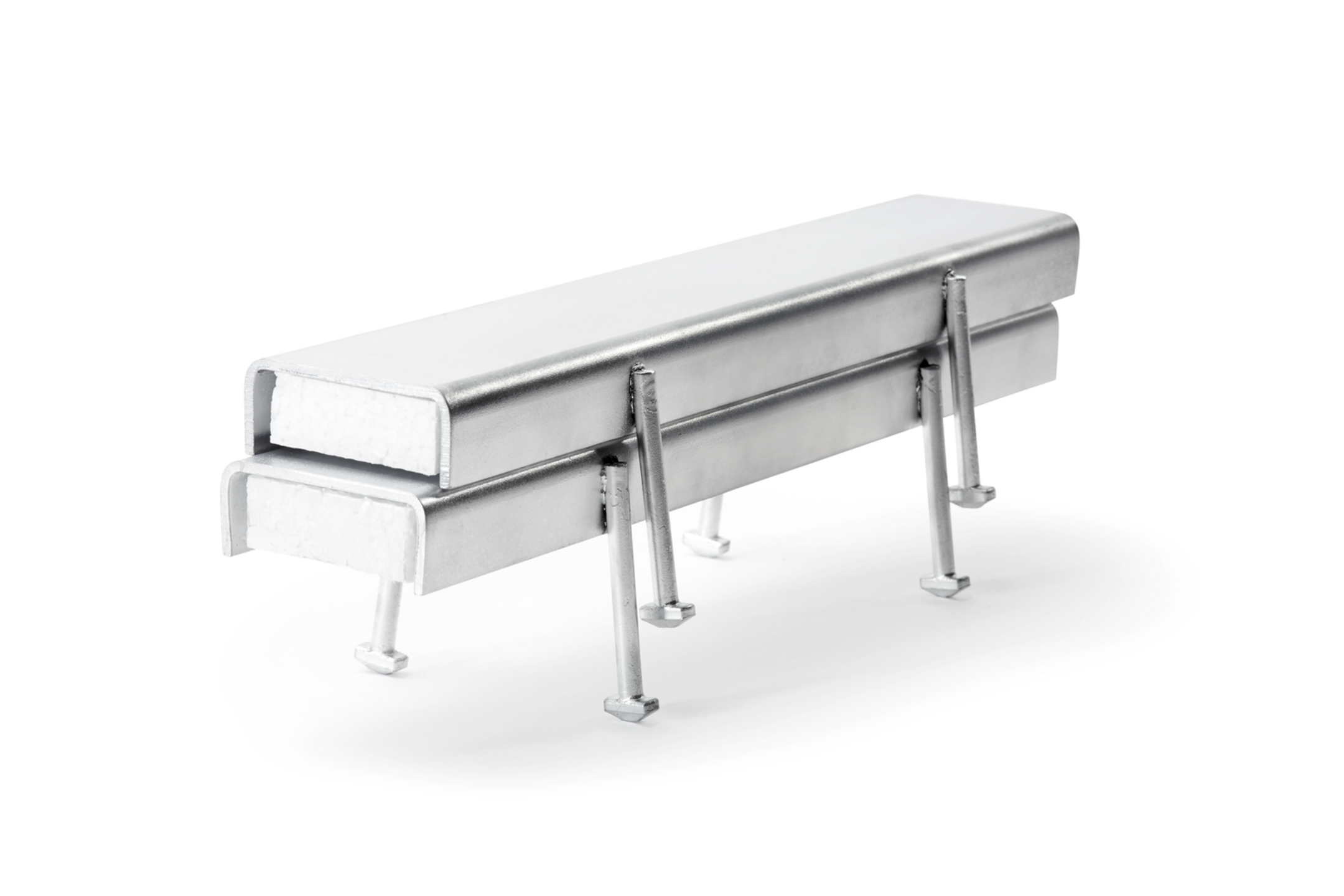

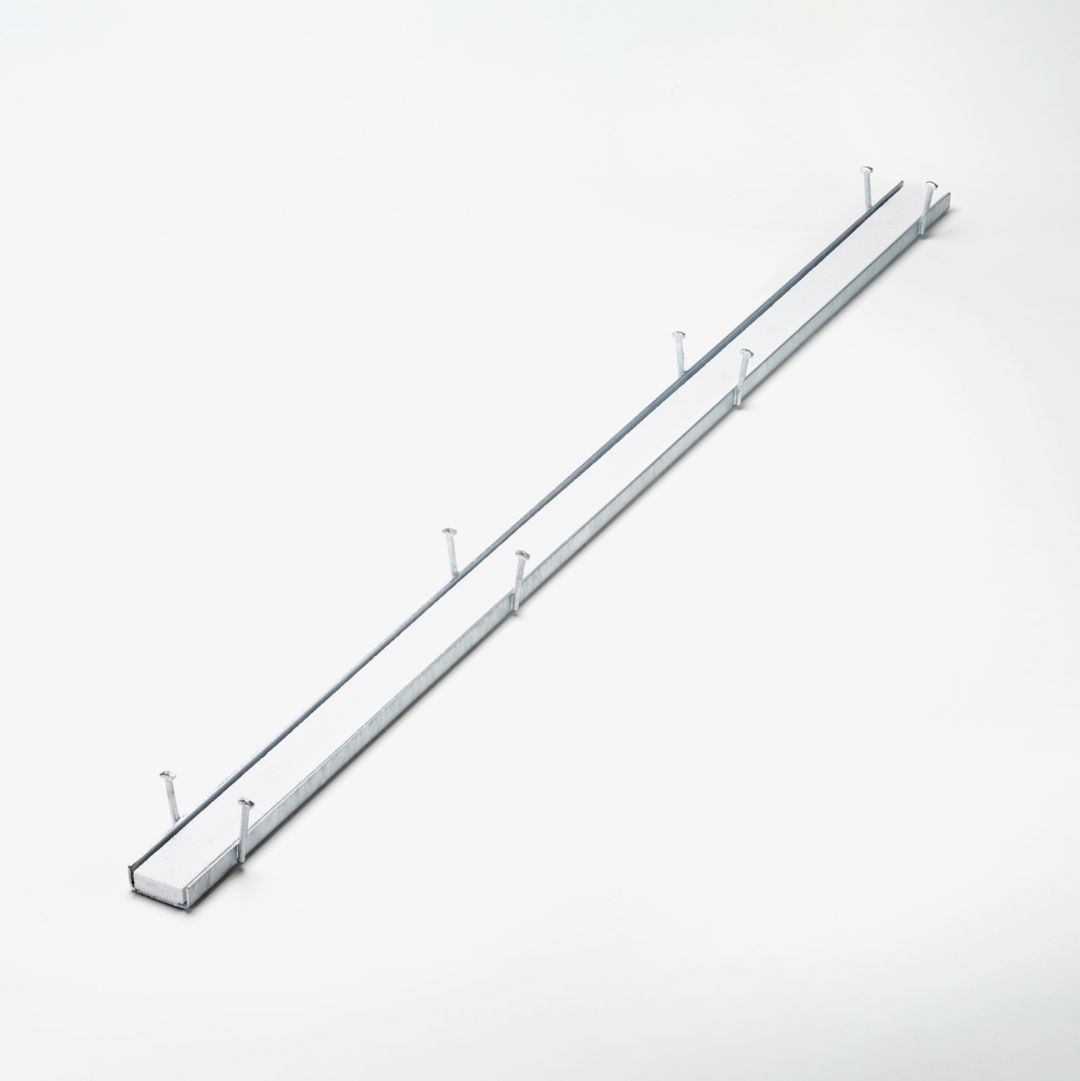

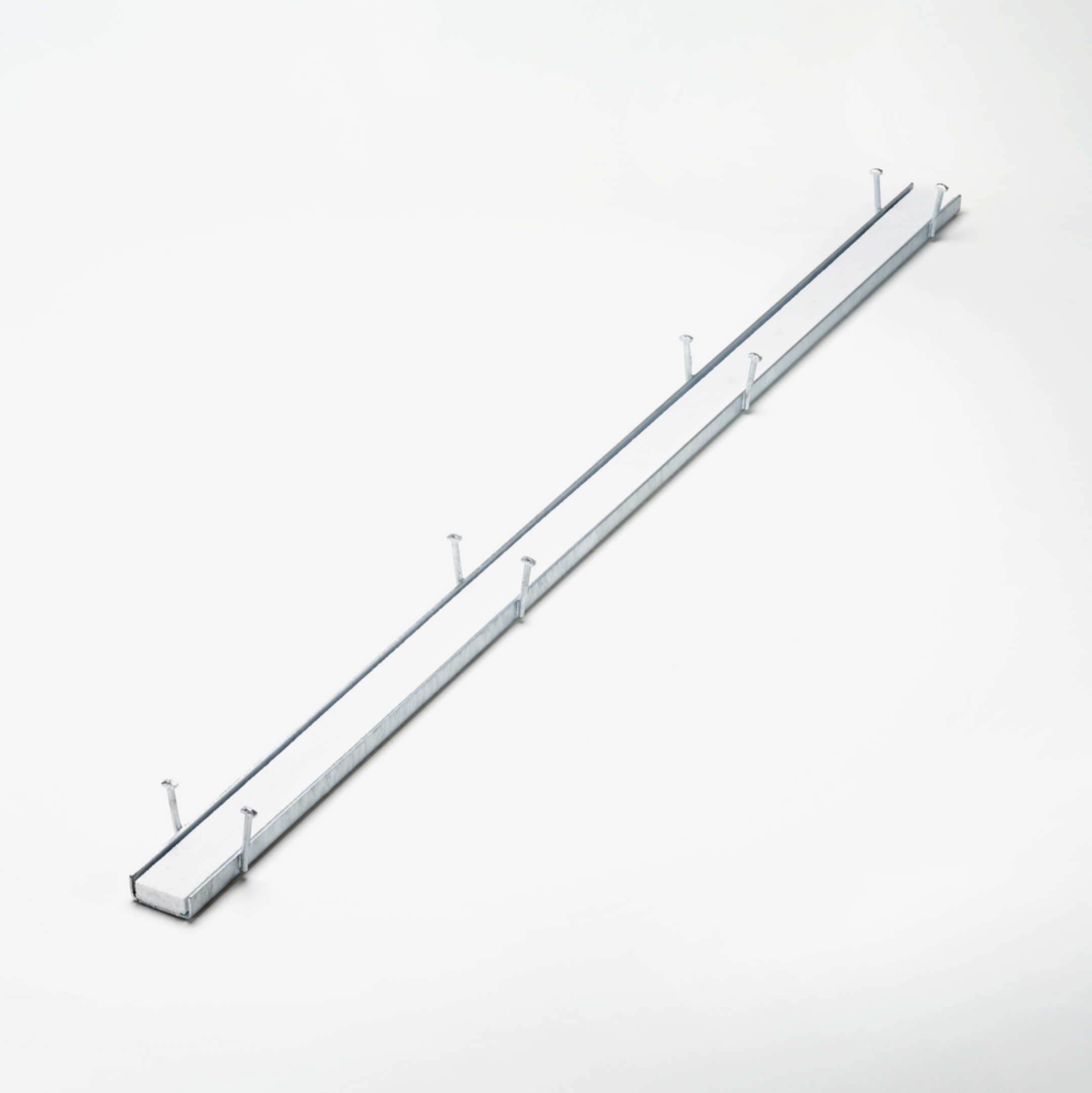

The profiled metal sheet channel JTB-uni is approved by the building supervisory authority (technical approval number: Z-21.4-161. It is made of hot-dip galvanized steel (fv) or stainless steel (A4). With a bearing length of 3000 mm, the channel is available with a profile width of 60 mm. The profile height is 22 mm, the material thickness is 3 mm. Our end anchors are certified as well and available for customized cut-to-length channels. These are fastened to the channels with self-tapping bolts. The filling is made of polystyrene (PS).
en
de
Technical information
Assembly instructions for: JTB-AR, JTB-uni and JTB-LA
PDF (356.50 KB)
DownloadDownload
de
Approval
PDF (1,015.82 KB)
DownloadDownload
Certificate
PDF (72.43 KB)
DownloadDownload
en
de
Valid from February 1st, 2026
Anzahl:
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
