JTA W 72/48

Anchor channel, hot-rolled, with round or I anchor

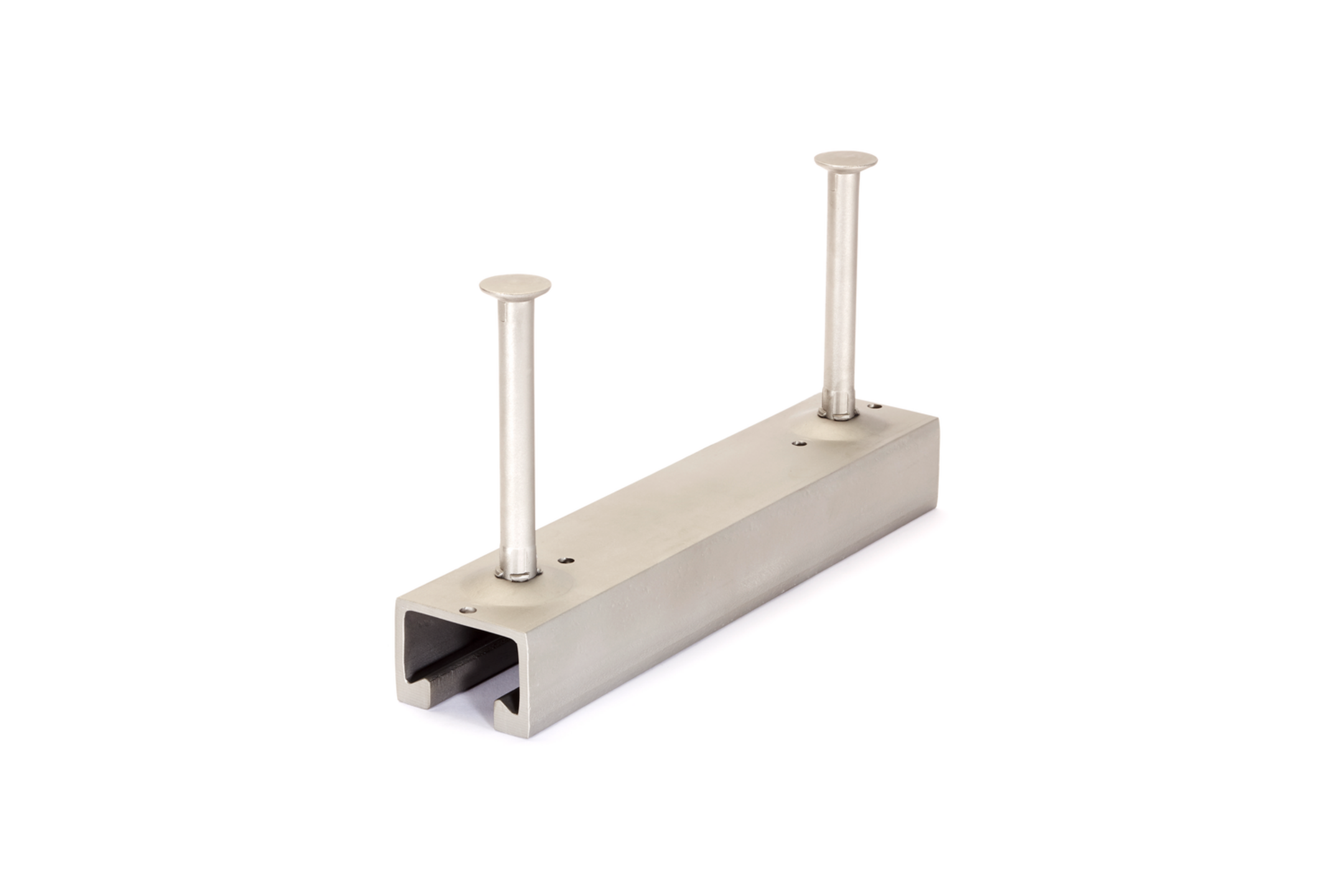

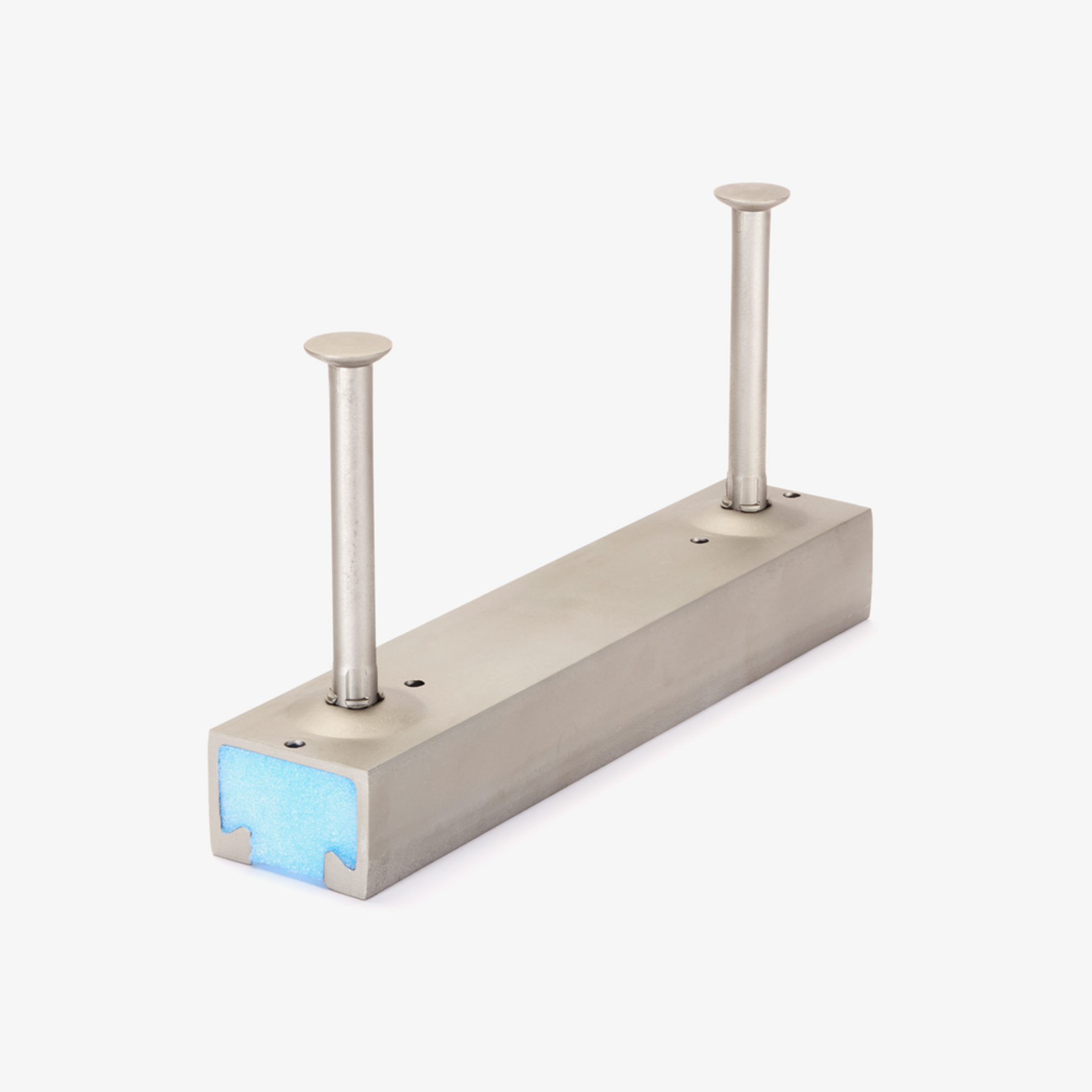

The anchor channel JTA W 72/48 is approved throughout Europe by ETA-09/0338 and almost worldwide by ICC-ES ESR‐2854. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE. It is made of hot-dip galvanised steel (fv) or stainless steel (A4). It can be supplied in any desired length up to a maximum of 6 m and is paired with the bolts JA M20 - JA M30. The profile is 72 mm wide and 48 mm high. The filling is made of polyethylene (PE).

Fire protection
Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
European Technical Assessment: ETA-09/0338
Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

H

installation height

HP

profile height

BP

profile width

L

length

t

Material strength profile

Number of anchors

G

Weight per storage unit

  • JTAW7248-0150-FVKCE
    JORDAHL anchor channel W72/48
    installation height
    195 mm
    profile height
    48 mm
    profile width
    72 mm
    length
    150 mm
    Material strength profile
    5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    2.062 kg
    More information
  • JTAW7248-0200-FVKCE
    JORDAHL anchor channel W72/48
    installation height
    195 mm
    profile height
    48 mm
    profile width
    72 mm
    length
    200 mm
    Material strength profile
    5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    2.548 kg
    More information
  • JTAW7248-0250-FVKCE
    JORDAHL anchor channel W72/48
    installation height
    195 mm
    profile height
    48 mm
    profile width
    72 mm
    length
    250 mm
    Material strength profile
    5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    3.035 kg
    More information
  • JTAW7248-0300-FVKCE
    JORDAHL anchor channel W72/48
    installation height
    195 mm
    profile height
    48 mm
    profile width
    72 mm
    length
    300 mm
    Material strength profile
    5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    3.521 kg
    More information
  • JTAW7248-0350-FVKCE
    JORDAHL anchor channel W72/48
    installation height
    195 mm
    profile height
    48 mm
    profile width
    72 mm
    length
    350 mm
    Material strength profile
    5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    4.007 kg
    More information
  • JTAW7248-0400-FVKCE
    JORDAHL anchor channel W72/48
    installation height
    195 mm
    profile height
    48 mm
    profile width
    72 mm
    length
    400 mm
    Material strength profile
    5 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    4.795 kg
    More information
  • JTAW7248-0550-FVKCE
    JORDAHL anchor channel W72/48
    installation height
    195 mm
    profile height
    48 mm
    profile width
    72 mm
    length
    550 mm
    Material strength profile
    5 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    6.254 kg
    More information
  • JTAW7248-0800-FVKCE
    JORDAHL anchor channel W72/48
    installation height
    195 mm
    profile height
    48 mm
    profile width
    72 mm
    length
    800 mm
    Material strength profile
    5 mm
    Number of anchors
    4 pcs
    Weight per storage unit
    8.988 kg
    More information
  • JTAW7248-1050-FVKCE
    JORDAHL anchor channel W72/48
    installation height
    195 mm
    profile height
    48 mm
    profile width
    72 mm
    length
    1050 mm
    Material strength profile
    5 mm
    Number of anchors
    5 pcs
    Weight per storage unit
    11.721 kg
    More information
  • JTAW7248-6000-FVKCE
    JORDAHL anchor channel W72/48
    installation height
    195 mm
    profile height
    48 mm
    profile width
    72 mm
    length
    6000 mm
    Material strength profile
    5 mm
    Number of anchors
    21 pcs
    Weight per storage unit
    10.783 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

installation height

HP

profile height

BP

profile width

L

length

t

Material strength profile

Number of anchors

G

Weight per storage unit

  • JTAW7248-6000-A4KCE
    JORDAHL anchor channel W72/48
    installation height
    195 mm
    profile height
    48 mm
    profile width
    72 mm
    length
    6000 mm
    Material strength profile
    5 mm
    Number of anchors
    21 pcs
    Weight per storage unit
    9.990 kg
    More information

Details

  • Fire protection
  • Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
  • European Technical Assessment: ETA-09/0338
  • Approved throughout Europe by ETA-09/0338
  • Environmental Product Declaration EPD-JDL-20200260-IBB1-DE
  • ICC‐ES Evaluation Report ESR‐2854
