JTA RT W 50/30

Anchor channel, hot-rolled, for fastening façades to ceiling tops

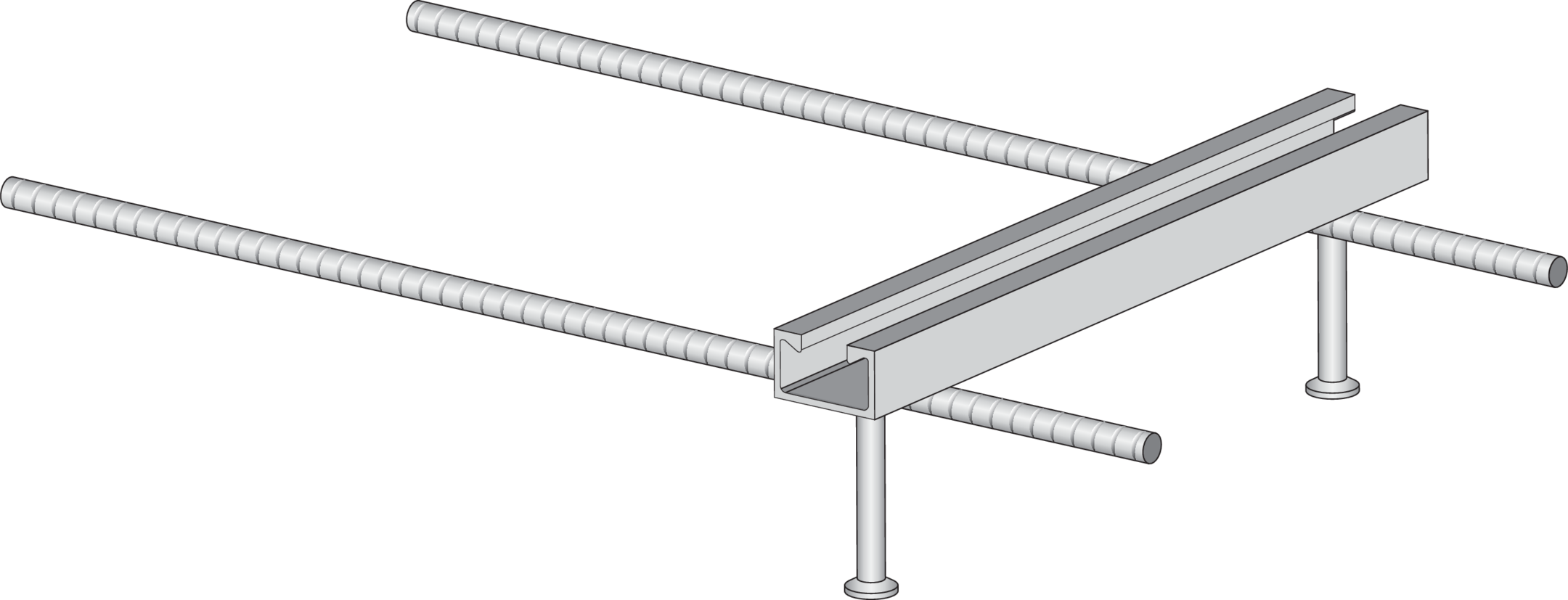

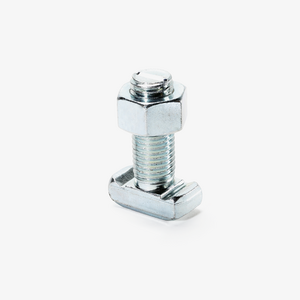

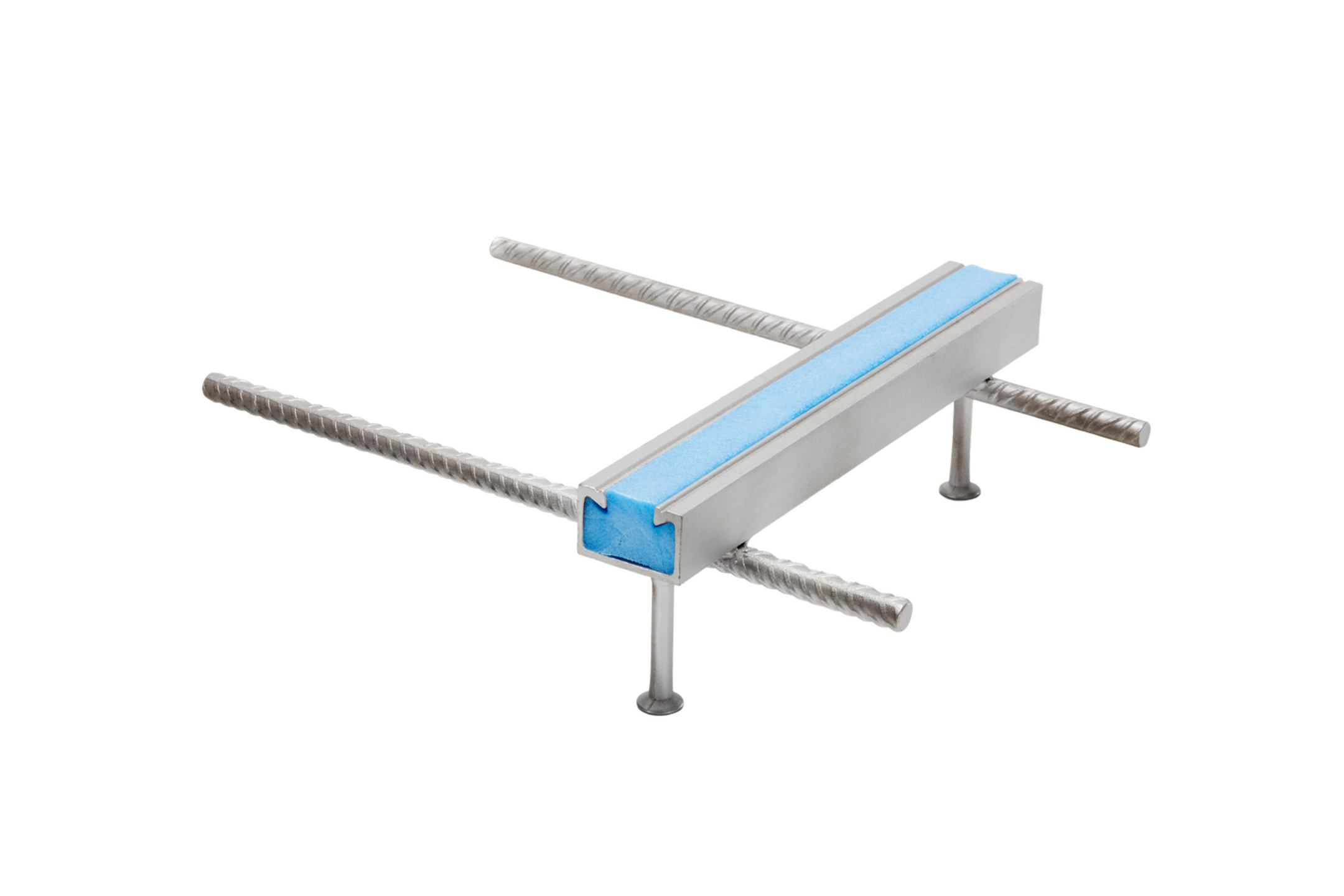

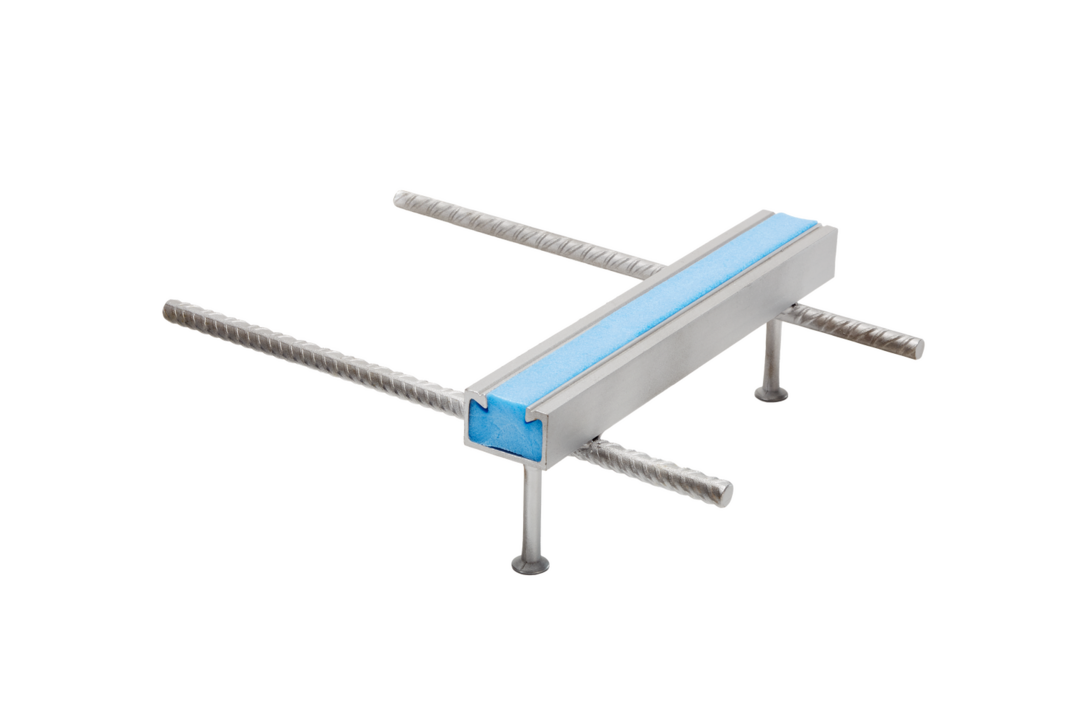

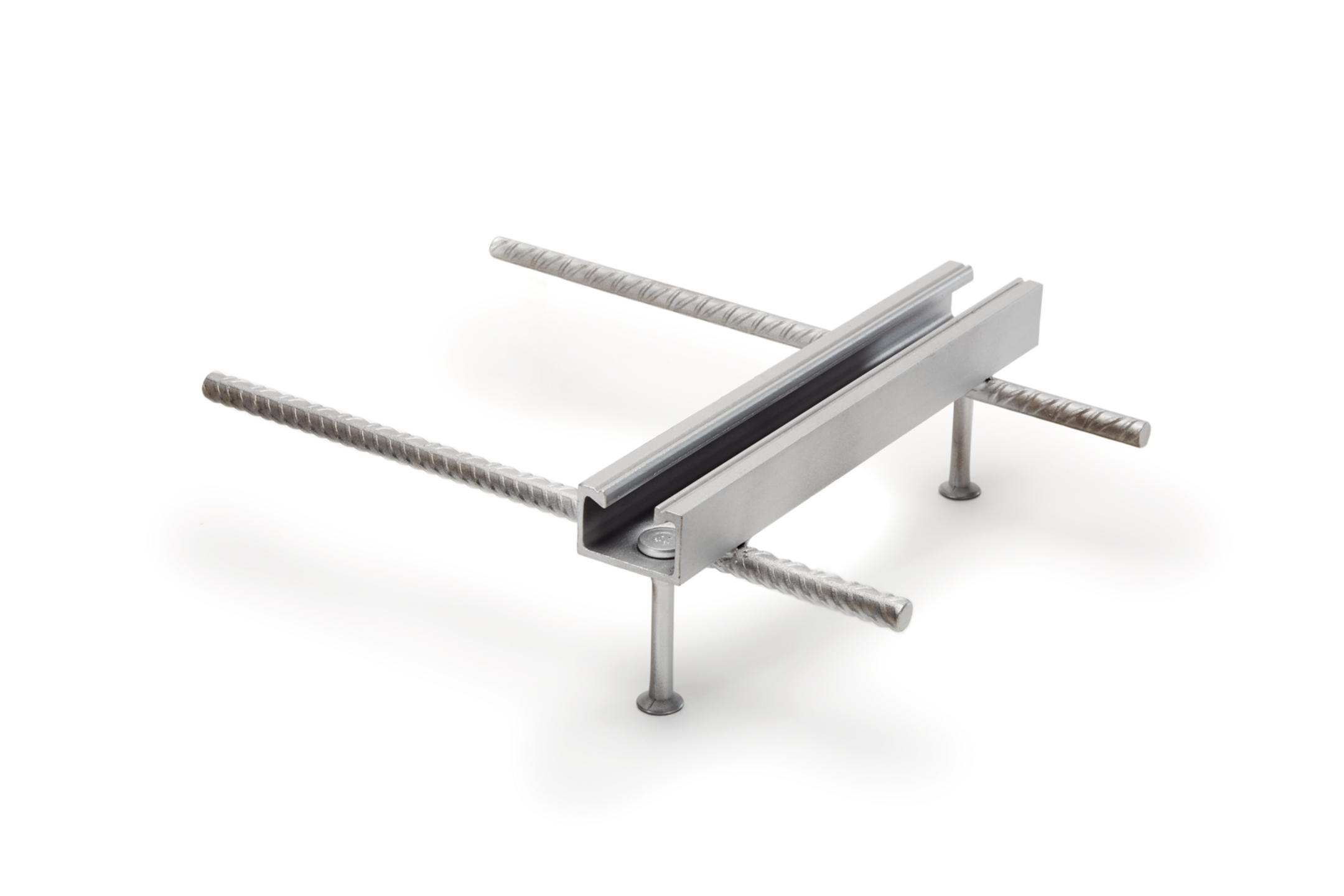

The anchor channel JTA RT W 50/30 is made of hot-dip galvanised steel (fv) or stainless steel (A4). The JTA RT W 50/30 has round anchors and reinforcing bars made of reinforcing steel. It is available in profile lengths from 150 to 550 mm and in several variants for the concrete cover and is paired with the bolts JB M10 - JB M20. The filling is made of polyethylene (PE).

Get in touchDownload datasheet

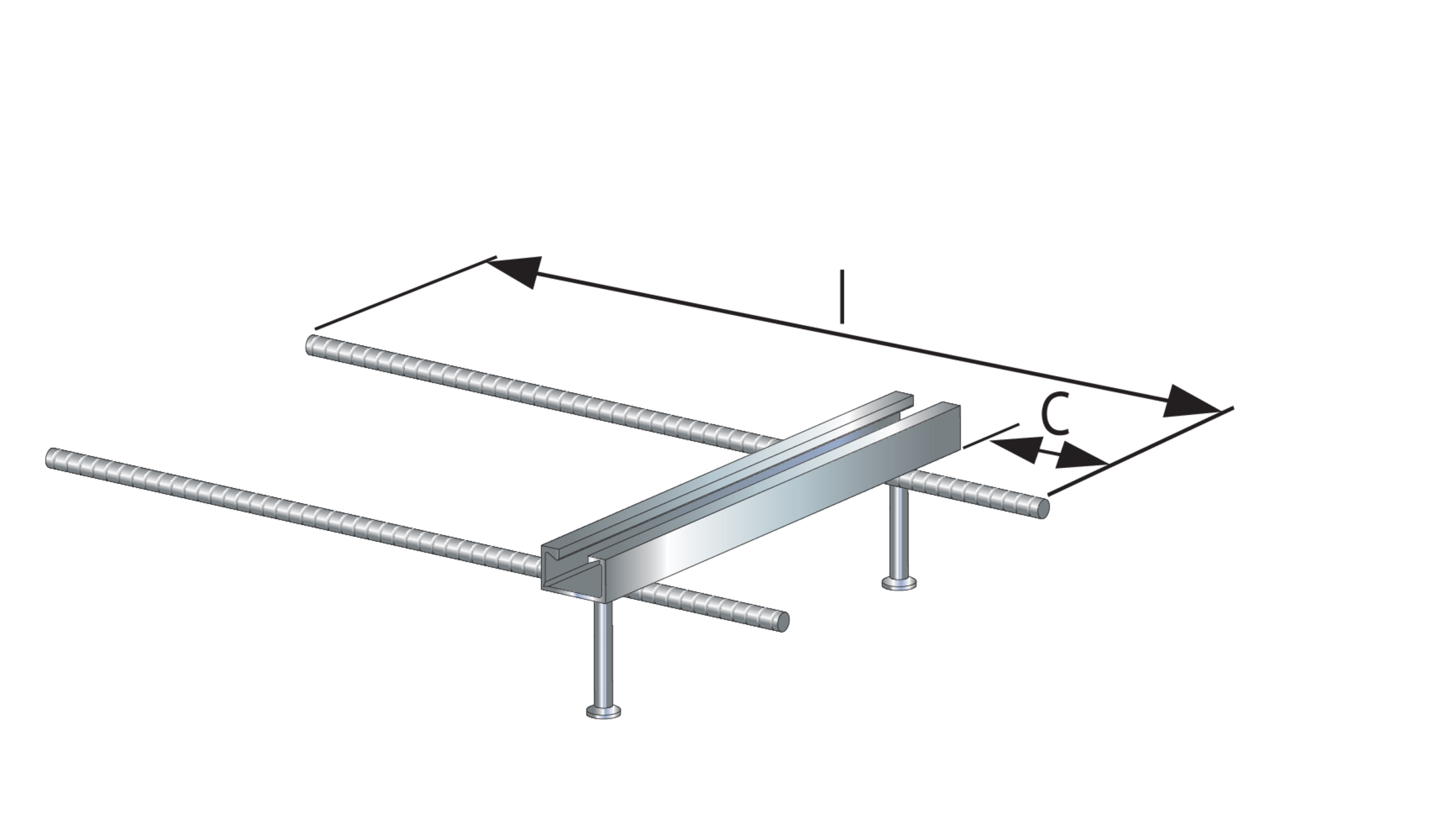

Variants

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

G

Weight per storage unit

  • JTARTW5030-0150-01-FVK
    JORDAHL anchor channel RTW50/30, type01
    height
    100 mm
    width
    365 mm
    length
    150 mm
    Weight per storage unit
    1.160 kg
    More information
  • JTARTW5030-0150-02-FVK
    JORDAHL anchor channel RTW50/30, type02
    height
    100 mm
    width
    390 mm
    length
    150 mm
    Weight per storage unit
    1.190 kg
    More information
  • JTARTW5030-0150-03-FVK
    JORDAHL anchor channel RTW50/30, type03
    height
    100 mm
    width
    415 mm
    length
    150 mm
    Weight per storage unit
    1.230 kg
    More information
  • JTARTW5030-0150-04-FVK
    JORDAHL anchor channel RTW50/30, type04
    height
    100 mm
    width
    440 mm
    length
    150 mm
    Weight per storage unit
    1.260 kg
    More information
  • JTARTW5030-0150-05-FVK
    JORDAHL anchor channel RTW50/30, type05
    height
    100 mm
    width
    465 mm
    length
    150 mm
    Weight per storage unit
    1.300 kg
    More information
  • JTARTW5030-0150-06-FVK
    JORDAHL anchor channel RTW50/30, type06
    height
    100 mm
    width
    490 mm
    length
    150 mm
    Weight per storage unit
    1.330 kg
    More information
