JMA-QE Series 18

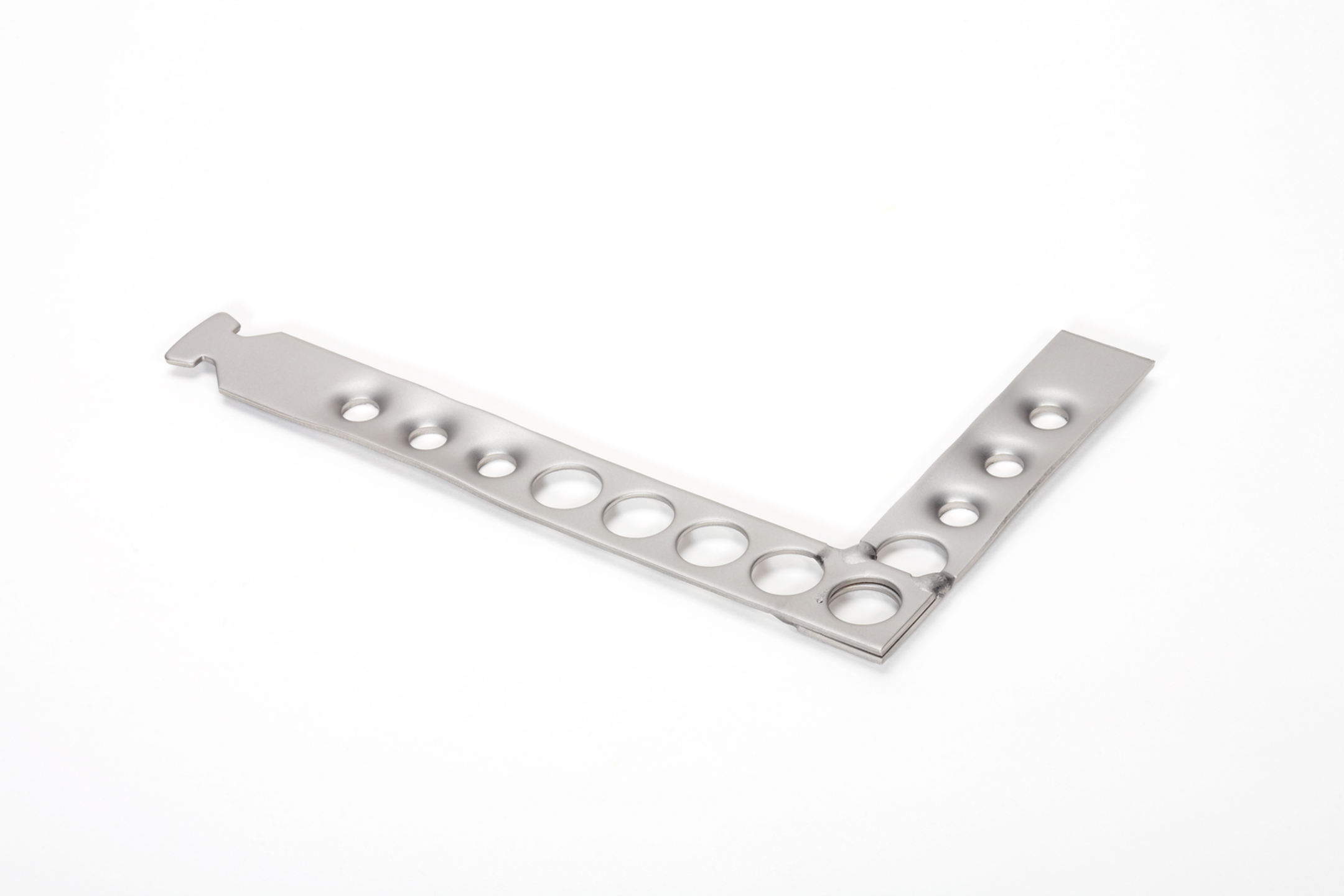

Brick tie anchor for fastening masonry to channels

The brick tie anchor JMA-QE in L-shape of series 18 is made of stainless steel or hot-dip galvanised steel and is suitable for profiles K 38/17.

Get in touch Download datasheet

Variants

Article

H

Höhe

B

Breite

L

Länge

L1

Länge 1

L2

Länge 2

G

Gewicht je Lagermengeneinheit
  • MA120120QE18 A4
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    120 mm
    145 mm
    20 mm
    120 mm
    0.123 kg
    More information
  • MA120120QE18 FV
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    120 mm
    145 mm
    20 mm
    120 mm
    0.174 kg
    More information
  • MA120180QE18 A4
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    180 mm
    145 mm
    20 mm
    120 mm
    0.143 kg
    More information
  • MA120180QE18 FV
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    180 mm
    145 mm
    20 mm
    120 mm
    0.191 kg
    More information
  • MA120300QE18 A4
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    300 mm
    145 mm
    20 mm
    120 mm
    0.130 kg
    More information
  • MA120300QE18 FV
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    300 mm
    145 mm
    20 mm
    120 mm
    0.169 kg
    More information
  • MA180120QE18 A4
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    120 mm
    205 mm
    20 mm
    180 mm
    0.143 kg
    More information
  • MA180120QE18 FV
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    120 mm
    205 mm
    20 mm
    180 mm
    0.191 kg
    More information
  • MA180180QE18 A4
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    180 mm
    205 mm
    20 mm
    180 mm
    0.164 kg
    More information
  • MA180180QE18 FV
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    180 mm
    205 mm
    20 mm
    180 mm
    0.209 kg
    More information
  • MA180300QE18 A4
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    300 mm
    205 mm
    20 mm
    180 mm
    0.130 kg
    More information
  • MA180300QE18 FV
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    300 mm
    205 mm
    20 mm
    180 mm
    0.169 kg
    More information
  • MA300120QE18 A4
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    120 mm
    325 mm
    20 mm
    300 mm
    0.185 kg
    More information
  • MA300120QE18 FV
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    120 mm
    325 mm
    20 mm
    300 mm
    0.251 kg
    More information
  • MA300180QE18 A4
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    180 mm
    325 mm
    20 mm
    300 mm
    0.205 kg
    More information
  • MA300180QE18 FV
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    180 mm
    325 mm
    20 mm
    300 mm
    0.268 kg
    More information
  • MA300300QE18 A4
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    300 mm
    325 mm
    20 mm
    300 mm
    0.130 kg
    More information
  • MA300300QE18 FV
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    300 mm
    325 mm
    20 mm
    300 mm
    0.169 kg
    More information
  • MA85120QE18 A4
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    120 mm
    105 mm
    20 mm
    85 mm
    0.109 kg
    More information
  • MA85120QE18 FV
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    120 mm
    105 mm
    20 mm
    85 mm
    0.152 kg
    More information
  • MA85180QE18 A4
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    180 mm
    105 mm
    20 mm
    85 mm
    0.130 kg
    More information
  • MA85180QE18 FV
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    180 mm
    105 mm
    20 mm
    85 mm
    0.169 kg
    More information
  • MA85300QE18 A4
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    300 mm
    105 mm
    20 mm
    85 mm
    0.130 kg
    More information
  • MA85300QE18 FV
    JORDAHL Maueranschlussanker JMA-QE
    3 mm
    300 mm
    105 mm
    20 mm
    85 mm
    0.169 kg
    More information
