JMA-Q Series 18

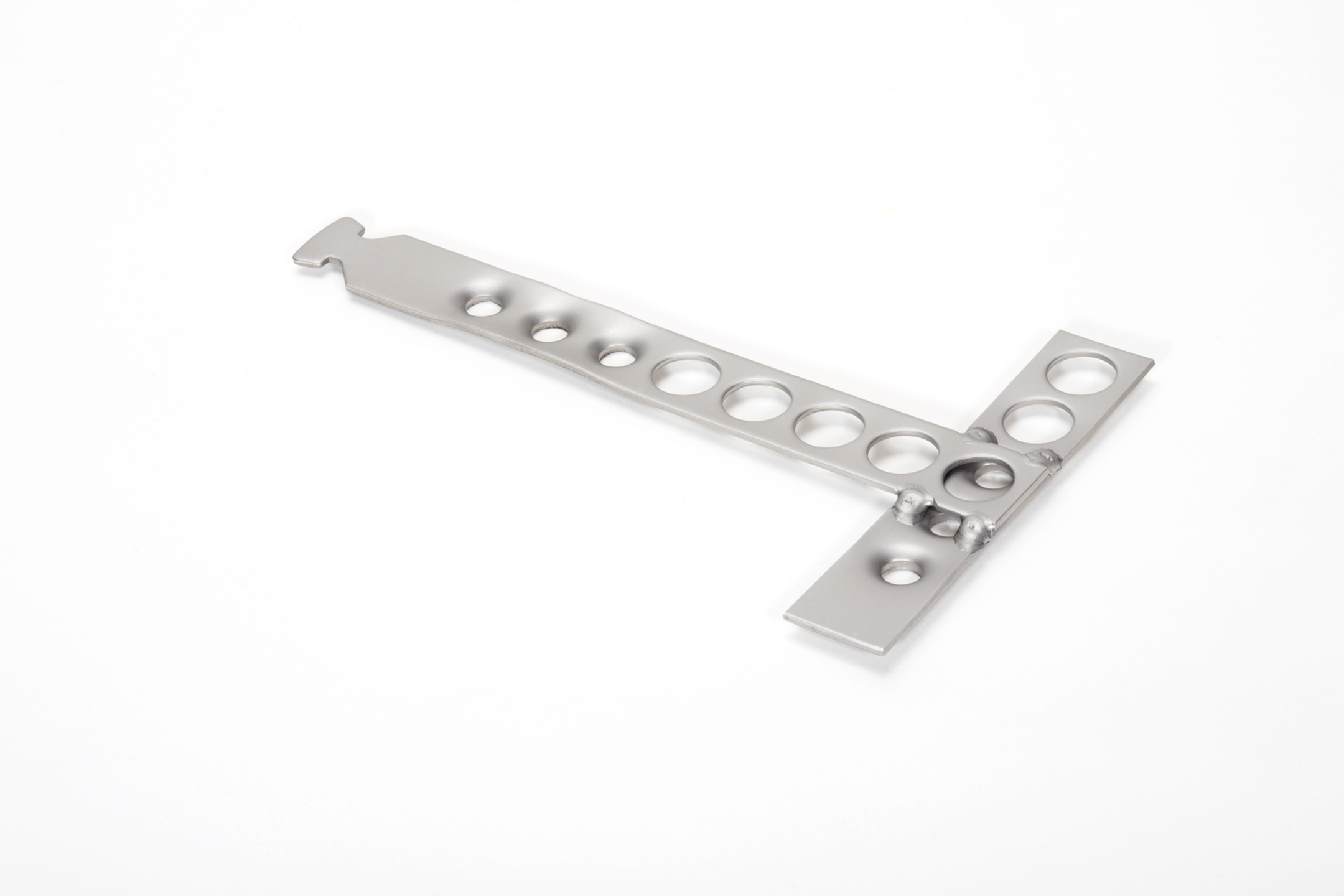

Brick tie anchor for fastening masonry to channels

The brick tie anchor JMA-Q in T-shape of series 18 is made of stainless steel or hot-dip galvanised steel and is suitable for profiles K 38/17.

Get in touch Download datasheet

Variants

Article

H

B

L

L1

L2

W

  • MA180180Q18 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    180 mm
    205 mm
    20 mm
    180 mm
    0.164 kg
    More information
  • MA180180Q18 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    180 mm
    205 mm
    20 mm
    180 mm
    0.209 kg
    More information
  • MA180300Q18 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    300 mm
    205 mm
    20 mm
    180 mm
    0.205 kg
    More information
  • MA180300Q18 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    300 mm
    205 mm
    20 mm
    180 mm
    0.268 kg
    More information
  • MA300120Q18 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    120 mm
    325 mm
    20 mm
    300 mm
    0.185 kg
    More information
  • MA300120Q18 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    120 mm
    325 mm
    20 mm
    300 mm
    0.251 kg
    More information
  • MA300180Q18 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    180 mm
    325 mm
    20 mm
    300 mm
    0.205 kg
    More information
  • MA300180Q18 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    180 mm
    325 mm
    20 mm
    300 mm
    0.268 kg
    More information
  • MA300300Q18 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    300 mm
    325 mm
    20 mm
    300 mm
    0.247 kg
    More information
  • MA300300Q18 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    300 mm
    325 mm
    20 mm
    300 mm
    0.328 kg
    More information
  • MA120120Q18 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    120 mm
    145 mm
    20 mm
    120 mm
    0.123 kg
    More information
  • MA85120Q18 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    120 mm
    105 mm
    20 mm
    85 mm
    0.152 kg
    More information
  • MA85180Q18 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    180 mm
    105 mm
    20 mm
    85 mm
    0.130 kg
    More information
  • MA85180Q18 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    180 mm
    105 mm
    20 mm
    85 mm
    0.169 kg
    More information
  • MA85300Q18 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    300 mm
    105 mm
    20 mm
    85 mm
    0.205 kg
    More information
  • MA85300Q18 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    300 mm
    105 mm
    20 mm
    85 mm
    0.229 kg
    More information
  • MA180120Q12 A4
    JORDAHL brick tie anchor JMA-Q
    2 mm
    120 mm
    205 mm
    20 mm
    180 mm
    0.143 kg
    More information
  • MA120300Q12 A4
    JORDAHL brick tie anchor JMA-Q
    2 mm
    300 mm
    145 mm
    20 mm
    120 mm
    0.185 kg
    More information
  • MA120300Q12 FV
    JORDAHL brick tie anchor JMA-Q
    2 mm
    300 mm
    145 mm
    20 mm
    120 mm
    0.250 kg
    More information
  • MA120300Q18 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    300 mm
    145 mm
    20 mm
    120 mm
    0.185 kg
    More information
  • MA120120Q18 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    120 mm
    145 mm
    20 mm
    120 mm
    0.174 kg
    More information
  • MA120180Q18 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    180 mm
    145 mm
    20 mm
    120 mm
    0.143 kg
    More information
  • MA120180Q18 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    180 mm
    145 mm
    20 mm
    120 mm
    0.191 kg
    More information
  • MA120300Q18 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    300 mm
    145 mm
    20 mm
    120 mm
    0.250 kg
    More information
  • MA180120Q18 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    120 mm
    205 mm
    20 mm
    180 mm
    0.143 kg
    More information
  • MA180120Q18 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    120 mm
    205 mm
    20 mm
    180 mm
    0.151 kg
    More information
  • MA85120Q18 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    120 mm
    105 mm
    20 mm
    85 mm
    0.109 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en
