Art.-Nr. JDA-FT-KL12235640-0004

JORDAHL JDA element FT-KL

Punching shear reinforcement for transmitting high shear forces in precast slabs

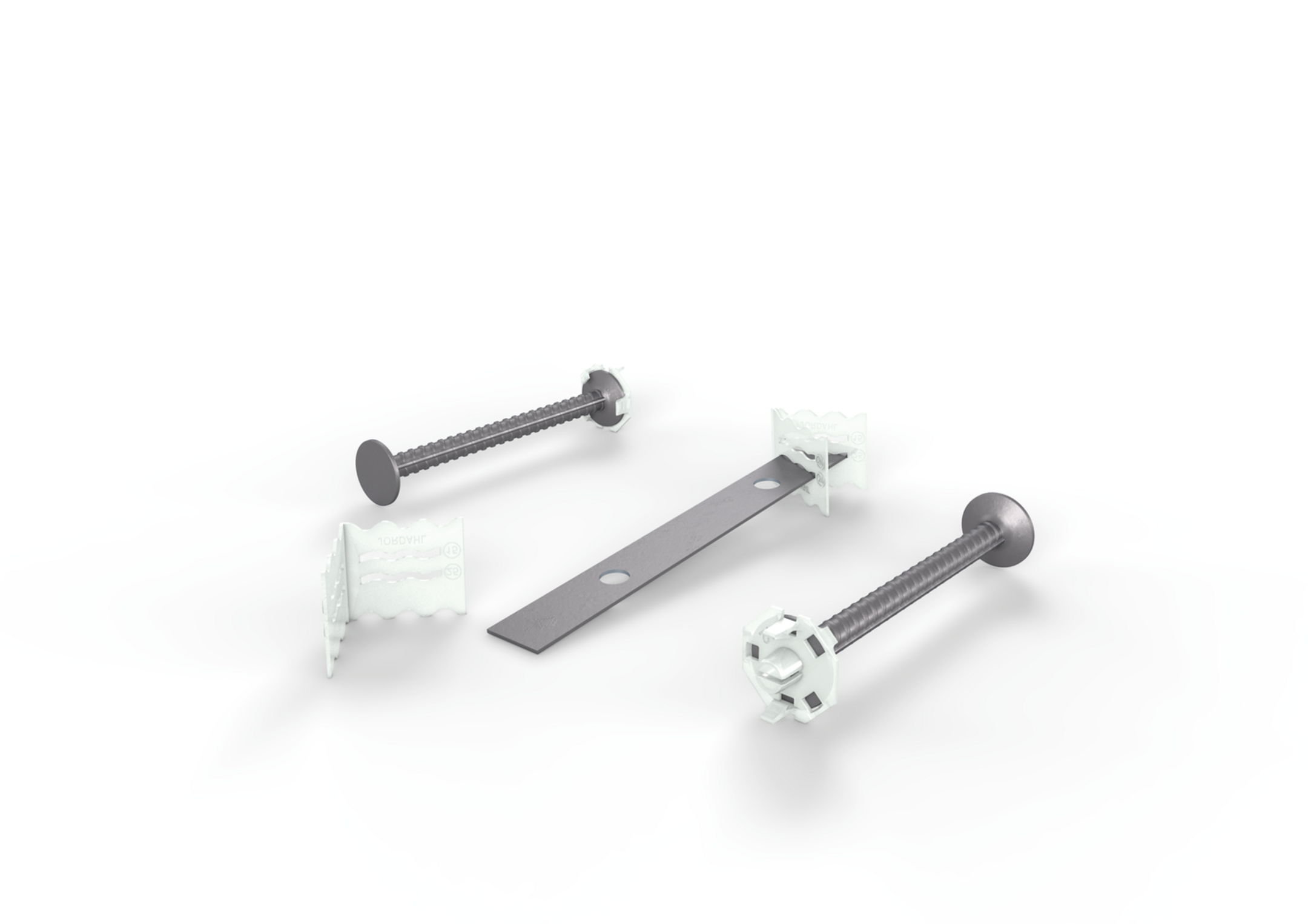

JDA-FT-KL 12 punching shear reinforcements are approved for static and dynamic effects throughout Europe by ETA-13/0136 and have environmental product declaration EPD-JDL-20200260-IBB1-DE. The double-headed anchors are available made from ribbed reinforcing steel. The strip is made of structural steel and the pre-assembled clip on the anchor element is made of plastic. Special solutions are available on request.

Art.-Nr.
JDA-FT-KL12235640-0004
height
239 mm
width
36 mm
length
640 mm
Weight per storage unit
1.553 kg
Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
European Technical Assessment: ETA-13/0136
Get in touchDownload datasheet
